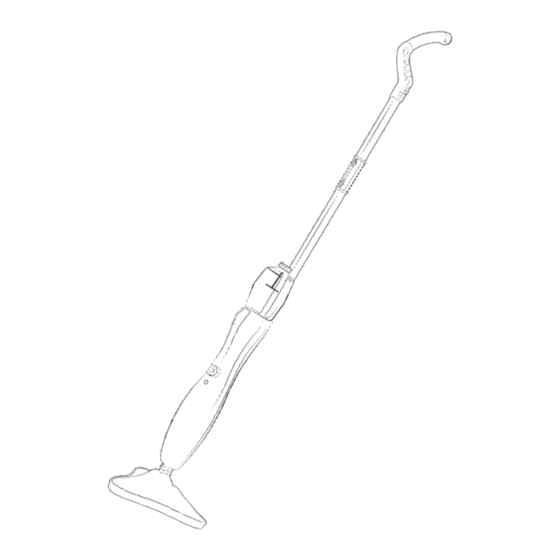

- Page 1 Steam Mop User guide Model No: ASM2001 For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Or visit us at www.productcareuk.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
……………………………………… Connection to the mains supply ……………………………………… Thank you for purchasing your Abode Steam Mop. With a three corner mop head for flexible cleaning and an ergonomic handle for comfort, cleaning your floors has never been so easy. What’s more, you can rest assured in the knowledge that the detergent free sanitisation kills most known household germs whilst also being good for the environment. -
Page 3: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Safety instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts. - Page 4 Safety instructions • Do not direct steam at people, animals, electrical outlets, or equipment containing electrical components. • Unplug from power outlet when not in use. Do not leave steam mop unattended while plugged in. • Do not use with damaged cord or plug. •...
- Page 5 Safety instructions • The filling aperture must not be opened during use. • Do not use appliance in an enclosed space filled with vapor given off by oil-based paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
-
Page 6: Steam Mop Feature Diagram
Steam mop feature diagram Handle Mop head Water tank cap Mop pad Water tank Filler cup Steam dial Carpet glider Power indicator light... -
Page 7: Steam Mop Assembly
Steam mop assembly Before using your steam mop: Remove all packaging and lay out the separate components. Check the steam mop after unpacking for any visual damage such as: • Misaligned or damaged parts • Damage to the main body and separate components •... - Page 8 Insert the handle into the slot of the main body behind the water tank, as per the diagram below. Ensure it is fully pushed in, so the black clip is visible in the main body. Attach the mop pad, aligning the velcro with the base of the mop head.
-
Page 9: Using Your Steam Mop
Using your steam mop Note: Fully vacuum and sweep the floors prior to using the steam mop. Release the power cord, plug the steam mop into a mains socket and switch the power on. When the steam mop is plugged in, the indicator light will illuminate. - Page 10 Using your steam mop If you wish to steam clean hard floors, continue to use the mop pad. If you wish to steam clean carpets, add the plastic carpet glider to the mop pad by gently sitting the mop head in it. Note: The steam cleaner does not clip into the carpet glider.
-
Page 11: Storing Your Steam Mop
Storing your steam mop After use, turn the steam dial 180° clockwise from the ‘open’ to the ‘close’ position. Note: Be careful not to force the dial further than the position in which it stops. Switch the power off at the plug socket and remove the plug. -
Page 12: Cleaning And Care
Cleaning and Care Before you clean the appliance, disconnect the mains plug from the wall socket. To clean the exterior of the device, use a damp, soft cloth and mild detergent. NEVER IMMERSE THE STEAM MOP IN WATER. When wiping off the main body, do not allow moisture in the area around the indicator light. -
Page 13: Problem Solving
Problem Solving PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION 1. Difficult to attach mop 1. The main body of the product can be pushed down into head. the nozzle of the mop head. Ensure the groove is aligned correctly with the body. Refer to page 7 of the instruction manual provided. - Page 14 Problem Solving PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION 1. The unit may not be 1. Verify the unit is plugged securely into an approved The indicator light is plugged in properly/the electrical outlet and that the fuse or breaker is functioning not working fuse or breaker may not properly.
-
Page 15: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: •... -
Page 16: Customer Support
Customer support Attach your receipt to this page for proof of purchase. We’re here should you need us For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com Produced for: G2S Limited... -
Page 17: Spare Parts
Spare parts The following spare parts are available to purchase online or by calling Product Care. Visit us at www.productcareuk.com Or call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm Carpet Glider Mop pads Handle/ Mop head... -
Page 18: Connection To The Mains Supply
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230V - 240V ~ 50/60HZ. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. - Page 19 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or...
- Page 20 Model number: ASM2001...
