Page 2: Table Of Contents
Rear window defroster Lights Headlamps Turn signal control Bulb replacement Driver Controls Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Adaptive cruise control Locks and Security Keys Locks Anti-theft system 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 3 Hazard flasher control Fuel pump shut-off Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing Customer Assistance Reporting safety defects (U.S. only) Reporting safety defects (Canada only) Cleaning 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 5: Introduction
The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it. For more information on Ford Motor Company and its products visit the following website: • In the United States: www.ford.com •...
Page 6 Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 7 Tires should always be kept at the correct inflation pressures and extra caution should be taken when operating on rough roads to avoid impacts that could cause wheel and tire damage. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 8 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may...
Page 9 EDR. Ford Motor Company and Ford of Canada do not access event data recorder...
Page 10 WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 11 Brake Fluid - Parking Aid System Non-Petroleum Based Stability Control System Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Rear Window Defrost/Demist Defrost/Demist 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 12 Sparks Explosive Gas Fan Warning Maintain Correct Fluid Power Steering Fluid Level Service Engine Soon Engine Air Filter Passenger Compartment Jack Air Filter Low Tire Pressure Check Fuel Cap Warning 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 13: Instrument Cluster
Warning lights can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 14: Instrument Cluster
Powertrain malfunction/reduced power (RTT): Illuminates when a powertrain or an AWD fault has been detected. Contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 15 A Belt-Minder chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder chime feature. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 16 (TPMS) in the Tires, Wheels and Loading chapter. Low fuel (RTT): Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 17 Door ajar (RTT): Displays when the ignition is on and any door is not completely closed. Tailgate ajar (RTT): Displays when the ignition is on and the trunk is open. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 18 Parking brake on chime: Sounds when the parking brake is left on and the vehicle is driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 19: Gauges
If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let then engine cool. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 20 This is also used to configure different vehicle personalization options and display the status of various vehicle functions. See Optional message center in this chapter for more information. 2. Speedometer: Indicates the current vehicle speed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 21: Message Center
BASE MESSAGE CENTER (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 22 In this mode, you can view vehicle information and configure different vehicle settings. Press the right arrow key (when in the Settings menu) to reach the different menus. Note: Some items are optional and may not appear. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 23 Zone (1–15) See the diagram below to determine your magnetic zone. Determine which magnetic zone you are in for your geographic location by referring to the zone map. 7 8 9 1011 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 24 Auto or Off Climate Control Driver Seat Auto or Off Climate Control Passenger Seat Auto or Off Duration (5, 10 or 15 minutes) Quiet Start System Wipers Courtesy Wipe Rain Sensing Reverse Wiper 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 25 In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds. The message center will display the last selected feature if there are no more warning messages. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 26 3mph (5 km/h). If the warning stays on after the parking brake is released, contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 27 Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 28 MYKEY ACTIVE DRIVE SAFELY — Displayed when MyKey™ is active. MYKEY NOT CREATED — Displayed during key programming when MyKey™ cannot be programmed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 29 (BLIS ) with Cross Traffic Alert in the Driving chapter. BLIND SPOT SYSTEM FAULT (if equipped) — Displayed when a fault with the blind spot information system has occurred. Contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 30 The message center is also used to program/configure the different features of your vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 31 Display Mode Trip 1 & 2 Fuel Economy Settings Information Scroll up/down to highlight one of the categories, then press the right arrow key or OK to enter into that category. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 32 + Bar tachometer • Distance to empty (DTE): Shows approximate fuel level before the fuel tank reaches empty. The value is dynamic and can change (raise or lower) depending on driving style. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 33 If the engine coolant temperature exceeds the normal range, stop the vehicle as soon as safely possible, switch off the engine and let the engine cool. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 34 The selected gear will be displayed at the bottom of the vertical bar tachometer (if selected). 1000 The selected gear will be displayed within the full analog tachometer (if selected). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 35 • Estimated amount of fuel consumed — shows the amount of fuel used for a given trip. • Elapsed trip time — timer stops when the vehicle is turned off and restarts when the vehicle is restarted. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 36 • Differences in the automatic shut-off points on the fuel pumps at service stations. • Variations in top-off procedure from one fill-up to another. • Rounding of the displayed values to the nearest 0.1 gallon (liter). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 37 Off, 10 / 20 (default setting) / 30 / 60 / 90 / 120 / 180 seconds Easy Entry/Exit On (default on key cycle) / Off Fuel DTE Calculation Normal, Towing Long Term Econ Hold OK to Reset... 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 38 45 mph (72 km/h), 55 mph (89 km/h), 65 mph (105 km/h), Off Volume Limiter On / Off Clear MyKeys Hold OK to Clear MyKeys *Some MyKey items will only appear if a MyKey is set. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 39 If an issue exists on one of the monitored systems, the message center will display the number of warnings that need immediate attention in amber. Use the up/down arrow buttons to scroll through the list. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 40 Maintenance and Specifications chapter. CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 41 TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 42 KEY PROGRAMMED 4 KEYS TOTAL — Displayed during spare key programming, when a fourth intelligent access key is programmed to the system. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 43 MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 44 Information System (BLIS ) with Cross Traffic Alert in the Driving chapter. CROSS TRAFFIC SYSTEM FAULT (if equipped) — Displayed when a fault with the cross traffic alert system has occurred. Contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 45 For more information, refer to the Driving chapter for more information. TRANSPORT MODE CONTACT DEALER — Contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 46: Entertainment Systems
MYFORD™ SYSTEM (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 47 • Press RADIO repeatedly to cycle through AM, AM2-AST, FM1, FM2, FM3-AST frequency bands. • Select the Direct or Tune soft key then scroll through the frequencies by using or the tune knob. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 48 • Set Category: Select to choose a specific music category in FM mode. You can then search for stations only playing this kind of music.Note: RBDS/RDS text must be turn on before “Set Category” will appear. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 49 • To view your presets, press for a list of your saved presets. The display will indicate the preset # that to which the station was saved. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 50 • Set Category: Select to scroll through a list of available SIRIUS channel categories (Pop, Rock, News, etc.) Note: If you select a category, the seek and scan functions will only stop on channels in that category. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 51 • Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 52 Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Page 53 • Press to play/pause a track. • Select the Repeat soft key to repeat the current song. • Select the Shuffle soft key to shuffle the songs on the current disc. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 54 (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached. CDs with...
Page 55: Auxiliary Input Jack (Line In)
Auxiliary input jack (line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 56: Myford Touch™ System
MYFORD TOUCH ™(IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
Page 57: Climate Controls
A/C mode. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 58 2-3 minutes after start-up or until the vehicle has been “aired out.” • A small amount of air may be felt from the floor vent regardless of the air distribution setting that is selected. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 59: Automatic Temperature Control
Message Center section of the Instrument Cluster chapter. 1. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, (defrost) and (floor/defrost). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 60 The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 61 Refer to Touchscreen features later in this section for more information. Temperature conversion: To access the temperature setting, press Menu on the touchscreen. Then press Settings > System > Temperature. Select to view the temperature in either Fahrenheit and Celsius. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 62 The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 63 DUAL: Touch to activate dual zone (separate passenger temperature control). Touch again to deactivate and return to single zone temperature control (where the driver settings control the temperature for the entire vehicle). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 64 If the passenger temperature controls are not activated (dual zone), the driver’s settings will determine the temperature setting for the entire vehicle cabin. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 65 1. Press MAX A/C. The system will default to single-zone operation and set the temperature to 60°F (16°C). 2. A/C, will be selected. 3. Fan speed will be determined by the vehicle’s internal temperature, but can be adjusted as desired. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 66: Touchscreen Features
(if equipped). Refer to Heated seats in the Seat and Safety Restraints chapter. (Fan speed): Press to + to increase or – to decrease fan speed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 67 : Distributes air through the instrument panel vents. To return to full automatic control, press AUTO. • : Distributes air through the instrument panel vents, demister vents, floor vents, rear seat floor vents. To return to full automatic control, press AUTO. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 68 • Temperature High • Temperature Low • Fan Increase • Fan Decrease • Temperature • Temperature Increase • Temperature <15.5–29.5> • Temperature Decrease degrees • Temperature <60–85> degrees • My Temp • Help 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 69: Rear Window Defroster
Automatic climate control For hot weather conditions: • The interior cabin will be cooled to 72°F (22°C). • The cooled seats (if equipped) will be set to high. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 70 For replacement intervals regarding the cabin air filter, see the scheduled maintenance information. For more information regarding your filter, see your authorized dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 71: Lights
(Steps 1 through 6 must be done within 10 seconds): 1. Turn the vehicle off. 2. Rotate the headlamp control to the autolamp position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 72 (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 73 Vertical aim adjustment 1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 74 There is a distinct cut-off (change from light to dark) in the left portion of the beam pattern. The top edge of this cut-off should be positioned two inches (5 cm) below the horizontal reference line. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 75: Turn Signal Control
• Push the lever up/down to the first stop position and hold. The turn signals will flash for as long as the lever is held in this position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 76 • any door is opened. • any of the remote entry controls are pressed and the ignition is off. The courtesy lamp can also be turned on and off manually by pressing the lens depression. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 77: Bulb Replacement
Trade Function Number of bulbs number Headlamp high/low beam HIR2 (halogen) * HID (high intensity discharge) headlamp * Front sidemarker lamp Front park/turn signal 3457NAK lamp (amber) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 78 Check the operation of all the bulbs frequently. Replacing headlamp bulbs Check the operation of all bulbs frequently. 1. Make sure that the headlamp control is in the off position. 2. Open the hood. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 79 The oil from your hand could cause the bulb to break the next time the headlamps are operated. 6. Reverse the procedure to install the new bulb. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 80 5. Carefully pull the bulb out of the socket and push in the new bulb. 6. Install the bulb socket into the lamp assembly and rotate clockwise. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 81 Replacing high-mount brake lamp bulbs Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, see your authorized dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 82 4. Pull bulb straight out of socket and push in the new bulb. 5. Install the bulb socket into the lamp assembly and rotate clockwise. 6. To install, carefully press the lamp assembly into the liftgate. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 83: Driver Controls
Note: The rain sensing wiper feature must be turned off before entering a car wash. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 84 Select: 2 — Intermittent operation (shortest pause between wipes). 1 — Intermittent operation (longest pause between wipes). O (off) — Rear wiper and washer off. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 85: Steering Wheel Adjustment
3. While holding the steering wheel in place, pull the lever up to its original position to lock the steering column. WARNING: Never adjust the steering wheel when the vehicle is moving. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 86 Press the release area on the rear edge of the bin door to open the storage compartment. The door will open to the full open position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 87 Note: Do not plug optional electrical accessories into the cigarette lighter socket (if equipped). Improper use of the lighter can cause damage no covered by your warranty, and can result in fire or serious injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 88: Power Windows
Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 inches (5–8 cm). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 89 With accessory delay, the audio system, power windows and moon roof (if equipped) operate for up to 10 minutes after the ignition is turned off or until either front door is opened. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 90: Mirrors
2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 91 Your vehicle may be equipped with blind spot mirrors or a blind spot information system. Refer to Blind spot mirrors or Blind spot information system (BLIS ) with cross traffic alert (CTA) in the Driving chapter. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 92: Speed Control
Disengaging speed control To disengage the speed control, press the brake pedal or press and release CNCL. Disengaging the speed control will not erase the previous set speed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 93: Adaptive Cruise Control
ON/OFF control or pressing the RES/CNCL control. In addition, the driver can temporarily increase the vehicle speed above the current speed by manually pressing on the accelerator pedal. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 94 Press to resume or cancel a set speed. ON/OFF: Press to turn the system on or off. GAP: Press to change the distance between your vehicle and the vehicle in front of you. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 95 The maximum braking which is applied by the ACC system is limited and can be overridden by the driver applying the brakes. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 96 Each time the vehicle is restarted, the last chosen gap for the current driver will be automatically selected. Note: It is the driver’s responsibility to select a gap appropriate to the driving conditions. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 97 The set speed will display continuously in the message center while ACC is active. Note: Resume should only be used if the driver is aware of the set speed and intends to return to it. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 98 The radar sensor has a limited field of vision. In some situations it may not detect vehicles at all or detect a vehicle later than expected. Detection issues can occur: • When driving on a different line than the vehicle in front. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 99 • The sensor is blocked, refer to Blocked sensor in this section. • Brake temperature is high, refer to Hilly condition usage in this section. • A failure has occurred in the ACC system or related system. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 100 Aftermarket trailer brakes will not function properly when ACC is activated because the brakes are electronically controlled. Failing to do so may result in loss of vehicle control, which could result in serious injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 101 MEDIA: Press repeatedly to scroll through available audio modes. MUTE: Press to silence the radio. VOL (Volume): Press up or down to increase or decrease the volume. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 102 • Navigation (if equipped) • Redundant center stack display • Routed map • Phone • Redundant center stack display • Favorite contacts • Climate • On • Fan speed • Temperature 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 103 To stop the one-touch open feature press the control again. Note: The “comfort” position helps to alleviate rumbling wind noise which may happen in the vehicle with the roof fully opened. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 104 Do not use the HomeLink Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 105 HomeLink button and observe the indicator light. • If the indicator light stays on constantly, programming is complete and your device should activate when the HomeLink button is pressed and released. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 106 HomeLink . The indicator light will flash slowly and then rapidly after HomeLink accepts the radio frequency signal. • Proceed with Step 3 in the Programming section. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 107 2. The indicator light will begin to flash after 20 seconds. Without releasing the HomeLink button, follow Step 1 in the Programming section. For questions or comments, contact HomeLink at www.homelink.com or 1–800–355–3515. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 108 • Do not leave the liftgate open while driving. Doing so could cause serious damage to the liftgate and its components as well as allowing carbon monoxide to enter the vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 109 • the ignition is in on and the transmission is not in P (Park); • or the battery voltage is below the minimum operating voltage; • or the vehicle speed is at or above 3 mph (5 km/h). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 110 Message center in the Instrument Cluster chapter. To power open or close the liftgate from the instrument panel: Press the button, located to the left of the steering column, once to power open or close the liftgate. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 111 Note: The liftgate movement direction can be reversed with a second press of the instrument panel, or the rear cargo area control button, or a second double press of the transmitter button. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 112 The power liftgate is still operational through the use of the transmitter and instrument panel button when the power liftgate is turned off in the message center. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 113 The cargo net secures lightweight objects in the cargo area. Attach the net to the loops and anchors provided. WARNING: This net is not designed to restrain objects during a collision. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 114 Your vehicle may be equipped with factory-installed crossbars. Ford Genuine Accessory crossbars, designed specifically for your vehicle, are also recommended for use with your roof rack system.
Page 115: Locks And Security
Note: Your vehicle’s IKTs were issued with a security label that provides important vehicle key cut information. It is recommended that you keep the label in a safe place for future reference. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 116 Note: Your vehicle’s IA back-up keys were issued with a security tag that provides important vehicle key cut information. It is recommended that you keep the tag in a safe place for future reference. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 117 MyKey™ user will not be able to deactivate the system. Note: It may be beneficial to deactivate the AdvanceTrac system if the vehicle is stuck in snow, mud, or sand. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 118 1. At the main menu screen select SETTINGS then MYKEY by pressing OK or the right arrow key. 2. Press the down arrow key to get to CLEAR MYKEYS. 3. Hold OK until you see ALL MYKEYS CLEARED. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 119 2. In addition to the key that you have already programmed as a MyKey™., owners of vehicles equipped with traditional keys may want to program the non Ford-approved remote start system as a MyKey™ if the remote start fob is used by the MyKey driver.
Page 120 1. Enter the vehicle and close all doors. 2. Remote start the vehicle using a non Ford-approved remote start fob. 3. Follow steps 1-4 in the Create a MyKey™ section. Vehicles equipped with an intelligent access key (push button start) •...
Page 121 • SecuriLock passive anti-theft system is disabled or in unlimited mode. • Vehicle has been started using a non Ford-approved remote start system that is programmed as MyKey™. Refer to Using MyKey™ with remote start systems section. • Key in the ignition is a MyKey™.
Page 122 Locks and Security Condition Potential Causes • Vehicle has a non Ford-approved remote I accidentally programmed all keys as MyKeys™ start system that is recognized as an admin key. Refer to the Using MyKey™ with remote start systems section to reset all MyKeys™...
Page 123: Locks
IA key or touching the locking area on the handle with another IA key in your hand. Refer to Keyless entry system in this chapter for more information on keyless entry keypad operation. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 124 6. Release the 3 • 4. The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 125 5. Release the 3 • 4. The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 126 A decrease in operating range could be caused by: • weather conditions, • nearby radio towers, • structures around the vehicle, or • other vehicles parked next to your vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 127 3 feet (1 meter) of the front doors you can activate your intelligent access system by pulling a front exterior door handle. The door(s) will automatically unlock and the door can be opened. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 128 Note: If any door or the liftgate is not closed, or if the hood is not closed on vehicles equipped with a perimeter alarm or remote start, the horn will chirp twice and the lamps will not flash. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 129 The seat will move to the final position when the ignition is switched out of off (if easy entry feature is enabled). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 130 The memory feature also coordinates with user-created profile settings utilizing the infotainment touchscreen system (if equipped). See the Creating a user profile section in the MyFord Touch™ supplement for more information. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 131 Note: Do not wipe off any grease on the battery terminals or on the back surface of the circuit board. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 132 • the vehicle is locked using the keyless entry keypad, or • after 25 seconds of illumination. The lights will not turn off if: • they have been turned on with the dimmer control, or • any door is open. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 133 Message center in the Instrument Cluster chapter to learn how to enable different climate options. A manual climate control system will run at the setting it was set to when the vehicle was last turned off. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 134 1. Press to lock all the doors. 2. Press two times. The exterior lamps will flash twice. If for some reason, the system fails to start, the horn will chirp. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 135 • lock or unlock the doors without using a key. • recall memory seat/power mirrors positions (if equipped). • enable/disable autolock and autounlock. • program/erase user codes. • arm/disarm the perimeter alarm system. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 136 3. Press and hold the 1 • 2 for two seconds. This must be done within five seconds of completing Step 2. All personal codes are now erased and only the factory set 5–digit code will work. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 137: Anti-Theft System
Refer to Programming spare integrated keyhead transmitters or Programming spare intelligent access keys for instructions on how to program the coded key. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 138 Note: The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.
Page 139 5. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds. 6. Turn the ignition off and remove the second previously programmed coded key from the ignition. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 140 30 seconds of starting the sequence. If any steps are performed out of sequence, stop and wait for at least one minute before starting again. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 141 • or if the ignition is turned on with an invalid key, the perimeter alarm will flash the turn signal lamps and sound the horn up to a total of 10 times. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 142 • Press the panic control on the remote entry transmitter. The alarm system will still be armed, but this shuts off the horn and turn lamps when the alarm is sounding. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 143 Perimeter alarm issues If there seems to be a potential perimeter alarm system problem with your vehicle, ensure ALL keys/remote entry transmitters are brought to your authorized dealer to aid in troubleshooting. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 144: Seating And Safety Restraints
: • a trimmed energy absorbing foam and structure (1), • two steel stems (2), • and a guide sleeve unlock/remove button (3). • a guide sleeve adjust release button (4), 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 145 For occupants of extremely tall stature, adjust the head restraint to its full up position. WARNING: To minimize the risk of neck injury in the event of a crash, head restraints must be installed properly. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 146 Lift handle to move seat forward or backward. Pump the handle upwards to raise the cushion and pump downward to lower the cushion to the desired location. Pull lever up to adjust seatback. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 147 Always sit upright against your seatback, with your feet on the floor. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 148 Press the front or rear portion to tilt the seat. Press the control to move the seat forward, backward, up or down. Power recline (if equipped) Move the switch to recline the seatback forward or rearward. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 149 The heated seats will turn off after 15 minutes. If the engine falls below 350 rpm while the heated seats are on, the feature will turn itself off and will need to be reactivated. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 150 • the transmission is in N (Neutral) or P (Park) • the key is removed from the ignition cylinder or the push button start system (if equipped) is switched off (refer to Push button start system in the Driving chapter). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 151 After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 152 WARNING: To prevent possible damage to the seat or safety belts, ensure that the safety belts are not buckled when moving the seat to the load floor position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 153 (accessible from the liftgate area). Press and hold the control mechanism to lower the seatback. The top portion lowers the right (40%) seatback, and the bottom portion lowers the left (60%) seatback. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 154 The second row seat reclines for additional comfort. To adjust the second row seatback to the desired position, while seated, pull the release lever up and push the seatback rearward. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 155 Returning the 2nd row armrest to the upright position Close the cover on the cup holders. Rotate the armrest rearward until the armrest is in the latched position. The armrest will click when it is latched into position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 156: Safety Restraints
(crash severity, belt usage, etc.) were not appropriate to activate these safety devices. Front airbags are designed to activate only in frontal and near-frontal collisions (not rollovers, side impacts or rear impacts) unless the collision causes sufficient 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 157 NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 158 Refer to the Warning lights and chimes section in the Instrument Cluster chapter. Routine maintenance of the Personal Safety System is not required. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 159 Be sure everyone in your vehicle is in a seat and using a safety belt properly. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 160 Make sure the tongue is securely fastened in the buckle. 2. To unfasten, press the release button and remove the tongue from the buckle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 161 In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 162 Failure to replace the belt and retractor assembly could increase the risk of injury in collisions. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 163 Also, use the safety belt extension only if the safety belt is too short for you when fully extended. WARNING: Do not use extensions to change the fit of the shoulder belt across the torso. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 164 It is used to adjust the comfort of the shoulder belt for smaller occupants in the outboard second row seats. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 165 The driver’s safety belt is buckled The safety belt warning light and before the ignition switch is indicator chime remain off. turned to the on position... 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 166 3 mph (5 km/h) and more approximately five minutes or until the than 1-2 minutes have elapsed safety belts are buckled. since the ignition switch has been turned to on... 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 167 “The people I’m with don’t Set the example, teen deaths occur 4 wear belts” times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 168 Read Steps 1 - 4 thoroughly before proceeding with the deactivation/activation programming procedure. Note: The driver and front passenger Belt-Minder features must be disabled/enabled separately. Both cannot be disable/enabled during the same key cycle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 169 12 times in three seconds. • This will enable the Belt-Minder feature for that seating position if it is currently disabled. As confirmation, the safety belt warning light will flash 12 times in three seconds. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 170: Airbags
(SRS) is provided. WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 171 (including frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of the vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 172 Rather, it means the forces were not of the type sufficient to cause activation. Front airbags are designed to activate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts unless the collision causes sufficient longitudinal deceleration. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 173 • driver and passenger airbag modules (which include the inflators and airbags) • seat-mounted side airbags. Refer to Seat-mounted side airbag system later in this chapter • safety belt pretensioners • one or more impact and safing sensors 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 174 • the system determines that a small child is present in a booster seat. • a front passenger takes his/her weight off of the seat for a period of time. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 175 • Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 176 • Objects lodged underneath the seat • Objects between the seat cushion and the center console (if equipped) • Objects hanging off the seat back 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 177 • Remove the obstruction(s) (if found). • Restart the vehicle. • Wait at least two minutes and verify that the airbag readiness light in the instrument cluster is no longer illuminated 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 178 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this Owner’s Guide or see your authorized dealer.
Page 179 Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 180 WARNING: Several air bag system components get hot after inflation. Do not touch them after inflation. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 181 If any of these things happen, even intermittently, have the SRS serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a collision. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 182 SRS and Safety Canopy System is provided. WARNING: To reduce risk of injury, do not obstruct or place objects in the deployment path of the inflatable Safety Canopy . 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 183 The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 184 If the Safety Canopy is not replaced, it will not function again, which will increase the risk of injury in a future collision. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 185 The feature will continue to operate until the vehicle runs out of power. Disposal of airbags and airbag equipped vehicles (including pretensioners) Contact your authorized dealer as soon as possible. Airbags MUST BE disposed of by qualified personnel. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 186: Child Restraints
Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle.
Page 187 Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 188 If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 189 WARNING: Do not leave children, unreliable adults, or pets unattended in your vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 190 Highway Traffic Safety Administration (NHTSA) provides education and training to ensure that all children ages 0 to 16 are properly restrained in the correct restraint system. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your seat is appropriate for your child and properly installed in the vehicle.
Page 191 • Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to help prevent accidental unbuckling. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 192 1. Position the child safety seat in a seat with a combination lap and shoulder belt. 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 193 7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, repeat Steps 5 and 6. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 194 1 inch (2.5 cm) of movement for proper installation. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a CPST.
Page 195 Ford Motor Company recommends the use of a child safety seat having a top tether strap. See Attaching child safety seats with tether straps and Recommendations for attaching safety restraints for children in this chapter for more information.
Page 196 Attach the tether strap afterward, if included with the child seat. Refer to Recommendations for attaching child safety restraints for children in this chapter. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 197 Perform the following steps to attach a child safety seat to the tether anchor: 1. Route the child safety seat tether strap over the back of the seat. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 198 WARNING: If the safety seat is not anchored properly, the risk of a child being injured in a collision greatly increases. If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use. Child booster seats The belt-positioning booster (booster seat) is used to improve the fit of the vehicle safety belt.
Page 199 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. Booster seats position a child so that vehicle lap/shoulder safety belts fit better.
Page 200 • High back booster seats If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 201 It is generally best to use a booster seat with lap/shoulder belts in the back seat. Move a child to a different seating location if the shoulder belt does not stay positioned on the shoulder during use. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 202 Refer to the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.
Page 203: Tires, Wheels And Loading
The AWD system is active all the time and requires no input from the operator. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 204 These differences that make your vehicle so versatile also make it handle differently than an ordinary passenger car. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 205: Tire Information
Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
Page 206 • Extra load: A class of P-metric or Metric tires designed to carry a heavier maximum load at 41 psi [43 psi (2.9 bar) for Metric tires]. Increasing the inflation pressure beyond this pressure will not increase the tire’s load carrying capability. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 207: Tire Inflation
Ford Motor Company. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
Page 208 Always inflate your tires to the Ford recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. The Ford recommended tire inflation pressure is found on the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door.
Page 209 For your safety, tires that are damaged or show signs of excessive wear should not be used because they are more likely to blow out or fail. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 210 You should replace your spare tire when you replace the road tires or after six years due to aging even if it has not been used. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 211 (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label or the Tire Label which is located on the B-Pillar or edge of the driver’s door.
Page 212 The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels. The use of wheels or tires not recommended by Ford Motor Company may affect the operation of your tire pressure monitoring system.
Page 213 Front-wheel drive (FWD) vehicles and those with an independent rear suspension (if equipped) may require alignment of all four wheels. The tires should also be balanced periodically. An unbalanced tire and wheel assembly may result in irregular tire wear. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 214 Note: After having your tires rotated, inflation pressure must be checked and adjusted to the vehicle requirements. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 215 You may find this information in your owner’s guide. If not, contact a local tire dealer. Note: You may not find this information on all tires because it is not required by federal law. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 216 This information is used to contact customers if a tire defect requires a recall. 9. M+S or M/S: Mud and Snow, or AT: All Terrain, or AS: All Season. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 217 The cold inflation pressure should never be set lower than the recommended pressure on the vehicle label. The tire suppliers may have additional markings, notes or warnings such as standard load, radial tubeless, etc. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 218 4. Maximum Load Single lb (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single; defined as two tires (total) on the rear axle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 219 B-Pillar or the edge of the driver’s door. Refer to the payload description and graphic in the Vehicle loading – with and without a trailer section. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 220: Tire Pressure Monitoring System (Tpms)
TPMS to continue to function properly. The tire pressure monitoring system complies with part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 221 When one of your road tires needs to be replaced with the temporary spare, the TPMS will continue to identify an issue to remind you that the damaged road wheel/tire needs to be repaired and put back on your vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 222 TPMS If your tires are properly inflated malfunction and your spare tire is not in use and the light remains on, contact your authorized dealer as soon as possible. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 223 Check air pressure in the road tires. If any tire is under-inflated, carefully drive the vehicle to the nearest location where air can be added to the tires. Inflate all the tires to the recommended inflation pressure. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 224 SNOW TIRES AND CHAINS WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
Page 225: Vehicle Loading
Tire Label in order to determine the new payload. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 226 Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space available. Overloading or improperly loading your vehicle can contribute to loss of vehicle control and vehicle rollover. Example only: 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 227 The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The GVW must never exceed the GVWR. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 228 WARNING: Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 229 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 230 In metric units, the calculation would be: 635 kg - (2 x 99 kg) - (9 x 45 kg) = 635 - 198 - 405 = 32 kg. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 231: Trailer Towing
WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of the vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 232 If you use a rental trailer, follow the instructions that the rental agency gives to you. Do not attach safety chains to the bumper. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 233 • Use a lower gear to eliminate excessive shifting and assist in transmission cooling. For additional information, refer to Automatic transmission operation in the Driving chapter. • Allow more distance for stopping with a trailer attached; anticipate stops and brake gradually. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 234: Recreational Towing
If you are towing with all four wheels on the ground, refer to the towing instructions below. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 235 • Do not exceed 65 mph (105 km/h) • Start the engine and allow it to run for five minutes at the beginning of each day and at each fuel stop. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 236: Driving
WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 237 Safety Restraints chapter. 2. Make sure the headlamps and electrical accessories are off. • Make sure the parking brake is set. • Make sure the gearshift is in P (Park). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 238 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 239 There may be areas inside your vehicle where the IA key is not detected. If the message NO KEY DETECTED appears on your message center when you press the START/STOP button, it may be necessary to move 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 240 In order to avoid draining your battery, it is recommended that you always shift to P (Park) before or immediately after switching your vehicle off. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 241 The block heater system is most effective when outdoor temperatures reach below 0°F (-18°C). WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 242 • Finally, have the engine block heater system checked during your fall tune-up to be sure it’s in good working order. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 243: Brakes
ABS and will increase your vehicle’s stopping distance. The ABS will be activated immediately, allowing you to retain steering control during hard braking and on slippery surfaces. However, the ABS does not decrease stopping distance. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 244 Turn the engine off, shift to P (Park) and apply the parking brake, and then inspect the accelerator pedal for any interferences. If none are found and the condition persists, have your vehicle towed to the nearest dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 245: Advancetrac
• Traction control system (TCS), which functions to help avoid drive-wheel spin and loss of traction. • Electronic stability control (ESC), which functions to help avoid skids or lateral slides 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 246 Operating your vehicle with AdvanceTrac with RSC disabled could lead to an increased risk of loss of vehicle control, vehicle rollover, personal injury and death. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 247 Excessive wheel spin is controlled in two ways, which may work separately or in tandem; engine traction control and brake traction control. Engine traction control works to limit drive-wheel spin by 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 248 • Entering a paved road from a gravel road, or vice versa • Cornering while towing a heavily loaded trailer (refer to Trailer towing in the Tires, Wheels and Loading chapter). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 249 In R (Reverse), ABS and the engine traction control and brake traction control features will continue to function. However, ESC and RSC are disabled. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 250 This may cause the system to activate multiple times, and you may experience a slight deceleration of the vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 251 WARNING: Turning off trailer sway control increases the risk of loss of vehicle control, serious injury, or death. Ford does not recommend disabling this feature except in situations where speed reduction may be detrimental (e.g., hill climbing), the driver has...
Page 252 6. Apply the brake pedal, start the vehicle, and release the parking brake. See your authorized dealer as soon as possible if this procedure is used. WARNING: Do not drive your vehicle until you verify that the brakelamps are working. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 253: Transmission Operation
This fuel economy benefit may be perceived as a light to medium braking sensation when removing your foot from the accelerator pedal. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 254 The automatic transmission shift strategy has the ability to detect hilly terrain or mountainous areas and will provide a limited amount of grade assist features automatically. Refer to D (Drive) with Grade Assist or SelectShift for more information. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 255 • The transmission will operate in gears one through six. L (Low) • Provides maximum engine braking. • Will downshift to the lowest available gear for the current vehicle speed; allows for first gear when vehicle reaches slower speeds. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 256 • To manually downshift the transmission, pull the – paddle. • To manually upshift the transmission, pull the + paddle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 257 WARNING: The hill start assist system does not replace the parking brake. When you leave the vehicle, always apply the parking brake and select first or reverse gear. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 258 Do not rock the vehicle for more than a minute or damage to the transmission and tires may occur, or the engine may overheat. It may be beneficial to turn the AdvanceTrac with RSC system off so the wheels are allowed to spin. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 259: Reverse Sensing System
WARNING: Certain add-on devices such as large trailer hitches, bike or surfboard racks and any device that may block the normal detection zone of the RSS system may create false beeps. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 260 RSS. If your vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles or false alarms. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 261: Rear-View Camera System
3. Select Rear View Camera The fixed guideline options are ON and OFF. • (1) Rear bumper • (2) Red zone • (3) Yellow zone • (4) Green zone • (5) Center line of vehicle 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 262 When enabled, Level 1, Level 2, or Level 3 will only be active while the vehicle is in R (Reverse). The feature disables outside of R (Reverse) and must be re-enabled the next time the vehicle shifts into R (Reverse). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 263 Note: If the camera system image is not clear or seems distorted, it may be covered with water droplets, snow, mud or any other substance. If this occurs, clean the camera lens before using the camera system. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 264 • If the image is not clear, check if anything is covering the lens such as dirt, mud, ice, snow, etc. If the image is still not clear after cleaning, have your system inspected by your authorized dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 265 The collision warning system is active at speeds above approximately 5 mph (8 km/h). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 266 When the radar signals are obstructed, a vehicle ahead cannot be detected and the collision warning system will not function. The following table lists possible causes and actions for this message being displayed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 267 Setting lower sensitivity would lead to fewer and later system warnings. Refer to the Message center in the Instrument Cluster chapter for instructions on reducing the sensitivity. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 268 As the vehicle leaves the blind spot mirror it will transition to the driver’s peripheral field of view (3). WARNING: Objects in the blind spot mirror are closer than they appear. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 269 (Neutral). If the transmission is shifted out of D (Drive) or N (Neutral) the system will enter the CTA mode (see CTA operation below). Once shifted back in to D (Drive) the BLIS mode will activate once driven above 3 mph (5 km/h). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 270 False alerts are temporary and self correct. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 271 CTA sensors (refer to figure for approximate zone coverage areas [sensor obstructed for vehicle on left]). Backing slowly from the parking spot in these situations helps to increase the sensor coverage and effectiveness. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 272 False alerts are temporary and self correct. CTA and reverse sensing system (RSS) interaction CTA works along with the reverse sensing system (RSS) (if equipped). Become familiar with the warning tones of both systems. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 273 TRAFFIC NOT AVAILABLE warning and the appropriate left and/or right exterior mirror alert indicator will illuminate. The message center warning may be cleared by the driver but the exterior mirror alert indicator will remain illuminated. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 274 Trailer tow false alerts When towing a trailer, the sensors may detect the trailer thus causing a false alert. It may be desirable to turn the BLIS off if the false alerts become annoying. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 275 AWD function as soon as possible, stop the vehicle in a safe location and allow it to idle. The AWD OFF message will turn off when the system cools and normal AWD function returns. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 276 Remember, your safety and the safety of others should be your primary concern. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 277 Use all available road surface to return the vehicle to a safe direction of travel. • In the event of an emergency stop, avoid skidding the tires and do not attempt any sharp steering wheel movements. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 278 Once through water, always try the brakes. Wet brakes do not stop the vehicle as effectively as dry brakes. Drying can be improved by moving your vehicle slowly while applying light pressure on the brake pedal. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 279 Ford Motor Company joins the U.S. Forest Service and the Bureau of Land Management in encouraging you to help preserve our national forest and other public and private lands by “treading lightly.”...
Page 280 If the rear end of the vehicle slides while cornering, steer in the direction of the slide until you regain control of the vehicle. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 281 Any modifications to a vehicle that raise the center of gravity can make it more likely the vehicle will rollover as a result of a loss of control. Ford Motor Company recommends that caution be used with any vehicle equipped with a high load or device (such as ladder or luggage racks).
Page 282: Roadside Emergencies
Roadside Emergencies ROADSIDE ASSISTANCE Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...
Page 283: Hazard Flasher Control
Assistance, call 1-800-241-3673. Canadian customers who require roadside assistance, call 1-800-665-2006. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles (56 km). To obtain reimbursement information, U.S.
Page 284: Fuel Pump Shut-Off
WARNING: Failure to inspect and if necessary repair fuel leaks after a collision may increase the risk of fire and serious injury. Ford Motor Company recommends that the fuel system be inspected by an authorized dealer after any collision. FUSES AND RELAYS...
Page 285 To remove a fuse, use the fuse puller tool provided on the fuse panel cover. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 286 Not used (spare) Demand lamps Not used (spare) RF module 7.5A Power mirror switch, Memory seat switch, Driver seat module Not used (spare) Power liftgate Run/accessory relay Instrument panel cluster, Heads-up display 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 287 Steering wheel control, intelligent access (IA), Headlamp switch On-board diagnostics (OBDII) Liftgate release Global positioning system (GPS) module intelligent access (IA) Ignition switch (without IA), Key inhibit solenoid, Push button start (with IA) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 288 (OCS), Restraints control module Grade assist control switch Not used (spare) Not used (spare) Not used (spare) Climate control Not used (spare) 30A Circuit Power windows Breaker — Delayed accessory relay 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 289 79 80 81 82 83 84 85 86 87 The high-current fuses are coded as follows: Fuse/Relay Fuse Amp Power Distribution Box Location Rating Description — Not used — Not used — Not used 30A** Wipers 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 290 Not used — Not used 40A** Rear window defroster 20A** Front power point/lighter 30A** Climate controlled seats — Not used — Not used — Not used — Not used — Not used 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 291 Left TT stop/turn lamps relay — Not used — Wiper relay — Not used 20A* Left high-intensity discharge (HID) headlamps 10A* Alternator sensor 10A* Brake on/off switch 15A* Stop lamps 10A* Rear seat release 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 292 15A* Rear washer — Not used 20A* TT park lamps — Not used 7.5A* PCM keep-alive, PCM relay Run/start relay — Run/start relay — Not used 10A* 10A* Adaptive cruise control 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 293: Changing Tires
(TPMS) and should not be used. However, if you must use a sealant, the TPMS sensor and valve stem on the wheel must be replaced by an authorized Ford dealer. WARNING: Refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter for important information.
Page 294 Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
Page 295 Stopping and securing the vehicle 1. Park on a level surface, activate hazard flashers and set the parking brake. 2. Place the gearshift lever in P (Park) and turn the engine off. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 296 (in both directions) the wheel that is diagonally opposite (other side and end of the vehicle) to the tire being changed. WARNING: If the vehicle slips off the jack, you or someone else could be seriously injured. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 297 Do not start the engine when your vehicle is on the jack. The jack is only meant for changing the tire. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 298 2. Place the jack assembly in the spare tire well aligning it with the two vertical studs. 3. Place the tire in the spare tire well over the jack assembly. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 299: Wheel Lug Nut Torque
20 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.
Page 300 Easy Fuel™ system. This could damage the fuel system and its seal, and may cause fuel to run onto the ground instead of filling the tank, all of which could result in serious personal injury. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 301: Jump Starting
Ensure that vent caps are tight and level. 5. Turn the heater fan on in both vehicles to protect from any electrical surges. Turn all other accessories off. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 302 Ensure that the cables are clear of fan blades, belts, moving parts of both engines, or any fuel delivery system parts. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 303 After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 304: Wrecker Towing
It is recommended that your vehicle be towed with a wheel lift and dollies or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. On FWD vehicles, if your vehicle is to be towed from the front, ensure proper wheel lift equipment is used to raise the front wheels off the ground.
Page 305 If the vehicle is towed by other means or incorrectly, vehicle damage may occur. Ford Motor Company produces a towing manual for all authorized tow truck operators. Have your tow truck operator refer to this manual for proper hook-up and towing procedures for your vehicle.
Page 306: Customer Assistance
A reasonable time must be allowed to perform a repair after taking your vehicle to the authorized dealer. Repairs will be made using Ford or Motorcraft parts, or remanufactured or other parts that are authorized by Ford.
Page 307 • The name of the authorized dealer and city where located • The vehicle’s current odometer reading In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
Page 308 In the case of 1 or 2 above, the consumer must also notify the manufacturer of the need for the repair of the nonconformity at the following address: Ford Motor Company 16800 Executive Plaza Drive Mail Drop 3NE-B Dearborn, MI 48126 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 309 THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined on the first page of the Customer Assistance section, you may be eligible to participate in the BBB AUTO LINE program.
Page 310 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 311 The use of leaded fuel in your vehicle without proper conversion may damage the effectiveness of your emission control system and may cause engine knocking or serious engine damage. Ford Motor Company/Ford of Canada is not responsible for any damage caused by use of improper fuel.
Page 312 If you buy your vehicle in North America and then relocate to any of the above locations, register your vehicle identification number (VIN) and new address with Ford Motor Company Export Operations & Global Growth Initiatives by emailing expcac@ford.com. If you are in another foreign country, contact the nearest authorized dealer.
Page 313: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153);...
Page 314: Cleaning
• Never use abrasive materials such as steel wool or plastic pads as they can scratch the chrome surface. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 315 When washing: • Take care when using a power washer to clean the engine. The high-pressure fluid could penetrate the sealed parts and cause damage. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 316 Use only approved products to clean plastic parts. These products are available from your authorized dealer. • For routine cleaning, use Motorcraft Detail Wash (ZC-3-A). • If tar or grease spots are present, use Motorcraft Bug and Tar Remover (ZC-42). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 317 PANORAMIC ROOF DEFLECTOR (IF EQUIPPED) Vacuum the wind deflector cloth to remove insects & loose dirt. Clean with Motorcraft Professional Strength Carpet & Upholstery Cleaner (ZC-54). 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 318 4. Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area by using a rubbing motion for 60 seconds. 5. Following this, wipe area dry with a clean, white, cotton cloth. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 319 • Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing or damage to the leather. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 320 • Rub the conditioner into leather until it disappears. Allow the conditioner to dry and repeat the process for the entire interior. If a film appears, wipe off film with a dry, clean cloth. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 321 FORD AND LINCOLN CAR CARE PRODUCTS Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs;...
Page 322: Maintenance And Specifications
WARNING: To reduce the risk of vehicle damage and/or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 323 2. Go to the front of the vehicle and release the secondary hood latch that is located under the front center of the hood. 3. Lift the hood and support it with the prop rod. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 324: Engine Compartment
3. Brake fluid reservoir 4. Battery 5. Power distribution box 6. Air filter assembly 7. Transmission fluid dipstick 8. Engine oil dipstick 9. Engine oil filler cap 10. Windshield washer fluid reservoir 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 325 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specifications. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.
Page 326 4. Attach the new wiper to the wiper arm and press it into place until a click is heard. If you find this procedure too difficult, please see your dealer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 327: Engine Oil
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again. • If the oil level is within this range, the oil level is acceptable. DO NOT ADD OIL. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 328 5. Fully install the engine oil filler cap by turning the filler cap clockwise until it stops. To avoid possible oil loss, DO NOT operate the vehicle with the engine oil level dipstick and/or the engine oil filler cap removed. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 329 Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. To protect your engine and engine’s warranty, use Motorcraft SAE 5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification WSS-M2C930-A. SAE 5W-20 oil provides optimum fuel economy and durability performance meeting all requirements for your vehicle’s engine.
Page 330: Battery
Lift the battery with a battery carrier or with your hands on opposite corners. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 331 • If you do not allow the engine to relearn its idle trim, the idle quality of your vehicle may be adversely affected until the idle trim is eventually relearned. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 332 When a battery replacement is required, the battery should only be replaced with a Ford recommended replacement battery that matches the electrical requirements of the vehicle. 2011 Edge (edg)
Page 333: Engine Coolant
Refer to Adding engine coolant in this chapter. Note: Automotive fluids are not interchangeable; do not use engine coolant/antifreeze or windshield washer fluid outside of its specified function and vehicle location. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 334 Add the proper mixture of coolant and distilled water to the FULL COLD level. For all other vehicles which have 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 335 Your cooling system may have a leak. Operating an engine with a low level of coolant can result in engine overheating and possible engine damage. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 336 Maintenance and Specifications Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant since a Ford-approved recycling process is not yet available. Used engine coolant should be disposed of in an appropriate manner. Follow your community’s regulations and standards for recycling and disposing of automotive fluids.
Page 337 2. Arrange for the vehicle to be taken to an authorized dealer. 3. If this is not possible, wait a short period for the engine to cool. 4. Check the coolant level and replenish if low. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 338: Fuel Information
WARNING: Automotive fuels can cause serious injury or death if misused or mishandled. WARNING: Gasoline may contain benzene, which is a cancer-causing agent. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 339 Care should be taken to avoid inhaling excess fumes. WARNING: The flow of fuel through a fuel pump nozzle can produce static electricity, which can cause a fire if fuel is pumped into an ungrounded fuel container. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 340 2. Open the fuel filler door. 3. Slowly insert the fuel filler nozzle fully into the fuel system and leave the nozzle fully inserted until you are done pumping. Pump fuel as normal. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 341 Your vehicle was not designed to use fuel or fuel additives with metallic compounds, including manganese-based additives. Note: Use of any fuel other than those recommended may cause powertrain damage, a loss of vehicle performance, and repairs may not be covered under warranty. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 342 Ask your fuel supplier about gasolines that meet the World-Wide Fuel Charter. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality, per the recommendations in the Choosing the right fuel section. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components.
Page 343 When filling the vehicle’s fuel tank from a portable fuel container, use the funnel included with the vehicle. 1. After lifting the trunk cargo cover, locate the white plastic funnel. It is attached to the rear, lower edge of the spare tire compartment. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 344 Empty reserve is the small amount of fuel remaining in the fuel tank after the fuel gauge indicates empty. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 345 This will provide an accurate estimate of the vehicle’s fuel economy under current driving conditions. Additionally, keeping records during summer and winter will show how temperature impacts fuel economy. In general, lower temperatures give lower fuel economy. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 346 • Use recommended engine oil. Refer to Maintenance product specifications and capacities in this chapter. • Perform all regularly scheduled maintenance items. Follow the recommended maintenance schedule and owner maintenance checks found in scheduled maintenance information. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 347 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 348 Examples are: 1. The vehicle has run out of fuel—the engine may misfire or run poorly. 2. Poor fuel quality or water in the fuel—the engine may misfire or run poorly. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 349 I/M testing; if the service engine soon indicator stays on solid, it means that the vehicle is ready for I/M testing. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 350 MIN and MAX lines. Be sure to put the cap back on the reservoir. Refer to Maintenance product specifications and capacities in this chapter for the proper fluid type. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 351 3. With the parking brake engaged and your foot on the brake pedal, start the engine and move the gearshift lever through all of the gear ranges. Allow a minimum of 10 seconds for each gear to engage. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 352 Depending on vehicle use, cooling times could take up to 30 minutes or longer. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 353: Air Filter(S)
WARNING: To reduce the risk of vehicle damage and/or personal burn injuries do not start your engine with the air cleaner removed and do not remove it while the engine is running. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 354 Note: Failure to use the correct air filter element may result in severe engine damage. The customer warranty may be void for any damage to the engine if the correct air filter element is not used. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 355 • Start the engine every 15 days. Run at fast idle until it reaches normal operating temperature. • With your foot on the brake, shift through all the gears while the engine is running. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 356 Note: During extended periods of vehicle storage (30 days or more), fuel may deteriorate due to oxidation. Add Motorcraft Gas Stabilizer or equivalent meeting Ford material specification ESE-M99C112-A to the vehicle fuel system whenever actual or expected storage periods exceed 30 days.
Page 357: Part Numbers
Spark Plugs SP-520 SP-520 Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. The customer warranty may be void for any damage to the engine if such spark plugs are not used.
Page 358: Maintenance Product Specifications And Capacities
Maintenance and Specifications 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 359 Maintenance and Specifications 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 360 Maintenance and Specifications 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 361: Engine Data
(1.25–1.35 mm) Compression ratio 10.3:1 10.3:1 Engine drivebelt routing 1. Short drivebelt is on first pulley groove closest to engine. 2. Long drivebelt is on second pulley groove farthest from engine. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 362 Vehicle identification number (VIN) The vehicle identification number is located on the driver side instrument panel. XXXXXXXXXXXXXXXXX Please note that in the graphic, XXXX is representative of your vehicle identification number. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 363 TRANSMISSION CODE DESIGNATIONS You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code 6-speed automatic transmission (6F50) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 364: Accessories
FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE A wide selection of Ford Custom Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 365 Ford Motor Company engineering requirements. Contact your Ford dealer for details regarding the manufacturer’s limited warranty and/or a copy of the FLA product limited warranty offered by the accessory manufacturer.
Page 366 • Any non-Ford electrical or electronic accessories or components that are added to the vehicle by the authorized dealer or the owner may adversely affect battery performance and durability and may also adversely affect the performance of other electrical systems in the vehicle.
Page 367: Ford Extended Service Plan
BaseCare – Covers 84 components. PowertrainCare – Covers 29 critical components. Ford ESP is honored by all Ford and Lincoln Dealers in the U.S. and Canada It’s the only extended service plan authorized and backed by Ford Motor Company. That means you get: •...
Page 368 Ford ESP Can Quickly Pay for Itself One service bill – the cost of parts and labor – can easily exceed the price of your Ford ESP Service Contract. With Ford ESP, you minimize your risk for unexpected repair bills and rising repair costs.
Page 369 Ford Extended Service Plan 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 370 Ford Motor Company dealers. For more information, visit your local Ford of Canada dealer or www.ford.ca to find the Ford Extended Service Plan that is right for you. NOTE: Repairs performed outside of Canada and the United States are not eligible for Ford ESP coverage.
Page 371: Scheduled Maintenance Guide
Your dealer has factory-trained technicians who can perform the required maintenance using genuine Ford parts. They are committed to meeting your service needs and to assuring your continuing satisfaction. Protecting your investment Maintenance is an investment that will pay dividends in the form of improved reliability, durability and resale value.
Page 372 Ford Motor Company has recommended maintenance intervals for various parts and component systems based upon engineering testing. Ford Motor Company relies upon this testing to determine the most appropriate mileage for replacement of oils and fluids to protect your vehicle at the lowest overall cost to you and recommends against maintenance schedules that deviate from the scheduled maintenance information.
Page 373 Genuine Ford and Motorcraft replacement parts Dealerships stock Ford and Motorcraft branded replacement parts. These parts meet or exceed Ford Motor Company’s specifications, and we stand behind them. Parts installed at your dealership carry a nationwide, 12 month/12,000 mile (20,000 km) parts and labor limited warranty.
Page 374 Parking brake for proper operation Safety belts and seat latches for wear and function Safety warning lamps (brake, ABS, airbag, safety belt) for operation Washer spray/wiper operation; clean or replace blades as necessary 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 375 In order to keep your vehicle running right, it is important to have the systems on your vehicle checked regularly. This can help identify potential issues and prevent major problems. Ford Motor Company recommends the following multi-point inspection be performed at every scheduled maintenance interval to help ensure your vehicle keeps running great.
Page 376 Scheduled Maintenance Guide 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 377: Normal Scheduled Maintenance And Log
If your message center is prematurely reset or becomes inoperative, you should perform the oil change interval at six months or 5,000 miles (8,000 km) from your last oil change. 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 378 Scheduled Maintenance Guide 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 379 Initial replacement at 100,000 miles (160,000 km) or 72 months; every 50,000 miles (80,000 km) or 36 months thereafter Perform a follow-up inspection at 120,000 miles (192,000 km) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 380 OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 381 OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 382 OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 383 Example #2: The OIL CHANGE REQUIRED message has not come on but the odometer reads 30,000 miles (48,000 km); perform the engine air filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at 25,000 miles [40,000 km].) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 384 Example #2: The OIL CHANGE REQUIRED message has not come on but the odometer reads 30,000 miles (48,000 km); perform the engine air filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at 25,000 miles [40,000 km].) 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 385 Instrument Cluster chapter. Exclusive use of E85 (Flex Fuel Vehicles only) Every oil change interval – If ran exclusively on E85, fill the fuel tank full with regular unleaded fuel 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 386 OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 387 OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 388 ❑ Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the axle assembly has been submerged in water.
Page 389: Engine Coolant Change Log
OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 390: Index
Cell phone use ......9 fluid, refill capacities ....357 fluid, specification ....357 Changing a tire ....292, 295 Selectshift (SST) ....255 Child safety seats ......190 Auxiliary input jack (Line in) ..54 attaching with tether straps ..196 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 391 Cross Traffic Alert ....268 Engine ........360 cleaning ........314 Cruise control coolant ........332 (see Speed control) ....91 fail-safe cooling .......336 Cupholder(s) ......154 idle speed control ....329 Customer Assistance ....281 lubrication specifications ..357 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 392 Illuminated visor mirror .....85 quality ........341 Infant seats running out of fuel ..299, 341 (see Safety seats) .....190 safety information relating to automotive fuels ....337 Inspection/maintenance (I/M) testing ........348 Fuses ........283–284 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 393 .....75, 77 replacing bulbs ......77 Parental MyKey programming ...116 LATCH anchors ......193 Parking brake ......244 Liftgate ....107–108, 113, 128 Parts Lights, warning and indicator ..12 (see Motorcraft parts) ...356 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 394 SecuriCode keyless entry Remote start climate system ........134 operation ........68 SecuriLock passive anti-theft Reverse sensing system ...258 system ........136 Roadside assistance ....281 Servicing your vehicle ....321 Roof rack ........113 Setting the clock ......46 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)
Page 395 ......293, 295 Windshield washer fluid and terminology ......205 wipers ..........82 tire grades .......205 checking and adding fluid ..324 treadwear ......204, 209 replacing wiper blades ...324–325 Touchscreen features Wrecker towing ......303 (climate) ........65 2011 Edge (edg) Owners Guide, 2nd Printing USA (fus)

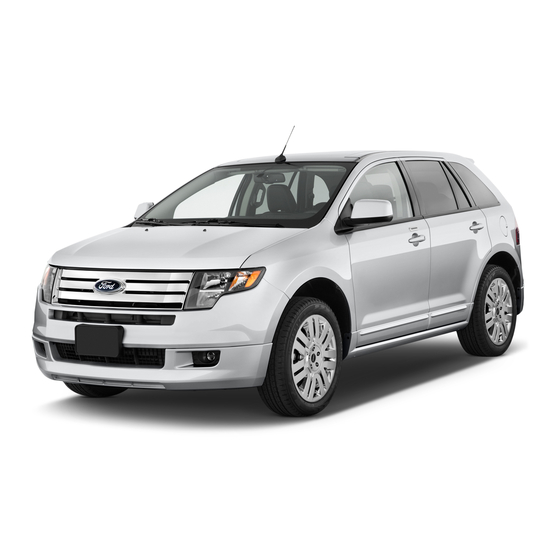

Ford 2011 Edge Owner's Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints

Tires, Wheels and Loading

Driving

Roadside Emergencies

Customer Assistance

Cleaning

Maintenance and Specifications

Accessories

Ford Extended Service Plan

Scheduled Maintenance Guide

Index

Quick Links

Related Manuals for Ford 2011 Edge

Summary of Contents for Ford 2011 Edge

Table of Contents
