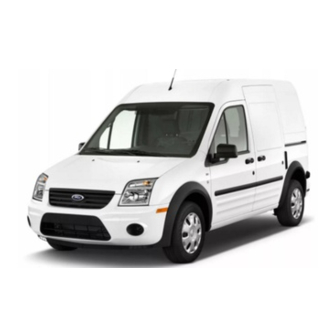

Ford 2011 Transit Connect Owner's Manual

Hide thumbs Also See for 2011 Transit Connect:
Table of Contents

Advertisement

Quick Links

2011 Transit Connect (tst)
Owners Guide, 2nd Printing
USA (fus)

Table of Contents

14
14
19
22
22
23
25
27
38
38
41
43
43
46
47
56
56
57
59
59
61
68
68
74
4
1

Advertisement

Table of Contents
loading

Related Manuals for Ford 2011 Transit Connect

Summary of Contents for Ford 2011 Transit Connect

  • Page 1: Table Of Contents

    Manual heating and air conditioning Rear window defroster Lights Headlamps Turn signal control Bulb replacement Driver Controls Windshield wiper/washer control Steering wheel adjustment Power windows Mirrors Speed control Locks and Security Keys Anti-theft system 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 2 Fuel pump shut-off switch Fuses and relays Changing tires Wheel lug nut torque Jump starting Wrecker towing Customer Assistance Reporting safety defects (U.S. only) Reporting safety defects (Canada only) Cleaning 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 3 Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2010 Ford Motor Company...

  • Page 4: Introduction

    Introduction CONGRATULATIONS Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
  • Page 5 In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 6 Failure to follow the specific warnings and instructions could result in personal injury. WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 7 In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may...
  • Page 8 EDR. Ford Motor Company and Ford of Canada do not access event data recorder...
  • Page 9 If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information.
  • Page 10 WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
  • Page 11 Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required information and warnings. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 12 Parking Aid System Non-Petroleum Based Stability Control System Speed Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Rear Window Defrost/Demist Defrost/Demist 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 13 Sparks Explosive Gas Fan Warning Maintain Correct Fluid Power Steering Fluid Level Service Engine Soon Engine Air Filter Passenger Compartment Jack Air Filter Low Tire Pressure Check Fuel Cap Warning 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 14: Instrument Cluster

    If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 15 A chime will sound when there is a malfunction in the indicator light. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 16 Speed control (if equipped): Illuminates when the speed control is activated. Turns off when the speed control system is deactivated, refer to the Driver Controls chapter for more information. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 17: Instrument Cluster

    If the indicators stay on or flash faster, check for a burned out bulb. High beams: Illuminates when the high-beam headlamps are turned on. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 18 Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 19: Gauges

    Speedometer: Indicates the current vehicle speed. Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 20 Refer to Filling the tank in the Maintenance and Specifications chapter for more information. Information display type 1 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 21 Note: The information display will remain on for several minutes after you switch off the ignition. If SHON or SHIP ON is displayed, the vehicle shipping mode is switched on. Have your dealer switch off the vehicle shipping mode. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 22: Entertainment Systems

    AM/FM stereo (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.

  • Page 23: Am/Fm Stereo With Cd

    AM/FM stereo with single CD (if equipped) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
  • Page 24 SCAN: Press for a brief sampling of all tracks on the current disc. Sound Adjustments BASS/TRE: Press to toggle between bass and treble adjustments. Once the desired selection appears in the display, press to adjust the levels. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 25: Auxiliary Input Jack (Line In)

    Auxiliary input jack (Line in) WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
  • Page 26 2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 27: Bluetooth System

    “How-to Bluetooth”. WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle.
  • Page 28 Bluetooth discovery mode. 6. Select FORD AUDIO when it appears in your phone’s display. 7. Enter the code number shown on the vehicle display using the phone keypad. If no code number is shown on the display, enter the Bluetooth PIN number 0000 or any number using the phone keypad.
  • Page 29 • External device • Help External device: Auxiliary input jack Note: This system is language specific. If you would like the system to operate in another language, please contact your authorized dealer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 30 You can store up to 20 name tags per function. Note: There are some voice command ’short cuts’ available which allow you to speak those commands directly without having to follow the complete command menu. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 31 Store name: When you say, “Store name”, the system will ask you for the name. Say the name when prompted. Delete name: Allows you to delete a stored station. Delete directory: Allows you to delete all stored stations at once. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 32 Bluetooth system. Depending on your phone book entry, different categories may be displayed in the audio display, such as: • or Phone • or Mobile or M 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 33 The call will be transferred to hands-free mode. Ignore the call by doing nothing. Reject the call by pressing CD, AM/FM or VOL ON/OFF on the audio system. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 34 2. Press MENU repeatedly until ACTIVE appears in the display. 3. Press < or > on the audio system to scroll through the list of paired (bonded) phones. 4. When the desired selection appears in the display, press MENU. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 35 • Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 36 CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Do not use any irregular shaped CDs or discs with a scratch protection film attached.
  • Page 37 Audio system warranty and service Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 38: Climate Controls

    Fan speed adjustment: Controls the volume of air circulated in the vehicle. For optimum defrosting performance, set the dial to at least the 3 or 4 position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 39 A/C mode, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position to continue to receive cool air from your A/C system. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 40 The temperature will be set by the front controls. Use the rear control to adjust the fan speed or turn the auxiliary controls off (O). 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 41: Rear Window Defroster

    This may cause damage to the heated grid lines and will not be covered by your warranty. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 42 The heated windshield will turn off automatically after the engine is turned off. To manually turn off the heated windshield before the specified time has passed, push the control switch again. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 43: Lights

    Rear fog lamp The headlamp control also operates the rear fog lamp. The rear fog lamp can only be turned on when the headlamp control is in the position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 44 Turns the headlamps on with a reduced output. To activate: • the ignition must be in the on position and • the headlamp control must be in the off position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 45 (a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 46: Turn Signal Control

    • Push up and release to activate the right turn signal. Tap the stalk up or down to make the turn signal indicator flash three times. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 47: Bulb Replacement

    The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 48 High-mount brake lamp Dome lamps (front and rear) Reading lamps To replace all instrument panel lights - see your authorized dealer Replacing interior bulbs Check the operation of all bulbs frequently. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 49 1. Make sure the headlamp switch is in the off position. 2. Switch off the interior lamps. 3. Pry out the light assembly with a flat screwdriver. Install in reverse order. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 50 The oil from your hand could cause the bulb to break the next time the headlamps are operated. Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 51 Replacing front turn signal bulbs 1. Make sure the headlamp control is in the off position and open the hood. 2. Remove the bulb socket from the lamp assembly by turning it counterclockwise. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 52 1. Make sure the headlamp control is in the off position and then open the cargo door. 2. Remove the two wing nuts and gently pull the lamp assembly away from the vehicle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 53 Lights 3. Remove the bulb socket from the lamp assembly by turning it counterclockwise. 4. Pull the bulb straight out of the socket. Install in reverse order. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 54 2. Remove the side repeater by prying it out from the bottom. 3. Hold the bulb holder and turn it counterclockwise to remove it. 4. Pull the bulb straight out. Install in reverse order. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 55 Replacing license plate lamp bulbs 1. Make sure the headlamp control is in the off position. 2. Remove the lens assembly. 3. Pull the bulb straight out. Install in reverse order. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 56: Driver Controls

    Reverse gear wipe The rear wiper will be activated automatically when shifting into R (Reverse) if the front wiper is activated. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 57: Steering Wheel Adjustment

    Your vehicle has a variety of console features. These include: • Cupholders • Storage area • Power window switches (if equipped) WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 58 To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged: 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 59: Power Windows

    The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side. WARNING: Do not adjust the mirror while the vehicle is in motion. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 60: Mirrors

    3. Return the control to the center position to lock mirrors in place. Heated side view mirrors (if equipped) Both mirrors are heated automatically to remove ice, mist and fog when the rear window defroster is activated. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 61: Speed Control

    2. Accelerate to the desired speed. 3. Press and release SET +. 4. Take your foot off the accelerator pedal. 5. The indicator light on the instrument cluster will turn on. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 62 To turn off the speed control, press OFF or turn off the ignition. Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 63 (AM, FM). • In CD mode, this will select the next CD when equipped with a CD changer. • In all modes to abort a traffic message during broadcasting 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 64 Turn the screw one-quarter turn to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 65 Driver Controls DUAL REAR DOORS Open the right hand door first from either the outside (1) or inside (2) the vehicle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 66 Note: The dual rear doors should be closed before driving your vehicle. Leaving the doors open could cause serious damage to them and their components. The left door must be closed first. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 67 Driver Controls Opening the doors fully Push the yellow button located on the door and swing it open. The check arms will automatically re-engage when the doors are closed. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 68: Locks And Security

    • Insert the key and turn to the lock position to engage the childproof locks. • Insert the key and turn to the unlock position to disengage the childproof locks. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 69 IC: 267T - 5WK47899 SIEMENS VDO 5WK4 7899 FCC ID: KR55WK47899 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 70 Switching from two-step to one-step door unlocking Your vehicle comes with two-step unlocking enabled. With the vehicle locked, unlocking can be switched between two-step and one-step door unlocking by pressing and holding both the buttons 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 71 CR2032 or equivalent. To replace the battery: 1. Carefully separate the transmitter unit from the key using a flat object (e.g. a screwdriver) at the recess on the back. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 72 How to reprogram your remote entry transmitters You must have all remote entry transmitters (maximum of four) available before beginning this procedure. If all remote entry transmitters 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 73 The inside lights will not turn off if: • they have been turned on with the dome lamp control, or • any door is open. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 74: Anti-Theft System

    Note: The SecuriLock passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues.

  • Page 75 • If two previously programmed coded keys are not available, you must take your vehicle to your authorized dealer to have the spare key(s) programmed. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 76 If failure repeats, bring your vehicle to your authorized dealer to have the new key(s) programmed. To program additional new unprogrammed key(s), repeat this procedure from Step 1 for each additional key. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 77: Seating And Safety Restraints

    The driver should never adjust the head restraint while the vehicle is in motion. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 78 For occupants of extremely tall stature, adjust the head restraint to its full up position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 79 To reinstall the adjustable head restraint, do the following: 1. Insert the two stems into the guide sleeve collars. 2. Push the head restraint down until it locks. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 80 WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips. Lift handle to move seat forward or backward. Rotate the control to adjust seatback. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 81 REAR SEATS Second row adjustable head restraints Your vehicle is equipped with second row outboard head restraints that are vertically adjustable. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 82 2. Raise the head restraint by pulling up on the head restraint. 3. Lower the head restraint by pressing and holding the guide sleeve adjust/release button and pushing down on the head restraint. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 83 1. Pull up the head restraint until it reaches the highest adjustment position. 2. Simultaneously press and hold both the adjust/release button and the unlock/remove button, then pull up on the head restraint. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 84 Note: Place the head restraint underneath the back of the front seat for storage. 2. Pull down the lever on the side of the seat back. 3. Push the seatback forward. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 85 5. Fold the seat forwards until the lever is automatically locked and you hear a click. When raising the seatback(s), make sure the lever is locked and you hear the seat latch into place. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 86 1. Pull down on the locking lever. 2. Fold the seat down. 3. Raise the seatback. 4. Install all head restraints. 5. Ensure that the red indicator is in the locked position. • Locked 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 87: Safety Restraints

    The Personal Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and conditions. A collection of crash sensors provides information to the Restraints Control 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 88 The most effective way to reduce the risk of unnecessary injuries is to make sure all occupants 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 89 In frontal collisions, the safety belt pretensioners can be activated alone or, if the collision is of sufficient severity, together with the front airbags. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 90 WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips. WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 91 Check seat covers and buckles before you place a child anywhere near them. WARNING: Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 92 The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See figure below. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 93 12 years old and under should be properly restrained in a rear seating position whenever possible. Refer to Safety restraints for children or Safety seats for children later in this chapter. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 94 Your vehicle is equipped with safety belt pretensioners at the driver and front outboard passenger seating positions. The safety belt pretensioner tightens the safety belts firmly against the occupant’s body at the start of the crash. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 95 To adjust the belt upward, slide the adjuster up. You do not need to push the button to slide the adjuster upwards. Pull down on the height adjuster to make sure it is locked in place. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 96 If the Belt-Minder warnings have expired (warnings for approximately five minutes) for one occupant (driver or front passenger), the other occupant can still activate the Belt-Minder feature. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 97 1 in 4 of us will be seriously injured in a crash during our lifetime. “I’m not going far” 3 of 4 fatal crashes occur within 25 miles (40 km) of home. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 98 “I’d rather be thrown clear” Not a good idea. People who are ejected are 40 times more likely to DIE. Safety belts help prevent ejection, WE CAN’T “PICK OUR CRASH”. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 99 • This will disable the Belt-Minder feature if it is currently enabled or enable the Belt-Minder feature if it is currently disabled. As confirmation, the safety belt warning light will flash three times. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 100: Airbags

    Never place a rear-facing child seat in front of an active airbag. If you must transport a forward-facing child in the front seat, move the seat all the way back and use appropriate restraints. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 101 WARNING: Additional equipment may affect the performance of the airbag sensors increasing the risk of injury. Please refer to the Body Builders Layout Book for instructions about the appropriate installation of additional equipment. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 102 Airbags are designed to inflate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts unless the collision causes sufficient longitudinal deceleration. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 103 WARNING: Several air bag system components get hot after inflation. Do not touch them after inflation. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 104 The indicator lamp is located at the top of the instrument panel center stack area above the radio and next to the hazard warning indicator. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 105 This will allow the system to detect that person and enable the passenger’s frontal airbag. • If the indicator lamp remains lit even after this, the person should be advised to ride in the rear seat. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 106 Even though the passenger airbag is disabled, the pass airbag off lamp may or may not be illuminated according to the table below. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 107 (if equipped). Check the “passenger airbag off” or “pass airbag off” indicator lamp for proper airbag Status. Failure to follow these instructions may interfere with the passenger seat sensing system. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 108 If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this Owner’s Guide.
  • Page 109 SRS, its fuses or the seat cover on a seat containing an airbag. Contact your authorized dealer as soon as possible. WARNING: All occupants of the vehicle should always wear their safety belts even when an airbag SRS is provided. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 110 Side airbags are designed to inflate in side-impact collisions, not roll-over, rear-impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 111: Child Restraints

    See the following sections for directions on how to properly use safety restraints for children. Also see Airbag supplemental restraint system (SRS) in this chapter for special instructions about using airbags. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 112 Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle.
  • Page 113 Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 114 If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 115 All children are shaped differently. The child height, age and weight thresholds provided are recommendations or the minimum requirements of law. The National Highway Traffic Safety Administration (NHTSA) provides education and 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 116 Seating and Safety Restraints training to ensure that all children ages 0 to 16 are properly restrained in the correct restraint system. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your seat is appropriate for your child and properly installed in the vehicle.
  • Page 117 Perform the following steps when installing the child seat with combination lap/shoulder belts: Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 118 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 119 It also helps to achieve the proper snugness of the child seat to the vehicle. Sometimes, a slight lean 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 120 Ford Motor Company recommends the use of a child safety seat having a top tether strap. See Attaching child safety seats with tether straps and Recommendations for attaching safety restraints for children in this chapter for more information.
  • Page 121 WARNING: Never attach two child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 122 1 as depicted in the graphic. • Use LATCH lower anchor 2 with tether 2 as depicted in the graphic. • DO NOT use the LATCH lower anchors in combination with tether 3. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 123 Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching the vehicle seat gives the best protection in a severe crash. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 124 The tether can be attached directly to the rear of the second row center seat. 1. Route the tether strap under the head restraint and between the head restraint posts. 2. Locate the anchor for the center seating position. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 125 • On four-passenger vehicles the anchor is located on the driver-side upper rear door frame area close to the roof. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 126 To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster. 2011 Transit Connect (tst)
  • Page 127 • Does the lap belt rest low across the hips? • Is the shoulder belt centered on the shoulder and chest? • Can the child stay seated like this for the whole trip? 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 128 • High back booster seats If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 129 Move a child to a different seating location if the shoulder belt does not stay positioned on the shoulder during use. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 130 Refer to the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced.

  • Page 131: Tires, Wheels And Loading

    Study your owner’s guide and any supplements for specific information about equipment features, instructions for safe driving and additional precautions to reduce the risk of an accident or serious injury. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 132 These differences that make your vehicle so versatile also make it handle differently than an ordinary passenger car. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 133: Tire Information

    Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford Motor Company to give you the following information about tire grades exactly as the government has written it.
  • Page 134 • Extra load: A class of P-metric or Metric tires designed to carry a heavier maximum load. Increasing the inflation pressure will not increase the tire’s load carrying capability. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 135: Tire Inflation

    Ford Motor Company. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate. Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type tire pressure gauge.
  • Page 136 Always inflate your tires to the Ford recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. The Ford recommended tire inflation pressure is found on the Safety Compliance Certification Label or Tire Label which is located on the B-Pillar or the edge of the driver’s door.
  • Page 137 For your safety, tires that are damaged or show signs of excessive wear should not be used because they are more likely to blow out or fail. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 138 You should replace your spare tire when you replace the road tires or after six years due to aging even if it has not been used. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 139 (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label or the Tire Label which is located on the B-Pillar or edge of the driver’s door.
  • Page 140 The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels. The use of wheels or tires not recommended by Ford Motor Company may affect the operation of your tire pressure monitoring system.
  • Page 141 Front-wheel drive (FWD) vehicles and those with an independent rear suspension (if equipped) may require alignment of all four wheels. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 142 This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 143 These speed ratings may need to be adjusted for the difference in conditions. The ratings range from 81 mph (130 km/h) to 186 mph (299 km/h). These ratings are listed in the following chart. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 144 Refer to the Safety Compliance Certification Label, which is located on the B-Pillar or the edge of the driver’s door, for the correct tire pressure for your vehicle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 145 The cold inflation pressure should never be set lower than the recommended pressure on the vehicle label. The tire suppliers may have additional markings, notes or warnings such as standard load, radial tubeless, etc. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 146 4. Maximum Load Single lb (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single; defined as two tires (total) on the rear axle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 147 You will find a Tire Label containing tire inflation pressure by tire size and other important information located on the B-Pillar or the edge of the driver’s door. Refer to the payload description and graphic in the Vehicle loading section. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 148: Tire Pressure Monitoring System (Tpms)

    TPMS to continue to function properly. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 149 Even if the light turns on and a short time later turns off, your tire pressure still needs to be checked. Visit www.checkmytires.org for additional information. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 150 It can also warn you in the event the system is no longer capable of functioning as intended. Please refer to the following chart for information concerning your tire pressure monitoring system: 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 151 Tire rotation On vehicles with different front without sensor and rear tire pressures, the training TPMS system must be retrained following every tire rotation. Refer to Tire rotation in this chapter. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 152 Check air pressure in the road tires. If any tire is under-inflated, carefully drive the vehicle to the nearest location where air can be added to the tires. Inflate all the tires to the recommended inflation pressure. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 153 • To reduce the chances of interference from another vehicle, the TPMS reset procedure should be performed at least three feet (one meter) away from another Ford Motor Company vehicle undergoing the TPMS reset procedure at the same time. • Do not wait more than two minutes between resetting each tire sensor or the system will time-out and the entire procedure will have to be repeated on all four wheels.
  • Page 154 8. Remove the valve cap from the valve stem on the right rear tire; decrease the air pressure until the horn sounds. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 155 SNOW TIRES AND CHAINS WARNING: Snow tires must be the same size, load index, speed rating as those originally provided by Ford. Use of any tire or wheel not recommended by Ford can affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.

  • Page 156: Vehicle Loading

    Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space available. Overloading or improperly loading your vehicle can contribute to loss of vehicle control and vehicle rollover. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 157 Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) – including vehicle curb weight and all payload. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 158 The GVWR is shown on the Safety Compliance Certification Label located on the B-Pillar or the edge of the driver’s door. The GVW must never exceed the GVWR. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 159 WARNING: Do not exceed the GVWR or the GAWR specified on the Safety Compliance Certification Label. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 160 In metric units, the calculation would be: 635 kg - (5 x 99 kg) - (5 x 13.5 kg) = 635 - 495 - 67.5 = 72.5 kg. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 161 Your vehicle can haul more cargo and people than most passenger cars. Depending upon the type and placement of the load, hauling cargo and people may raise the center of gravity of the vehicle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 162: Trailer Towing

    N (Neutral) or with all four (4) wheels off the ground on a car-hauling trailer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 163: Driving

    WARNING: Do not park, idle, or drive your vehicle in dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 164 Seating and Safety Restraints chapter. 2. Make sure the headlamps and electrical accessories are off. • Make sure the parking brake is set. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 165 Note: Cranking may be stopped at any time by turning the key to the off position. 3. After idling for a few seconds, release the parking brake, apply the brake, shift into gear and drive. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 166 WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: To reduce the risk of electrical shock, do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 167 • Finally, have the engine block heater system checked during your fall tune-up to be sure it’s in good working order. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 168: Brakes

    ABS and will increase your vehicle’s stopping distance. The ABS will be activated immediately, allowing you to retain steering control during hard braking and on slippery surfaces. However, the ABS does not decrease stopping distance. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 169 WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your authorized dealer as soon as possible. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 170: Advancetrac

    If your AdvanceTrac with RSC system activates, SLOW DOWN. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 171 Excessive wheel spin is controlled in two ways, which may work separately or in tandem: engine traction control and brake traction 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 172 RSC operates by detecting the vehicle’s roll motion and the rate at which it changes and by applying the brakes to one or more wheels individually. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 173 • improper steering alignment A high crown in the road or high crosswinds may also make the steering seem to wander/pull. If the steering wheel vibrates check for: • improper wheel balance 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 174 The van should be operated by an experienced driver. An organization that owns a van should select one or two experienced drivers to drive 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 175 • If the vehicle goes from one type of surface to another (i.e., from concrete to gravel) there will be a change in the way the vehicle responds to a maneuver (steering, acceleration or braking). Again, avoid these abrupt inputs. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 176 WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn the ignition to the off position and remove the key whenever you leave your vehicle. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 177: Transmission Operation

    To put your vehicle in P (Park): • Come to a complete stop • Move the gearshift lever and securely latch it in P (Park) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 178 The O/D OFF lamp in the instrument cluster will not be illuminated. • O/D (overdrive) is automatically returned each time the key is turned off. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 179: Reverse Sensing System

    RSS; this may include reduced performance or a false activation. WARNING: To help avoid personal injury, always use caution when in reverse and when using the RSS. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 180 RSS. If your vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles or false alarms. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 181: Rear-View Camera System

    WARNING: The camera system is a reverse aid supplement device that still requires the driver to use it in conjunction with the rear view mirror and the side mirrors for maximum coverage. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 182 They are designed to assist the driver by increasing visibility along the side of the vehicle. For more information on your side view mirrors, refer to Exterior mirrors in the Driver Controls chapter. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 183 Also, water may enter your engine’s air intake and severely damage your engine or your vehicle may stall. Driving through deep water where the transmission vent tube is submerged may allow water into the transmission and cause internal transmission damage. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 184 Wet brakes do not stop the vehicle as quickly as dry brakes. Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 185: Roadside Emergencies

    ROADSIDE ASSISTANCE Vehicles sold in the U.S. : Getting roadside assistance To fully assist you should you have a vehicle concern, Ford Motor Company offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: •...

  • Page 186: Hazard Flasher Control

    U.S. Ford and Lincoln vehicle customers who require Roadside Assistance, call 1-800-241-3673. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles (56 km). To obtain reimbursement information, U.S.

  • Page 187: Fuses And Relays

    Note: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 188 Natural — Natural Natural Green Green Green Pink Pink — — Orange Green Green — — — — Blue Yellow Yellow — — — Brown — — Natural Black Black 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 189 Not used — Headlamps, Low beam interrupt relay — Front fog lamp interrupt relay — Rear window defroster relay — Heater blower relay — Interior lamps relay — Windshield wipers relay 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 190 Front fog lamps 7.5A Recirculation, Instrument cluster Ignition supply/Battery supply (modified vehicle) — Not used Radio, Bluetooth /Voice command module 7.5A A/C switch, Park aid module 7.5A Interior lamps, Battery saver 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 191 Right rear turn signal (modified vehicle) Left rear turn signal (modified vehicle) Rear power point, Rear center console power point (modified vehicle) 7.5A Left park lamps/tail lamps — Not used — Not used 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 192 Note: To remove the power distribution box cover, the battery negative cable clip needs to be removed first. Pull up on the clip to detach it from the battery tray. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 193 Passenger compartment fuse panel II 25A** Rear turn signal, Modified vehicle — Battery supply 40A** Ignition overload, Passenger compartment fuse panel 30A** Anti-lock brake system (ABS)/Roll stability control (RSC) pump motor 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 194 Floor shifter, Transmission range sensor — Not used 15A* PCM vehicle power 1 15A* Auxiliary connector, Coil on plugs 70A Relay Cooling fan high relay — Cooling fan low relay 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 195: Changing Tires

    (TPMS) and should not be used. However, if you must use a sealant, the TPMS sensor and valve stem on the wheel must be replaced by an authorized Ford dealer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing...
  • Page 196 Ford. If the dissimilar spare tire or wheel is damaged, it should be replaced rather than repaired.
  • Page 197 • Driving vehicles equipped with a camper body • Driving vehicles with a load on the cargo rack Drive cautiously when using a full-size dissimilar spare tire/wheel and seek service as soon as possible. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 198 2. Turn the handle counterclockwise and lower the spare tire until it rests on the ground and the cable is slack. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 199 Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel. Note: Passengers should not remain in the vehicle when the vehicle is being jacked. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 200 3. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 201 Tap it with the palm of your hand to lock it into place. Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 202: Wheel Lug Nut Torque

    Bolt size Wheel lug nut torque* ft-lb N•m M12 x 1.5 * Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 203: Jump Starting

    Attempting to push-start a vehicle with an automatic transmission may cause transmission damage. Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 204 5. Turn the heater fan on in both vehicles to protect from any electrical surges. Turn all other accessories off. Connecting the jumper cables Note: In the illustration, the vehicle on the bottom is used to designate the assisting (boosting) battery. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 205 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 206 After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 207: Wrecker Towing

    It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If your vehicle is to be towed from the rear using wheel lift equipment, the front wheels (drive wheels) must be placed on a dolly to prevent damage to the transmission.
  • Page 208 Driving chapter for specific instructions if you cannot move the gear shift lever into N (Neutral). • Maximum speed is not to exceed 35 mph (56 km/h). • Maximum distance is 50 miles (80 km). 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 209: Customer Assistance

    A reasonable time must be allowed to perform a repair after taking your vehicle to the authorized dealer. Repairs will be made using Ford or Motorcraft parts, or remanufactured or other parts that are authorized by Ford.
  • Page 210 • The name of the authorized dealer and city where located • The vehicle’s current odometer reading In some states, you must directly notify Ford in writing before pursuing remedies under your state’s warranty laws. Ford is also allowed a final repair attempt in some states.
  • Page 211 You are required to submit your warranty dispute to BBB AUTO LINE before asserting in court any rights or remedies conferred by California Civil Code Section 1793.22(b). You are also required to use BBB AUTO 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 212 THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined earlier in this chapter in the Getting the services you need section, you may be eligible to participate in the BBB AUTO LINE program.
  • Page 213 (CANADA ONLY) For vehicles delivered to authorized Canadian dealers. In those cases where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
  • Page 214 Telephone: (313) 594-4857 For customers in Guam, the Commonwealth of the Northern Mariana Islands (CNMI), America Samoa, and the U.S. Virgin Islands, please feel free to call our Toll-Free Number: (800) 841-FORD (3673). FAX: (313) 390-0804 Email: expcac@ford.com If your vehicle must be serviced while you are traveling or living in Puerto Rico, contact the nearest authorized dealer.

  • Page 215: Reporting Safety Defects (U.s. Only)

    If you buy your vehicle in North America and then relocate to any of the above locations, register your vehicle identification number (VIN) and new address with Ford Motor Company Export Operations & Global Growth Initiatives by emailing expcac@ford.com. If you are in another foreign country, contact the nearest authorized dealer.

  • Page 216: Reporting Safety Defects (Canada Only)

    Customer Assistance recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1–888–327–4236 (TTY: 1–800–424–9153); go to http://www.safercar.gov;...

  • Page 217: Cleaning

    • Never use abrasive materials such as steel wool or plastic pads as they can scratch the chrome surface. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 218 • Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergent. • To remove tar and grease, use Motorcraft Bug and Tar Remover , available from your authorized dealer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 219 For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. PLASTIC (NON-PAINTED) EXTERIOR PARTS Use only approved products to clean plastic parts. These products are available from your authorized dealer. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 220 • Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 221 Motorcraft Spot and Stain Remover (ZC-14). In Canada, use Motorcraft Multi-Purpose Cleaner (CXC-101). • If a ring forms on the fabric after spot cleaning, clean the entire area immediately (but do not oversaturate) or the ring will set. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 222 For dirt, use a vacuum cleaner then use a clean, damp cloth or soft brush. For routine cleaning, wipe the surface with a soft, damp cloth. For more thorough cleaning, wipe the surface with a mild soap and water solution. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 223 Flush the complete underside of your vehicle frequently. Keep body and door drain holes free from packed dirt. Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 224 Cleaning FORD AND LINCOLN CAR CARE PRODUCTS Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. These quality products have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and appearance of your vehicle.

  • Page 225: Maintenance And Specifications

    WARNING: To reduce the risk of vehicle damage and/or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 226 Note: To prevent damage to, or loss of the key, remove the key immediately after opening the hood and swivel the badge back. 3. Lift the hood and support it with the prop rod. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 227: Engine Compartment

    3. Brake fluid reservoir 4. Battery 5. Power distribution box 6. Windshield washer fluid reservoir 7. Air filter assembly 8. Automatic transmission fluid dipstick 9. Engine oil dipstick 10. Power steering fluid reservoir 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 228 In very cold weather, do not fill the reservoir completely. Only use a washer fluid that meets Ford specifications. Do not use any special washer fluid such as windshield water repellent type fluid or bug wash. They may cause squeaking, chatter noise, streaking and smearing.

  • Page 229: Engine Oil

    If the engine is overfilled, some oil must be removed from the engine by an authorized dealer. 7. Put the dipstick back in and ensure it is fully seated. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 230 Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. To protect your engine and engine’s warranty, use Motorcraft SAE 5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification WSS-M2C930-A. SAE 5W-20 oil provides optimum fuel economy and durability performance meeting all requirements for your vehicle’s engine.

  • Page 231: Battery

    Change your engine oil and filter according to the appropriate schedule listed in the scheduled maintenance information. Ford production and Motorcraft replacement oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
  • Page 232 6. Release the parking brake. With your foot on the brake pedal and with the A/C on, put the vehicle in D (Drive) and allow the engine to idle for at least one minute. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 233: Engine Coolant

    If the concentration of coolant falls below 40% or above 60%, the engine parts could become damaged or not work properly. A 50/50 mixture of coolant and water provides the following: • Improved freeze protection. • Improved boiling protection. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 234 • DO NOT MIX different colors or types of coolant in your vehicle. Make sure the correct coolant is used. Mixing of engine coolants may 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 235 3. Step back while the pressure releases. 4. When you are sure that all the pressure has been released, use the cloth to turn it counterclockwise and remove the cap. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 236 Recycled engine coolant Ford Motor Company does NOT recommend the use of recycled engine coolant since a Ford-approved recycling process is not yet available. Used engine coolant should be disposed of in an appropriate manner.
  • Page 237 How fail-safe cooling works If the engine reaches a preset over-temperature condition, the engine will automatically switch to alternating cylinder operation. Each disabled cylinder acts as an air pump and cools the engine. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 238 FUEL FILTER Your vehicle is equipped with a lifetime fuel filter that is integrated with the fuel tank. Regular maintenance or replacement is not needed. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 239: Fuel Information

    • Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 240 — this is against the law in some places; • Keep children away from the fuel pump; never let children pump fuel. • Do not use personal electronic devices while refueling. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 241 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford, Motorcraft or other certified fuel filler cap is not used. WARNING: The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
  • Page 242 Do not add aftermarket fuel additive products to your fuel tank. It should not be necessary to add any aftermarket products to your fuel tank if you continue to use high quality fuel of the recommended octane 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 243 Ask your fuel supplier about gasolines that meet the World-Wide Fuel Charter. Cleaner air Ford endorses the use of reformulated “cleaner-burning” gasolines to improve air quality, per the recommendations in the Choosing the right fuel section. Running out of fuel Avoid running out of fuel because this situation may have an adverse effect on powertrain components.
  • Page 244 3. After at least three to five tank fill-ups, fill the fuel tank and record the current odometer reading. 4. Subtract your initial odometer reading from the current odometer reading. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 245 • Warming up a vehicle on cold mornings is not required and may reduce fuel economy. • Resting your foot on the brake pedal while driving may reduce fuel economy. • Combine errands and minimize stop-and-go driving. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 246 • Use only the specified fuel listed. • Avoid running out of fuel. • Do not turn off the ignition while your vehicle is moving, especially at high speeds. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 247 If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
  • Page 248 In this case, the vehicle is considered not ready for I/M testing. If the service engine soon indicator is on or the bulb does not work, the vehicle may need to be serviced. Refer to On-board diagnostics (OBD-II) in this chapter. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 249 If the vehicle is still not ready for I/M testing, the above driving cycle will have to be repeated. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 250 If the brake fluid level falls below the MIN line, a brake warning lamp will come on. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 251 6. Install the dipstick making sure it is fully seated in the filler tube. 7. Remove the dipstick and inspect the fluid level. The fluid should be in the designated areas for normal operating temperature. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 252 If necessary, add fluid in 1/2 pint (250 ml) increments through the filler tube until the level is correct. After adding fluid, wait 20 minutes before checking the fluid level in order to allow the level to stabilize. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 253: Air Filter(S)

    6. Replace the air filter housing cover and secure the clamps. Be sure that the air cleaner cover tabs are engaged into the slots of the air cleaner housing. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 254 • Start the engine every 15 days. Run at fast idle until it reaches normal operating temperature. • With your foot on the brake, shift through all the gears while the engine is running. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 255 When your vehicle is ready to come out of storage, do the following: • Wash your vehicle to remove any dirt or grease film build-up on window surfaces. • Check windshield wipers for any deterioration. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 256: Part Numbers

    Replace the spark plugs with ones that meet Ford material and design specifications for your vehicle, such as Motorcraft or equivalent replacement parts. The customer warranty may be void for any damage to the engine if such spark plugs are not used.

  • Page 257: Maintenance Product Specifications And Capacities

    Maintenance and Specifications 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 258 Maintenance and Specifications 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 259: Engine Data

    2.0L I4 engine Cubic inches Required fuel Minimum 87 octane Firing order 1–3–4–2 Ignition system C.O.P Compression ratio 10.0:1 Spark plug gap .051 inch +/- .002 (1.3 mm +/- .05) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 260 Label may be located. The Safety Compliance Certification Label is located on the structure (B-Pillar) by the trailing edge of the driver’s door or the edge of the driver’s door. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 261 5. Check digit 6. Model year 7. Assembly plant 8. Production sequence number Electric vehicles For specific information on the Transit Connect Electric, refer to the Azure Dynamics TC-E Owner’s Guide Supplement. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 262 TRANSMISSION CODE DESIGNATIONS You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Four-speed automatic (4F27E) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 263: Accessories

    FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE A wide selection of Ford Custom Accessories are available for your vehicle through your local Ford or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
  • Page 264 Ford Motor Company engineering requirements. Contact your Ford dealer for details regarding the manufacturer’s limited warranty and/or a copy of the FLA product limited warranty offered by the accessory manufacturer.

  • Page 265: Ford Extended Service Plan

    BaseCare – Covers 84 components. PowertrainCare – Covers 29 critical components. Ford ESP is honored by all Ford and Lincoln Dealers in the U.S. and Canada It’s the only extended service plan authorized and backed by Ford Motor Company. That means you get: •...
  • Page 266 Ford ESP Can Quickly Pay for Itself One service bill – the cost of parts and labor – can easily exceed the price of your Ford ESP Service Contract. With Ford ESP, you minimize your risk for unexpected repair bills and rising repair costs.
  • Page 267 Ford Extended Service Plan 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 268 Ford Motor Company dealers. For more information, visit your local Ford of Canada dealer or www.ford.ca to find the Ford Extended Service Plan that is right for you. Note: Repairs performed outside of Canada and the United States are not eligible for Ford ESP coverage.

  • Page 269: Scheduled Maintenance

    Ford Motor Company has recommended maintenance intervals for various parts and component systems based upon engineering testing. Ford Motor Company relies upon this testing to determine the most appropriate mileage for replacement of oils and fluids to protect your vehicle at the lowest overall cost to you and recommends against maintenance schedules that deviate from the scheduled maintenance information.
  • Page 270 Please consult your Warranty Guide for complete warranty information. Chemicals or additives not approved by Ford are not required for factory recommended maintenance. In fact, Ford Motor Company recommends against the use of such additive products unless specifically recommended by Ford for a particular application.
  • Page 271 Genuine Ford and Motorcraft replacement parts Dealerships stock Ford and Motorcraft branded replacement parts. These parts meet or exceed Ford Motor Company’s specifications, and we stand behind them. Parts installed at your dealership carry a nationwide, 12 month/12,000 mile (20,000 km) parts and labor limited warranty.
  • Page 272 In order to keep your vehicle running right, it is important to have the systems on your vehicle checked regularly. This can help identify potential issues and prevent major problems. Ford Motor Company recommends the following multi-point inspection be performed at every scheduled maintenance interval to help ensure your vehicle keeps running great.
  • Page 273 The multi-point vehicle inspection is one more way to keep your vehicle running great! 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 274: Normal Scheduled Maintenance And Log

    Scheduled Maintenance NORMAL SCHEDULED MAINTENANCE AND LOG The following section contains the “Normal Schedule”. This schedule is presented at specific mileage (kilometer) intervals with exceptions noted. 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 275 Scheduled Maintenance 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 276 Scheduled Maintenance 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 277 (2WD vehicles) Initial replacement at 105,000 miles (168,000 km) or 72 months; every 45,000 miles (72,000 km) or 36 months thereafter Perform a follow-up inspection at 120,000 miles (192,000 km) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 278 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 279 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 280 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 281 – Replace front wheel bearing grease/grease seals if non-sealed bearings are used (2WD vehicles) Every 60,000 miles (96,000 km) – Change manual transmission fluid – Change transfer case fluid (4WD vehicles) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 282 – Replace front wheel bearing grease/grease seals if non-sealed bearings are used (2WD vehicles) Every 60,000 miles (96,000 km) – Change transfer case fluid (4WD vehicles) – Replace spark plugs 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 283 Every 50,000 miles (80,000 km) – Change manual transmission fluid – Change rear axle fluid (E-450 and F-450/550 only) Every 60,000 miles (96,000 km) – Change transfer case fluid (4WD vehicles) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 284 Every 60,000 miles (96,000 km) – Change transfer case fluid (4WD vehicles) Exclusive use of E85 (Flex Fuel Vehicles only) Every oil change interval – If ran exclusively on E85, fill the fuel tank full with regular unleaded fuel 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 285 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 286 ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
  • Page 287 Normal vehicle axle maintenance Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the axle assembly has been submerged in water.
  • Page 288 ENGINE COOLANT CHANGE RECORD Initial change 6 years or 105,000 miles (168,000 km) (whichever comes first) After initial change Every 3 years or 45,000 miles (72,000 km) 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)

  • Page 289: Engine Coolant Change Log

    ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE 2011 Transit Connect (tst) Owners Guide, 2nd Printing USA (fus)
