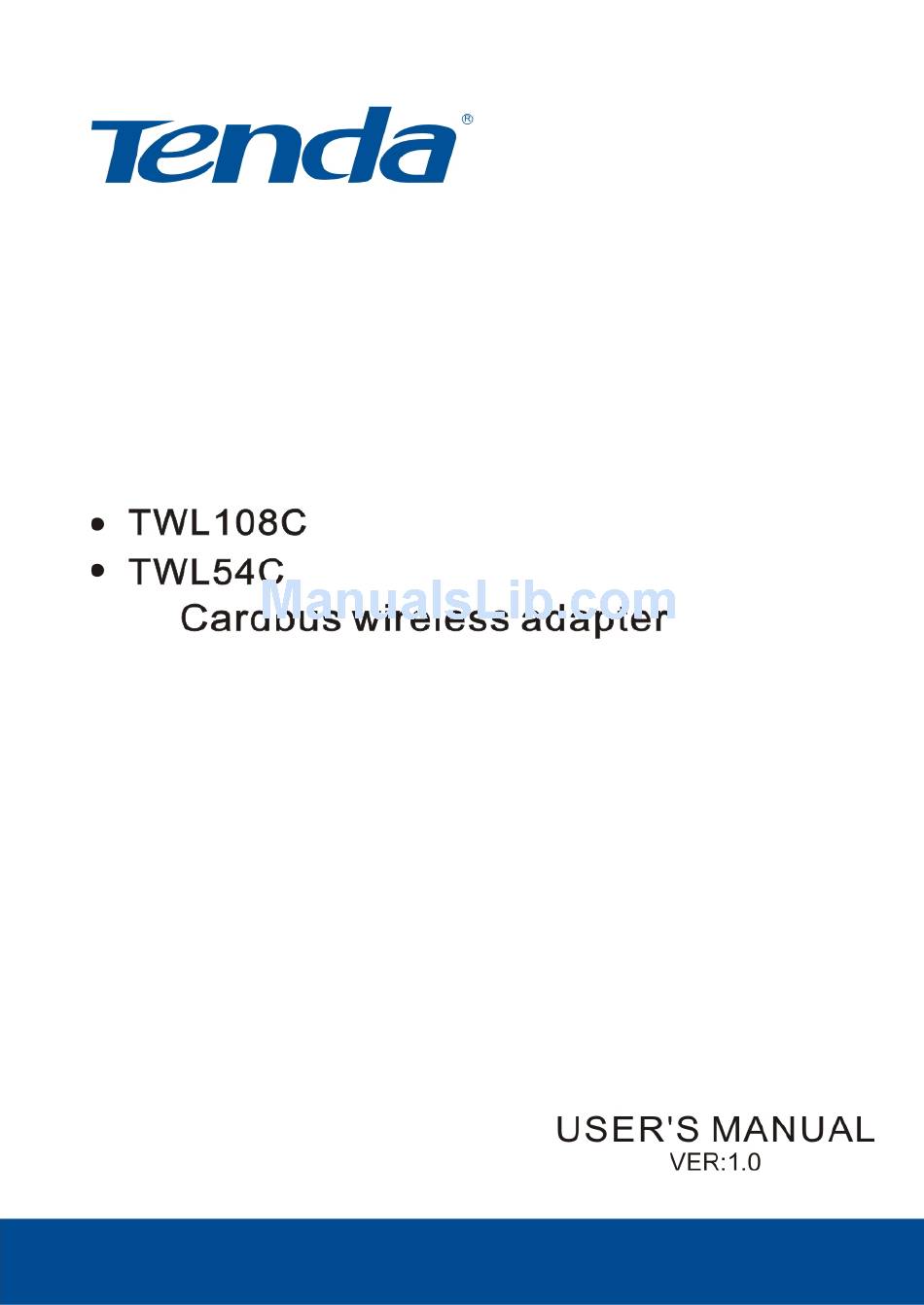

Instruction Manual
Advertisement
Table of Contents
Related Manuals for Tenda TWL108C
Summary of Contents for Tenda TWL108C
-
Page 2: Table Of Contents
Instruction Manual TWL54/108C Wireless Adapter Table of Contents Chapter 1 Brief Introduction ················································· 1.1 Features ····························································· 1.2 Applications ························································ 1.3 Product Kit ·························································· Chapter 2 Installation Guide ················································ Chapter 3 Configuration ······················································ 3.1 Current Status ···················································· 3.2 Profiles Management ········································· 3.3 Diagnoses ························································... -
Page 3: Chapter 1 Brief Introduction
Supports 802.11b/g ,transmission power manageable, QoS supported Supports 108/54/48/36/24/18/12/9/6/11/5.5/2/1Mbps data rate (108Mbps for TWL108c only); Smart omni-directional internal antenna auto adjustable for best performance; 2 Working modes: Infrastructure (AP needed) and Ad-Hoc (AP not needed); Provides Window-based Diagnostic Tools, most notably, Site Survey, Link Quality Test;... -
Page 4: Applications
Instruction Manual TWL54/108C Wireless Adapter network; LAN's augments existing networks quickly and easily; Easy to install and user friendly, just Plug and Play; Low power consumption and manageable; Wireless connection, without any cost of cabling; 1.2 Applications TWL54/108C CardBus wireless adapter offers a fast, reliable, cost-effective solution for wireless client access to the network in applications like these: Remote access to corporate network information E-mail, file transfer... - Page 5 Instruction Manual TWL54/108C Wireless Adapter TWL54/108C CardBus wireless adapter comes with the following items. Please go through each item below. If any of listed items appears to be damaged or missing, please contact your local dealer. TWL54/108C CardBus wireless adapter TWL54/108C CardBus wireless adapter driver and utilities CD TWL54/108C CardBus wireless adapter Instruction Manual...
-
Page 6: Chapter 2 Installation Guide
Instruction Manual TWL54/108C Wireless Adapter Chapter 2 Installation Guide This chapter describes the instructions that guides you through the proper installation of your TWL54/108C CardBus wireless adapter. The installation CD has integrated the software pack with the driver, configuration software that during the installation and uninstallation process the software pack system will automatically install/uninstall the driver. - Page 7 Instruction Manual TWL54/108C Wireless Adapter Fig 2-1 Click Cancel and install the driver from the Installation CD. Step 2 Insert the CD into your CD ROM, Double click MY COMPUTER＞ double click the icon. Your CD ROM driver＞TWL54C&108C folder, Step 3 Choose the installation language (Here we choose English), Click Next.
- Page 8 Instruction Manual TWL54/108C Wireless Adapter Fig 2-3 Step 6 Choose Install Customer utilities and driver and click Next. Fig 2-4 Step 7 Click OK at the prompt window.
-
Page 9: Chapter 3 Configuration
The WLAN Utility enables you to make configuration changes and perform user-level diagnostics on your TWL54/108C CardBus wireless adapter in the Windows XP/2000 operating system environments. Please run Start->programs->TENDA->TENDA customer utilities or simply double click TENDA customer utilities at the desktop. 3.1 Current Status... -
Page 10: Profile Management
Instruction Manual TWL54/108C Wireless Adapter Fig 3-1 Click Advanced Status to see detailed working status and AP connection related info. Fig 3-2 3.2 Profile Management Profile The Profile field allows you to set values for all parameters by selecting a previously defined profile. To create the profile, go to the Profile field, type a profile name and set the corresponding parameters. - Page 11 Instruction Manual TWL54/108C Wireless Adapter Fig 3-3 New Create a new Profile and make the network settings. General Please take care of the SSID of the Network Name(s). The SSID is the unique ID used by Access Points and other wireless network equipment to identify various workgroups.
- Page 12 Instruction Manual TWL54/108C Wireless Adapter connect is WEP of 64-bit hexadecimal, default key is 1 and the key is 1231231230, you should choose Shared key (Static WEP) and then Configure according to the figure below and click OK. Fig 3-5 Fig 3-6 Advanced To enable the advanced configuration, go to the Configuration tab and click the Advance button.
- Page 13 Instruction Manual TWL54/108C Wireless Adapter Fig 3-7 Transmission Power: To configure the transmission power levels; Power Save Mode: Normal, Max, off ; Wireless Modes: 54Mbps,11Mbps, Super G, eXtended Range (XR), QoS (Super G not applicable for TWL54C) ; Network Type: There are 2 network types for the TWL54/108C CardBus wireless adapter to operate.
-
Page 14: Diagnoses
Instruction Manual TWL54/108C Wireless Adapter Fig 3-8 Note: Channel can only be configured under Ad hoc network type; Modify: To modify a selected Profile; Delete: To delete an existing Profile; Activate: To activate the connection of the Profile; Input: To input a saved Profile; Output: To save a chosen Profile;... - Page 15 Instruction Manual TWL54/108C Wireless Adapter This part includes info about data receiving and transmission Adapter Information displays detailed info of the wireless adaptor Advanced Statistics displays the detailed info of this part. Fig 3-10 Fig 3-11...
-
Page 16: Chapter 4 Specifications
Instruction Manual TWL54/108C Wireless Adapter Fig 3-12 hapter 4 Specifications Standard and protocols IEEE 802.11g, IEEE 802.11b CSMA/CA supported Data security 64/128/bit WEP, WPA-PSK encryption Frequency Range 2.4～2.4835GHz... - Page 17 Instruction Manual TWL54/108C Wireless Adapter 108/54Mbps, 48Mbps, 36Mbps, 24Mbps , 18Mbps, 12Mbps, 9Mbps, 6Mbps, 11Mbps, Transmission Rate 5.5Mbps, 2Mbps, 1Mbps Sequence Spread DSSS(Direct Sequence Spread Spectrum) BPSK, QPSK, CCK and Data modulation OFDM(BPSK/QPSK/16-QAM/64-QAM) Transmission type CCK, OFDM Transmission Up to 200m (indoor), up to 850m(open Distance environment) Antenna Gain...
