Summary of Contents for John Lewis JLFFW2004

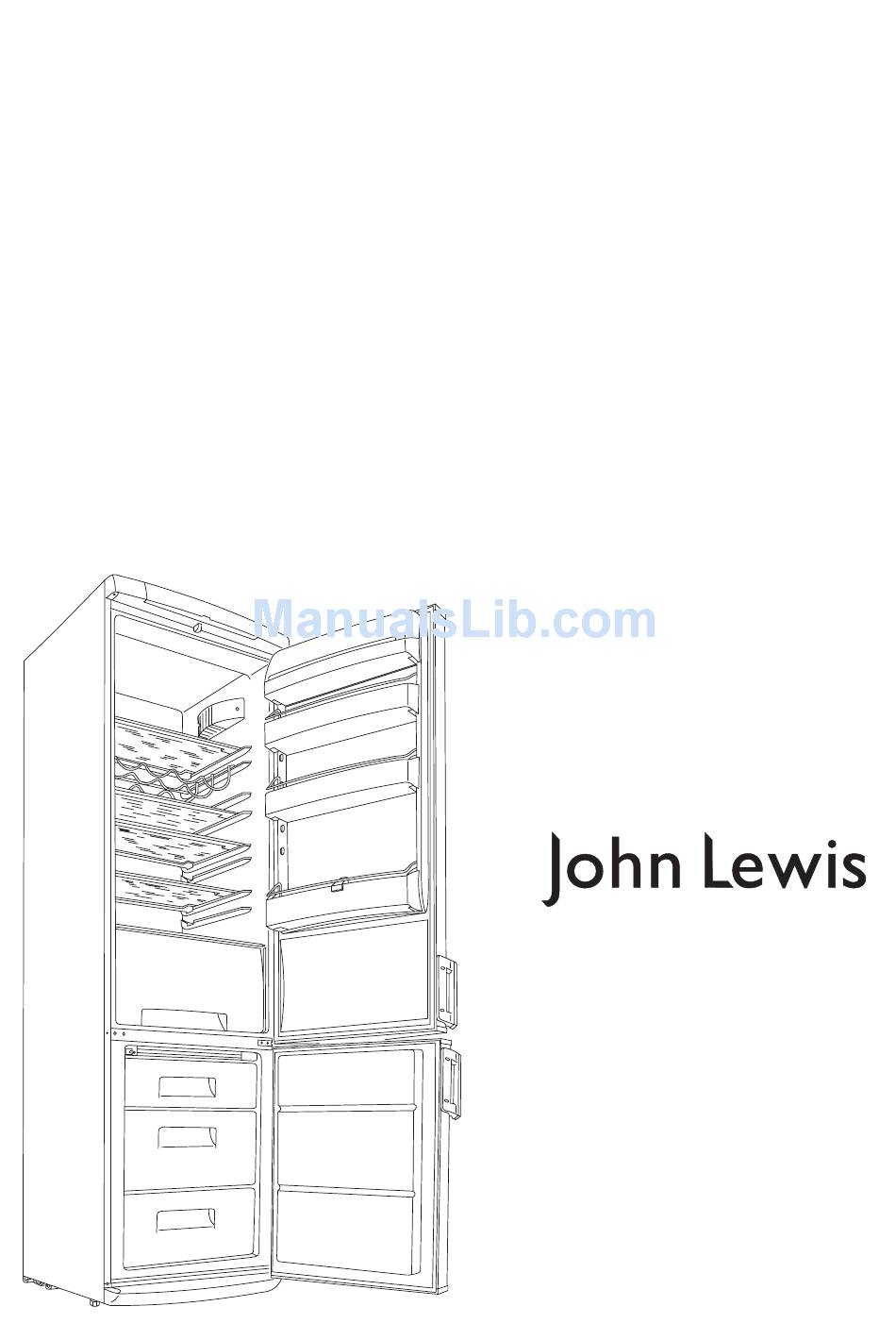

- Page 1 JLFFW2004 frost free fridge freezer Instruction manual...
-
Page 2: Child Safety
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Ecological Hints
Maintenance and Cleaning Before cleaning, always switch off the appliance and disconnect from the electrical supply. Check and clean the drain in the refrigerator compartment for defrosted water regularly; if the drain is blocked, water will gather in the bottom of the refrigerator. -
Page 4: Table Of Contents
Putting it into use Display background colour Controlling the temperature, setting Using the refrigerator Drawer Shopping mode Storing in foods the refrigerator Storage time and temperature of foods 12 Using the freezer Freezing Storing in the freezer How to make ice cubes... -
Page 5: Description Of The Appliance
Description of the appliance A- Refrigerator B - Freezer 1. Top with switch and indicator set 2. Lighting box 3. Glass shelves 4. Bottle rack 5. Cooling surface 6. Defrost water drain 7. Glass shelf 8. Drawer 9. Rating plate 10. -
Page 6: Installation
Net capacity Freezing capacity Energy consumption Energy class, according to EU standards Rising time Noise Lc Weight Number of compressors Width Height Depth Refrigerator Freezer Refrigerator Freezer 595 mm 2010 mm 632 mm 230V/50Hz 0,8 A 291 l 91 l... -
Page 7: Unpacking
Unpack the Fridge Freezer and check for any possible damage. If the appliance is damaged please report this to the John Lewis branch from which you purchased; in this case please retain the packaging. Report possible damages immediately to the place you bought it. In that case retain packaging. -
Page 8: Change Of Door Opening Direction
13. Fit the freezer door to the lower door hinge pin (f). (fig. 3) 14. Fit the refrigerator door to the upper door hinge pin (d) then slightly tilting both doors fit the pin of the double door hinge (m) into the left drill of the refrigerator door. -
Page 9: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. Should the appliance power supply cable need to be replaced, this must be carried out by a Service Force agent (see page 18) The manufacturer declines any liability should this safety measure not be observed. -
Page 10: The Control Panel
The same button is used to reset acoustic alarm signal, see the description on the display background colour. F. Refrigerator thermostat knob It is used to set the temperature inside the refrigerator. Putting it into use After connecting to the Electricity supply: Press the "A"... -
Page 11: Display Background Colour
Temperature of the refrigerator and freezer can be set by knobs "F" and "B", respectively.The set temperature is seen blinking on the display. For everyday use the setting in the refrigerator should be +5°C; in the freezer the setting would be -18°C recommended, or slightly colder. -
Page 12: Using The Refrigerator
Shopping mode Before putting a bigger amount of food into the refrigerator (e.g. when returning from shopping) press the function selection button once or twice as occasion requires to obtain shopping mode (the shopping mode symbol shown on the display). -
Page 13: Using The Freezer
Using the freezer Freezing The appliance can be used to freeze fresh food of quantity specified on the data label. Freezing different products should always be done after proper preparation as follows. Press the function selection button once or twice as occasion requires to obtain super freezing mode (the super freezing mode symbol shown on the display). -
Page 14: Storage Time Chart (Refrigerator)
Storage time chart (refrigerator) Time and method of storage of fresh foods in the refrigerator Foods Raw meat Cooked meat Roasted meat Raw minced meat Roasted minced meat Cold cuts,Vienna sausage Fresh fish Cooked fish Fried fish Tinned fish, open... -
Page 15: Storage Time Chart (Freezer)
Storage time chart (freezer) Storage time of deep-frozen and frozen products Foods Vegetables: green beans, green peas, mixed vegetables, marrow, corn, etc. Ready-cooked foods: vegetable dish, trimmings, with meat, etc. Ready-cooked foods: sirloin steaks, Foods from potatoes, pasta: filled pasta Soups: veg soup Fruits:... -
Page 16: Maintenance And Cleaning
If you remove the food right at this moment the paper will tear and it can cause clogging up in the outlet by getting into it. -
Page 17: Something Not Working
Symptom It is too warm in the refrigerator. It is too warm in the freezer. Water flows at the back plate of the refrigerator. Water flows into the chamber. Water flows onto the floor. There are too much frost and ice. -
Page 18: Repairs - After Sales Service
Repairs - After Sales Service In the unlikely event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: 0870 010 7887 They will give you details for your local Service Force Centre. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 05/06 200370743...
