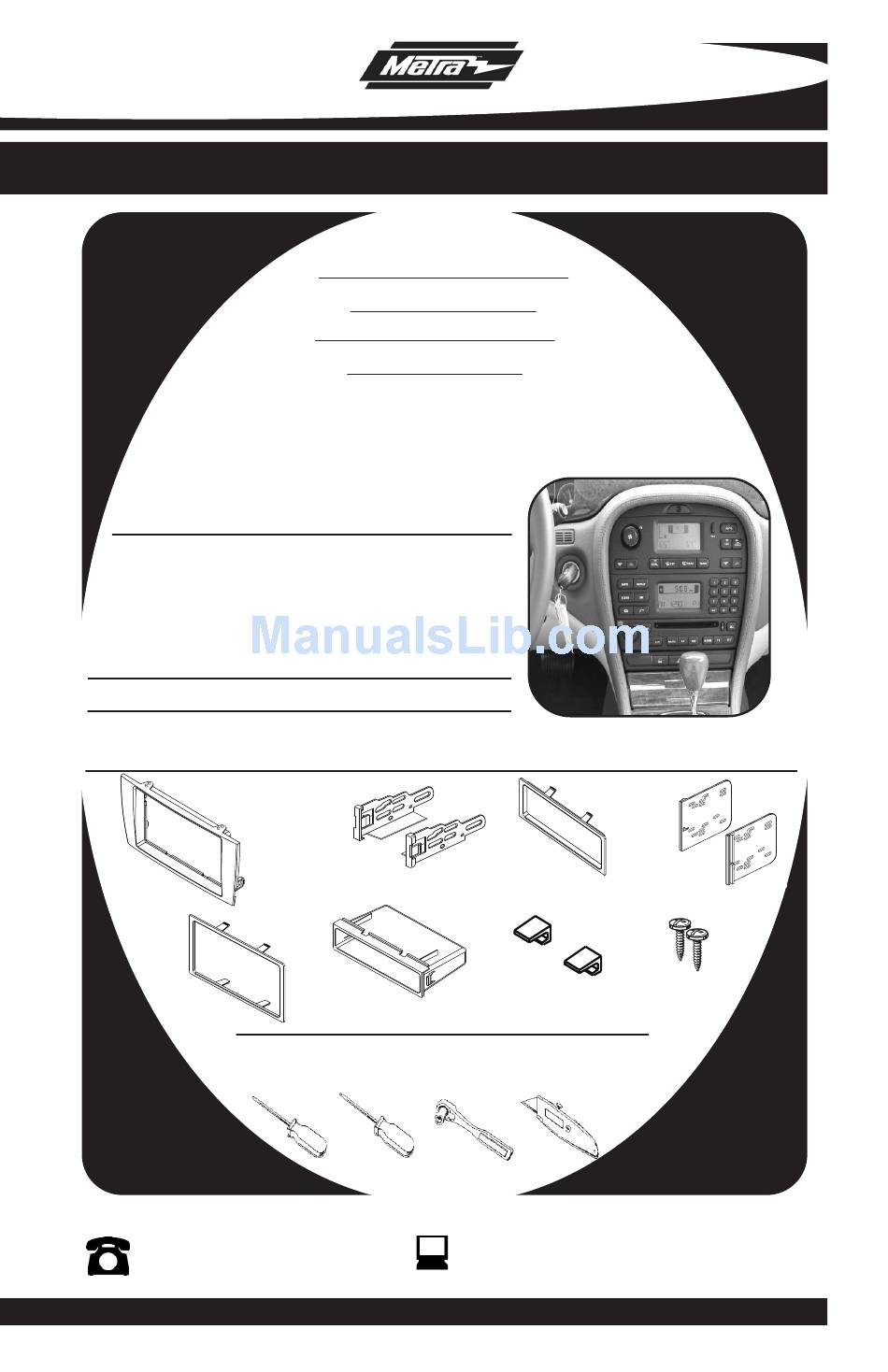

INSTALLATION INSTRUCTIONS FOR PART 99-9501
99-9501B
99-9501G
KIT FEATURES
• DIN Head Unit Provision w/ removable pocket
• ISO DIN Head Unit Provision w/ removable pocket
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision
• TWO FINISHES AVAILABLE:
99-9501B=BLACK, 99-9501G=GREY
KIT COMPONENTS
A) Radio Housing B) ISO Brackets C) ISO Trim Plate D) DDIN Brackets E) DDIN Trim Plate
F) Pocket G) (2) Pocket C-Clips H) (2) Small Phillips screws
A
E
• Small Flat Blade Screwdriver • Torx Screwdriver
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
JAGUAR S-TYPE
2003-2008
JAGUAR X-TYPE
2002-2008
(NON-NAV MODELS)
B
F
TOOLS REQUIRED:
• Socket Wrench • Cutting Tool
C
G
www.metraonline.com
D
H

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-9501B and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-9501B

Summary of Contents for Metra Electronics 99-9501B

  • Page 1 F) Pocket G) (2) Pocket C-Clips H) (2) Small Phillips screws TOOLS REQUIRED: • Small Flat Blade Screwdriver • Torx Screwdriver • Socket Wrench • Cutting Tool METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 www.metraonline.com © COPYRIGHT 2007-2009 METRA ELECTRONICS CORPORATION...

  • Page 2: Table Of Contents

    99-9501 TABLE OF CONTENTS Dash Disassembly - Jaguar S-Type 2003-2008 ......1,2 - Jaguar X-Type 2002-2008 ......3,4 Kit Preparation - Jaguar S-Type 2003-2008 .

  • Page 3: Jaguar S-Type 2003-2008

    99-9501 DASH DISASSEMBLY JAGUAR S-TYPE 2003-2008 NON-NAV MODELS isconnect the negative battery ter- minal to prevent an accidental short circuit. Remove cup holder and (2) screws securing center console storage com- partment and remove compartment. (Figure A) Unclip and remove the trim panel around the shifter.
  • Page 4 99-9501 DASH DISASSEMBLY JAGUAR S-TYPE 2003-2008 NON-NAV MODELS Unclip and remove the trim panel sur- rounding the radio/climate controls/ashtray and front half of the center console. (Figure C) Remove (4) screws securing the radio/climate control assembly to the dash. Unplug and remove assembly. (Figure D) Remove (4) screws securing the radio to the assembly and remove the...

  • Page 5: Jaguar X-Type 2002-2008

    99-9501 DASH DISASSEMBLY JAGUAR X-TYPE 2002-2008 NON-NAV MODELS isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the trim panel around the shifter. (Figure A) Remove (2) screws from bottom edge of ashtray assembly then unclip and remove ashtray assembly.
  • Page 6 99-9501 DASH DISASSEMBLY JAGUAR X-TYPE 2002-2008 NON-NAV MODELS Unclip, unplug and remove hazard switch/seat heater switch trim panel above climate control/radio assembly. (Figure D) Remove (2) screws from inside switch panel cavity at top edge of cli- mate controls. (Figure E) Unplug and remove the climate con- trol/radio assembly.

  • Page 7: Kit Preparation

    99-9501 KIT ASSEMBLY KIT PREPARATION JAGUAR S-TYPE 2003-08 Cut and remove the locator closest to the face of the radio housing for the S-Type. (Figure A) JAGUAR X-TYPE 2002-08 Cut and remove the locator farthest from the face of the radio housing for the X-Type.

  • Page 8: Jaguar S-Type 2003-2008

    99-9501 KIT ASSEMBLY JAGUAR S-TYPE 2003-2008 JAGUAR X-TYPE 2002-2008 DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 9: Iso Din Head Unit Provision

    99-9501 KIT ASSEMBLY JAGUAR S-TYPE 2003-2008 JAGUAR X-TYPE 2002-2008 ISO DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 10: Ddin Head Unit Provision

    99-9501 KIT ASSEMBLY JAGUAR S-TYPE 2003-2008 JAGUAR X-TYPE 2002-2008 DDIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
  • Page 11 99-9501 NOTES...
  • Page 12 99-9501 INSTRUCTIONS INSTRUCTIONS METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 www.metraonline.com REV. 12/08/09 © COPYRIGHT 2003-2009 METRA ELECTRONICS CORPORATION INST99-9501...
