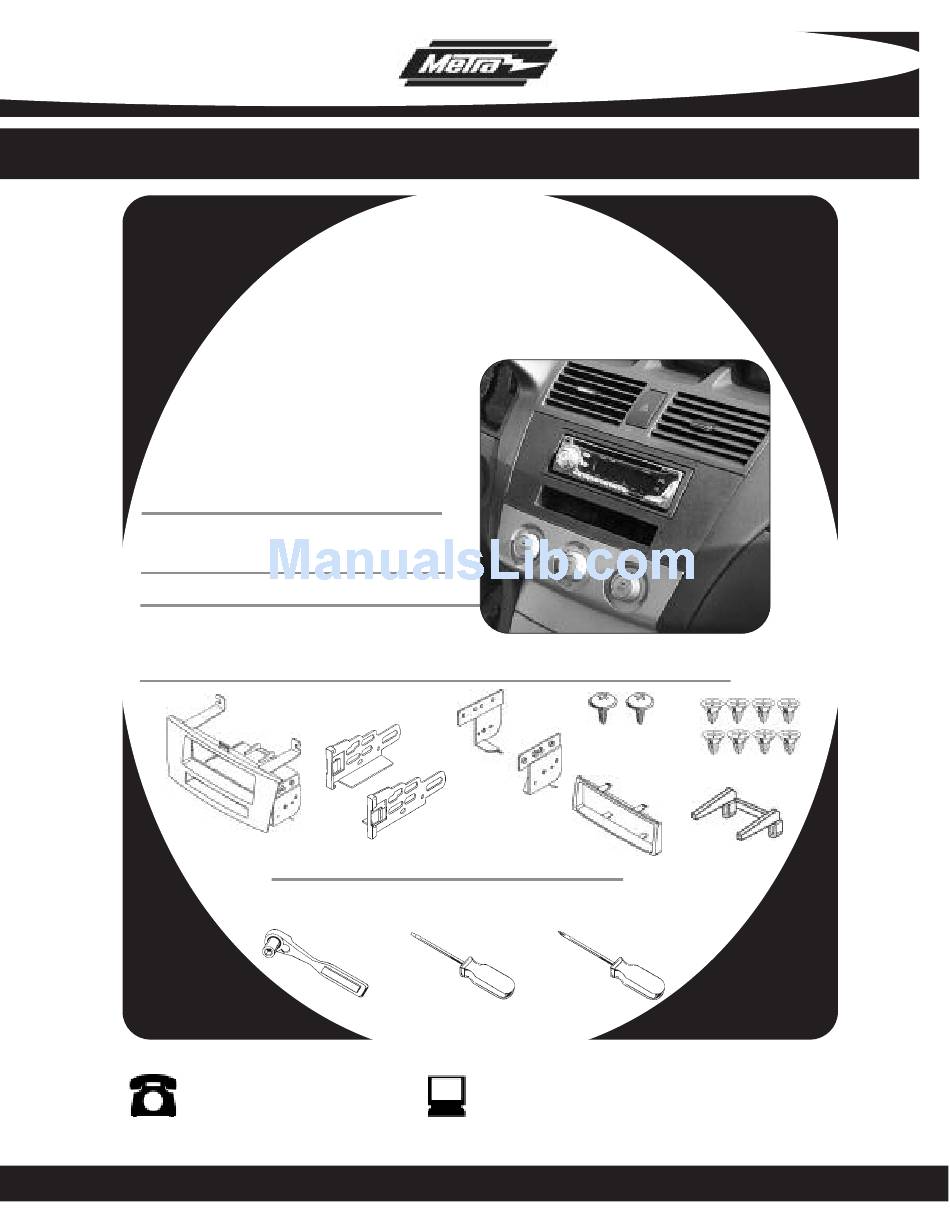

INSTALLATION INSTRUCTIONS FOR PART 99-8212
2004-2008 Toyota Solara
99-8212
KIT FEATURES
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
KIT COMPONENTS
A) Radio Housing w/ Pocket • B) ISO Brackets
C) Radio Housing Brackets • D) (2) PTH-838 Phillips Screws • E) (8) PFH-614 Phillips Screws
F) Trim Plate • G) X-9002 Radio Support Bracket
A
Socket Wrench • Small Flat Blade Screwdriver • Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION Rev.10-02-07
APPLICATIONS
C
B
TOOLS REQUIRED:
www.metraonline.com
D
E
F
G
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-8212
Summary of Contents for Metra Electronics 99-8212
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8212 2004-2008 Toyota Solara 99-8212 KIT FEATURES • DIN Head Unit Provisions with Pocket • ISO DIN Head Unit Provisions with Pocket KIT COMPONENTS A) Radio Housing w/ Pocket • B) ISO Brackets C) Radio Housing Brackets • D) (2) PTH-838 Phillips Screws • E) (8) PFH-614 Phillips Screws F) Trim Plate •...
- Page 2 99-8212 Dash Disassembly ....... . . 1 Kit Assembly ........2-4...
- Page 3 99-8212 2004-2008 TOYOTA SOLARA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove the cover from the hazard switch then unclip and remove the switch. (Figure A) Unclip and remove panel above radio including A/C vents and clock.
- Page 4 99-8212 2004-2008 TOYOTA SOLARA Attach the corresponding radio housing bracket to the radio housing using the included (8) PFH-614 Phillips screws. Slide the factory climate control into the assembled radio housing brackets/radio housing assembly and secure with the factory hardware.
- Page 5 DIN HEAD UNIT PROVISIONS Slide the DIN cage into the radio housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage and secure. (Figure B) 99-8212...
- Page 6 99-8212 ISO DIN HEAD UNIT PROVISIONS Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Figure A) Slide the head unit into the radio opening until the side clips engage. (Figure B) Snap the trim plate into the radio...
- Page 7 Re-connect the negative battery terminal and test the unit for proper operation. Reassemble radio and dash assemblies in reverse order of disassembly. 99-8212 Strip wire ends back 1/2" Twist ends together Solder Tape...
- Page 8 INST99-8212 1-800-221-0932 www.metraonline.com Rev. 07-02-07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST99-8212...
