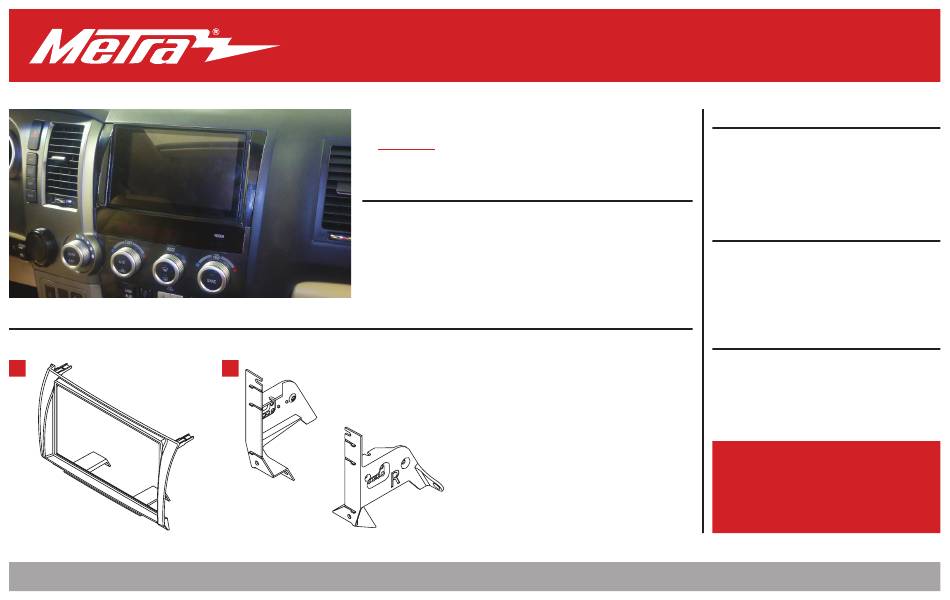

KIT COMPONENTS
• A) Radio housing • B) Radio brackets
A
Metra. The World's Best Kits.
®
Toyota Sequoia 2008-up, Tundra
Visit
MetraOnline.com
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• 108-TO1B - Painted scratch resistant matte black
• 108-TO1HG - Painted high gloss black
• 108-TO1CHG -Painted high gloss charcoal (matches 2010-up)
B
MetraOnline.com
2007-2013
for more detailed information about the product and up-to-date vehicle
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
108-TO1
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly
-With console shifter ..........................................2-3
-With column shifter .........................................4-5
Kit Assembly ..........................................................6
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Please visit metraonline.com
for wiring harness options
Antenna Adapter: Please visit metraonline.com
for antenna adapter options
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 8/28/19 INST108-TO1
Advertisement
Related Manuals for Metra Electronics 108-TO1 Series
Summary of Contents for Metra Electronics 108-TO1 Series
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-TO1...
- Page 2 DASH DISASSEMBLY With console shifter 1. Unclip and remove the trim panel around the cup holders. (Figure A) 2. Remove (1) Phillips screw securing the shifter trim panel, then unclip and remove the panel. (Figure B) 3. Unclip, unplug and remove the climate control assembly.
- Page 3 DASH DISASSEMBLY (CONT.) 4. Remove (4) 10mm screws securing the bottom of the radio. (Figure D) 5. Unclip the right side of the instrument panel trim to allow room for the radio to be removed in the following step. 6. Unclip the radio from the dash. Slide the radio out, then unplug and remove radio.
- Page 4 DASH DISASSEMBLY With column shifter 1. Remove (2) plastic Phillips screws from each side of the trim panel below the cup holder, then unclip and remove the panel. (Figure A) 2. Pull the cup-holder out, then depress the clip from each side to remove the cup-holder from the dash.
- Page 5 DASH DISASSEMBLY (CONT.) 4. Unclip the climate control assembly and set aside. (Figure D) 5. Remove (4) 10mm bolts securing the bottom of the radio. (Figure E) 6. Unclip the right side of the instrument panel trim to allow room for the radio to be removed in the following step.
- Page 6 KIT ASSEMBLY Note: For steps 1 and 2, reference the installation manual provided with the radio for which hardware to use. The display screen and radio chassis use two different types of screws. 1. Secure the radio brackets to the radio chassis using (4) screws supplied with the radio.
- Page 7 REV. 8/28/2019 INST108-TO1...
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-TO1...
- Page 9 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-TO1...
- Page 10 DESMONTAJE DEL TABLERO Con consola de cambios 1. Desenganche y quite el panel de moldura de arriba que rodea los portavasos. (Figura A) 2. Quite (1) tornillo Phillips del panel de la moldura de la palanca de velocidades y quite el panel. (Figura B) 3.
- Page 11 DESMONTAJE DEL TABLERO (CONT.) 4. Quite los (4) pernos de 10 mm que sostienen el radio. (Figura D) 5. Desenganche el lado derecho de la moldura del panel de instrumentos para dejar espacio para que se extraiga la radio en el siguiente paso. 6.
- Page 12 DESMONTAJE DEL TABLERO Con desplazador de columna 1. Quite los (2) tornillos Phillips de plástico, uno a cada lado del panel de la moldura debajo del portavasos, luego desenganche y quite el panel. (Figura A) 2. Tire del portavasos hacia afuera, luego presione el clip de cada lado para quitar el portavasos del tablero.
- Page 13 DESMONTAJE DEL TABLERO (CONT.) 4. Desenganche y quite el ensamble del control del clima. (Figura D) 5. Quite los (4) pernos de 10 mm que sostienen el radio. (Figura E) 6. Desenganche el lado derecho de la moldura del panel de instrumentos para dejar espacio para que se extraiga la radio en el siguiente paso.
- Page 14 ENSAMBLE DEL KIT Nota: Para los pasos 1 y 2, consulte el manual de instalación provisto con la radio para saber qué hardware usar. La pantalla de visualización y el chasis de radio utilizan dos tipos diferentes de tornillos. 1. Fije los soportes de radio al chasis de la radio con los (4) tornillos suministrados con la radio.
- Page 15 REV. 8/28/2019 INST108-TO1...
- Page 16 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-TO1...
