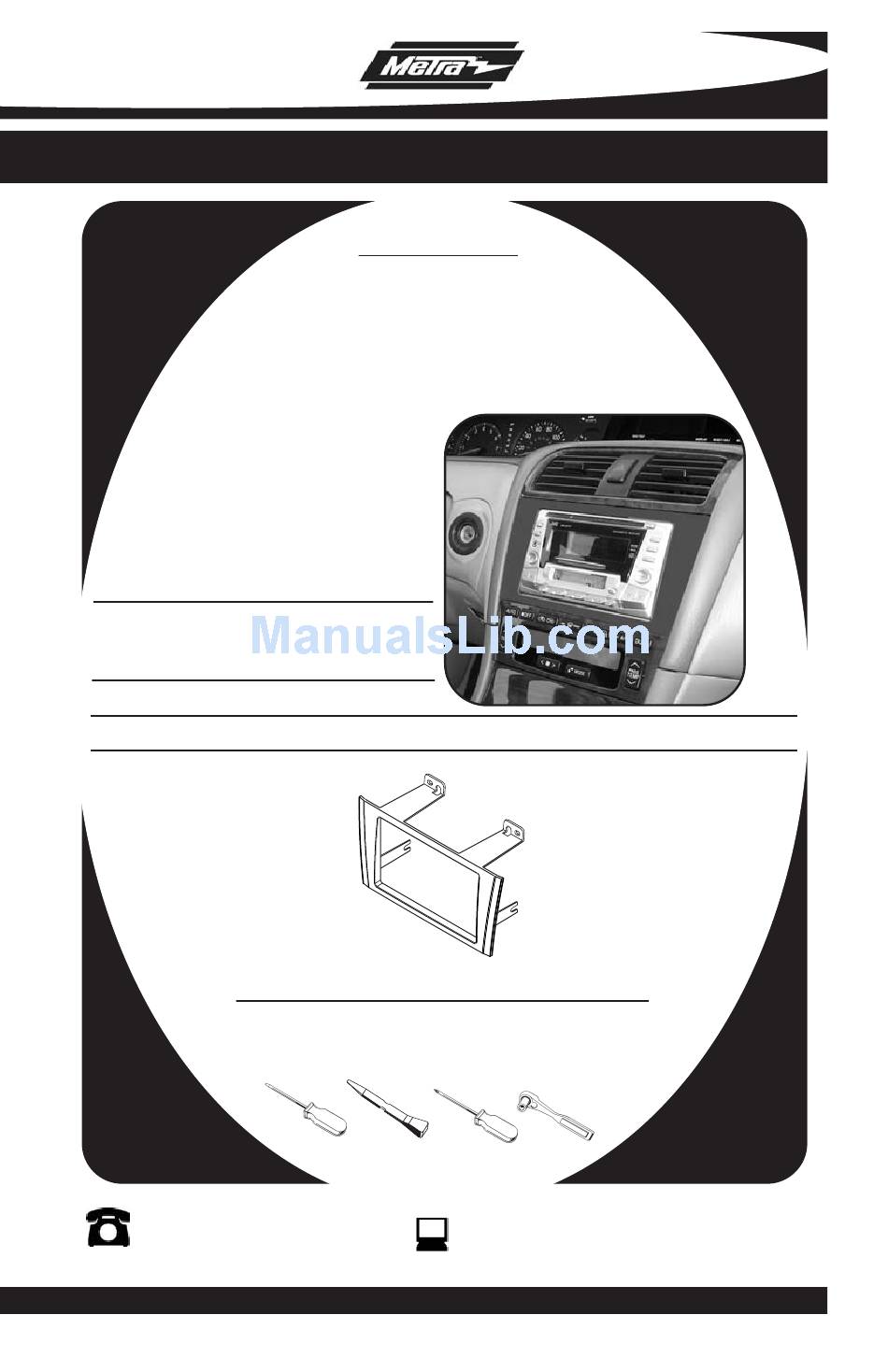

INSTALLATION INSTRUCTIONS FOR PART 95-8211
APPLICATIONS
Toyota Avalon
2000-2004
95-8211
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver • Socket Set
