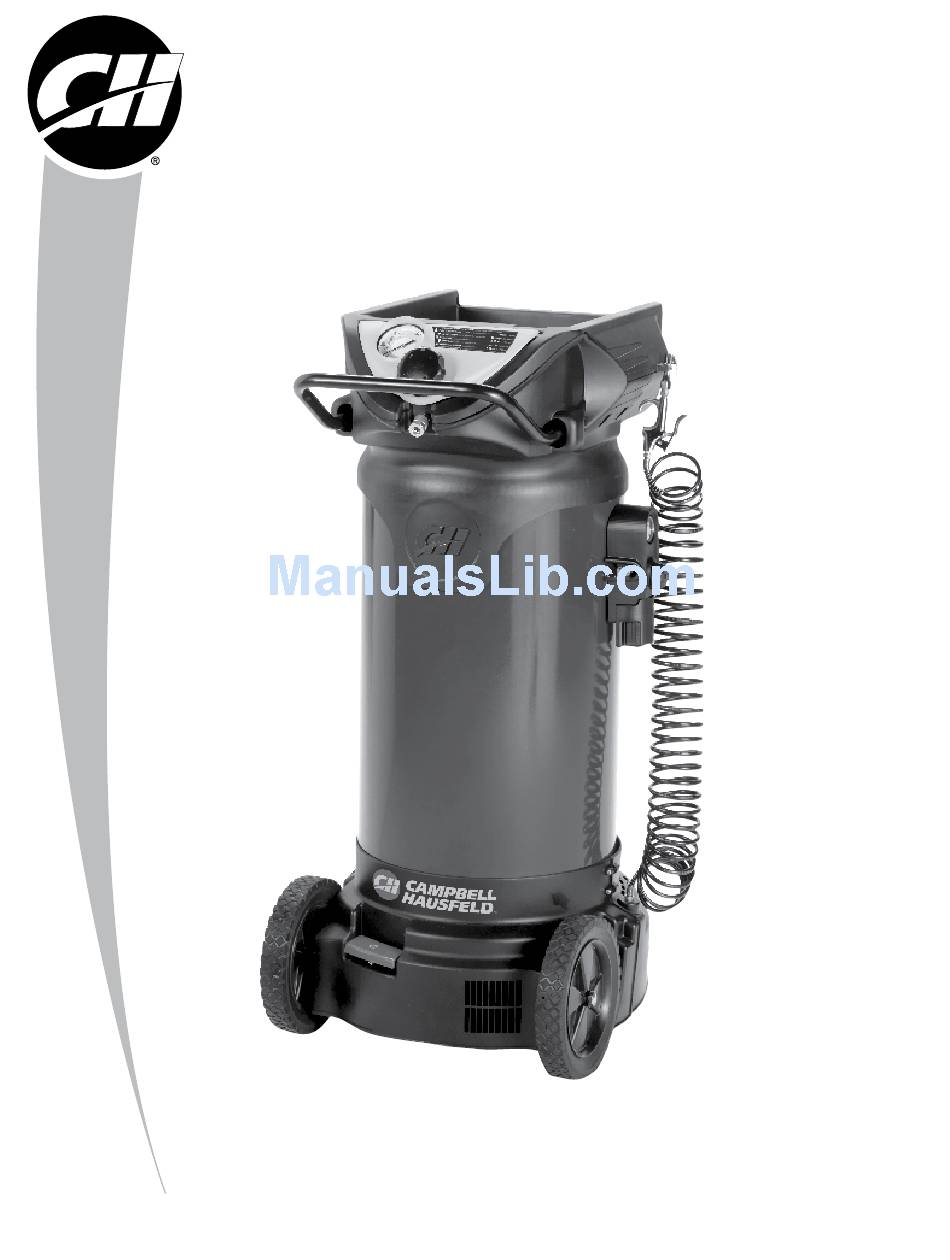

- Page 1 Rapid Inflation Air Compressor Operating Instructions and Parts Manual WL6700 Series Française: Page 20 esPañol: Página 40 MAKES IT EASY TO DO IT LIKE A PRO Visit us at chpower.com © 2009 Campbell Hausfeld/Scott Fetzer IN629500AV 4/09...
-
Page 2: Table Of Contents
Electrical Installation....11 For parts, product and service information Visit: www.chpower.com Call: Customer Service at 1-800-543-6400 Address any correspondence to: Campbell Hausfeld Attn: Customer Service 100 Production Drive Harrison, OH 45030 U.S.A. -
Page 3: Description
Operating Instructions and Parts Manual Rapid Inflation Air Compressor Description Oilless compressors are designed for do-it-yourselfers with a variety of home and Specifications automotive jobs. These compressors power spray guns, impact wrenches and other tools. These units operate without oil. WL6700 Series Running HP: 1.7 (ISO 1217) Free Air CFM: 3.8 @ 90 psi (ISO 1217) -
Page 4: Safety Guidelines
Campbell Hausfeld disclaims any liability whatsoever for any loss, personal injury or damage. generAL a. To reduce the risks of electric shock, fire, and injury to persons, read all the instructions before using the tool. -
Page 5: Work Area
Serious eye or permanent hearing loss event that the safety relief valve is tampered with, existing could result. warranties shall be voided and Campbell Hausfeld disclaims b. Always wear hearing protection when using the tool. any liability whatsoever for any loss, personal injury or Prolonged exposure to high intensity noise is able to cause damage. -
Page 6: Spraying Precautions
Operating Instructions and Parts Manual Important Safety Information (Continued) SPrAyIng PreCAutIonS Do not spray flammable materials in vicinity of open flame or near ignition sources including the compressor unit. a. Do not smoke when spraying paint, insecticides, or other flammable substances. -
Page 7: Unpacking
WL6700 Series Unpacking After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing or damaged parts. Make sure to tighten fittings, bolts, etc., before putting unit into service. Check to be sure all supplied accessories are enclosed with the unit. -
Page 8: Glossary
TANK PRESSURE GAUGE - Indicates tank pressure in psi. TOOl STORAGE - The open space on top of compressor is designed for tool storage. Specific Campbell Hausfeld tool kits will fit in this storage area. Figure 7 - tank Pressure gauge... -
Page 9: Getting To Know Your Compressor
WL6700 Series Unpacking Getting To Know Your Compressor reCoMMenDeD uSeS For thIS CoMPreSSor Hose/outlet Auto maintenance pressure Auto restoration Fastening Home maintenance Click-to-set regulator Inflation Woodworking Power cord clip Coupler tooL reCoMMenDAtIon For thIS CoMPreSSor Continuous use — Inflation accessories Airbrush Power Foot pedal oN/oFF switch... -
Page 10: Assembly
Operating Instructions and Parts Manual Assembly tooLS requIreD For ASSeMbLy Screwdriver (2) Wrenches hAnDLe ASSeMbLy 1. Slide handle into shroud holes until the holes of the handle line up with the holes of the tank bracket. 2. Insert and tighten screws to hold the handle in place. -
Page 11: Wheel Lock/Foot Brake
WL6700 Series Installation (Continued) WheeL LoCk/Foot brAke To move the compressor, use your foot to lift the foot brake lever to disengage the brake. Once the compressor is at the desire location, use your foot to push down on the foot brake lever to engage the brake. -
Page 12: Operation
Operating Instructions and Parts Manual Installation (Continued) 3. If these conditions cannot be met or if nuisance tripping of current protection device occurs, it may be necessary to operate compressor from a 120 volt, 20 amp circuit. Operation MoISture In CoMPreSSeD AIr outlet (Tool) Storage Trays Moisture in compressed air will form into droplets as it... -
Page 13: Outlet (Tool) Pressure Gauge
WL6700 Series Operation (Continued) outLet (tooL) PreSSure gAuge 1. This gauge shows at-a-glance, air pressure at outlet. Air pressure is measured in pounds per square inch (psi). 2. Be sure this gauge reads ZERO before changing air tools or disconnecting hose from outlet. -
Page 14: End Of Operation/Storage
Operating Instructions and Parts Manual Operation (Continued) enD oF oPerAtIon/StorAge 1. Turn compressor OFF at foot pedal ON/OFF switch. 2. Unplug power cord from wall outlet and attach to clip that is molded on the side of the top shroud. 3. -
Page 15: Cleaning
WL6700 Series Maintenance (Continued) CLeAnIng Turn power OFF and clean dust and dirt from motor, tank, and air lines. IMPORTANT: Unit should be located as far from spraying area as hose will allow to prevent over-spray from entering the pump. AIr FILter Check air filter to be sure it is clean. -
Page 16: Troubleshooting Guide
Operating Instructions and Parts Manual Troubleshooting Guide SyMPtoM CAuSe SoLutIon Compressor will not run 1. No electrical power 1. Plugged in? Switch on? Check fuse/breaker 2. Breaker open 2. Reset, determine cause of problem 3. Pressure switch bad 3. Replace 4. -
Page 17: Replacement Parts List For Pump
For Replacement Parts or Technical Assistance, Call 1-800-543-6400 Please provide following information: Address any correspondence to: - Model number Campbell Hausfeld - Serial number (if any) Attn: Customer Service - Part description and number as shown in parts list 100 Production Drive Harrison, OH 45030 U.S.A. - Page 18 For Replacement Parts or Technical Assistance, Call 1-800-543-6400 Please provide following information: Address any correspondence to: - Model number Campbell Hausfeld - Serial number (if any) Attn: Customer Service - Part description and number as shown in parts list 100 Production Drive Harrison, OH 45030 U.S.A.
-
Page 19: Inflation Air Compressor
WL6700 Series Replacement Parts List for Rapid Inflation Air Compressor ref. Part ref. Part Description qty. Description qty. Wheel - 10” OD Black Hub WA004000AV 2 26 Gallon Tank AR062700CG 1 Rubber Grommet WL008000AV 1 Axle Bolt ST033400AV Bottom Front Shroud WL045000AV 1 Wheel Cog Gear Lower Caster Side Shroud... -
Page 20: Warranty
WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld product. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld nailer, stapler, air tool, spray gun, inflator or air accessory supplied or manufactured by Warrantor.
