Operation (Continued)
outLet (tooL) PreSSure gAuge
1. This gauge shows at-a-glance, air pressure at outlet. Air pressure is measured in
pounds per square inch (psi).
2. Be sure this gauge reads ZERO before changing air tools or disconnecting hose from
outlet.
tAnk PreSSure gAuge
Gauge shows pressure in tank indicating compressor is building pressure properly.
StorAge toP
The storage tray compartments, located on the top of the compressor, are designed for
easy tool storage. Unique tool kits, available at your local retailer or on www.chpower.
com, store easily on top of the unit.
rAPID InFLAtIon teChnoLogy
When the compressor is used in this mode, the air being produced from the
compressor pump will go directly to the recoil hose which will attach to the bottom of
the compressor. This will eliminate waiting for the compressor tank to fill up which will
allow for significantly faster inflation.
Instant air hose will get hot while the compressor is
on and during the inflation process.
Drain water from tank prior to inflation.
to uSe CoMPreSSor For InFLAtIon:
1. Connect recoil hose to open port located on the bottom of compressor (See Figures
10 and 14). The coil hose and blow gun must remain attached so that the unit
operates properly.
2. Attach blow gun to the other end of the recoil hose. The blow gun should ALWAYS
be connected to the recoil hose.
3. To inflate balls, rafts, etc. attach inflation needle or nozzle to the end of blow gun.
4. To inflate tires, attach tire inflation valve to the end of blow gun.
5. Attach the blow gun with appropriate inflation device to object needing inflation.
6. Turn on compressor and inflate by squeezing the trigger.
Use caution to avoid over inflation.
7. When inflation is complete, blow gun can be attached to the clip that is molded on
the side of the top shroud for convenient storage.
to uSe CoMPreSSor For AIr tooL uSAge:
1. Connect separate hose (not included) to the coupler located below pressure
regulator by pulling the sleeve on coupler all of the way back, then push hose into
coupler and release sleeve (See Figure 16).
2. Close regulator (turn knob fully counterclockwise to the left).
3. Turn compressor on and allow it to fill tank until it reaches automatic shut off
pressure.
4. Attach air tool, paint gun, nailer, etc. to end of air hose.
5. Adjust regulator for desired application. Regulator has preset "click-to-set" feature
which should closely match application pictures on outlet pressure gauge.
6. Use compressor for desired application.
WL6700 Series

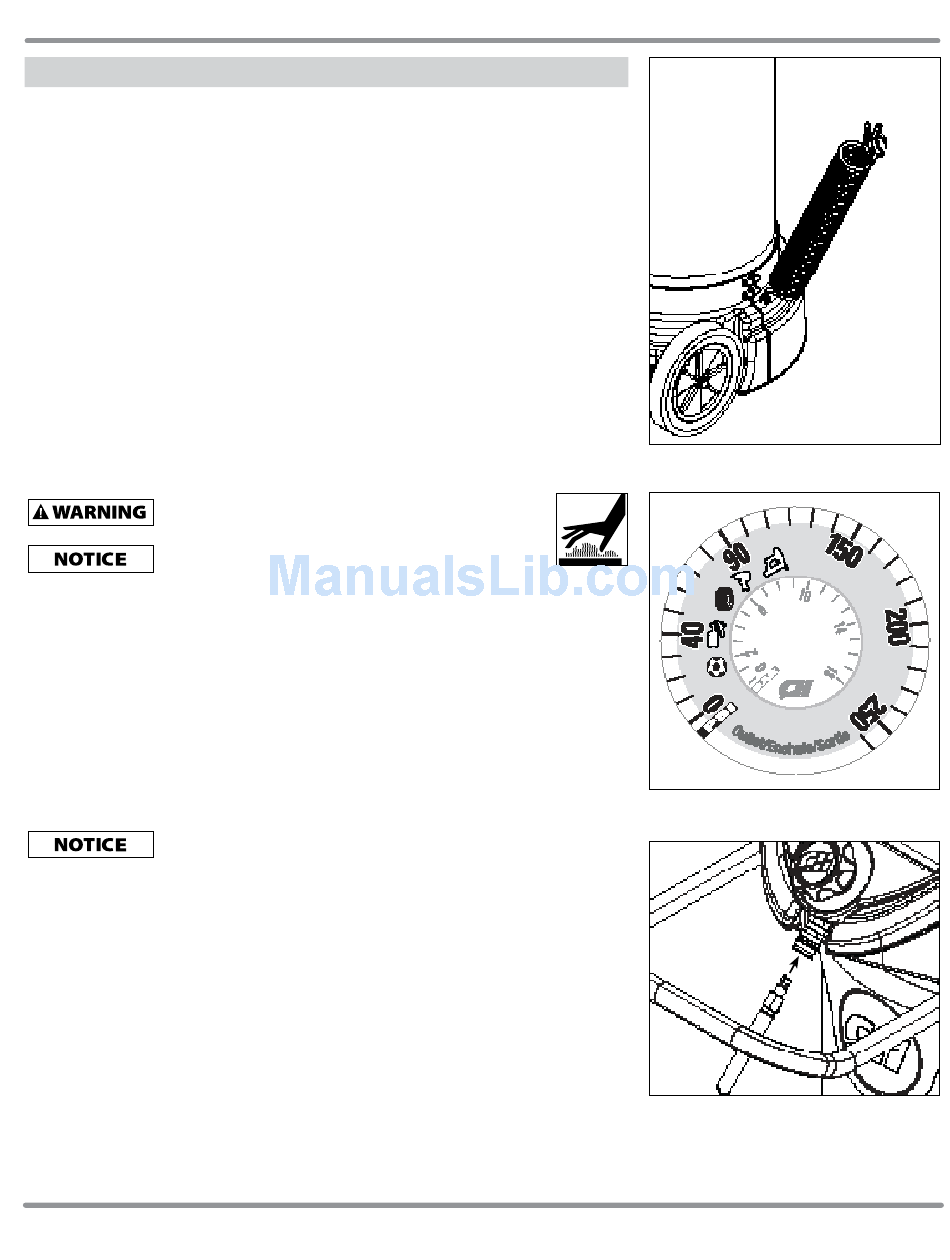

Figure 14 - rapid Inflation technology
Figure 15
Figure 16 - Attach hose to coupler
