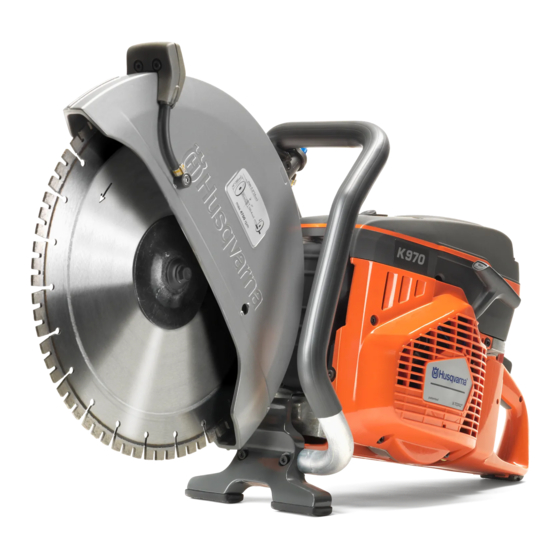

Husqvarna K 970 Operator's Manual
Chain saw
Hide thumbs
Also See for K 970:
- Operator's manual (32 pages) ,
- Price list (48 pages) ,
- Operator's manual (28 pages)
Table of Contents
Advertisement
Quick Links
Oper ator's manual
K 970 Chain
Please r ead the operator's manual carefully and make sure you understand
the instructions before using the machine. It is the owner's responsibility to
E E E E n n n n g g g g l l l l i i i i s s s s h h h h
make sure that any persons who use this power cutter have read this manual!
Advertisement
Table of Contents
Related Manuals for Husqvarna K 970
Summary of Contents for Husqvarna K 970
- Page 1 Oper ator’s manual K 970 Chain Please r ead the operator’s manual carefully and make sure you understand the instructions before using the machine. It is the owner’s responsibility to E E E E n n n n g g g g l l l l i i i i s s s s h h h h...
-
Page 2: Key To Symbols
KEY T O SYMBOLS Symbols on the mac hine You will find the following labels on your power cutter: W ARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others. Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. -
Page 3: Table Of Contents
CONTENTS Contents KEY TO SYMBOLS Symbols on the machine ..........Explanation of warning levels ........CONTENTS Contents ..............PRESENT ATION Dear customer! ............Features ............... WHA T IS WHAT? What is what on the diamond chain sa w? ....MA CHINE´S SAFETY EQUIPMENT Gener al ................ -
Page 4: Present Ation
Fewer pulls are required for starting, meaning the machine becomes easier to start. Husqvarna is the global leader in outdoor power products for forestry, park maintenance and lawn and garden care, as well as cutting equipment and diamond tools for the construction Effi... -
Page 5: Wha T Is What
WHA T IS WHA T? What is what on the diamond c hain saw? 1 Front handle 15 Chain tensioner handle 2 Water tap 16 Bar and chain 3 Warning decal 17 Counter screw 4 Air filter cover 18 Bar nut 5 Choke. -
Page 6: Ma Chine´s Safety Equipment
MA CHINE´S SAFETY EQ UIPMENT General • Start the diamond chain saw and apply full throttle. Release the throttle control and check that the chain stops and remains stationary. If the chain rotates when the throttle control is in the "IDLE POSITION" you should W ARNING! Never use a machine that has check the carburettor's "IDLE ADJUSTMENT". - Page 7 MACHINE´S SAFETY EQUIPMENT Checking the vibration damping system WARNING! The engine should be switched off, and the stop switch in STOP position. • Check the vibration damping units regularly for cracks or deformation. Replace them if damaged. • Check that the vibration damping element is securely attached between the engine unit and handle unit.
-
Page 8: Diamond Chains
DIAMOND CHAINS General Material WARNING! Chain breakage can result in WARNING! Under no circumstances may the serious injury if the chain is thrown towards diamond chain saw be converted to cut the operator. other materials than those it is intended for. It must never be equipped with a timber saw There are two basic types of diamond chain available on the chain. -
Page 9: Assembly
ASSEMBLY How to tension the chain • Hold the bar upwards as you move the handle forward. • If the play between drive link and bar is bigger than 12 mm, the chain is too loose and must be tightened. >12 mm •... -
Page 10: Tightening The Bar Nut
ASSEMBLY • Pull the handle backwards. • Remove the spring holding the two "half-moons" using a screwdriver. • Press the spring down on the chain tensioner handle. Unscrew the adjusting bar nut anti-clockwise. • Remove the "halfmoons", the cup guard, o-ring and the drive sprocket. - Page 11 ASSEMBLY • Move the lever to its rear, lower position. Push in the spring on the chain tensioner handle and turn the bar nut clockwise by hand. • Release the spring. Hold the bar upwards as you move the handle forward. Note that the arm's mechanical stop shall not be reached.
-
Page 12: Fuel Handling
Two-stroke oil Transport and storage • For best results and performance use HUSQVARNA two- stroke engine oil, which is specially formulated for our air- • Store and transport the machine and fuel so that there is cooled two stroke-engines. - Page 13 FUEL HANDLING Long-term storage • When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel. – 13 English...
-
Page 14: Operating
OPERATING Protective equipment • Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. General • Keep in mind that it is you, the operator that is responsible • Do not use the machine unless you are able to call for help for not exposing people or their property to accidents or in the event of an accident. -
Page 15: Basic Working Techniques
OPERATING Basic working techniques WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances WARNING! Do not lean the saw to the side, interfere with active or passive medical this can cause the chain to jam or break with implants. - Page 16 This method is recommended when attempting to cut absolutely straight and square. For best cutting economy, pre-cut with a power cutter equipped with Husqvarna's special pre-cutting blade intended for further cutting with diamond chain saw. • Start by securing a board where the cut is to be made.
- Page 17 OPERATING • First make the lower horizontal cut. Now make the two General rules vertical cuts. Finish with the upper horizontal cut. The risk • Kickback only occurs if the kickback zone of the bar of jamming is then avoided. touches an object.
-
Page 18: Transport And Storage
OPERATING Transport and storage • Secure the equipment during transportation in order to avoid transport damage and accidents. • Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons. • For transport and storage of diamond chains, see the section "Diamond chains". -
Page 19: Starting And Stopping
STARTING AND STOPPING Before starting • Start throttle position - warm engine: The correct choke/start throttle setting is obtained by pulling the choke control to the choke position and then pushing it in again. This only engages the start throttle setting without any WARNING! Please read the operator’s choke. -
Page 20: Stopping
STARTING AND STOPPING • When the engine starts, quickly apply full throttle to automatically disengage fast idle. Stopping CAUTION! The chain continues to rotate up to a minute after the motor has stopped. (Chain coasting.) Make sure that the chain can rotate freely until it is completely stopped. -
Page 21: Maintenance
• Let your Husqvarna dealer regularly check the machine and make essential adjustments and repairs. Maintenance schedule In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. -
Page 22: Cleaning
MAINTENANCE Cleaning Functional inspection External cleaning General inspection • Clean the machine daily by rinsing it with clean water after • Check that nuts and screws are tight. the work is finished. Carburetor Cooling air intake The carburettor is equipped with fixed needles to ensure the •... - Page 23 MAINTENANCE Starter Tensioning the recoil spring • Guide the cord through the cut-out in the periphery of the WARNING! When the recoil spring is wound pulley and wind the cord 3 times clockwise around the up in the starter housing it is under tension centre of the starter pulley.
-
Page 24: Fuel System
MAINTENANCE Air filter • Remove the recoil spring by turning the starter over and loosen the hooks, with the help of a screwdriver. The The air filter only needs to be checked if the engine drops in hooks hold the return spring assembly on the starter. power. -
Page 25: Technical Data
TECHNICAL DATA Technical data Motor K 970 Chain Cylinder displacement, cu.in/cm 5,7/93,6 Cylinder bore, inch/mm 2,2/56 Stroke, inch/mm 1,5/38 Idle speed, rpm 2700 Recommended max. speed, rpm 9300 (+/- 150) Power, kW/ rpm 4,8/9000 Ignition system Manufacturer of ignition system... -
Page 26: Federal Emission Control Warranty Statement
The EPA (The US Environmental Protection Agency), charge to the owner at an approved Husqvarna Construction Environment Canada and Husqvarna Construction Products Products servicing dealer. If you have any questions... - Page 27 FEDERAL EMISSION CONTROL WARRANTY STATEMENT EMISSION CONTROL WARRANTY PARTS LIST 1 Carburetor and internal parts 2 Intake pipe, airfilter holder and carburetor bolts. 3 Airfilter and fuelfilter covered up to maintenance schedule. 4 Ignition System 1 Spark Plug, covered up to maintenance schedule 2 Ignition Module MAINTENANCE STATEMENT The owner is responsible for the performance of all required...
- Page 28 WARNING! Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Exposure to excessive amount of such dust can cause: Respiratory disease (affecting your ability to breath), including chronic bronchitis,...
