York YMB018 THRU 060 Technical Manual

York YMB018 THRU 060 Technical Manual

Affinity split-system heat pumps 13 seer – r-22 models: ymb018 thru 060 (1.5 thru 5 nominal tons)

Advertisement

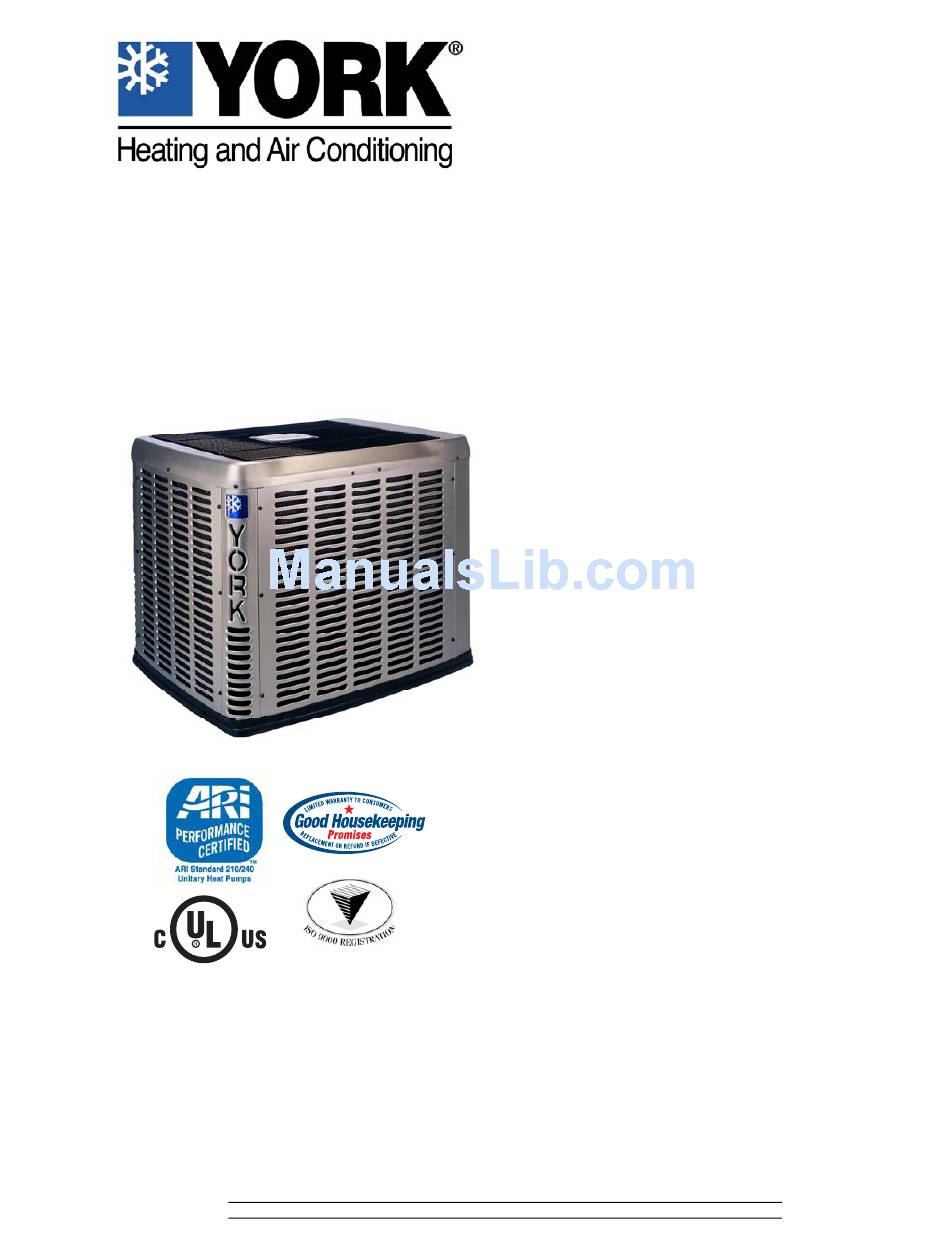

TECHNICAL GUIDE
AFFINITY
SPLIT-SYSTEM HEAT PUMPS
13 SEER – R-22
MODELS: YMB018 THRU 060
(1.5 THRU 5 NOMINAL TONS)
LISTED
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
ISO 9001
Certified Quality
Management System
DESCRIPTION
The
YMB
Series unit is the outdoor part of a versatile heat
pump system. It is designed to be custom matched with one
of our complete line of evaporator sections, each designed to
serve a specific function. Matching air handlers are available
for upflow, downflow, and horizontal left or right application to
provide a complete system. Electric heaters are available if
required. Add-on coils are available for use with upflow,
downflow, or horizontal furnaces. Field installed accessories
are available as needed.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• Superior Coil Protection – A
coil guard completely protects coil from debris and other
large damaging material while a polymer mesh further pro-
tects the coil against smaller particles.
• Isolated Compressor Compartment – A molded com-
posite bulkhead isolates the compressor from the rest of
the unit reducing sound and vibration.
• Protected Compressors – Each compressor is protected
against high and low pressure as well as excessive tem-
perature. This is accomplished by by the simultaneous
operation of a high pressure relief valve and temperature
sensors which protect the compressor if undesirable con-
ditions occur.
• Durable Finish – Automotive quality finish provides the
ultimate protection from harmful U.V. rays as well as rust
creep ensuring long-lasting high quality appearance. A
powder-paint topcoat is applied over a baked-on primer,
using a galvanized, zinc coated steel base material. The
result is a finish that has been proven in testing to provide
33% greater durability than conventional powder-coat fin-
ishes.
• Lower Installed Cost – Designed to provide enhanced
installability by featuring a slide-down control compartment
allowing easy access to control components along with
angled service valves to reduce overall installation time
and cost.
• Low Operating Sound Levels – A fan design boasting
technology adapted from aeronautic and defense engi-
neering provides for whisper quiet operation by allowing
airflow to flow smoothly and efficiently across the fan tips.
• Filter-Drier – A factory installed, solid core liquid line filter-
drier filters harmful debris and moisture from the system.
• Easy Service Access – A full end, full service, access
panel with handle makes for easy entry to internal compo-
nents.
• Long Lasting Operation – Strong and durable composite
base pan provides added strength while resisting rust and
corrosion as well as reducing sound and vibration.
• Complete System Control – These heat pumps utilize
the unique microprocessor defrost control system to pro-
vide optimal comfort as well as monitor the overall system
for reliable operation. The defrost control system continu-
ously monitors the space environment to maintain opti-
mum efficiency. It initiates defrost only when necessary to
further reduced heating costs and improve reliability. Sup-
plemental heat can only operate below the balance point
and then only upon need. In the event improper operating
conditions occur (high temperature and/or high pressure),
the will automatically shut the system down to extend the
life of the heat pump. Rapid cycling is prevented by use of
an internal anti-recycle timer. The defrost control features
an internal memory to aid the technician in troubleshoot-
ing, reducing service time and cost.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
246809-YTG-E-0507
stamped decorative metal

Advertisement

loading
Need help?

Need help?

Do you have a question about the YMB018 THRU 060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for York YMB018 THRU 060

  • Page 1 Rapid cycling is prevented by use of Visit us on the web at www.york.com for the most an internal anti-recycle timer. The defrost control features up-to-date technical information.
  • Page 2: Physical And Electrical Data

    246809-YTG-E-0507 Physical and Electrical Data MODEL YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011 Unit Supply Voltage 208/230 – 1 – 60 187 to 252 Normal Voltage Range Minimum Circuit Ampacity 11.7 14.5 16.7 20.0 27.8 33.9 40.2 Max. Overcurrent Device Amps Min.
  • Page 3 246809-YTG-E-0507 Additional R-22 Charge / TXV Size for Various Matched Systems Outdoor Unit YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1 Required TXV Factory R-22 Charge, lbs-oz 6 - 6 7 - 9 9 - 1 9 - 9 10 - 9 13 - 1...
  • Page 4 246809-YTG-E-0507 Additional R-22 Charge / TXV Size for Various Matched Systems Outdoor Unit YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1 Required TXV Factory R-22 Charge, lbs-oz 6 - 6 7 - 9 9 - 1 9 - 9 10 - 9 13 - 1...
  • Page 5 246809-YTG-E-0507 COOLING CAPACITY - With Air Handler Coils AIR HANDLER COOLING COIL NET MBH UNIT MODEL RATED MODEL MODEL SEER SENSIBL TOTAL 1 PH 13 SEER HP WITH MA YMB01811 MA08B FC/MC18B 17.3 12.1 13.00 11.00 MA08B FC/MC24B 23.0 16.3 13.00 11.00 YMB02411...
  • Page 6 246809-YTG-E-0507 COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils FURNACE** COOLING COIL UNIT MODEL NET MBH CFM RANGE RATED MODEL SEER (Min.-max.) TOTAL SENSIBLE 14,17 FC/MC/PC/UC18 17.3 12.1 13.00 11.00 YMB01811 HC18 17.3 12.1 13.00 11.00 14,17 FC/MC/PC/UC24 23.0 16.3 13.00...
  • Page 7 246809-YTG-E-0507 COOLING CAPACITY - With Variable Speed Furnaces COOLING VARIABLE SPEED COIL UNIT MODEL NET MBH RATED FURNACE MODEL MODEL SEER TOTAL SENSIBLE 1 PH 13 SEER HP WITH - VARIABLE SPEED PV8*A12 FC/MC/PC18A 17.6 12.2 14.00 11.50 PV9*A12 FC/MC/PC18A 17.6 12.2 14.00...
  • Page 8 246809-YTG-E-0507 COOLING CAPACITY - With Variable Speed Furnaces COOLING VARIABLE SPEED COIL UNIT MODEL NET MBH RATED FURNACE MODEL MODEL SEER TOTAL SENSIBLE 1 PH 13 SEER HP WITH - VARIABLE SPEED PV8*C16 FC/PC60C 1400 41.5 30.8 13.50 11.00 PV8*C20 FC/PC60C 1400 42.0...
  • Page 9 246809-YTG-E-0507 HEATING PERFORMANCE - Air Handlers ARI HEATING UNIT COIL 47°F 17°F HSPF MODEL* HANDLER MODEL 1 PH 13 SEER HP WITH MA YMB01811 MA08B FC/MC18B 17.5 3.40 1.51 10.6 2.40 1.29 8.00 MA08B FC/MC24B 23.6 3.20 2.16 14.6 2.20 1.94 8.00 YMB02411...
  • Page 10 246809-YTG-E-0507 HEATING PERFORMANCE - Air Handlers ARI HEATING UNIT COIL 47°F 17°F HSPF MODEL* HANDLER MODEL 1 PH 13 SEER HP WITH AHP/ SHP AHP18 – 17.5 3.40 1.51 10.6 2.40 1.29 8.00 YMB01811 F*FP024 – 17.5 3.40 1.51 10.6 2.40 1.29 8.00...
  • Page 11 246809-YTG-E-0507 HEATING CAPACITY - With Variable Speed Furnaces ARI HEATING VARIABLE UNIT COIL SPEED 47°F 17°F HSPF MODEL MODEL FURNACE PV8*A12 FC/MC/PC18A 17.0 3.64 1.37 10.2 2.56 1.17 8.50 PV9*A12 FC/MC/PC18A 17.1 3.58 1.40 10.3 2.52 1.20 8.50 YMB01811 P(C,V)9*B12 FC/MC/PC18B 17.0 3.62...
  • Page 12 246809-YTG-E-0507 HEATING CAPACITY - With Variable Speed Furnaces (Continued) ARI HEATING VARIABLE UNIT COIL SPEED 47°F 17°F HSPF MODEL MODEL FURNACE PV8*C16 FC/PC60C 42.0 3.84 3.20 28.4 2.60 3.20 8.65 PV8*C20 FC/PC60C 42.0 3.86 3.19 28.4 2.60 3.20 8.70 P(C,V)9*C16 FC/PC60C 42.0 3.84...
  • Page 13: Sound Power Ratings

    246809-YTG-E-0507 ACCESSORIES* SOUND POWER RATINGS* (dBA) Hard Start Kit - Provides increased starting torque for areas UNIT MODEL with low voltage. Cooling Heating TXV Kits - 1TVM2* series thermal expansion valves precisely meter refrigerant for optimum performance. Compressor Discharge Temperature Sensor (2SN02700124) - Adds an additional safety for improved compressor reliability and diagnostics.
  • Page 14: Cooling Performance Data

    246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB01811 INDOOR COIL MODEL NO. FC/MC/PC18 ID CFM CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 16.1 17.1 17.1 19.0 21.4 17.8 18.3 18.1 20.0 22.1 19.5 19.4 19.1 21.1 22.8 S.C.
  • Page 15 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB02411 INDOOR COIL MODEL NO. FC/MC/PC24 ID CFM 1000 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 15.4 18.9 19.1 20.9 23.6 16.7 20.1 20.0 22.2 24.9 18.1 21.2 20.9 23.5 26.2...
  • Page 16 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB03011 INDOOR COIL MODEL NO. AHP30 ID CFM 1000 1200 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 26.3 28.5 28.4 31.2 34.1 28.3 29.2 29.4 32.2 35.2 30.3 29.9 30.4 33.1...
  • Page 17 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB03611 INDOOR COIL MODEL NO. FC/MC/PC/UC48 ID CFM 1000 1200 1400 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 33.3 36.9 35.5 35.8 39.2 35.5 37.4 37.8 34.5 40.7 37.6 37.9 40.1...
  • Page 18 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB04211 INDOOR COIL MODEL NO. FC/MC/PC60 ID CFM 1200 1400 1600 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) 40.3 43.7 41.4 45.8 47.2 43.9 45.1 42.2 46.7 48.5 47.6 46.6 43.0 47.6...
  • Page 19 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB04811 INDOOR COIL MODEL NO. FC/MC/PC60 ID CFM 1400 1600 1800 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 43.6 47.2 46.7 50.8 55.5 46.0 48.7 47.3 51.8 55.7 48.3 50.3 47.9...
  • Page 20 246809-YTG-E-0507 COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB06011 INDOOR COIL MODEL NO. FC/MC/PC60 ID CFM 1600 1800 2000 CONDENSER ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 54.0 55.2 55.2 60.7 64.4 56.4 57.0 56.5 62.3 65.6 58.7 58.7 57.7...
  • Page 21: Heating Performance Data

    246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB01811 INDOOR COIL MODEL NO. FC/MC/PC18 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 20.3 21.2 22.1 19.6 20.6 21.6 18.8 20.0 21.1 17.4 18.0...
  • Page 22 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB02411 INDOOR COIL MODEL NO. FC/MC/PC24 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1000 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 28.2 28.9 29.7 27.5 28.2 28.9 26.9 27.6 28.2 23.6...
  • Page 23 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB03011 INDOOR COIL MODEL NO. AHP30 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1000 1200 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 36.0 36.8 37.7 35.2 36.2 37.2 34.5 35.6 36.6...
  • Page 24 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB03611 INDOOR COIL MODEL NO. FC/MC/PC48 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1000 1200 1400 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 39.2 40.1 40.9 38.5 39.3 40.1 37.8 38.5...
  • Page 25 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB04211 INDOOR COIL MODEL NO. FC/MC/PC60 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1200 1400 1600 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 54.5 54.6 54.7 53.3 53.6 54.0 52.2 52.7...
  • Page 26 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB04811 INDOOR COIL MODEL NO. FC/MC/PC60 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1400 1600 1800 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 64.7 64.7 64.8 62.2 62.4 62.6 59.7 60.0...
  • Page 27 246809-YTG-E-0507 HEATING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YMB06011 INDOOR COIL MODEL NO. FC/MC/PC60 AIR TEMP. AIR TEMP. ID CFM ENTERING ENTERING 1600 1800 2000 OUTDOOR INDOOR UNIT COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 75.6 76.1 76.6 72.9 73.4 73.8 70.2 70.6...
  • Page 28 NOTES Subject to change without notice. Printed in U.S.A. 246809-YTG-E-0507 Copyright © by York International Corp. 2007. All rights reserved. Supersedes: 246809-YTG-D-0906 Unitary 5005 Norman Products York Group Drive 73069...
