Upgrade Procedure
•
WW1900
•
3–2
WW1100
Remove the network interface card that is already installed in one of
the NIC slots on the rear side of the appliance, and insert the new
network interface card instead.

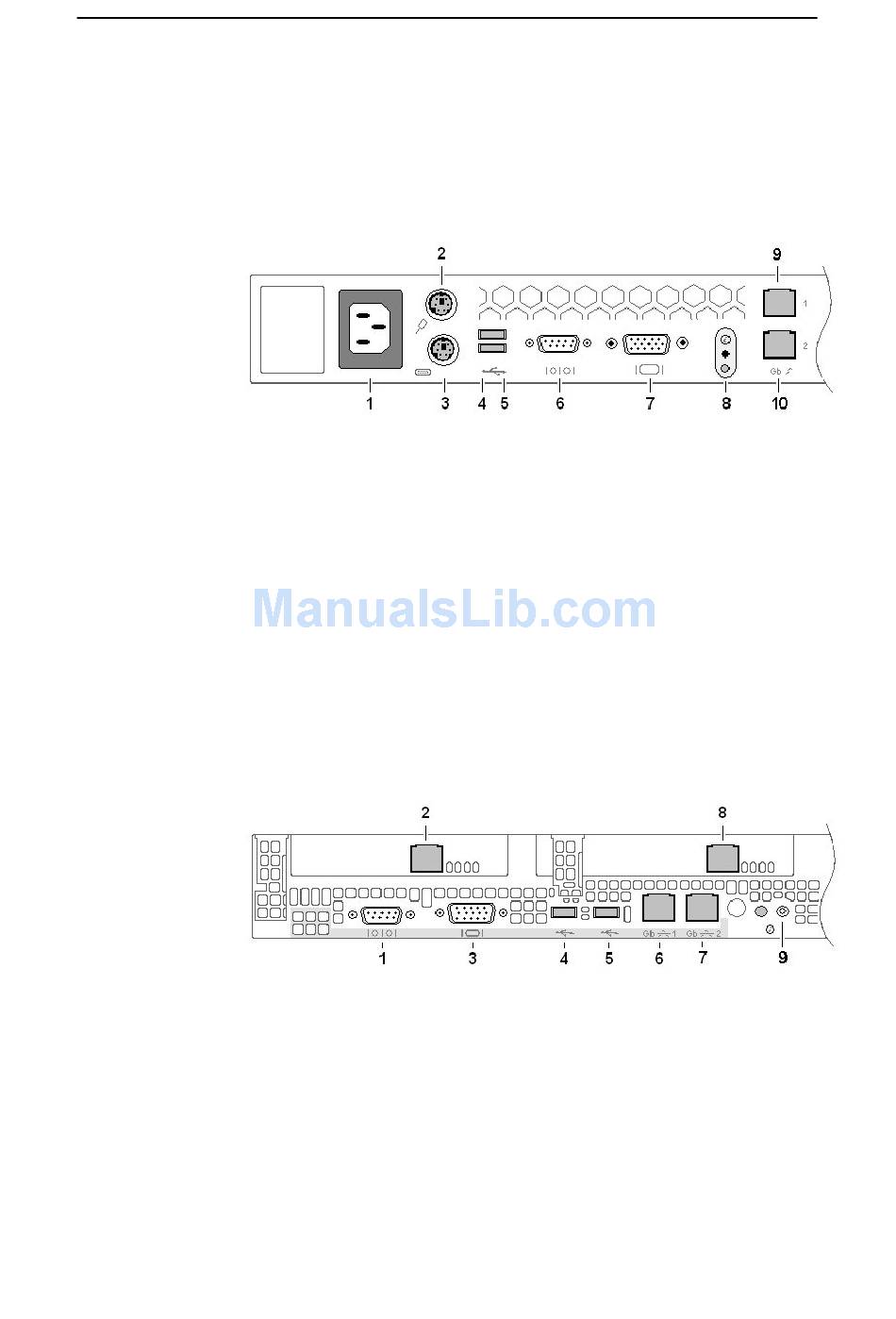

The following diagram shows the positions of these slots (9 and 10):
Note, however, that the slot positions may vary according to the par-
ticular version of the appliance model in question.
For a complete description of the elements on the rear side of the
WW1100 Appliance, the
Installation and Configuration Guide, Webwasher Appliances..
Upgrading one network interface card
network interface cards that are already installed when the appliance
is shipped, and insert the new network interface card instead.
The following diagram shows the positions of the network interface
slots (2, 6, 7, and 8) on the rear side of a WW1900 Appliance:
Note, however, that the slot positions may vary according to the par-
ticular version of the appliance model in question.
Of the slots shown in the diagram, only the upper two (2 and 8) can
be used for removing and replacing network interface cards since the
lower slots belong to the appliance mainboard.
Rear Side
subsection of section 2.3 in the
– Remove one of the two
