Intruder Alarm Control Panel
Operators Manual
TS590
SYSTEM OPEN
17:30
01 Jan
A
1
B
4
C
7
D
ENT
Sett ing the Syst em
Ent er your pa ss code XXXX
A
1
th en lea v e th e pro tec t ed a re a.
Part Set
BELL TEST
Unsetting the System
B
Go dir e ct ly to t he ke yp ad and
4
en ter you r p as scod e XXXX .
Part Set
NEW C ODE
Resetting
C
7
Ent er your pa ss code XXXX f ollow ed
Part Set
ZONE O MIT
by EN T the n 3. Te leph on e you r a lar m
D
com pan y and follow th eir instr uct io ns.
ENT
See U ser Manual
!
_
~
2
3
5
6
8
9
0
ESC
2
3
WALK TEST
R ESET
5
6
CHIME
24 Hr OMIT
8
9
SILENT
0
ESC
FU LL SET
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Networker TS590
Summary of Contents for Networker TS590

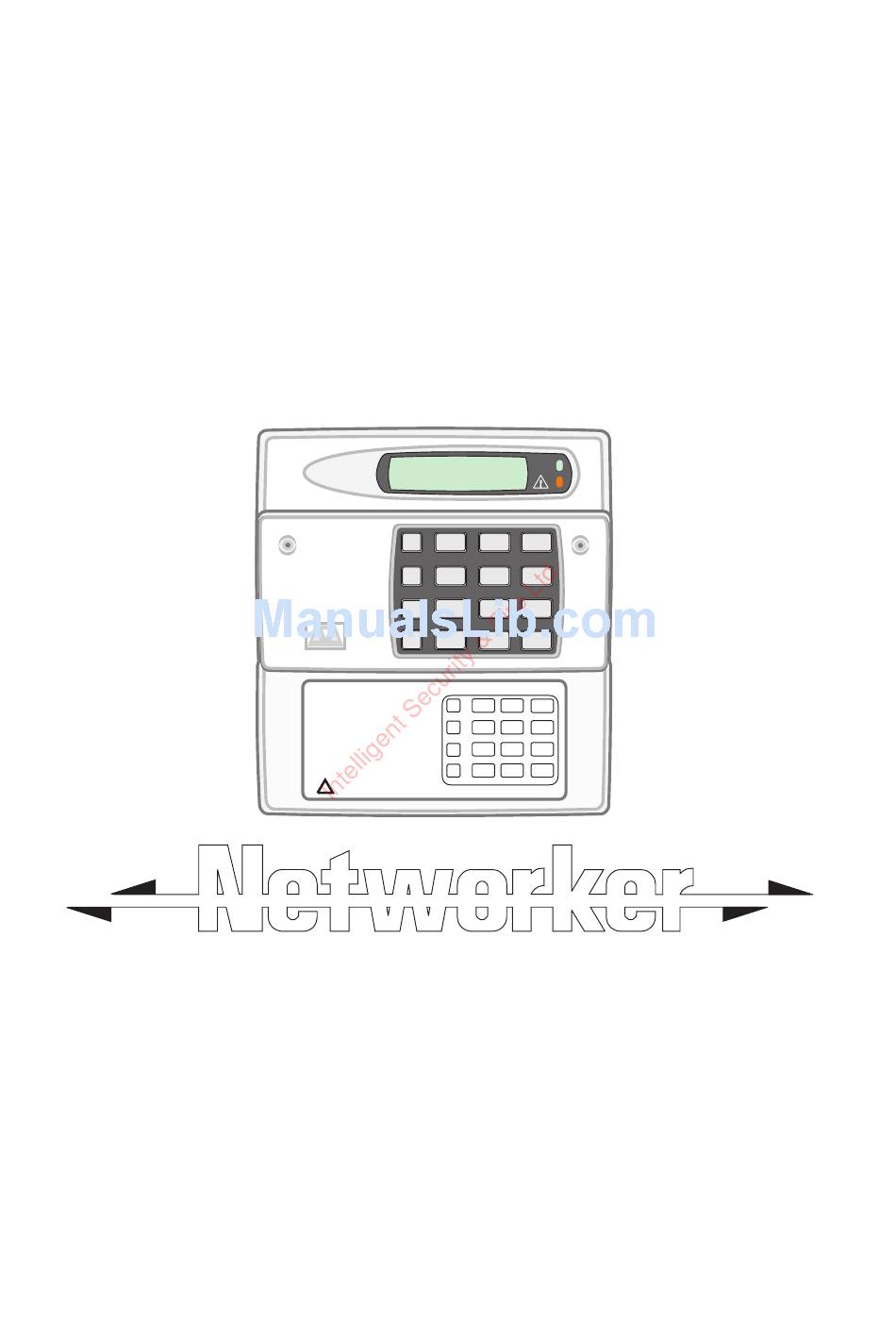

- Page 1 TS590 Intruder Alarm Control Panel SYSTEM OPEN 17:30 01 Jan Sett ing the Syst em Ent er your pa ss code XXXX th en lea v e th e pro tec t ed a re a. Part Set BELL TEST...
-
Page 2: Table Of Contents
Contents Alter Shunt Group ... 27 System Overview Print System Log... . 28 Introduction ....3 Set-up Part Sets . -
Page 3: System Overview
System Overview Introduction The TS590 is an advanced security alarm control systems using state of the art electronics to provide comprehensive but flexible protection for both domestic and commercial premises. The system comprises of a number of components linked to a central control unit which is concealed from view but accessible for maintenance. -
Page 4: Remote Keypads
Remote Keypads Your alarm system can be operated from one or more remote LCD keypads, which will have been strategically located within the protected premises. The LCD remote keypad is a full function keypad and can be used to program, test, set and unset the alarm system. -
Page 5: Operating Your Alarm System
User Types The TS590 can have up to 15 separate users each user is assigned a passcode, and a user level. The user level defines what the user can access within the user menus, for a definition of each user level see “Set-up New Users”... -
Page 6: Full Setting The System
Full Setting The System The full setting procedure can be initiated from any remote keypad (if more than one is fitted). Before attempting to full set the alarm system ensure that all movement detectors are unobstructed and all doors, and windows are secure. From the unset (open) mode enter LCD Remote your passcode. -
Page 7: Unsetting The System
Unsetting the system The unsetting of the alarm system can be performed at any remote keypad. Enter the premises via the prescribed LCD Remote entry route and proceed directly to the remote keypad. The internal sounders generate an interrupted tone. The display will show the Enter Your Code remaining entry time. -
Page 8: Part Setting The System
Part Setting The System The TS590 can have up to three predefined part set configurations. Each configuration allows the alarm system to set with one or more circuits isolated. Normally the alarm company will configure each part set option, however the master user may also configure the part sets, providing the alarm company has programmed the alarm system to allow this facility. -
Page 9: Unsetting After An Alarm
Unsetting After an Alarm If an alarm has occurred whilst the alarm system is full or part set, the display will indicate the detection circuit that was triggered when you unset the system. Once the cause of the alarm has been established the system must be reset, see “Resetting after an alarm” on page 10. -
Page 10: Resetting After An Alarm
Resetting After an Alarm Your alarm company will have programmed the system to be either “User Reset”, “Engineer Reset” or “Remote Reset”, consult your alarm company if you are not sure. User Reset If your system has been programmed as user reset, alarms can be reset by any user that has a valid passcode. -
Page 11: Remote Reset
Remote Reset If your system is programmed as remote reset, alarms can be reset by your alarm company or via the exchange or unique passcodes. From step (3) of “Unsetting After an Alarm”, proceed as follows: The display will alternate between the circuit that cause d th e a l arm an d th e “C all LCD Remote Engineer To Reset System”... -
Page 12: User Menu 1 Introduction
User Menu 1 Introduction User menu 1 is accessed by entering your passcode followed by [ENT]. There are 12 menu options and access to these options will depend on your access level. LCD Remote ? ? ? ? User menu 1 Select Option :- Bell Test Sounder. -
Page 13: Bell Test
Bell Test This option allows you to periodically test the external sounders (bell and strobe) and internal sounders. When selected each device will operate in sequence for nine seconds. From the unset (open) mode enter your passcode and press [ENT] to select LCD Remote user menu 1. -
Page 14: Walk Test
Walk Test This option allows you to test the function of individual detection circuits without causing an alarm. As each circuit is activated the circuit number and status are displayed and the internal sounders generate a two tone “Chime” sound. Once the test has been completed the tested circuits can be reviewed in numerical order. -
Page 15: Change Passcode
Change Passcode This option allows you to change your own passcode. The master users can also add and delete user passcodes, see “Set-up Users” on page 24. From the unset (open) mode enter your passcode and press [ENT] to select user LCD Remote menu 1. -
Page 16: Enable Chime
Enable Chime Detection circuits that have been programmed as “Chime” will generate a two-tone sound when triggered. This option allows you to select one of the four chime options: 1 Disabled Chime circuits are disabled. 2 Enabled Chime circuits are enabled at all times. 3 Enabled in P/Set Chime circuits are enabled when the system is unset or part set. -
Page 17: Isolate/Re-Instate Shunt Group
Isolate/Re-instate Shunt Group One or more circuits can be assigned to the shunt group, this is normally done by your alarm company although the master user can also configure the circuits that are assigned to the shunt group, see “Alter Shunt Group” on page 27. Once a shunt group has been defined this option allows you to isolate and re-instate the circuits that are assigned to the shunt group. -
Page 18: Omit Circuits
Omit Circuits Occasionally it may be necessary to omit detection circuits when setting or part setting the system. This allows the user access to the omitted area(s) when the system is set or part set. It is also possible to omit 24hr or Auxiliary circuits so that access to these areas can be obtained when the system is unset. -
Page 19: Silent Set
Silent Set This option allows you to full set or part set the system silently, i.e. no exit sounder, accept for set confirmation tone. From the unset (open) mode enter your LCD Remote passcode and press [ENT] to select SYSTEM OPEN user menu 1. -
Page 20: User Menu 2 Introduction
User Menu 2 Introduction User menu 2 is accessed by pressing [ENT] whilst user menu 1 is selected. There are 10 menu options and access to these options will depend on your access level. LCD Remote ? ? ? ? User menu 2 Select Option :- View Circuits... -
Page 21: View Circuits
View Circuits This option allows you to ascertain the status of each detection circuit, The status for each circuit may be as follows: Healthy The normal status of a detection circuit, i.e. door closed or detector healthy. Active This is the alarm status of a detection circuit, i.e. door open or detector in alarm. Tamper This is the tamper open circuit status of a detection circuit, i.e. -
Page 22: Set Clock
Set Clock This option allows you to adjust the system clock. The clock is used for providing event times in the event log and is also displayed when the system is unset or full set. From the unset (open) mode enter your LCD Remote passcode and press [ENT] twice to select user menu 2. -
Page 23: Set Date
Set Date This option allows you to set the system date. It is displayed in a date / month format on all LCD remote keypads. From the unset (open) mode enter your LCD Remote passcode and press [ENT] twice to select user menu 2. -
Page 24: Setup New Users
Setup New Users The TS590 allows up to 15 users to operate the alarm system, each user is assigned a user type and a passcode. User 01 is the master user which has a default setting of 5678. User Types... - Page 25 Setup New Users (Cont.) From the unset (open) mode enter your LCD Remote passcode and press [ENT] twice to select user menu 2. SYSTEM OPEN 17:30 01 JAN Whilst user menu 2 is selected. Press [4] to ? ? ? ? select the set-up new users option.
-
Page 26: Alter Chime Circuits
Alter Chime Circuits This option allows you to select which detection circuits will cause a chime tone when triggered. Once programmed, users that have access to user menu 1 can select one of the four chime options, see “Enable Chime” on page 17. From the unset (open) mode enter your passcode and press [ENT] twice to select LCD Remote... -
Page 27: Alter Shunt Group
Alter Shunt Group This option allows you to define which detection circuits are allocated to the shunt group. Once assigned to the shunt group all circuits within the group can be isolated by any user that has access to user menu 1 option 6 (Omit Shunt Group). The shunt group can also be assigned to a user code (Shunt), this allow the group to be omitted and re-instated by entering a 4 digit passcode. -
Page 28: Print System Log
Print System Log The system log stores 700 events. If a printer is connected to your alarm system it is possible to print a selected number of log events. From the unset (open) mode enter your LCD Remote passcode and press [ENT] twice to select user menu 2. -
Page 29: Set-Up Part Sets
Set-up Part Sets The TS590 can be configured to have up to three parts set modes (Part Set A, Part Set B and Part Set C). This option allows the master user to configure each part set mode. Within each part set mode you must designate which circuits will remain armed and which circuits will be omitted. -
Page 30: View Log
View Log The TS590 store up to 700 events in the log. This option allows you to view each event. From the unset (open) mode enter your passcode and press [ENT] twice to select LCD Remote user menu 2. Whilst user menu 2 is selected. Press [9] to SYSTEM OPEN select the view log option. -
Page 31: Log Event Codes
Log Event Codes Description AC OFF Mains power removed. AC RESTORED Mains power restored ACTION ALARM Alarm activated when system is part-set. ALARM 01-14 Full alarm from circuit (01-14). AUX/BELL TAMPER Auxiliary tamper activated. AUXILIARY 01-14 Auxiliary circuit activated. BATTERY FAULT Battery fault (voltage below 10.5V). - Page 32 Description PA ALARM 01-14 Panic Alarm circuit activated. PA CODE 00-15 Panic Alarm passcode entered (00 = Keypad PA). PANEL LID TAMPER Control panel lid removed. PART SET A/B/C System Part-Set using one of the A, B, or C buttons. PASSCODE 00-15 User passcode entered.
-
Page 33: Enable Remote Service
Enable Remote Service If your alarm system has been fitted with a modem, the alarm company can dial into the system and remotely read and write data from the control panel. For added security, your alarm system can be programmed so that a master user has to authorise the writing of data to the control panel. -
Page 34: Initiate Service Call
Initiate Service Call If your alarm system has been fitted with a modem it is possible for a master user to initiate an upload sequence to a remote site (normally the alarm company). Once the communication link is established, the remote site can read and write data from the control panel. -
Page 35: Circuit Text
Circuit Text Each detection circuit can have up to 16 characters of text assigned to it. This option allows you to program / edit the circuit text. LCD Remote Text Editing Keys SYSTEM OPEN 17:30 01 JAN 0 (zero) ? ? ? ? Move cursor left Change case Move cursor right... -
Page 36: Fault Finding
Fault Finding DELAY ALARM 05 DELAY ALARM 05 17:30 17:30 01 Jan 01 Jan Display Messages Displays Description There is no mains power to the control panel and the alarm system is now running on its standby battery. The system will also generate a chime tone every minute to warn you that the fault exists, to silence the chime tones AC OFF 17:30... - Page 37 Display Messages (Cont.) Displays Description A fire alarm has occurred from a detection circuit (circuit 07). The internal sounder will generate a distinctive fire alarm tone and the external sounder FIRE ALARM 07 17:30 01 Jan is pulsed on and off. To silence the alarm simply enter your passcode. To reset the alarm simply enter your passcode again followed by [ESC].
-
Page 38: System Records
System Records User Record User Type Name Master Detection Circuit Record Circuit Location Omit Chime P.Set A P.Set B P.Set C... -
Page 39: Service Record
Detection Circuit Record (Cont.) Circuit Location Omit Chime P.Set A P.Set B P.Set C Service Record Date Engineer Action... -
Page 40: System Details
System Details Entry Time Exit Time Bell Delay Bell Duration Full Set By Part Set A by Part Set B by Part Set C by Reset by Allow set with line fault Set with mains off Remote signalling Downloading User Authorised ‹...
