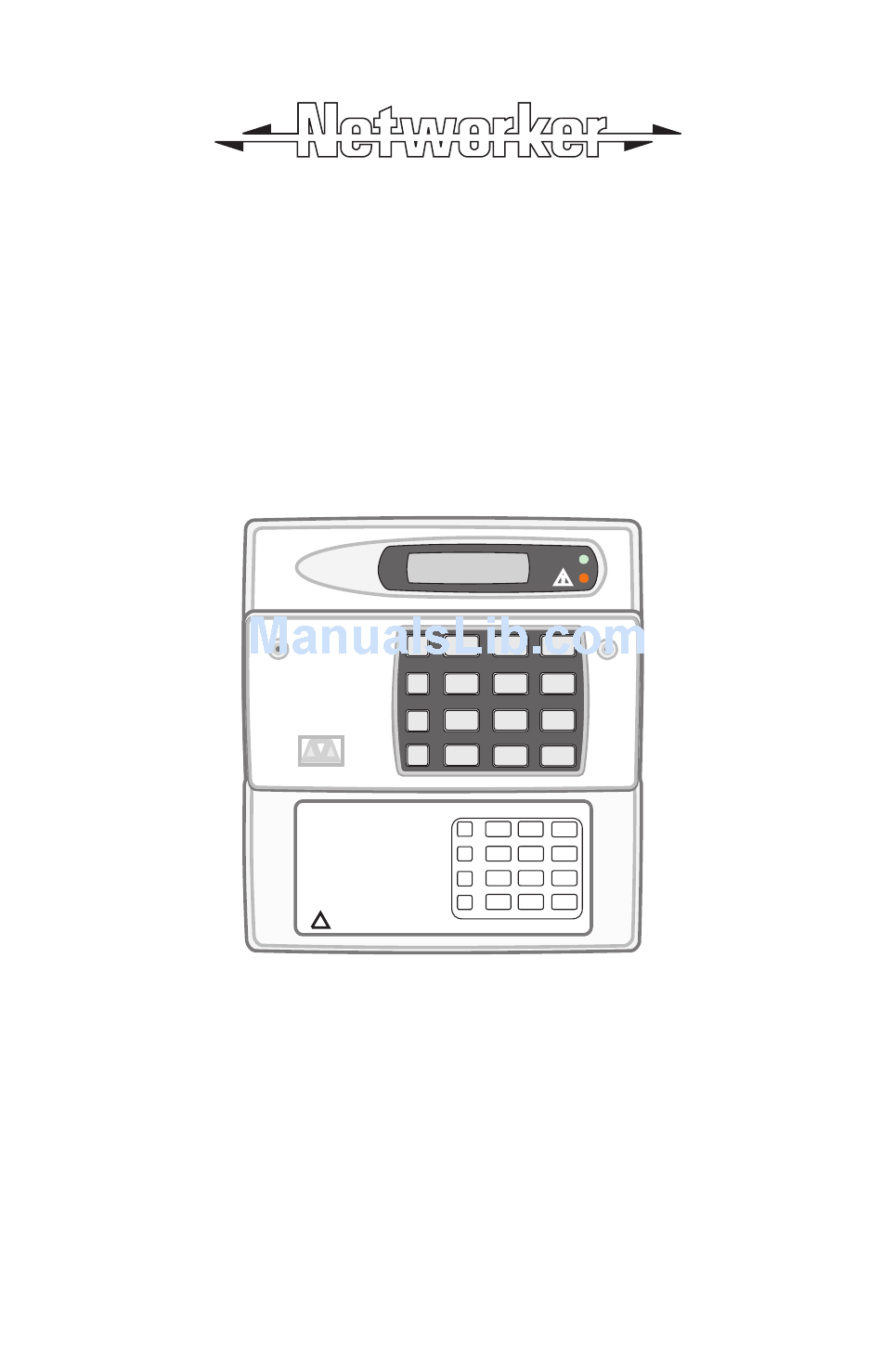

Networker TS700 User Operating Instructions Manual

Intruder alarm control panel
Hide thumbs Also See for TS700:
Table of Contents

Advertisement

Quick Links

Intruder Alarm Control Panel
Starburst User Operating
TS700
OPEN
A
1
B
4
C
7
D
ENT
Setting the System
Ent er your pa sscode XXXX
A
th en lea ve th e pro tect ed a re a.
Part Set
Unsetting the System
B
Go dire ct ly to t he ke yp ad and
en ter you r p asscod e XXXX .
Part Set
Resetting
C
Ent er your pa sscode XXXX f ollow ed
Part Set
by EN T the n 3. Te leph on e you r a larm
D
com pan y and follow th eir instruct io ns.
See User Manual
!
Instructions
_
~
2
3
5
6
8
9
0
ESC
1
2
3
B ELL TES T
WALK TEST
RE SET
4
5
6
NE W CODE
CHIME
24 Hr OMIT
7
8
9
ZONE OM IT
SILENT
ENT
0
ESC
FULL S ET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Networker TS700

Summary of Contents for Networker TS700

  • Page 1 TS700 Intruder Alarm Control Panel OPEN Setting the System Ent er your pa sscode XXXX th en lea ve th e pro tect ed a re a. Part Set B ELL TES T WALK TEST RE SET Unsetting the System Go dire ct ly to t he ke yp ad and en ter you r p asscod e XXXX .

  • Page 2: Glossary Of Terms

    Glossary Of Terms Bell Test A facility to test the operation of the external bells, strobes and the internal sounder. Chime An optional facility which allows detectors or door contact devices to generate a two-tone “chime” if activated whilst the system is unset. Digicom (Digital Communicator) A remote signalling device fitted to the system which will transmit alarm information via the telephone line to the alarm...

  • Page 3: Table Of Contents

    Circuit Designation Record ....... . Back Cover System Overview The TS700 intruder alarm control system uses state of the art electronics to provide a comprehensive but flexible protection for both domestic and commercial premises. The system comprises a number of components linked to a central control unit which is concealed from view but accessible for maintenance.

  • Page 4: Operating The System

    TS700 Starburst User Operating Instructions Operating the System 1. Introduction 22.34 System operation can only be carried out after entering your passcode. Up to twelve passcodes can be allocated and they This is the normal display when can only be defined by the “master user” (user 1). Users A, B and the system is set or unset.

  • Page 5: Part Setting The System Using Part Set Codes

    TS700 Starburst User Operating Instructions 4. Part Setting using Part Set Codes 0015 Ensure that all monitored areas are secured. Enter your passcode, the exit sounder will make a continuous tone. If User passcode B entered. Group/area B will set in 15 required leave via the normal exit route and close the final exit seconds.

  • Page 6: Unsetting

    TS700 Starburst User Operating Instructions 8. Unsetting Enter the premises via the normal entry route and go directly to 0023 the keypad. Enter your passcode. The display will show “OPEN” and then revert to displaying the current time. The sounder will Enter passcode before entry sound at entry and will stop when the system is unset.

  • Page 7: User Menus Quick Reference

    TS700 Starburst User Operating Instructions User Menus Quick Reference 11.58 The system is unset, the display shows the current time. Enter user passcode. FUNCTION The display shows “Function”. Press [ within 5 seconds to select “User Menu 1". USER 1- “User Menu 1"...

  • Page 8: User Menus

    TS700 Starburst User Operating Instructions User Menus 11. Introduction In addition to setting and unsetting the system, users 1 - 9 may carry out other operations. These are selected via two user menus, “User Menu 1" is available to users 1 - 9 and ”User Menu 2"...

  • Page 9: Change Passcode

    TS700 Starburst User Operating Instructions 14. Change Passcode All users can change their own passcode. ---- Ensure that “User Menu 1" is selected. Waiting for new passcode. Press 4 to select the Change Passcode option. 2305 Enter your new passcode and press [.

  • Page 10: View Circuits

    TS700 Starburst User Operating Instructions 18. View Circuits This option allows the user to view the status of each detection circuit. The circuit status conditions are H=Healthy, A=Active, S=Shorted or T=Tamper. Ensure that “User Menu 2" is selected. CCT 03-H Press 1 to select the View Circuits option.

  • Page 11: Configure Chime Circuits

    TS700 Starburst User Operating Instructions Press 4 to select the Setup New Users option. USER - Enter the user number (1 to 9 or A,B,C). Waiting for passcode type [1] - Enter the new passcode then press [ to accept.

  • Page 12: Print System Log

    TS700 Starburst User Operating Instructions Circuits will be displayed as O=Omitted or A=Armed. Press CCT 02-A 0 to change (“toggle” action). Circuit 02 will remain Armed . Press [ to accept (high note) and go to next circuit. A low Press [0] to change.
  • Page 13 TS700 Starburst User Operating Instructions Press B to show the time of the event (first press), the date (second press) the time in minutes and seconds (third press) the event again (fourth press). Press ] to quit. Press ] twice to return to the “OPEN” condition.

  • Page 14: Service Record

    TS700 Starburst User Operating Instructions Service Record Date Engineer Action Installation Company: Address: For Service Telephone: For Remote Reset Telephone:...

  • Page 15: User Record

    TS700 Starburst User Operating Instructions User Record User No. User Type User Name Master Standard Standard Standard Standard Standard Standard Cleaner Code Holiday 10 (A) Part-set A 11 (B) Part-set B 12 (C) Part-set C System Configuration Record Entry Time:...

  • Page 16: Circuit Designation Record

    Circuit Designation Record Location Omit Chime 18833 Drg No. 33:2159:00 Issue 01. Doc 04. August 98...
