Summary of Contents for AUSTRALIAN MONITOR MX883
- Page 1 M X 8 8 3 8 CHAN N EL ST EREO MI C/LI N E M I X ER INSTALLAT I ON AN D OP ERAT IO N M AN UAL...
- Page 2 Do not parallel- or series-connect an amplifi er output with any other amplifi er output. Australian Monitor Inc is not Always operate the unit with the AC ground wire connected to the responsible for damage to loudspeakers for any reason.
-
Page 3: Table Of Contents

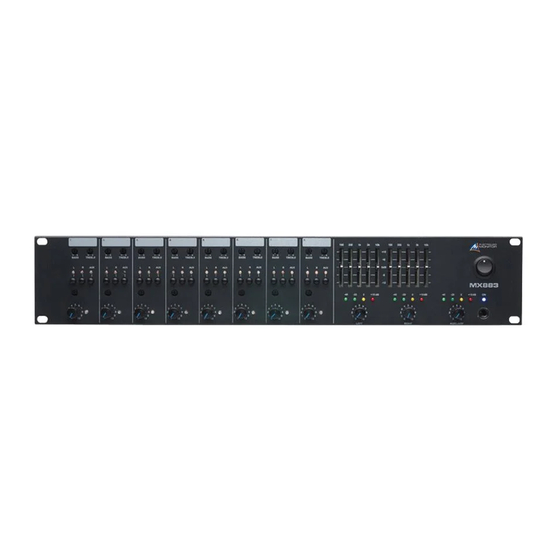

I N T R O D U C T I O N A N D C O N T E N T S INT RO DUCT ION The MX883 is a stereo 8 channel audio mixer that operates from 110/230-240 VAC @ 50/60 Hz. The MX883 offers high quality audio performance &... -
Page 4: Fr Ont Panel
F R O N T PA N E L GAIN TRIM LEFT, RIGHT AND AUX MASTER This control is used to adjust the input gain and affects both the XLR and These pots control the overall mixed output level for the left, right and aux the RCA inputs. -
Page 5: R Ear Pa Nel
When linking two MX883’s only one mixer should be set to master. The position for correct operation of the balanced input. other should be set to slave. When an MX883 is used on its own, this NOTE: The MIC/LINE switches only affect the XLR input. -
Page 6: Int Erna L Ad Ju St Ment S
- 2 Priority Muting modules for left and right outputs If channel 1 is being used as a priority input it can be routed so that the See your local Australian Monitor dealer for more information. master volume does not affect channel 1. The default factory setting is pre master fader meaning the master volume affects channel 1 in the mix. -
Page 7: Installat Io N & T Ro Ubleshooting
I N S TA L L AT I O N A N D T R O U B L E S H O O T I N G INPUT CONNECTIONS For wiring balanced in, pin 2 is hot. Unbalanced wiring on the microphone inputs is not recommended. -
Page 8: B Asic Set Up A Nd O Peration
(booster) amplifi ers, other mixers or mixer amplifi ers. level input. Check that the MX883 is on, and then turn on the amplifi ers. If the amplifi ers have a level control, set them it to a sensitivity of 0dBu. -
Page 9: Dimensions
D I M E N S I O N S M X 8 8 3 I N S TA L L AT I O N & O P E R AT I O N M A N U A L PA G E 9... -
Page 10: B Lock Diag Ra M
B L O C K D I A G R A M PA G E 1 0 M X 8 8 3 I N S TA L L AT I O N & O P E R AT I O N M A N U A L... -
Page 11: Sp Ecifications
S P E C I F I C AT I O N S FREQUENCY RESPONSE 20Hz - 20kHz (+0,-3dB) TOTAL HARMONIC DISTORTION < 0.1% @ 1kHz SIGNAL TO NOISE RATIO > 90dB (all pots at centre position) >70dB CROSSTALK TONE CONTROLS BASS @ 100HZ +/- 12dB TREBLE @ 10KHZ... - Page 12 AUSTRALIA AND NEW ZEALAND www.australianmonitor.com.au SYDNEY MELBOURNE BRISBANE ADELAIDE PERTH AUCKLAND (SA & NT SALES) (NSW & ACT SALES) (VIC & TAS SALES) (QLD SALES) (WA SALES) (NZ SALES) 1 Clyde Street 22/277 42 Commercial Road 31 Walsh Street 3/11 Howe Street 9C Piermark Drive Silverwater Middleborough Road...
