Summary of Contents for Equip Desktop KVM Switch

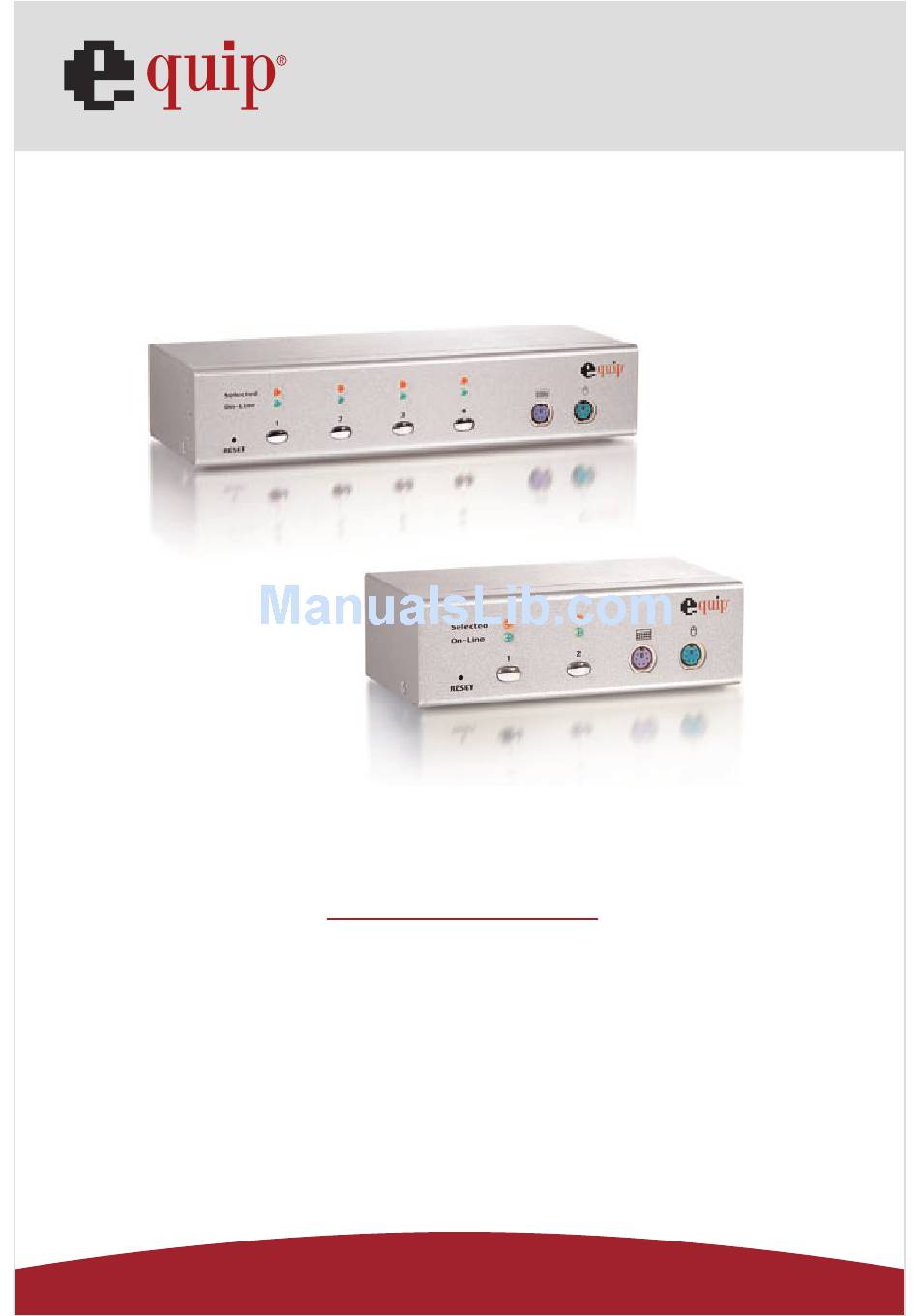

- Page 1 Manual Desktop KVM Switch english www.equip-info.net...
-
Page 2: Features
• Increase the separation between the device and receiver. • Connect the computer into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. www.equip-info.net... -
Page 3: Package Contents
11. Self powered through PS/2 and/or USB connection. 12. Fully compliant with the USB 1.1/ 2.0 specification. 3. Package Contents The product you purchased should contain the following equipment and accessories: 1. 2-Port or 4-Port Combo KVM Switch 2. User Manual www.equip-info.net... -
Page 4: Specifications
A VGA, SVGA, Multisync monitor capable of the highest resolution. PS/2 Keyboard/Mouse Computer or Server The following equipment must be equipped with each computer or server. - A VGA, SVGA or Multisync card. - Type A USB port or PS/2 6 pin mini-DIN for Keyboard and Mouse. www.equip-info.net... -
Page 5: Single Installation
2. There are some of older PCs can support USB ports during booting, but you need to open BIOS USB setting at first. Console connecting: Plug your PS/2 keyboard, mouse and VGA video into the Console ports located on the KVM Switch’s front panel. www.equip-info.net... - Page 6 If you are using LCD monitor connected with Combo KVM switch and feel the quality is not comfortable to you, then you can push monitor panel Auto-Adjusting function button to tune gain better display quality at just the first time. After then, the display quality will be remained better condition continuously. www.equip-info.net...
-
Page 7: Operations
7.1 Push Button on front panel 7.2 Hot-Key operation ( PS/2 Keyboard ) Note: If your keyboard is without < Scroll Lock > button, please press < Caps Lock > or <Num Lock > instead of Scroll Lock (please reference 7.2.0). www.equip-info.net... -
Page 8: Hotkey Selection
[1] or [2] or [3] or [4] and [Enter] (step 2) to assign the PC to a particular PC. (If you press key [1] or [2] or [3] or [4] on the number pad, the keyboard, mouse & video will also be switched synchronously.) www.equip-info.net... -
Page 9: Auto-Scan Function
[Scroll] -> [Scroll] -> [B] -> [Enter] to Disable [Scroll] -> [Scroll] -> [B] -> [Enter] to Enable The Speaker/Beeper’s default setting is “Enable”. While the switching connections are activated and Speaker/Beeper is in “Enable” status, the beeper has a short beeping sound. www.equip-info.net... - Page 10 To active these emulation on the PS/2 keyboard, you have to press the LEFT Window KEY first (this key usually is located between the left [Ctrl] and left [Alt]), then choice the second relative key. www.equip-info.net...
