332721

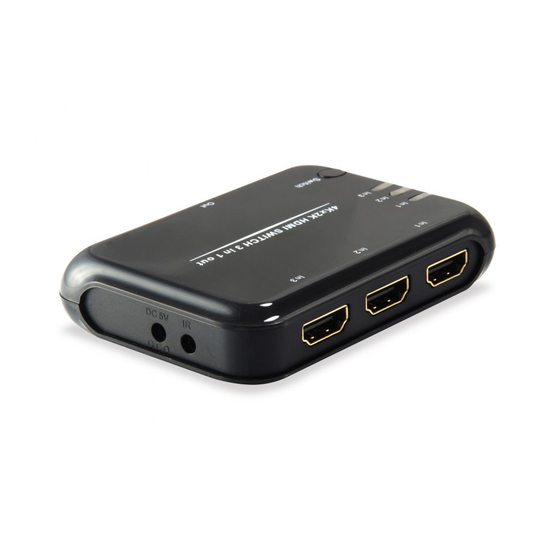

HDMI 1.4 Switch 3x1

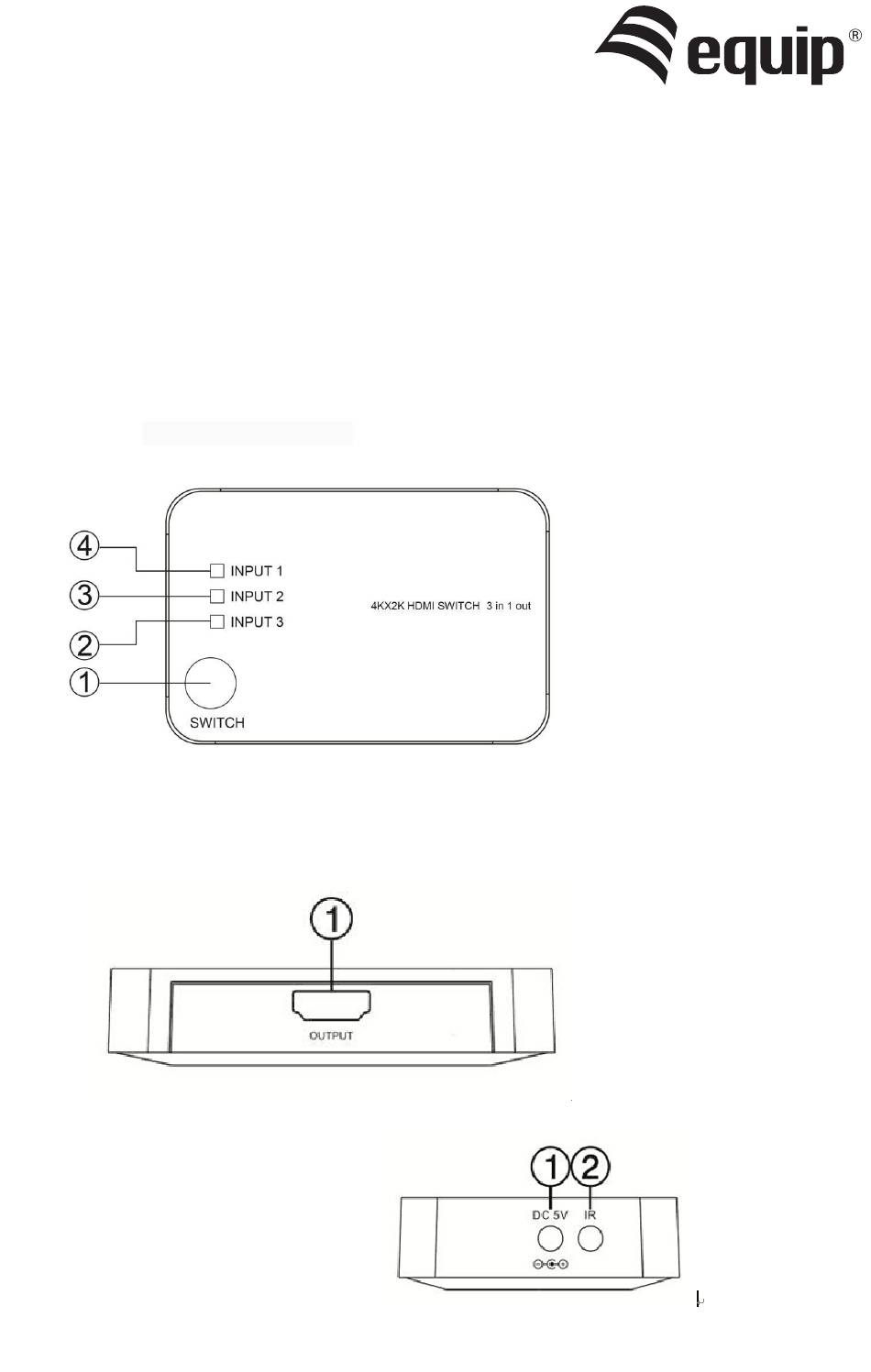

Operation controls and Functions

Top Panel:

1.Switch: Press button to switch input sources
2~4.LED: Indicates active HDMI source

Front:

1. HDMI output port, connect to HDTV or monitor with HDMI cable

Right:

1. DC In
2. IR Socket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 332721 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Equip 332721

Summary of Contents for Equip 332721

  • Page 1 332721 HDMI 1.4 Switch 3x1 Operation controls and Functions Top Panel: 1.Switch: Press button to switch input sources 2~4.LED: Indicates active HDMI source Front: 1. HDMI output port, connect to HDTV or monitor with HDMI cable Right: 1. DC In...
  • Page 2 Rear: 1~3: HDMI input port, connect DVD, PS3, Set-top Box or Note Book with HDMI cable Connection diagram Package contents: 1.HDMI Switch................1pcs 2.USB to DC Power Supply cable..........1pcs 3.Remote Controller..............1pcs 4.IR Receive Extend cable……………………………………….1pcs 4.Operation Manual..............1pcs...
