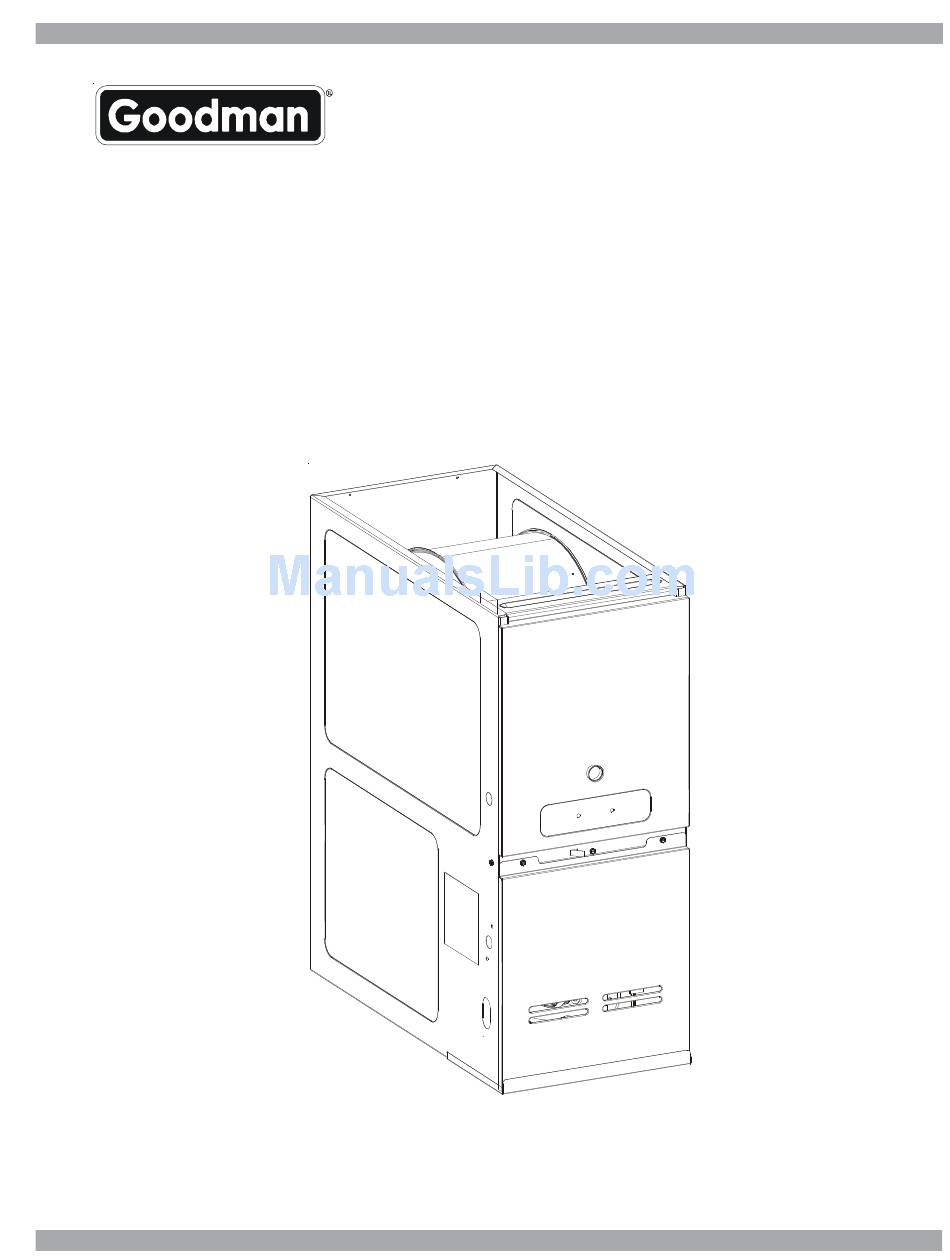

33-3/8" 80% gas furnace units
Hide thumbs Also See for GDS8:

Advertisement

Table of Contents

33-3/8" 80% Gas Furnace Units
•
Refer to Service Manual RS6610004 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Model numbers listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal injury
due to improper service procedures or services performed by an unqualified
person.
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
GDS8 & GHS8
Copyright © 2011, 2013 Goodman Manufacturing Company, L.P.
Copyright © 2005-2007 Goodman Manufacturing Company, L.P.
AL
AL
AL
AL
RT6622013r2
March 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDS8 and is the answer not in the manual?

Questions and answers

David Parden
June 26, 2025

What type of flue should you run for a GD9S800804B 80% furnace?

0

Subscribe to Our Youtube Channel

Related Manuals for Goodman GDS8

Summary of Contents for Goodman GDS8

  • Page 1 Model numbers listed on page 3. RT6622013r2 This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does not assume any responsibility for property damage or personal injury March 2013 due to improper service procedures or services performed by an unqualified person.

  • Page 2: Product Identification

    Disconnect ALL power before servicing or installing this unit. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death. Goodman will not be responsible Installation and repair of this unit WARNING WARNING...
  • Page 3 PRODUCT IDENTIFICATION The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please use these numbers when requesting service or parts information. GDS80403A*B* GDS80403A*A* GDS80603A*B* GDS80603A*A* GDS80804B*B* GDS80804B*A* GDS81005C*B* GDS81005C*A* GHS80403A*B* GHS80403A*A* GHS80604A*B* GHS80604A*A* GHS80805C*B* GHS80805C*A* * These models available in Natural Gas and Low NOx...

  • Page 4: Product Design

    PRODUCT DESIGN General Operation NFPA 54/ANSI Z223.1 - latest edition. In Canada, the fur- naces must be vented in accordance with the National Stan- The G*S8 furnaces are equipped with an electronic ignition dard of Canada, CAN/CSA B149.1 and CAN/CSA B149.2 - device used to light the burners and an induced draft blower latest editions and amendments.

  • Page 5: Product Dimensions

    PRODUCT DIMENSIONS GHS8 MODEL 14 1/2" 12 1/2" GHS80403A*** 17 1/2" 16" GHS80604B*** 21" 19 1/2" GHS80805C***...
  • Page 6 PRODUCT DESIGN GDS8 28” High Voltage Electrical Lov Voltage Electrical 33-3/8” Gas Inlet MODEL GDS80403A*** 14 1/2" 12 1/2" GDS80603A*** GDS80804B*** 17 1/2" 16" 21" 19 1/2" GDS81005C***...

  • Page 7: Primary Limit

    PRODUCT DESIGN GHS8***A* PRESSURE SWITCH TRIP POINTS AND USAGE CHART Trip Point ID Blower ID Blower Pressure Model Pressure Switch Switch Part # GHS80403A*A* -0.80 0130F00042 GHS80604B*A* -0.70 B1370158 -0.70 B1370158 GHS80805C*A* For installations in Canada, the GHS furances are certified only to 4,500 ft. * Negative pressure readings are in inches of water column (*w.c.) PRIMARY LIMIT Part Number...
  • Page 8 PRODUCT DESIGN GHS8***B* PRESSURE SWITCH TRIP POINTS AND USAGE CHART Trip Point ID Blower ID Blower Pressure Model Pressure Switch Switch Part # GHS80403A*B* -0.70 B1370158 GHS80604B*B* -0.80 0130F00042 GHS80805C*B* -0.75 B1370179 For installations in Canada, the GHS furances are certified only to 4,500 ft. * Negative pressure readings are in inches of water column (*w.c.) PRIMARY LIMIT Part Number...

  • Page 9: Pressure Switches

    PRODUCT DESIGN GDS8***A* PRESSURE SWITCHES Model Part No. Opens* GDS80403A*A* B1370142 -0.60 B1370158 -0.70 GDS80603A*A* GDS80804B*A* B1370142 -0.60 GDS81005C*A* B1370158 -0.70 PRIMARY LIMIT Part Number 0130F00035 0130F00036 Open Setting (°F) GDS80403A*A* GDS80603A*A* GDS80804B*A* GDS81005C*A* ROLLOUT LIMIT SWITCHES AUXILIARY LIMIT SWITCHES...
  • Page 10 PRODUCT DESIGN GDS8***B* PRESSURE SWITCHES Model Part N o. Opens* GDS80403A*B * B1370142 -0.60 B1370142 -0.60 GDS80603A*B * GDS80804B*B* B1370142 -0.60 0130F00042 -0.80 GDS81005C*B* PRIMARY LIMIT Part Number 20162901 0130F00036 Open Setting (°F) GDS80403A*B* GDS80603A*B* GDS80804B *B* GDS81005C *B* ROLLOUT LIMIT SWITCHES...
  • Page 11 A large array of Amana brand coils are available for use with the GHS8 furnaces, in horizontal applications and for the GDS8 for downflow applications. These coils are available in both cased and uncased models (with the option of a field ®...
  • Page 12 PRODUCT DESIGN Thermostats: NOTE: Complete lineup of thermostats can be found in the Thermostat Specification Sheets. Filters: Filters are required with this furnace and must be provided by the installer. The filters used must comply with UL900 or CAN/ULCS111 standards. Installing this furnace without filters will void the unit warranty Upflow Filters This furnace has provisions for the installation of return air filters at the side and/or bottom return.
  • Page 13 PRODUCT DESIGN Counterflow Filters This furnace has provisions for the installation of return air filters at the counterflow top return. The furnace will accommodate the following filter sizes depending on cabinet size: Counterflow Top Return Return Air Filter Size Dimension "A" Filter Area Optional Cabinet Width...

  • Page 14: Furnace Specifications

    FURNACE SPECIFICATIONS GDS8***A* MODEL GDS80403A*A* GDS80603A*A* GDS80804B*A* GDS81005C*A* 45,000 70,000 90,000 115,000 Btuh Input (US) High Fire 36,000 56,000 72,000 92,000 Output (US) High Fire A.F.U.E. Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50...
  • Page 15 FURNACE SPECIFICATIONS GDS8***B* MODEL GDS80403A*B* GDS80603A*B* GDS80804B*B* GDS81005C*B* Btuh Input (US) High Fire 40,000 60,000 80,000 100,000 Output (US) High Fire 32,000 48,000 64,000 80,000 A.F.U.E. Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50...
  • Page 16 FURNACE SPECIFICATIONS GHS8***A* MODEL GHS80403A*A* GHS80604B*A* GHS80805C*A* 45,000 70,000 90,000 Input, Natural Gas (BTUH) 36,000 56,000 72,000 Output, Natural Gas (BTUH) Output, LP (BTUH) 32,000 48,000 64,000 80.0% 80.0% 80.0% A.F.U.E. Rated External Static (" w.c.) 0.20 - 0.50 0.20 - 0.50 0.20 - 0.50 Temperature Rise (°F) 15 - 45...
  • Page 17 FURNACE SPECIFICATIONS GHS8***B* MODEL GHS80403A*B* GHS80604B*B* GHS80805C*B* Input, Natural Gas (BTUH) 40,000 60,000 80,000 Output, Natural Gas (BTUH) 32,000 48,000 64,000 Output, LP (BTUH) 32,000 48,000 64,000 80.0% 80.0% 80.0% A.F.U.E. Rated External Static (" w.c.) 0.20 - 0.50 0.20 - 0.50 0.20 - 0.50 Temperature Rise (°F) 20-50...

  • Page 18: Blower Performance Specifications

    BLOWER PERFORMANCE SPECIFICATIONS GHS8***A* (CFM & Temperature Rise vs. External Static Pressure) Tons AC EXTERNAL STATIC PRESSURE (Inches Water Column) Motor Model at 0.5" Speed CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE HIGH 1 739 1656...
  • Page 19 BLOWER PERFORMANCE SPECIFICATIONS GHS8***B* (CFM & Temperature Rise vs. External Static Pressure) Tons AC EXTERNAL STATIC PRESSURE (Inches Water Column) Model Motor at 0.5" Speed CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE HIGH 1 739 ----...
  • Page 20 Speed CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM HIGH 1 353 1290 1246 1199 1149 1116 1 116 1099 GDS8 0403A*A* 1 183 1113 1098 1052 1039 1006 1 012 MED-LO HIGH 1 290...
  • Page 21 CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM HIGH 1 353 ---- 1290 --- - 1246 ---- 1199 1149 1116 1 116 1099 GDS8 0403A*B* 1 183 1113 1098 1052 1039 1006 1 012 MED-LO HIGH 1 290 1236...
  • Page 22 BLOWER PERFORMANCE SPECIFICATIONS...

  • Page 23: Wiring Diagrams

    G*S8 WIRING DIAGRAMS HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
