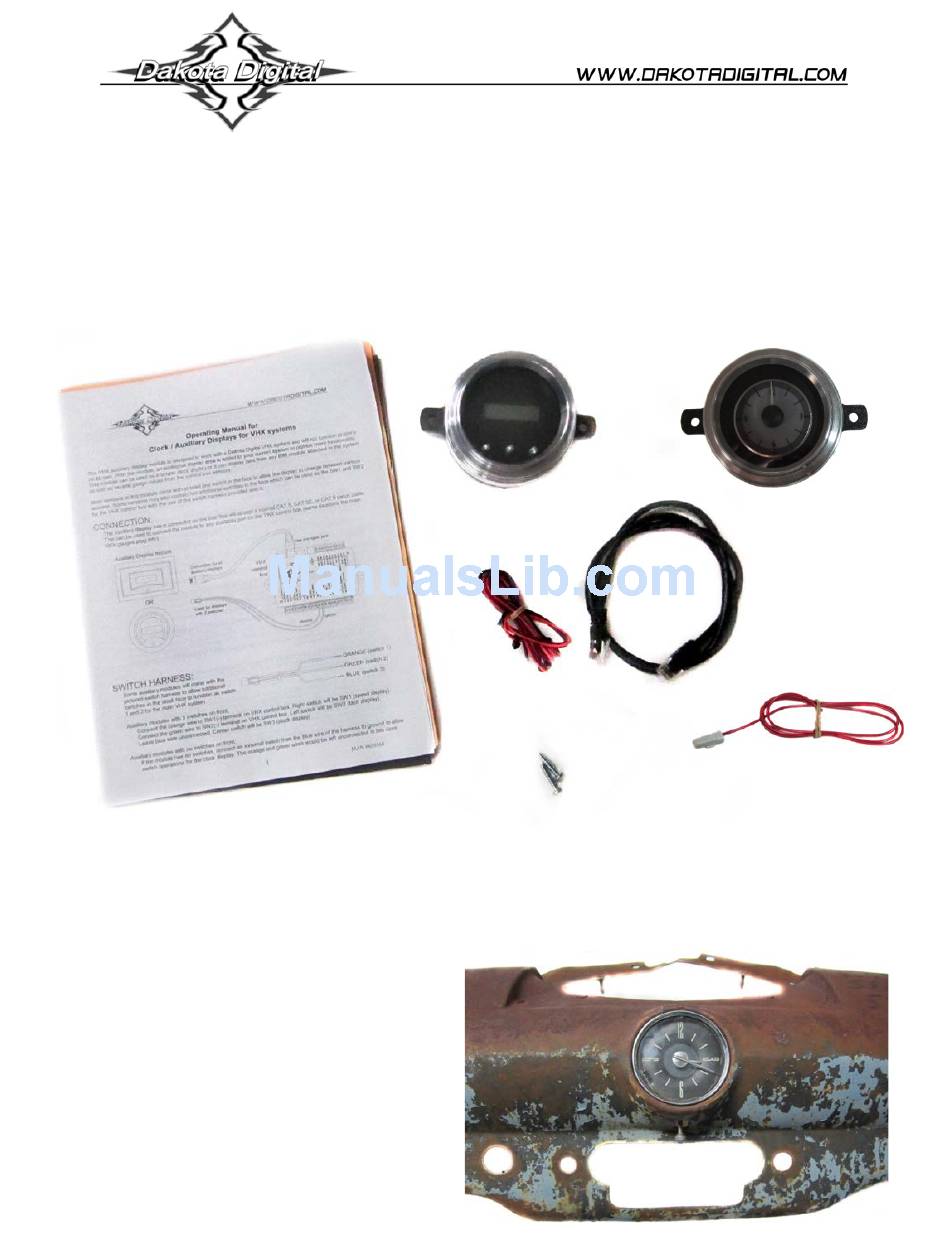

Your new VLC\VLK-49F kit includes:
Installation Manuals
Installation
1. Remove the original clock by
disconnecting the wiring and removing
two screws behind the dash.
VLC\VLK-49F
Dakota Digital Clock Installation
For 1949-'50 Ford cars
VLK Clock
VLK Switch Harness
2X 8-18 x 3/4" Screws
(VLC & VLK)
Or
VLC Clock
CAT5 Cable
(VLC & VLK)
VLC Power Harness
Manual # 650420A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital VLK-49F
Summary of Contents for Dakota Digital VLK-49F
- Page 1 VLC\VLK-49F Dakota Digital Clock Installation For 1949-‘50 Ford cars Your new VLC\VLK-49F kit includes: Installation Manuals VLK Clock VLC Clock CAT5 Cable (VLC & VLK) VLK Switch Harness VLC Power Harness 2X 8-18 x 3/4” Screws (VLC & VLK) Installation 1.
- Page 2 2. Orientate the VLK clock (as shown) with the CAT5 cable jack towards the top, or the VLC clock with the hands at 12:00 facing upward. Secure the clock to the dash using the two supplied screws. 3. Connect the CAT5 cable and switch harness or power harness to the clock and carefully route these back to the VHX control box and refer to the Operating Manual to complete the clock setup.
