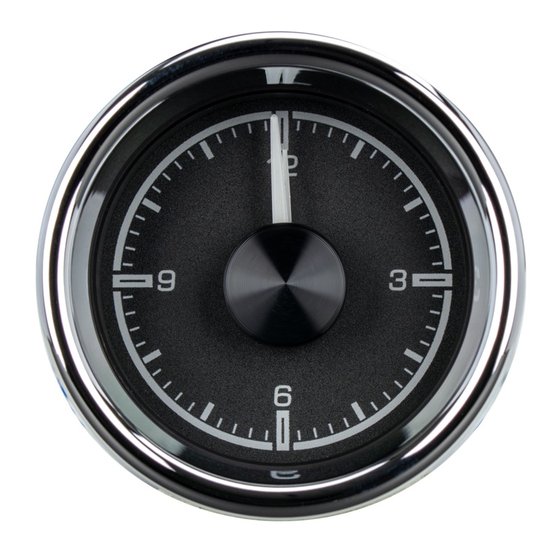

Dakota Digital HLC-2162 Installation

2-1/16 universal clock

HLC-2162

Dakota Digital Clock Installation

2-1/16 Universal Clock

(2) Long L-Bracket

Installation Manual

HLC Clock

Harness

(2) Thumb Nuts

Installation

1. Using the provided template or a hole saw, make an opening measuring 2.10" diameter for

the clock in your desired mounting location. Ensure at least 3.20" of depth behind the

gauge opening for adequate clearance.

Manual # 650694

Table of Contents

Do you have a question about the HLC-2162 and is the answer not in the manual?

Page 1 HLC-2162 Dakota Digital Clock Installation 2-1/16 Universal Clock HLC-2162 Includes: (2) Long L-Bracket Installation Manual HLC Clock Harness (2) Thumb Nuts Installation 1. Using the provided template or a hole saw, make an opening measuring 2.10” diameter for the clock in your desired mounting location. Ensure at least 3.20” of depth behind the gauge opening for adequate clearance.
Page 2 2. Insert the HLC gauge into the opening, making sure it’s aligned properly. Then, secure the gauge with the supplied L-brackets and thumb nuts. 3. Connect the main cable to the back of the clock. 4. Refer to the enclosed clock operating manual for these connections and clock setup. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
