Dakota Digital VLC Series Operation Manual

Analog clock module for use with vhx systems
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

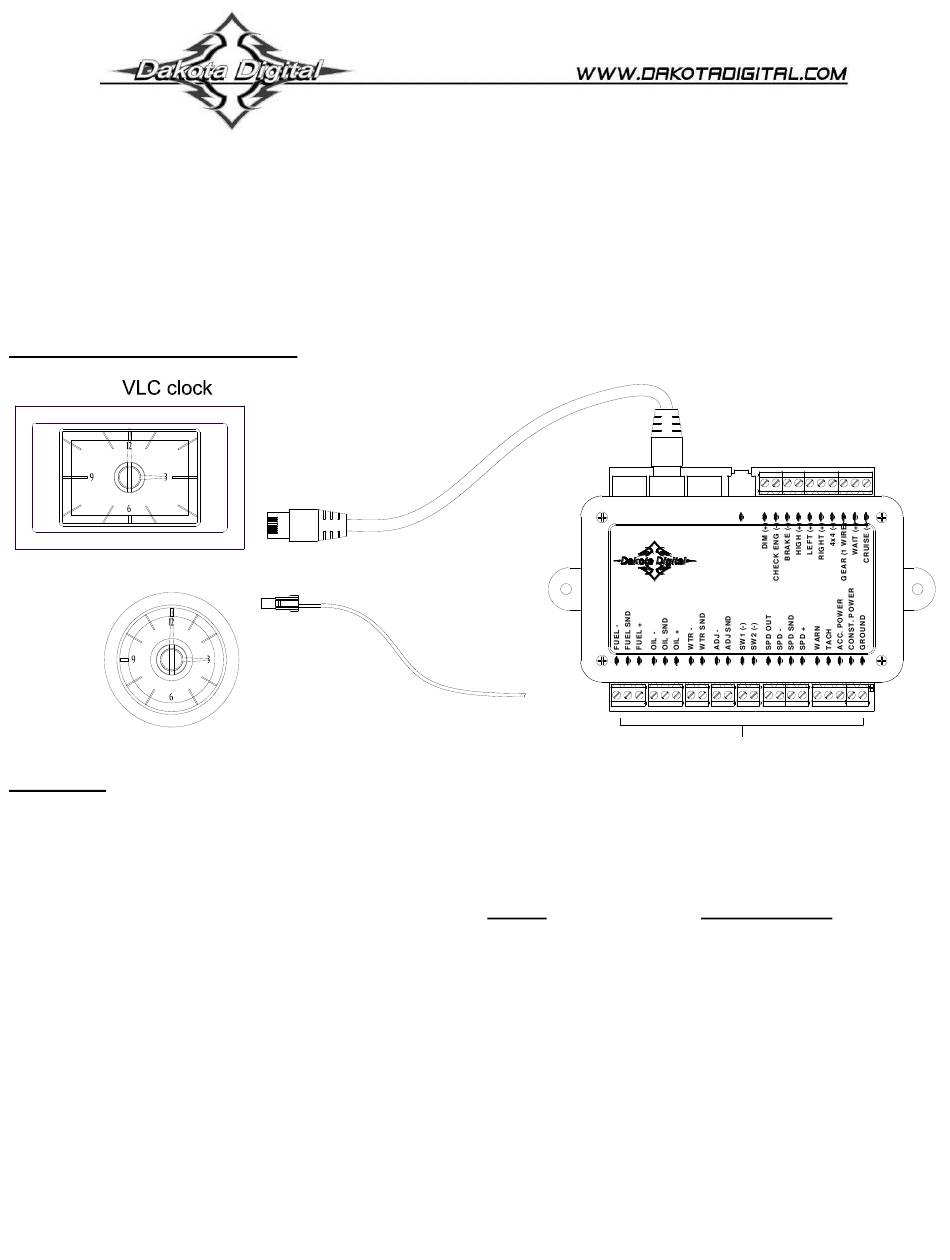

CONNECTION DIAGRAM:

OR

WIRING:

CAT-5 CABLE:
A CAT-5 cable comes with the kit to connect the VLC to one of the empty jacks on the VHX control box. This
cable provides the ground connection for the VLC clock through the VHX control box ground. If a longer or shorter
cable is desired, a standard CAT-5, CAT-5E or CAT-6 PATCH cable of any length 7 feet or shorter may be
used. Do not use a cable longer than 7 feet or a "crossover" cable as these may cause improper operation or
device damage.
NOTE: Some VHX systems come with a VLC unit integrated into the kit. These systems may already have the
CAT-5 connection made inside the system. Other systems may require a CAT-5 jumper to go from the VLC to a
jack on another part of the VHX system. Check the VHX system install manual for more specific CAT-5
connection instructions for these systems.
BATTERY WIRE:
A single RED wire harness with connector is provided to plug into the back of the VLC. This red wire should be
connected to a circuit that has +12v at all times (battery connection). This provides the power for the VLC clock to
operate and keep time when the key is turned off. A good place to make this connection is the same circuit that
the VHX control box gets its constant power.
OPERATION MANUAL
VLC-xxx clocks
Analog Clock module for use with VHX systems
Connection for all
auxiliary displays
RED
FOR
VHX
control
box
www.dakotadigital.com
techsupport@dakotadigital.com
Connect to
constant +12V
Connect as shown in VHX manual
circuit (battery)
1
Use any open jack
DISPLAY
CABLE
AUX.
I/O
VHX
CONTROL BOX
605-332-6513
MAN # 650462:A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dakota Digital VLC Series

Summary of Contents for Dakota Digital VLC Series

  • Page 1 OPERATION MANUAL VLC-xxx clocks Analog Clock module for use with VHX systems CONNECTION DIAGRAM: Use any open jack Connection for all auxiliary displays control DISPLAY CABLE AUX. CONTROL BOX www.dakotadigital.com techsupport@dakotadigital.com 605-332-6513 Connect to constant +12V Connect as shown in VHX manual circuit (battery) WIRING: CAT-5 CABLE:...

  • Page 2: Setting The Clock

    OPERATION: CONNECTING POWER: When the power is first connected to the VLC, the hands on the clock will move quickly around the dial until they point to 12:00. This is normal and is how the VLC calibrates the location of the clock hands. After this calibration mode, the VLC will begin to keep time from 12:00 until the time is updated by the VHX system.
  • Page 3 This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.

  • Page 4: Troubleshooting

    BIM module or disabling the clock times channel for all but one BIM module. Backlights flash continually with VLC internal clock is damaged or not Call Dakota Digital for RMA number to return the key on and time doesn’t functioning properly product for repair change.
