R410A Tropical Split Type Technical Manual

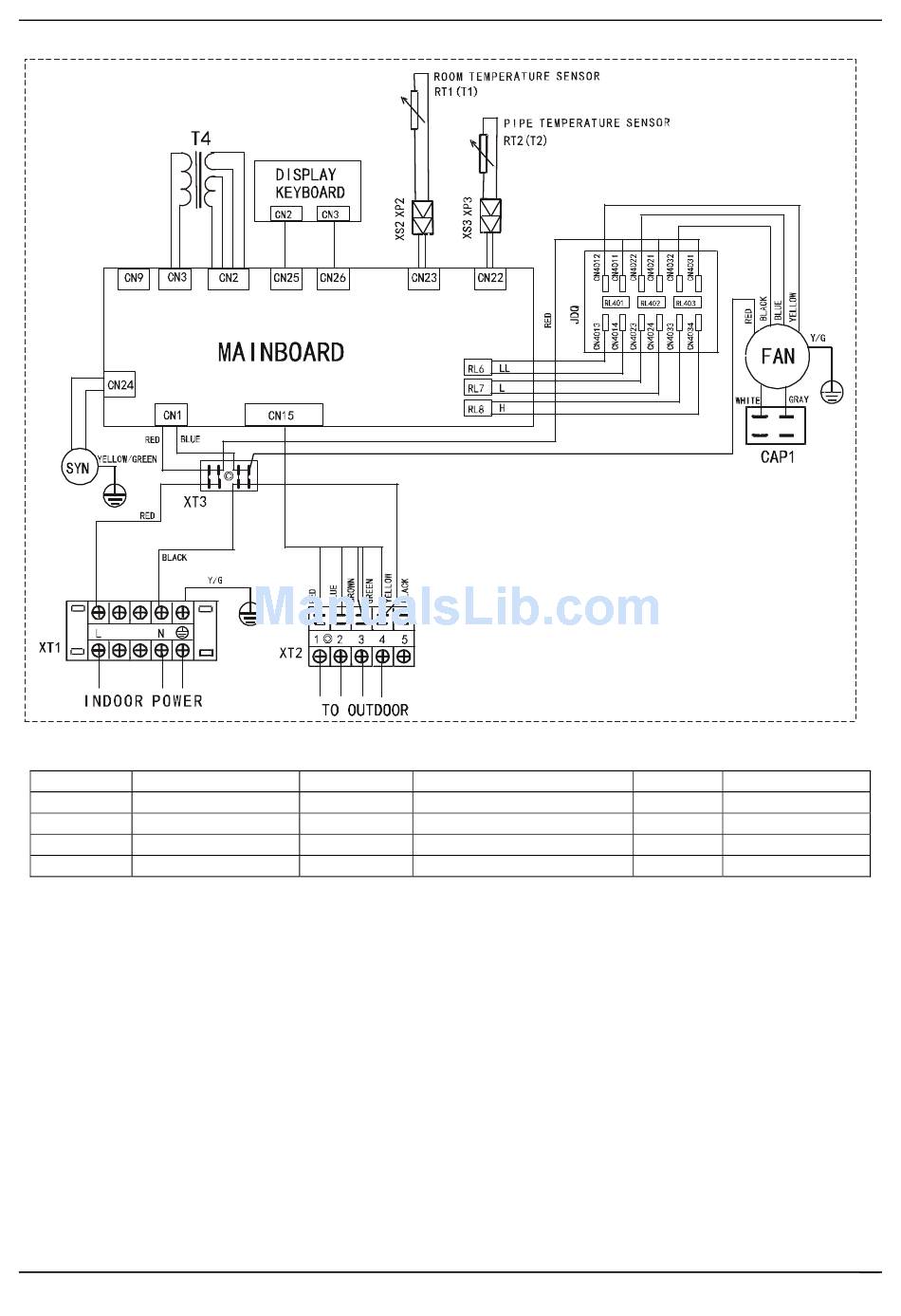

6.2 MFA-76HR, MFA-96HR
Item
CAP1 Fan capacitance
FAN Indoor fan
XT1-3 Connector
T4 Transformer
Floor-standing Type
Name Item
RT1
RT2
JDQ
XP1-3
Name
Room temp. sensor
Pipe temp. sensor
Fan aided control board
Connector plugs
Wiring Diagrams
Item Name
XS1-3 Connector plugs
SYN Swing motor
- -
- -
65
