Measuring Dynaflow MJ Plenum Air

Dynaflow type hood with Perimeter Defense control System
MESH FILTERS
RHEOSTAT
HOOD CANOPY
END VIEW
INTERNAL APPLIANCE DISCHARGE

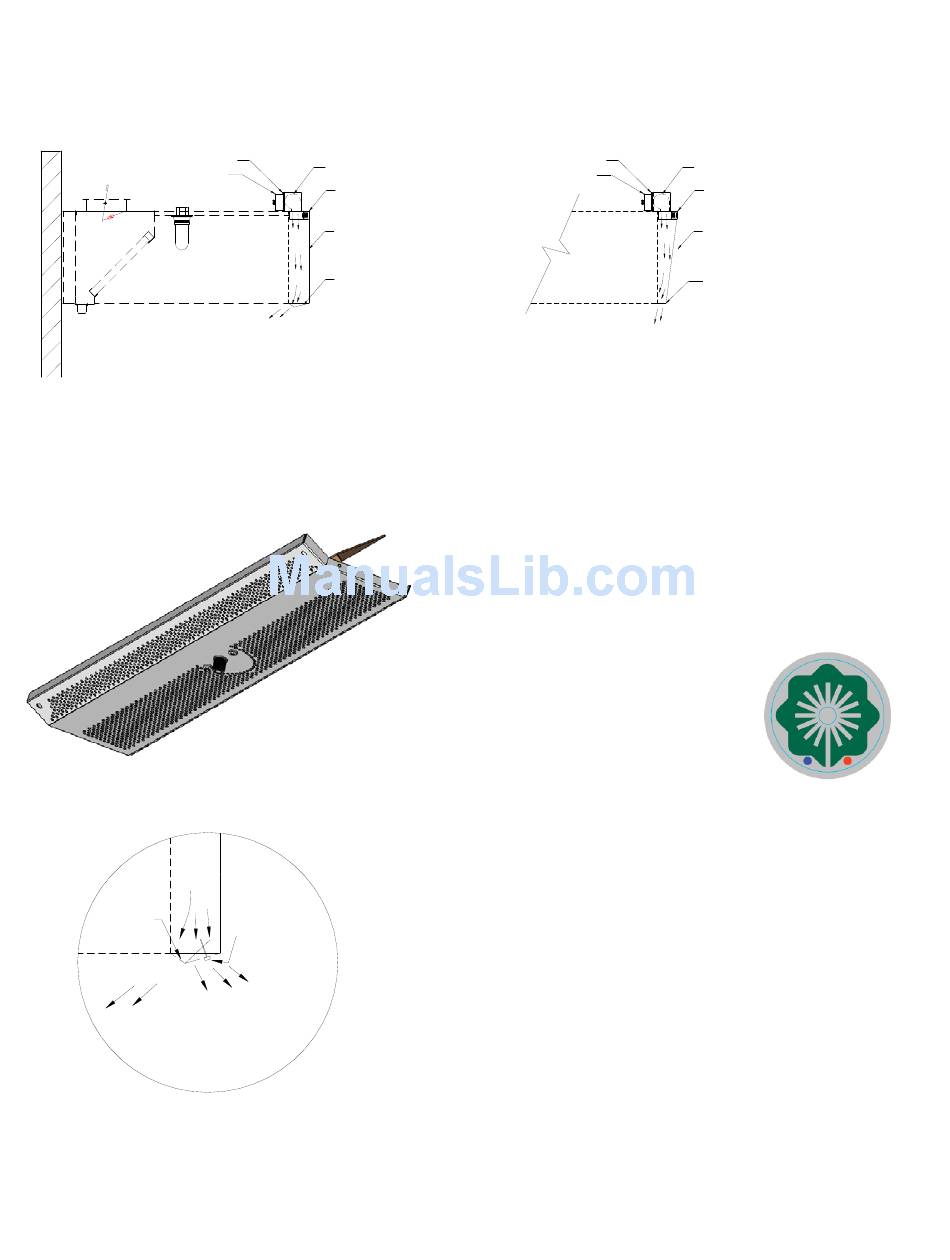

A. Measuring the Appliance Region
MJGrill with Comfort Tuning Dial
Figure 36
MJGRILL
MEASURE
VELOCITY
APPLIANCE
REGION

Measuring the Appliance Region

Figure 38
MJ BLOWER
FIRE DAMPER
FRONTFLOW
MJ PLENUM
S/S PERFORATED
DISCHARGE
Measuring MJGrill Appliance Region
To measure the Appliance Region air velocity
rotate the Comfort Tuning Dial towards the red dot, counterclockwise to shut
COMFORT
off air to the Chef Region. Now measure the velocity from the MJGrill
TUNING
perforated discharge towards the inside of the hood in the Appliance Region.
DIAL
The measurement can be made with a Hot Wire Anemometer or Vane Axial
Velometer. The required air velocity is indicated below in Chart No. 4. If
the velocity is too high or low the MJ Blower must be adjusted to increase or
decrease the velocity to the Appliance Region.
CHEF
REGION
Hood Appliances VS Appliance Region Face Velocity
MESH FILTERS
RHEOSTAT
HOOD CANOPY
FRONT RIGHT VIEW
SIDEFLOW DISCHARGE
Figure 35
The Appliance Region and Chef Region discharge is called the
MJGrill. The MJGrill is manufactured as a single component shown
on the left in Figure 28. The MJGrill includes the Appliance Region
discharge, Chef Region discharge, and a adjustable Comfort Tuning
Dial. The Comfort Tuning Dial proportions the amount of air to the
Chef Region.
The Comfort Tuning Dial on the MJ Grill has
two colored dots; red and blue. The Comfort
Tuning Dial proportions the volume of air to
the chef. Turning the Comfort Tuning Dial
towards the red dot provides less air to the
Chef Region and turning the Comfort Tuning
Dial towards the blue dot provides more air
to the Chef Region.
MJ BLOWER
FIRE DAMPER
SIDEFLOW
MJ PLENUM
S/S PERFORATED
DISCHARGE
Comfort Tuning Dial
Figure 37
