Description

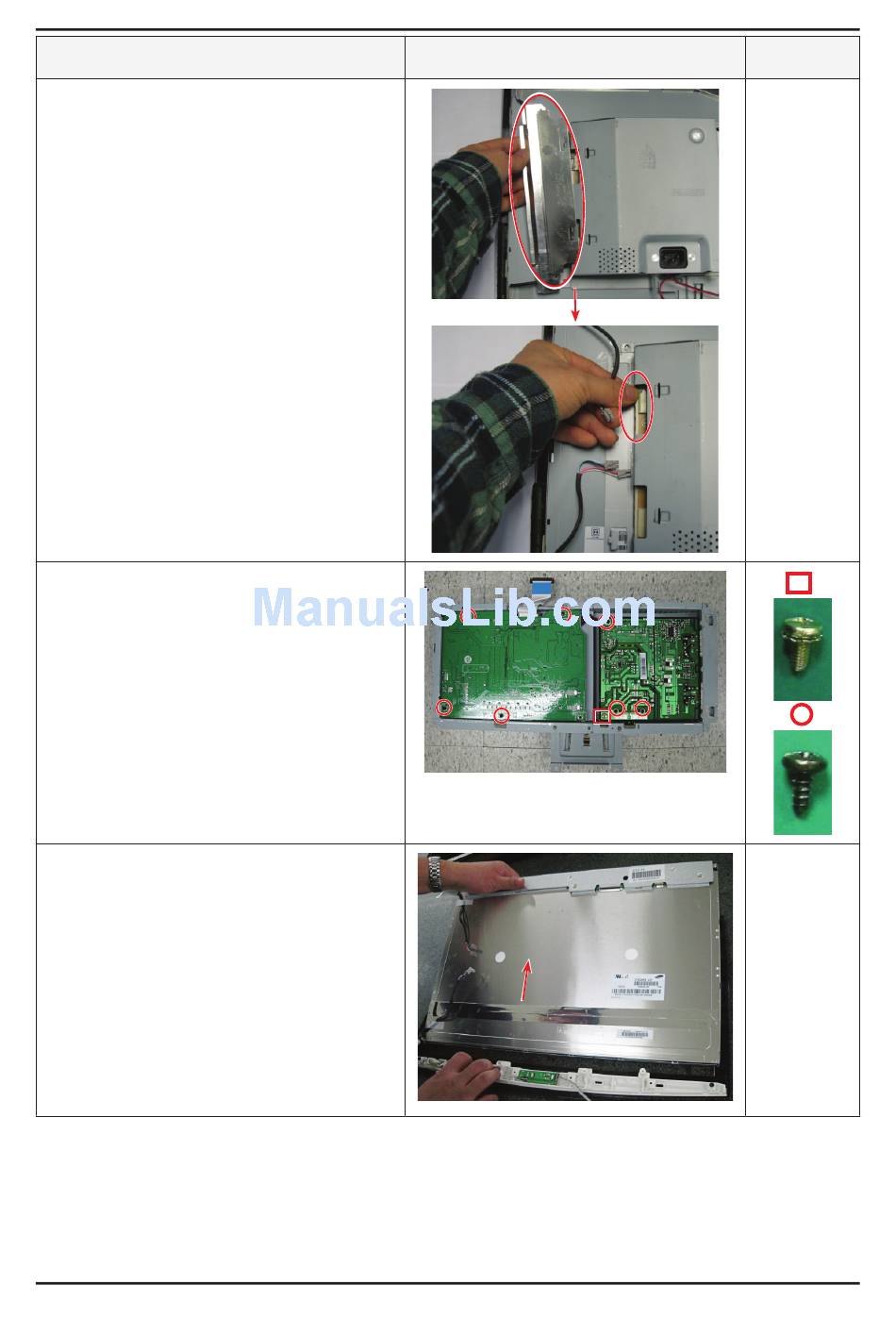

6. After disconnecting SHIELD-LAMP of left side,
disassemble lamp wire between panel and IP
Board.
7. Remove 8 marked SCREW of left picture.
Disconnect IP board.
※ Reassembly procedures are in the reverse order
of disassembly procedures.
8. Remove the LCD panel.
3. Disassembly and Assembly
Screws
3-3
