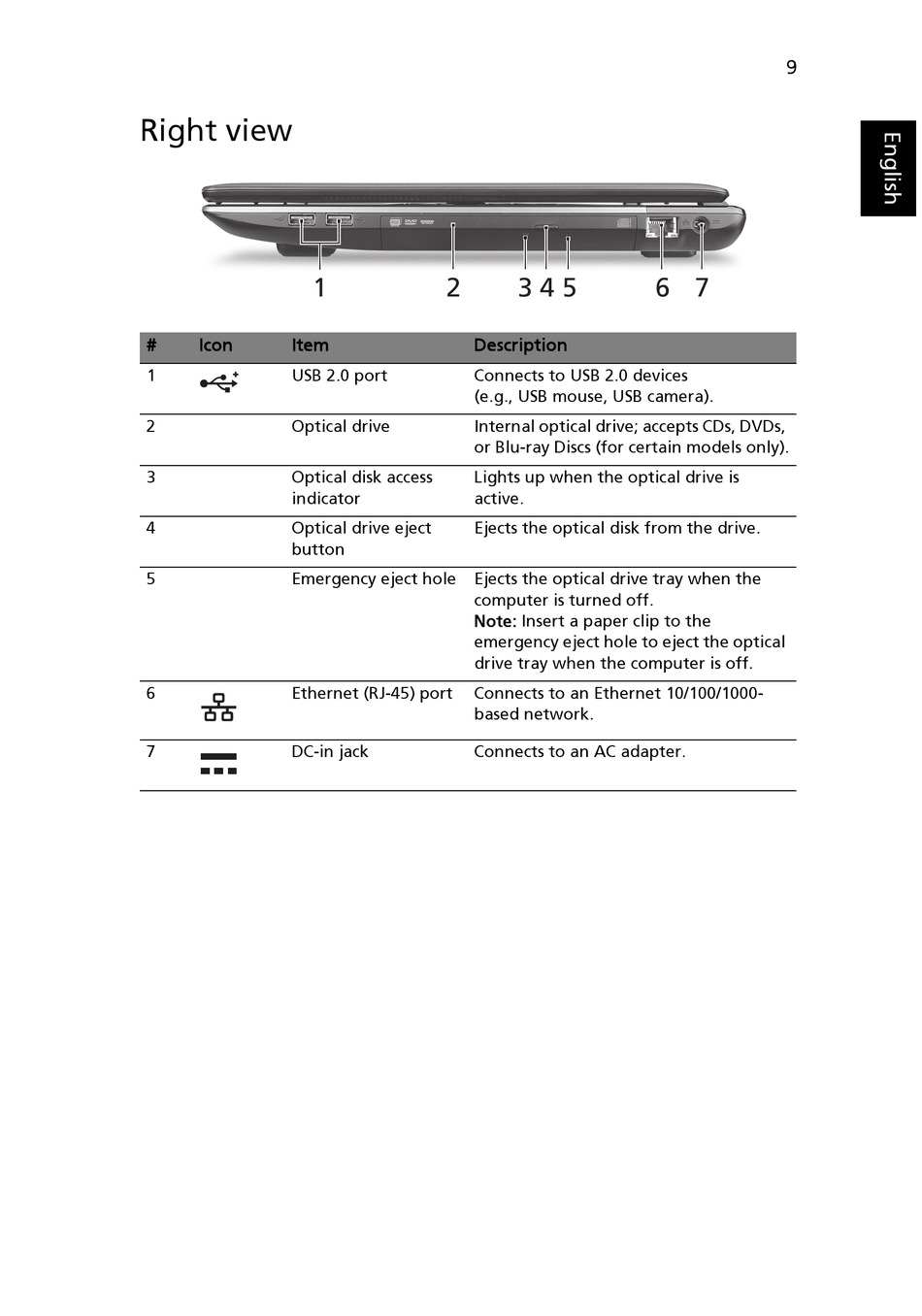

Right view

1
#
Icon
Item
1
USB 2.0 port
2
Optical drive
3
Optical disk access
indicator
4
Optical drive eject
button
5
Emergency eject hole
6
Ethernet (RJ-45) port
7
DC-in jack
2
3 4 5
Description
Connects to USB 2.0 devices 
(e.g., USB mouse, USB camera).
Internal optical drive; accepts CDs, DVDs,
or Blu-ray Discs (for certain models only).
Lights up when the optical drive is
active.
Ejects the optical disk from the drive.
Ejects the optical drive tray when the
computer is turned off.
Note: Insert a paper clip to the
emergency eject hole to eject the optical
drive tray when the computer is off.
Connects to an Ethernet 10/100/1000-
based network.
Connects to an AC adapter.
