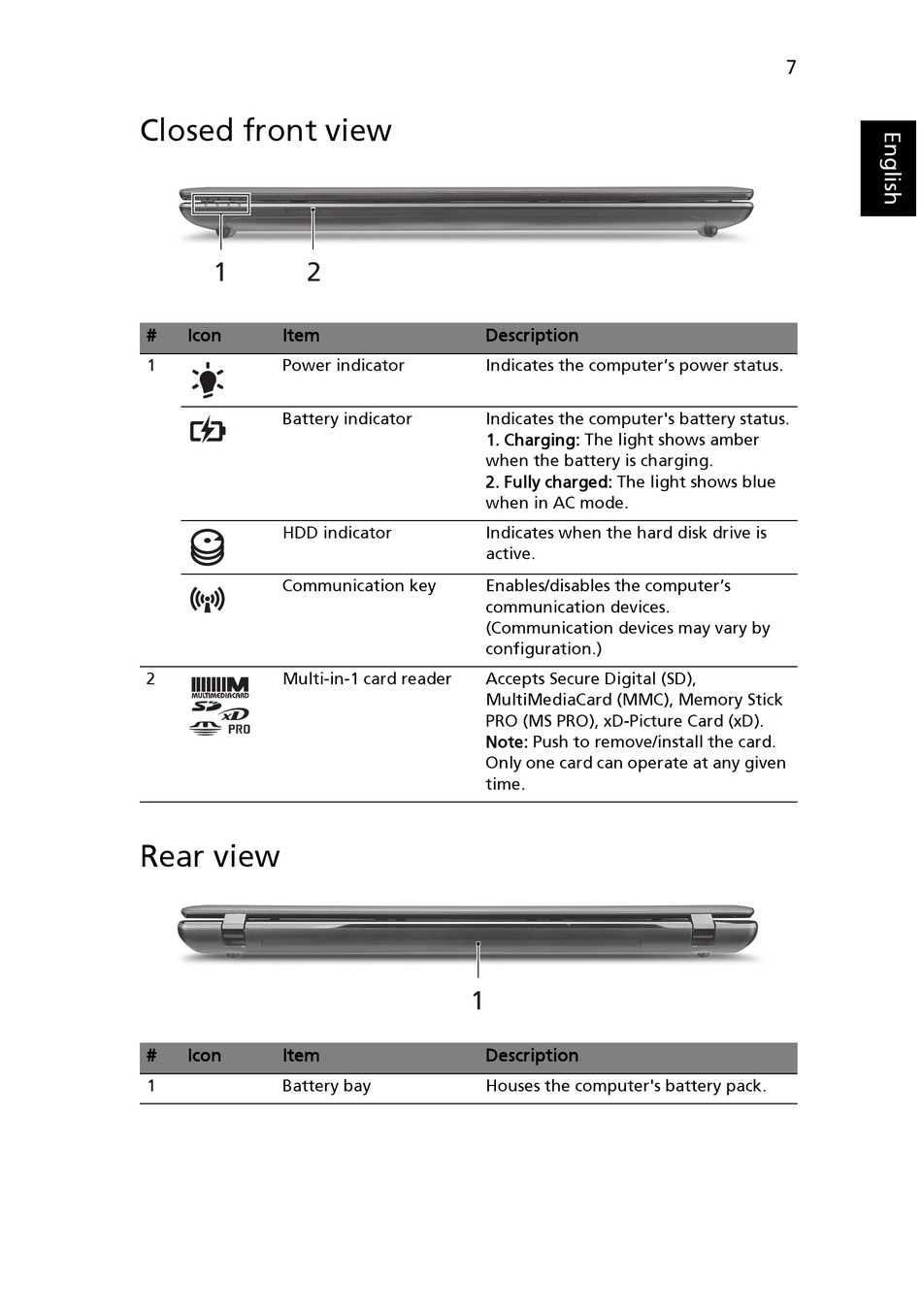

Closed front view

1
2
#
Icon
Item
1
Power indicator
Battery indicator
HDD indicator
Communication key
2
Multi-in-1 card reader

Rear view

#
Icon
Item
1
Battery bay
Description
Indicates the computer's power status.
Indicates the computer's battery status.
1. Charging: The light shows amber
when the battery is charging. 
2. Fully charged: The light shows blue
when in AC mode.
Indicates when the hard disk drive is
active.
Enables/disables the computer's
communication devices.
(Communication devices may vary by
configuration.)
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card.
Only one card can operate at any given
time.
1
Description
Houses the computer's battery pack.
