Summary of Contents for Snell SR7

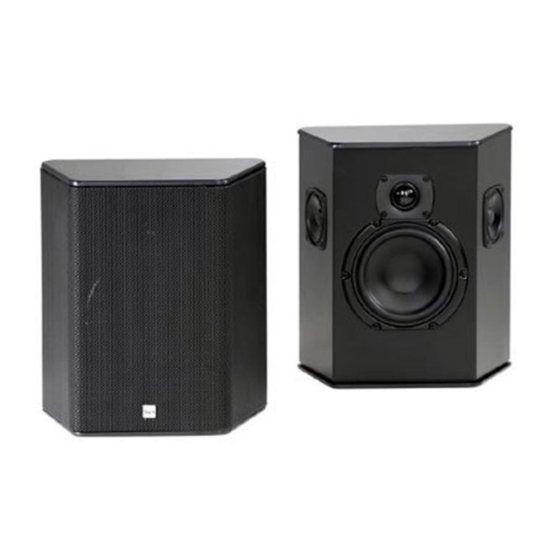

- Page 1 SR7 Surround Owner’s Manual...
-
Page 2: Specifications
Surround mode controlled by a toggle switch (Diffuse=Up; Direct=Down) intRoduction A good surround speaker adds realism to The SR7 allows you to switch, using multiple today’s multichannel audio systems by expand- drivers and a sophisticated acoustical matrix- ing the stereo spread beyond the front speak-... - Page 3 SR7 simply, securely, and easily. monopole or 400 Hz in dipolar mode. family of Sound connectors The SR7’s are tuned with a flat, opti- Five-way gold-plated binding posts allow quick mized power response, to match the connection to speaker cables and connections.
- Page 4 HoW to pLace YouR SR7 SuRRoundS (cont. ) Listening Room placement Follow these guidelines for proper placement. (Refer to Ideal SR7 Placement diagram.) Height Place the surrounds at least 5 feet (1.5m) from the floor, yet 12-inches (30cm) from the ceiling. Higher is better. placement On the side walls, center surrounds to the listening area.
- Page 5 Mounting on drywall, paneling, or other Hollow Surfaces Use the supplied machine screws and toggle wings. The toggle wings require a ⁄ -inch hole. Do not attempt to mount the SR7’s to drywall with any of the commonly available plastic anchors (push-in inserts). connectinG tHe SR7 SuRRoundS for five-channel applications (including tHX systems) Select either surround mode with the toggle switch.
- Page 6 ”diffuse” mode may be best. SR7 provides a unique experience with its ability to produce multiple polar patterns. You should take some time and experiment to best adapt this surround speaker to your...
-
Page 7: Listening Levels And Power Handling
Your responsibilities are to use the product according to the instructions supplied, to provide safe and secure transportation to an authorized Snell Acoustics service representative, and to present proof of purchase from an authorized Snell dealer in the form of your sales slip when requesting service. - Page 8 300 Jubilee Drive Peabody, MA 01960 phone: 978-538-6262 ©2007 Snell Acoustics. All Rights Reserved. Specifications fax: 978-538-6266 are subject to change without notice. Covered by patents email: info@snellacoustics.com issued and/or pending. www.snellacoustics.com Part #542-1038...
