Snell SR7 Series 7 Specifications

S ell
N
Ultra High Performance Full - Range Monitor Ultra High Performance Full - Range Monitor
Ultra High Performance Full - Range Monitor Ultra High Performance Full - Range Monitor Ultra High Performance Full - Range Monitor

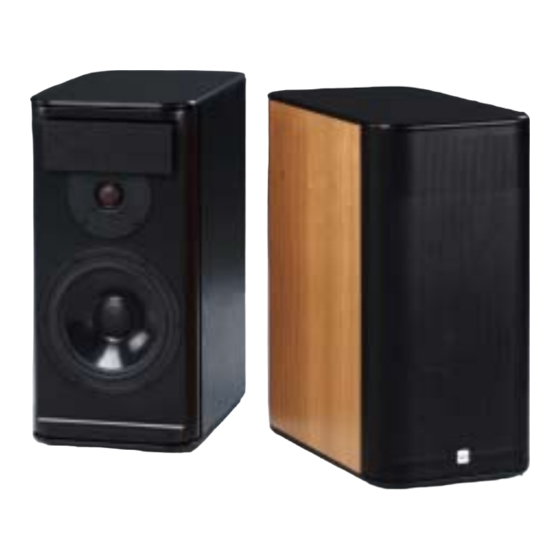

The J7 is the best bookshelf monitor ever developed by Snell,
and for its small size, among the best ever. At just 16-inches
high, the J7 can reproduce bass as well as most tower
speakers, with output to concert hall levels. It resolves the
micro-details of nuance and texture, while eeriely reproducing
a palpable, three-dimensional soundstage.
Developed by Snell's chief engineer, Joe D'Appolito Ph.D., the
J7 is a sophisticated two-way with a very low resonance, silk
dome tweeter, and a long excursion 6.5-inch woofer. The
crossover is constructed with dedicated circuit boards for
both tweeter and woofer. This design assures very low
distortion, and optimizes performance when the J7 is bi-
amped or bi-wired. The natural cherry or black painted walnut
cabinet with solid metal end caps is virtually resonance free
and hand made by Snell in Massachusetts.
Accommodating real-world room conditions is perhaps the
ultimate demand for a loudspeaker. Cosmetic standards like
size and nish, combine with room placement requirements
to add signi cant challenges to speaker design. The
beautiful, and compact J7 can be a
prominent or a discreet part of your
room decor. With its boundary
tuning features, place the J7 to
blend with the room's furnishings.
To further compliment room design,
the Snell J7 can be matched to
most wood and paint nishes.
Ideal for Music and Movie Systems Ideal for Music and Movie Systems
Ideal for Music and Movie Systems Ideal for Music and Movie Systems Ideal for Music and Movie Systems
The J7 Monitors provide concert hall
realism in most listening rooms for
two-channel and home theater
applications.
J7
Design Bass Re ex Monitor–Rear Port Requires 1.5-inches from Back Wall
Frequency Response
45Hz-22kHz +3dB (69Hz-22kHz +3dB @12dB/Octave w/ Port Plug )
Sensitivity 87dB
Nominal Impedance 8 Ohms
Crossover Frequency 2.0kHz
Recommended Ampli er Power 100-300Watts
Maximum Output (per pair) 105dB
Placement Stand, Wall, or Shelf
Dispersion Angle
Horizontal: +15 degrees
Vertical:
Drive Units Tweeter:
Woofer:
Video Shielding Standard
Dimensions Height:
Width:
Depth:
Weight 28 lbs/each
Finishes Cabinet: Real Cherry Veneer
Black Painted Walnut
Most Wood and Paint Finishes Available
Grille: Silver or Black Perforated Metal 53% Open
End Caps: Solid Aluminum Plate, Anodized Silver or Black
Munufactured by Snell Acoustics, PO 3717, Peabody MA 01960
www.snellacoustics.com
+15 degrees
1-inch SEAS Silk Dome
6.5-i nch SEAS Treated Paper, 5mm Excursion
16-inches
8-inches
13-inches
978-538-6262
Series 7
J7 Monitor
978-538-6266fax
