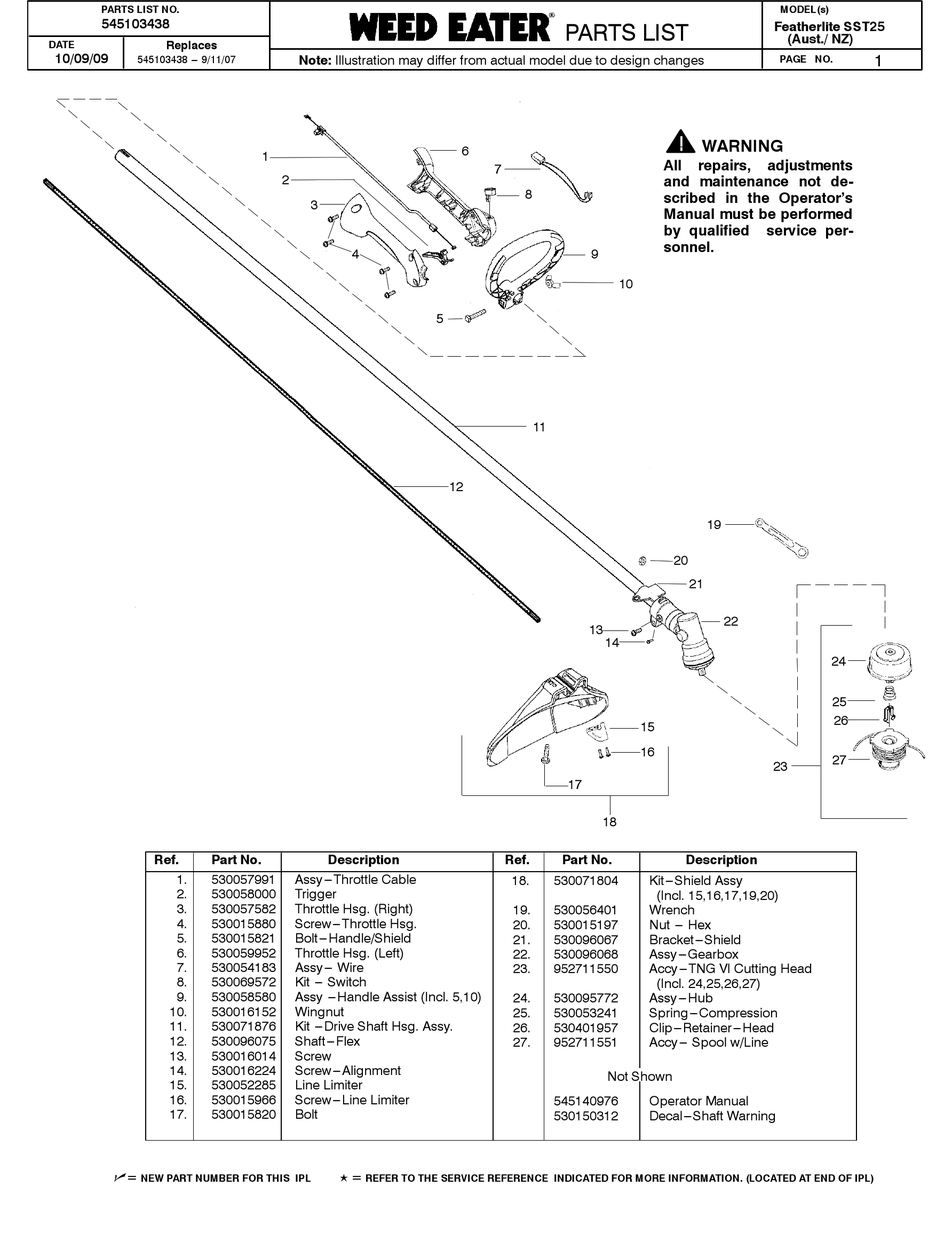

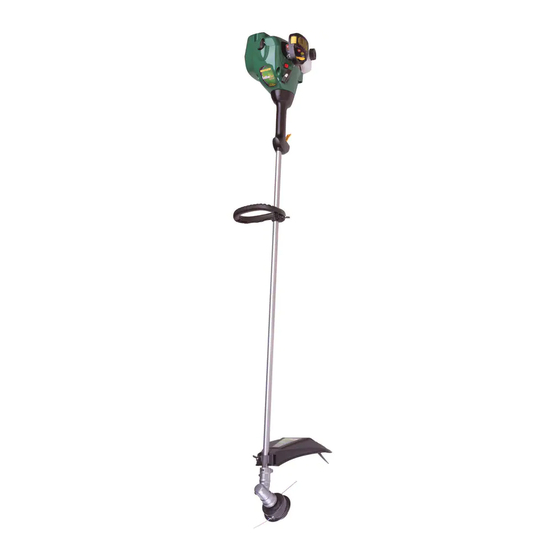

Weed Eater Featherlite SST25 Parts List

PARTS LIST NO.
545103438
DATE Replaces
10/09/09
545103438 --- 9/11/07
Ref. Part No.
1. 530057991
2. 530058000
3. 530057582
4. 530015880
5. 530015821
6. 530059952
7. 530054183
8. 530069572
9. 530058580
10. 530016152
11. 530071876
12. 530096075
13. 530016014
14. 530016224
15. 530052285
16. 530015966
17. 530015820
=
n NEW PART NUMBER FOR THIS IPL
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
1
2
3
4
5
Description
Assy--- Throttle Cable
Trigger
Throttle Hsg. (Right)
Screw--- Throttle Hsg.
Bolt--- Handle/Shield
Throttle Hsg. (Left)
Assy--- Wire
Kit --- Switch
Assy --- Handle Assist (Incl. 5,10)
Wingnut
Kit --- Drive Shaft Hsg. Assy.
Shaft--- Flex
Screw
Screw--- Alignment
Line Limiter
Screw--- Line Limiter
Bolt
=
K REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
R R
R R

PARTS LIST

PARTS LIST
PARTS LIST
PARTS LIST
6
7
8
9
10
11
12
13
14
17
18
Ref. Part No.
18. 530071804
19. 530056401
20. 530015197
21. 530096067
22. 530096068
23. 952711550
24. 530095772
25. 530053241
26. 530401957
27. 952711551
Not Shown
545140976
530150312
MODEL(s)
Featherlite SST25
(Aust./ NZ)
PAGE NO.
WARNING
All repairs, adjustments
and maintenance not de-
scribed in the Operator's
Manual must be performed
by qualified service per-
sonnel.
19
20
21
22
15
16
23
Description
Kit--- Shield Assy
(Incl. 15,16,17,19,20)
Wrench
Nut --- Hex
Bracket--- Shield
Assy--- Gearbox
Accy--- TNG VI Cutting Head
(Incl. 24,25,26,27)
Assy--- Hub
Spring --- Compression
Clip --- Retainer--- Head
Accy--- Spool w/Line
Operator Manual
Decal--- Shaft Warning
1
24
25
26
27
