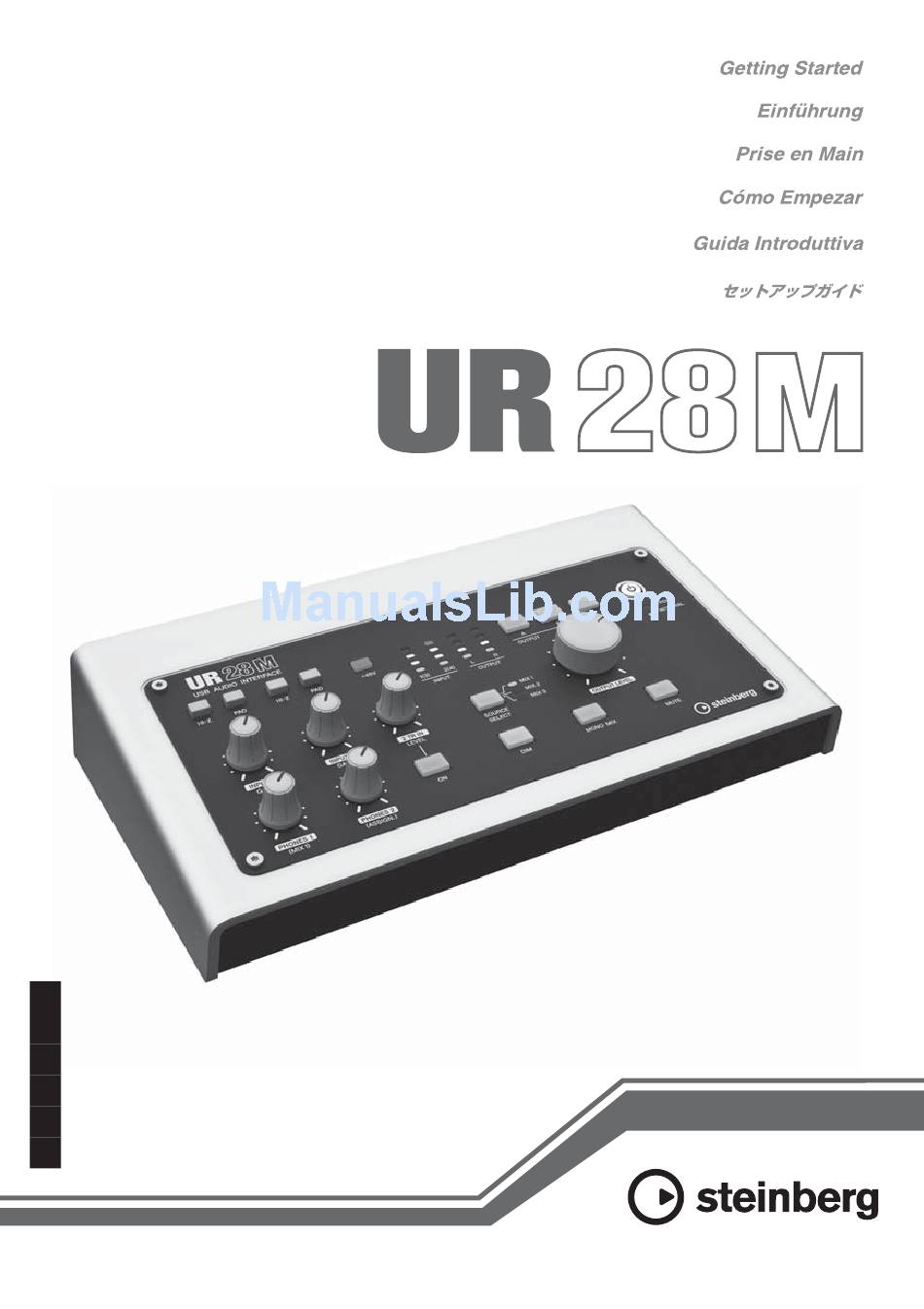

  • Page 1 USB AUDIO INTERFACE...
  • Page 2 Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620 Telephone : 714-522-9011 Type of Equipment : USB AUDIO INTERFACE Model Name : UR28M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 3: Table Of Contents

    Front Panel............11 Setup ............12 1. Setting up the Power Supply ....... 12 2. Installing Cubase AI ........13 3. Installing TOOLS for UR28M....... 14 4. Downloading the Licenses (Activation) ..16 Basic Operations ........17 Introduction............17 Connection Example ........17 Configuring Audio Driver Settings on the DAW Software...........

  • Page 4: Precautions

    If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel. Power supply/AC power adaptor • Do not cover or wrap the AC power adaptor with a cloth or blanket. PA_en_1 UR28M Getting Started...
  • Page 5 • Do not use the headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician. PA_en_1 UR28M Getting Started...
  • Page 6 • The software included in the Cubase AI DVD-ROM and the copyrights thereof are under exclusive ownership by Steinberg Media Technologies GmbH. • The software included in the TOOLS for UR28M CD-ROM and the copyrights thereof are under exclusive ownership by Yamaha.

  • Page 7: Introduction

    Development Team (PA-130 or equivalent) Thank you for choosing the UR28M USB Audio Getting Started (this book) • Interface. The UR28M brings the sum total of our ESSENTIAL PRODUCT LICENSE • experience and know-how together with INFORMATION card invaluable feedback from our customers TOOLS for UR28M CD-ROM •...

  • Page 8: How To Read The Manual

    For the latest information on the software device with Cubase series (for contained in the accessory disk, please versions which supports the link see the Steinberg web site below. Future function). upgrades of application and system To use this Link function, you will...
  • Page 9 Keyboard Shortcuts detailed information on specific [Windows modifier key]/[Mac modifier functions. It is included in the TOOLS key]+[key] shows the shortcut keys. for UR28M CD-ROM. For example, [Ctrl]/[command]+[Z] NOTE means “press [Ctrl] under Windows or For contents of the operation manual, [command] under Mac, then press •...

  • Page 10: Panel Controls And Terminals

    DC IN 12V Grounding screw 2TR IN (3.5mm, stereo) USB2.0 (USB port) S/PDIF IN/OUT (coaxial) PHONES 1/2 (phone type, stereo) LINE OUTPUT A–C (phone type, balanced/unbalanced) LINE INPUT 3/4 (phone type, balanced/unbalanced) MIC/LINE/HI-Z 1/2 (XLR/phone type, balanced/unbalanced) UR28M Getting Started...

  • Page 11: Front Panel

    2TR IN LEVEL knob 2TR IN ON button INPUT meter OUTPUT meter OUTPUT buttons A–C SOURCE SELECT button MIX 1–3 lamp DIM button MONO MIX button OUTPUT LEVEL knob MUTE button Power button Word clock source lamp UR28M Getting Started...

  • Page 12: Setup

    Remove the electric plug from the this automatic power off function, refer outlet when the device is not be to the section “Control Panel of the used for extended periods of time, or Audio Driver” in the Operation Manual. during electrical storms. UR28M Getting Started...

  • Page 13: Installing Cubase Ai

    AC outlet. User Registration and 2. Installing Cubase Product Registration Register your personal information and products on “MySteinberg” in the Steinberg web site. For details, refer to NOTE the following web site. You are only permitted to use this • http://www.steinberg.net/en/ software pursuant to the terms and mysteinberg.html...

  • Page 14: Installing Tools For Ur28M

    Start the computer and log on to the Administrator account. Insert the TOOLS for UR28M CD- ROM into the CD-ROM drive. Open the CD-ROM then double- click the file “setup.exe.” Follow the on-screen instructions to install the software.
  • Page 15 Confirm that the device name is Wizard” window appears. Go on to listed. step 10. Windows Vista/Windows 7: Installation of the TOOLS for UR28M is Go on to step 13. now completed. If the “Can Windows connect to Windows Update to search for software?”...

  • Page 16: Downloading The Licenses (Activation)

    (USB protection device) to your In the left column computer, a window requiring you to select the destination of the license Installation of the TOOLS for UR28M is appears. Follow the on-screen now completed. instructions to select the device. The download licenses are now completed.

  • Page 17: Basic Operations

    USB port, you will have to Wait for six seconds or more between • install the driver again. these operations: (1) when turning off the device then on again, or (2) when Turn on the device. alternately connecting/disconnecting the USB cable. UR28M Getting Started...
  • Page 18 Cubase series menu. For instructions on using the device, refer to the Operation Manual. Programs Other Than Cubase Series Make sure that all applications have been quit. Connect the device directly to the computer by using the included USB cable. UR28M Getting Started...

  • Page 19: Troubleshooting

    • Manual to disable this function. installed properly? Refer to Step 3 in “Installing TOOLS No Sound for UR28M” (page 14) to confirm it. Are the volume controls of the Are any USB devices you are not • • device set to appropriate levels?
  • Page 20 Troubleshooting Does your computer satisfy the • system requirements? Confirm the system requirements. For the latest information, see the Steinberg web site below. http://www.steinberg.net Are you recording or playing long • continuous sections of audio? The audio data processing capabilities of your computer will...

  • Page 21: Appendix

    Follow the on-screen instructions to remove the software. Uninstalling TOOLS Windows Vista/Windows 7: for UR28M Click [Uninstall]/[Uninstall/ Change]. Follow the on-screen instructions to remove the Windows.........page 21 software. Mac .........page 22 Uninstallation of TOOLS for UR28M is now completed. UR28M Getting Started...
  • Page 22  UR-REV-X_ROOM.vst3 YamahaSteinbergUSBMIDI.plugin UR-REV-X_PLATE.vst3 [Library] [Audio] [MIDI Devices] UR28M-REV-X_HALL.vst3    [Yamaha] [Images] UR28M-REV-X_ROOM.vst3  USB_1500.tiff UR28M-REV-X_PLATE.vst3 USB_1502.tiff USB_1503.tiff Uninstallation of TOOLS for UR28M is [Library] [Receipts]  now completed. YamahaSteinbergUSBAudioDriver.pkg YamahaSteinbergUSBControlPanel.pkg YamahaSteinbergUSBDriverplist.pkg YamahaSteinbergUSBMIDIPlugIn.pkg YamahaSteinbergUSBMIDIIcon.pkg YamahaSteinbergUSBPrefPane.pkg UR28M Getting Started...

  • Page 23: Specifications

    Maximum Input Level +13.8dBV (unbalanced) 20k Ohm (balanced) Input Impedance 10k Ohm (unbalanced) 2TR IN Maximum Input Level +3.5dBV Input Impedance 10k Ohm LINE OUTPUT A–C (Balanced) Frequency Response +0.1/-0.2dB, 20Hz to 22kHz Dynamic Range 106dB, A-Weighted UR28M Getting Started...

  • Page 24: General Specifications

    Steinberg/Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Steinberg/ Yamaha dealer. Inrush Current based on EN 55103-1:2009 0.5A (on initial switch-on)
  • Page 25 OBSERVERA! Apparaten kopplas inte ur växelströmskällan (nätet) så länge som den ar ansluten till vägguttaget, även om själva apparaten har stängts av. ADVARSEL: Netspændingen til dette apparat er IKKE afbrudt, sålænge netledningen sidder i en stikkontakt, som er tændt — også selvom der er slukket på...
  • Page 26 Information for Users on Collection and Disposal of Old Equipment This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

  • Page 27: Warranty Terms And Conditions

    ►Les conditions de garantie se trouvent dans le document PDF imprimable sous www.steinberg.net/warranty Les conditions de garantie disponibles au format PDF à la page www.steinberg.net/ warranty s’appliquent uniquement aux pays de l’Espace économique européen (EEE) et à la Suisse. ►Las condiciones de garantía se encuentran en el documento PDF en www.steinberg.net/warranty...
  • Page 28 L’elenco dei distributori è disponibile sul sito Web al seguente indirizzo: http://www.steinberg.net/en/company/distributor.html Per individuare il distributore da contattare, rivolgersi alla sede centrale SMTG. http://www.steinberg.net/en/company/distributor.html HEAD OFFFICE Steinberg Media Technologies GmbH Frankenstraße 18b, 20097 Hamburg, Germany Tel: +49-(0)40-210 35 0...
  • Page 29 Steinberg Web Site http://www.steinberg.net C.S.G., Pro Audio Division © 2011 Yamaha Corporation 104MWAP*.*-01A0 WW71460...
