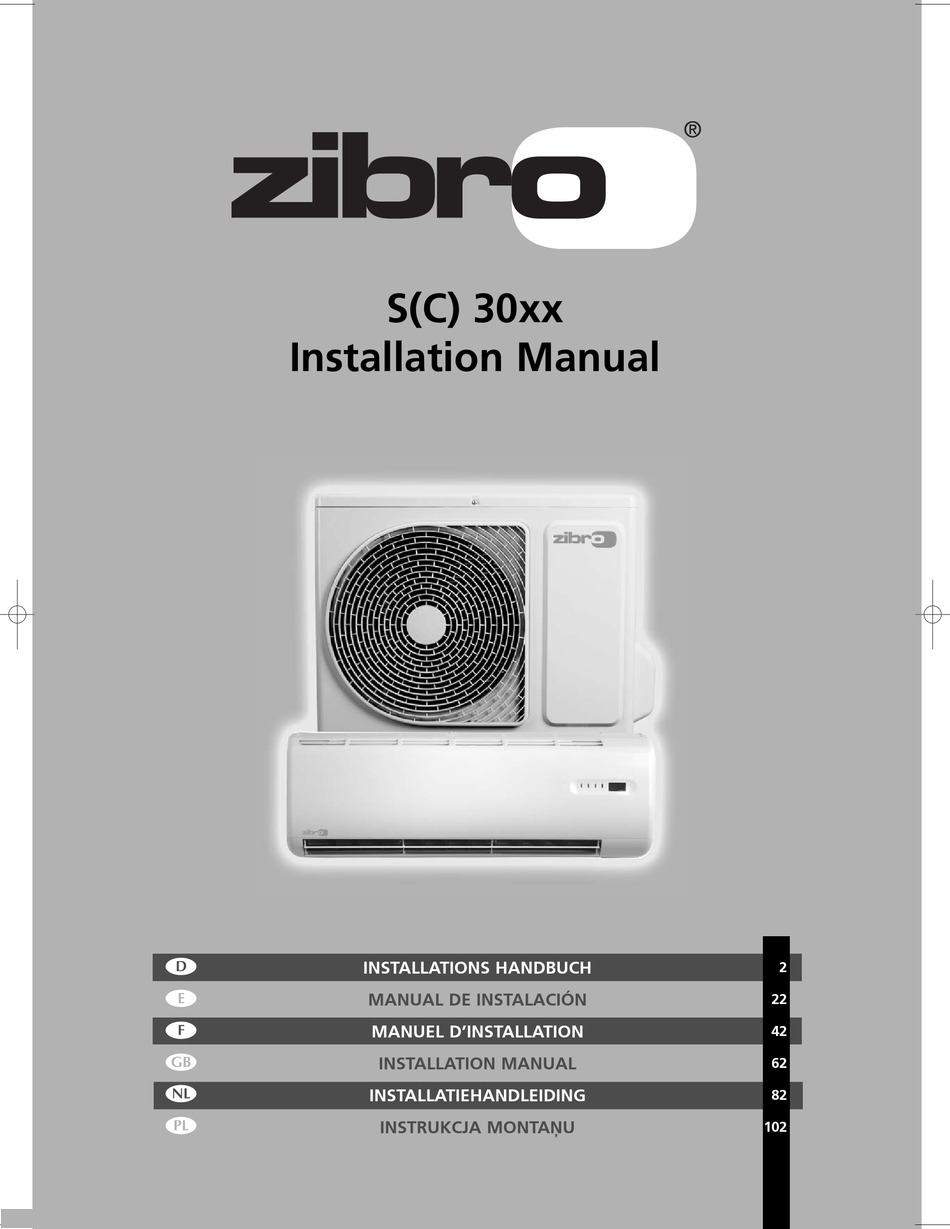

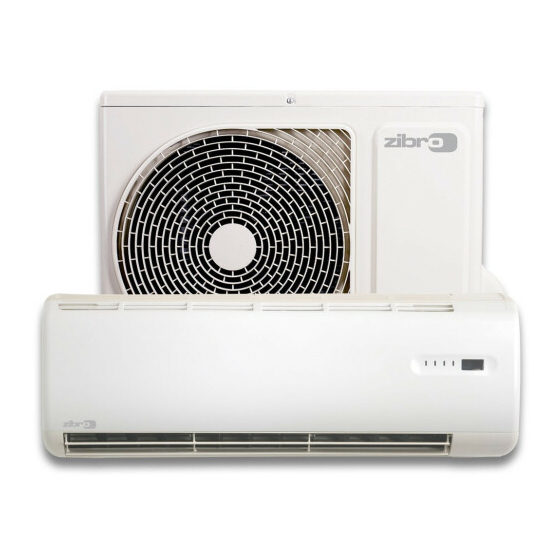

Page 1: Installation Manual
S(C) 30xx Installation Manual INSTALLATIONS HANDBUCH MANUAL DE INSTALACIÓN MANUEL D’INSTALLATION INSTALLATION MANUAL INSTALLATIEHANDLEIDING INSTRUKCJA MONTAŅU... -
Page 2: Important Notice
• Always make sure to wear the correct personal safety protections such as protective eyewear, gloves, mouthcaps, ear protection etc. Internet: For your convenience you can download the latest version of the user-, installation- and/or service manual on www.zibro.com... - Page 3 CONTENTS SAFETY PRECAUTIONS INSTALLATION OF INDOOR AND OUTDOOR UNITS ELECTRICAL WORK TEST RUNNING WARNING! Do not install, remove and/or reinstall the unit by yourself if you do not have the adequate electrical, electronic, refrigerant, mechanical experience and authorisation. • Improper installation can cause water leakage, electrical shock, refrigerant leakage or fire.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS The following should be always observed for safety: • Be sure to read the following WARNING before installing the airconditioner. • Be sure to observe the cautions specified here as they include important items related to safety. • After reading this instructions, be sure to keep it together with the owners manual in a handy place for future reference. -
Page 5: Installation Of Indoor And Outdoor Units
CAUTIONS This equipment must be earthed and installed with an earth leakage breaker. It can possibly cause electrical shock if grounding is not perfect. Do not modify the length of the power supply cord. Do not use an extension cable. Otherwise it can cause electric fire or shock. -
Page 6: Outdoor Unit
Outdoor unit • If an awning is built over the outdoor unit to prevent direct sunlight or rain exposure, make sure that heat radiation from the condenser is not restricted. • Ensure that the clearance around the back of the unit is more than 30cm and left side is more than 30cm. - Page 7 ITEMS PACKED WITH THE UNIT (for S 30xx models) Number Name of Accessories Quantity Installation plate Clip Anchor Self-tapping screw ‘A’ ST 3.9x25 Seal Drain joint Liquid side Ø 6.35 Ø 9.53 (< 3.5 kW model) Connecting pipe Ø 12.7 (≥ 3.5 kW model) assembly Gas side Not included...
-
Page 8: Indoor Unit Installation
CAUTION • Ensure that the space around the left and right of the indoor unit is more than 12cm. The indoor unit should be installed allowing a minimum clearance of 15cm from the ceiling. • Use a stud finder to locate studs to prevent unnecessary damage to the wall. •... - Page 9 S 3025 SC 3025 S 3032 SC 3032...
- Page 10 S 3050 SC 3050 Fig. 4 Wall Outdoor Indoor ≥5° Fig. 5 2. Drill a hole in the wall Determine hole positions according to the diagram detailed in Fig.5. drill one (1) hole (≥ 85 mm for SC30xx / ≥ 65 mm for S30xx) slanting slightly downwards to outdoor side, this will prevent water to come indoors.
- Page 11 Fig. 6 Do not put the end of drain hose into water. Do not block water flow by a rise. When connecting extension drain hose, insulate the connecting part of extension drain hose with a shield pipe, do not let the drain hose slack. Upper Hook Lower Hook Cushion...
- Page 12 Indoor unit Indoor unit outline Ponding box Connective pipe Pipe room Connective cable Connective pipe Wrapping belt Drain hose Fig. 9 Fig. 10 For S 30xx models For the rear-right-hand and rear-left-hand piping, install the piping as shown. Bend the connective pipe to be laid at 43mm height or less from the wall.
-
Page 13: Outdoor Unit Installation
CAUTION • Do not allow the piping to let out from the back of the indoor unit. • Be careful not to let the drain hose slack. • Heat insulate both of the auxiliary piping. • Be sure that the drain hose is located at the lowest side of the bundle. Locating at the upper side can cause drain pan to overflow inside the unit. -
Page 14: Refrigerant Piping Connection
In this way condensed water, which is produced during heating mode of the airconditioner, can be drained away. 3.03 Seal Drain joint Base pan hole of outdoor unit www.zibro.com/download S1825 - S1833 - S1847 Installation & Service Manual Seal Fig. 14 Drain pipe For SC30xx models ≥... - Page 15 For SC 30xx models See ‘Quick Installation Guide’. Fig. 16 To disconnect the couplings: Step 1: Shut down the A/C unit and unplug the electrical power cord from the wall outlet. Step 2: Wait five minutes for the line pressure between the indoor compressor unit and outdoor conden- sing unit to equalize.
-
Page 16: Electrical Work
Fig.17 Flare nut Indoor unit tubing Pipings Fig. 19 Fig. 20 ATTENTION • Excessive torque can break nut depending on installation conditions. • All refrigerant work and refrigerant piping should comply with the local legislation, standards and codes and should only be done by qualified and skilled engineers. Outer Tightening torque Additional tightening... - Page 17 Connect the cable to the indoor unit (for SC 30xx models) 4.5 Meter cable for electrical connection between indoor and outdoor unit is delivered with the pac- kage and is included in the refrigerant piping sleeve. The electrical cable is provided with an electrical quick connector. The outdoor unit is also provided with electrical quick connector.
- Page 18 Outdoor unit Outdoor unit Control cover ‘click’ Screw Plug connector Fig. 23 Secure the cable with cord clamp To indoor unit CAUTION After the confirmation of the above conditions, prepare the wiring as follows: • Always have an individual power circuit specifically for the air conditioner. As for the method of wiring, be guided by the circuit diagram posted on the inside of control cover.
- Page 19 AIR PURGING (for S 30xx models) Air and moisture that remain in the refrigerant system, e.g. after installation, can cause undesirable effects or damage as indicated below: • Pressure in the system rises. • Operating current rises. • Cooling or heating efficiency drops. •...
-
Page 20: Test Running
TEST RUNNING Perform test running after completing electrical safety check and gas leak check. The test running time should last more than 30 minutes. Open the panel and lift the panel up to an angle which remains fixed. Do not lift the panel any fur- ther when it stops with a click sound. - Page 22 Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.zibro.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.zibro.com). If you need information or if you have a problem, please visit the our website (www.zibro.com) or contact our sales support (you find its phone number on www.zibro.com) Per informazioni e in caso di problemi, visitate il sito Web www.zibro.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero...
