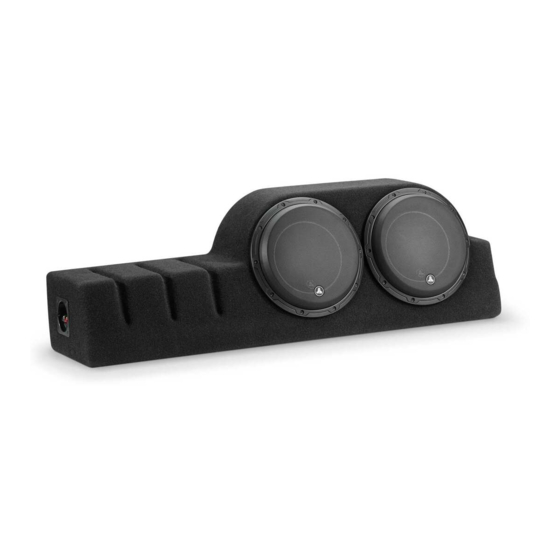

JL Audio Stealthbox SB-D-MGACAB/10W6v2 Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-D-MGACAB/10W6v2 SB-D-MGACAB/10W6v2
2006 - Up Dodge Ram Mega Cab Trucks 2006 - Up Dodge Ram Mega Cab Trucks
Thank you for choosing a JL Audio Stealthbox
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
JL Audio dealer. The installation professionals employed by your dealer have the necessary
tools and experience to disassemble and reassemble your vehicle properly. Also, keep
in mind that your warranty coverage extends to two years if your system is installed
or approved by your authorized JL Audio dealer. If you prefer to perform your own
installation, please read this installation guide completely before beginning the process.
®
for your automotive sound system.
®
installed by your authorized
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-D-MGACAB/10W6v2_INSTR_SKU# 011217 SB-D-MGACAB/10W6v2_INSTR_SKU# 011217
INSTALLATION
D I F F I C U L T Y :
2
S T E P 1
Remove all contents from the rear seating area and fold
down the rear seating.
Open the storage unit that is located between the rear seat
and the rear wall. In this storage unit there is three bolts.
Remove the passenger side bolt.
S T E P 2
Remove the middle bolt.
S T E P 3
Remove the driver's side bolt.
Remove the storage unit out of the vehicle.
Continued on Next Page
OUT
OF 5
