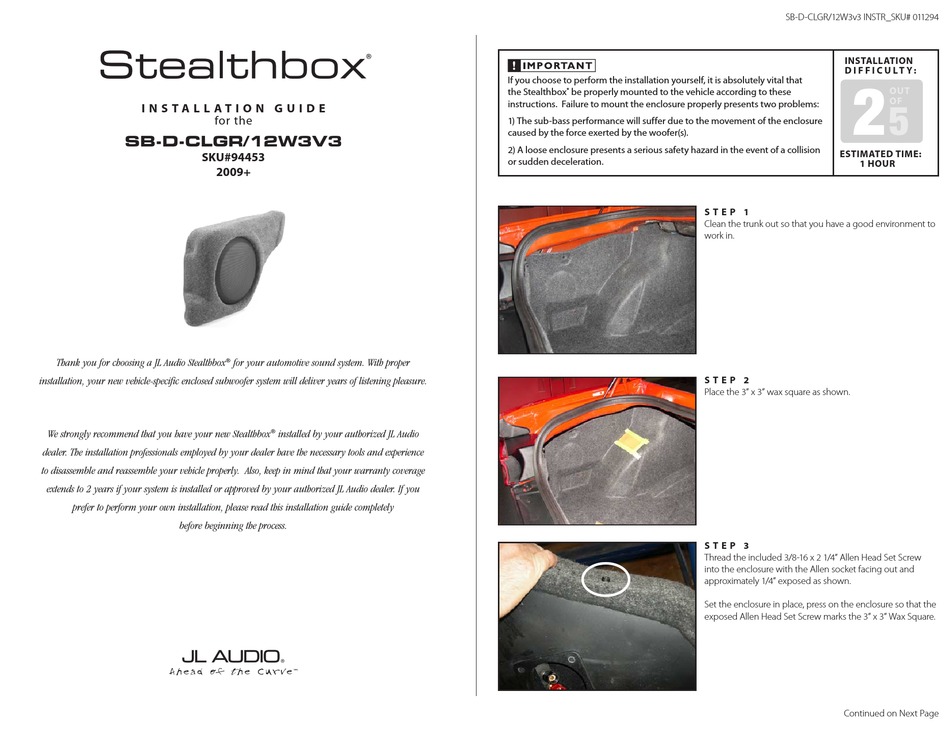

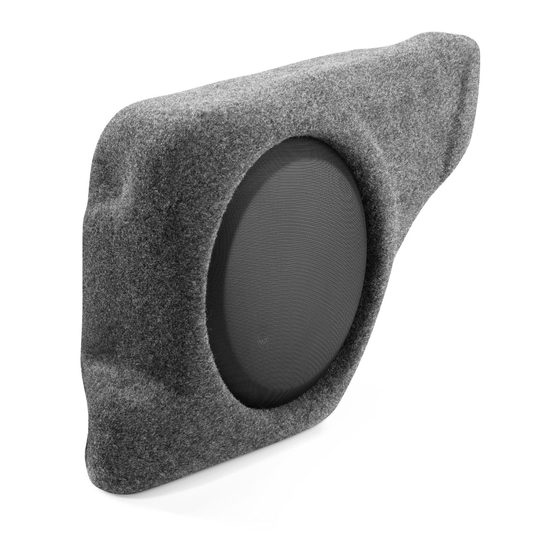

I n s t a l l a t I o n G u I d e
for the
SB-D-CLGR/12W3V3
sKu#94453
2009+
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-D-CLGR/12W3v3 INSTR_SKU# 011294
InstallatIon
d I F F I C u l t Y :
2
estImated tIme:
1 HouR
s t e P 1
Clean the trunk out so that you have a good environment to
work in.
s t e P 2
Place the 3" x 3" wax square as shown.
s t e P 3
Thread the included 3/8-16 x 2 1/4" Allen Head Set Screw
into the enclosure with the Allen socket facing out and
approximately 1/4" exposed as shown.
Set the enclosure in place, press on the enclosure so that the
exposed Allen Head Set Screw marks the 3" x 3" Wax Square.
Continued on Next Page
out
oF
5
