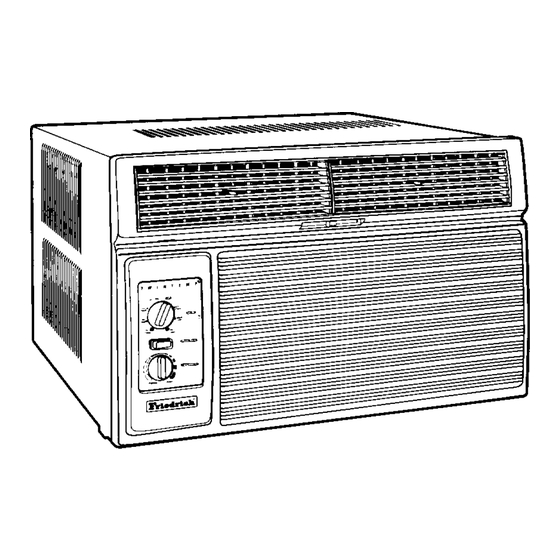

- Page 1 2000 ® TwinTemp Series ES12J33-3 YS09J10-1 EL33J35-2 ES15J33A-1 YS13J33-1 EK12J33A-1 EM18J34A-2 YM18J34A-2 EK12J33A-3 EM18J34A-3 YL24J35A-1 EK18J34A-2 EL24J35A-1 EK18J34A-3 ES12J33-1 EL24J35A-3 Service & Parts Manual AMERICA’S BEST AIR CONDITIONER TTJ0100 (1/00)
-
Page 2: Table Of Contents
Instructions For Using Cooling Load Estimate Form .................6 Cooling Load Estimate Form ........................7 Heat Load Form ............................8 Heating Load Form Friedrich Unit Heat Pumps..................9 SPECIFICATIONS/PERFORMANCE DATA Specifications "YS" - "YM" - "YL" Models ....................10 Performance Data (Cooling) "YS" - "YM" - "YL" Models ................11 Performance Data (Heating) "YS"... - Page 3 Troubleshooting Cooling ........................... 27 Troubleshooting Heating (Heat Pump Models) ..................31 Troubleshooting Heating (Cooling/Electric Models) ................... 34 WIRING DIAGRAMS YS09J10-1 ............618-200-04 ..............36 YS13J33-1 ............618-200-02 ..............37 YM18J34A-2 ............618-200-02 ..............37 YL24J35A-1 ............618-200-02 ..............37 ES12J33-1, ES12J33-3 ........618-200-01 ..............38 ES15J33A-1 ............
-
Page 4: Friedrich Room Model Number Code
FRIEDRICH ROOM MODEL NUMBER CODE 1st DIGIT - FUNCTION S = Straight Cool, Value Series C = Straight Cool, Budget Series Y = Heat Pump E = Electric Strip K = Straight Cool, Challenger Series W = Thru-The-Wall, WallMaster Series... -
Page 5: Application And Sizing
APPLICATION AND SIZING In the application and sizing of room air conditioners for cooling, it is most important to give full consideration to all factors which may contribute to the heat loss or gain of the space to be conditioned. It is therefore necessary to make a survey of the space to be conditioned and calculate the load requirements before a selection of the size of the equipment needed can be made. -
Page 6: Instructions For Using Cooling Load Estimate Form
INSTRUCTIONS FOR USING COOLING LOAD ESTIMATE FORM FOR ROOM AIR CONDITIONERS (AHAM PUB. NO. RAC-1) This cooling load estimate form is suitable for estimating the cooling load for comfort air conditioning installations which do not require specific conditions of inside temperature and humidity. The form is based on an outside design temperature of 95°F dry bulb and 75°F wet bulb. -
Page 7: Cooling Load Estimate Form
COOLING LOAD ESTIMATE FORM FACTORS BTU/Hr. HEAT GAIN FROM QUANTITY (Quantity x Factor) nside Outside (Area WINDOWS: Heat gain from the sun. Shades* Awnings* X Factor) Shades* Northeast ____sq. ft. 20 ____ ____ These factors are for single glass East ____sq. -
Page 8: Heat Load Form
HEAT LOAD FORM Below is an example using the heat load form: The heat load form, Page 9, may be used by servicing personnel to determine the heat loss of a conditioned A space to be conditioned is par t of a house geographi- space and the ambient winter design temperatures in cally located in an area where the lowest outdoor ambi- which the unit will heat the calculated space. -
Page 9: Heating Load Form Friedrich Unit Heat Pumps
HEATING LOAD FORM FRIEDRICH ROOM UNIT HEAT PUMPS BTU/HR PER WALLS: (Linear Feet °F. TEMP. DIFFERENCE 2" Insulation Lin. Ft. x 1.6 Average Lin. Ft. x 2.6 WINDOWS & DOORS (Area, sq. ft. Single Glass: Sq. Ft. x 1.13 Double Glass: Sq. -
Page 10: Specifications/Performance Data Specifications "Ys" - "Ym" - "Yl" Models
SPECIFICATIONS YS09J10-1 YS13J33-1 YM18J34A-2 YL24J35A-1 BTUH (Cooling) 9000 13000 17500 24000 13000 17500 23800 BTUH (Heating) 8300 12400 16500 23000 12300 16300 22800 E.E.R. (Cooling) 11.5 E.E.R. (Heating) 11.0 Volts Amperes (Cooling) 12.0 13.0 Amperes (Heating) 10.4 11.5 Total Watts (Cooling) -
Page 11: Performance Data (Cooling) "Ys" - "Ym" - "Yl" Models
TEMP. °F. PRESSURES RATINGS REFRIG. Cooling DISCHARGE TEMP . SUCTION DISCHARGE AMPS LOCKED CHARGE IN CHARGE IN DROP °F ROTOR AMPS FLUID OZ. YS09J10-1 59.0 21.0 87.0 39.2 28.0 11.8 YS13J33-1 56.0 24.0 75.0 29.0 30.0 11.8 YM18J34A-2 53.0 27.0 74.0... -
Page 12: Specifications "Es" - "Em" - "El" - "Ek" Models
SPECIFICATIONS ES12J33-1 ES15J33A-1 EM18J34A-2 EL24J35A-1 EL33J35-2 EK12J33A-1 EK18J34A-2 ES12J33-3 EM18J34A-3 EL24J35A-2 EK12J33A-3 EK18J34A-3 BTUH (Cooling) 12000 15000 18500 24000 33000 12500 18000 12000 15000 18300 24000 32500 12500 18000 BTUH (Heating) 10700 10700 13000 17300 17300 10700 13000 8900 8900 10600 14300 14300... -
Page 13: Performance Data (Cooling & Heating) "Es" - "Em" - "El" - "Ek" Models
PERFORMANCE EVAPORATOR AIR OPERATING ELECTRICAL R-22 COMP. DATA* TEMP. °F. PRESSURES RATINGS REFRIG. Cooling DISCHARGE TEMP . SUCTION DISCHARGE AMPS LOCKED CHARGE IN CHARGE IN DROP °F ROTOR AMPS FLUID OZ. ES12J33-1 58.0 22.0 77.5 26.3 25.0 11.8 ES12J33-3 26.3 26.0 11.8 ES15J33A-1... -
Page 14: Refrigerant Flow Chart (Cooling Cycle)
REFRIGERANT FLOW CHART — HEAT PUMP MODELS Cooling Cycle (Refer to Chart Below) In the cooling cycle, both capillary tubes feed the evaporator coil Heating Cycle (Refer to Chart Below) In the heating cycle, the one-way check is closed and the refrigerant flows through one capillary only to the condenser Page 14... -
Page 15: Installation Instructions
INSTALLATION INSTRUCTIONS FOR DC-2 DRAIN KIT STEP 1 Before sliding chassis into outer shell, turn chassis on its side and add drain hole by drilling ½" diameter hole as shown in Figure 1. STEP 2 DC-2 mounts to the bottom of the outer shell as shown in Figure 2 on the right side as you face the unit. -
Page 16: Components Operation/Testing
COMPONENT OPERATION & TESTING GROUND TEST Use an ohmmeter set on its highest scale. Touch one WARNING lead to the compressor body (clean point of contact as a good connection is a must) and the other probe in turn DISCONNECT ELECTRICAL POWER TO to each compressor terminal (see Figure 2.) If a reading UNIT BEFORE SERVICING OR TESTING is obtained, the compressor is grounded and must be... -
Page 17: Thermal Overload (Internal)
The overload is wired in series with the common motor Should the internal temperature and/or current draw be- terminal. The overload senses both major amperage and come excessive, the contacts in the overload will open, compressor temperature. High motor temperature or turning off the compressor. -
Page 18: Capacitor, Run
Figure 5: Fan Motor CAPACITOR - TEST 1. Remove capacitor from unit. 2. Check for visual damage such as bulges, cracks, or leaks. 3. For dual rated, apply an ohmmeter lead to common (C) terminal and the other probe to the compressor (HERM) terminal. -
Page 19: Thermostat
SYSTEM CONTROL SWITCH - TEST Figure 7: SYSTEM CONTROL PANEL (Heat Pump & Electric Heat Models) Disconnect leads from control switch. Turn control to position being tested (see Figure 8.) There must be continuity as follows: 1. "Off" Position - no continuity between terminals. 2. -
Page 20: Thermostat Adjustment
within a plastic block to supply a small amount of heat RESISTOR (Heat Anticipator) to the bulb area to prevent long "off cycles" in the "Cool- Fan Auto" (MoneySaver) position (see Figure 10.) A Failure of the resistor will cause prolonged "off" and "on" current feedback through the fan motor windings during cycles of the unit. -
Page 21: Heat Element
HEATING ELEMENT - See Figure 12 across the terminals after the connecting wires have been removed. A cold resistance reading of approximately 14.5 All heat pumps and electric heat models are equipped ohms for the 3.3 KW heater, 11.9 ohms for the 4.0 KW with a heating element with the exception of the YS09J10. -
Page 22: Defrost Bulb Location (Heat Pump Models)
DEFROST BULB LOCATION CHECK VALVE (Figure 15) (Heat Pump Models Only) (Heat Pump Models Only) The defrost control bulb must be mounted securely and A one-way check valve is installed in the capillary tube in the correct location to operate properly (see Figure circuit to allow the flow of refrigerant through both tubes 14.) to the evaporator during the cooling mode. -
Page 23: Reversing Valve (Heat Pump Models Only)
This valve is temperature sensitive and will open when Figure 17: REVERSING VALVE the outside temperature reaches 40°F. The valve will close The pilot valve is responsible for directing the refrigerant gradually as the temperature rises above 40°F to fully flow to the indoor or outdoor coil. -
Page 24: Sealed Refrigeration System Repairs
eliminate conduction of heat to the valve body introduced into the system. when brazing the line connection. 5. Facilities for flowing nitrogen through refrigeration IMPORTANT tubing during all brazing processes. ANY SEALED SYSTEM REPAIRS TO HEAT PUMP HERMETIC COMPONENT REPLACEMENT MODELS REQUIRES THE INSTALLATION OF A SUCTION LINE DRIER IN THE SUCTION LINE The following procedure applies when replacing compo-... -
Page 25: Special Procedure In The Case Of Motor Compressor Burn-Out
The introduction of liquid into the low side, without the use of a capillary tube, will cause damage to the discharge valve of the rotary compressor. NOTE: All inoperative compressors returned to Friedrich must have all lines properly plugged with the plugs from the replacement compressor. Page 25... -
Page 26: Troubleshooting Touch Test Chart
TROUBLESHOOTING TOUCH TEST CHART TO SERVICE REVERSING VALVES NORMAL FUNCTION OF VALVE NOTES: VALVE OPERATING * TEMPERATURE OF VALVE BODY CONDITION ** WARMER THAN VALVE BODY POSSIBLE CAUSES CORRECTIONS Normal Cool Cool *TVB Cooling as (2) as (1) Normal Heating Cool Cool *TVB... -
Page 27: Troubleshooting Cooling
TROUBLESHOOTING COOLING PROBLEM POSSIBLE CAUSE TO CORRECT Low voltage. Check for voltage at compressor. 115 volt and 230 volt units will operate at 10% voltage variance Thermostat not set cold enough or Set thermostat to coldest position. Test thermostat inoperative. and replace if inoperative. - Page 28 PROBLEM TO CORRECT POSSIBLE CAUSE Replace fuse, reset breaker. If repeats, Fuse blown or circuit tripped. check fuse or breaker size. Check for shorts in unit wiring and components. Unit does not run. Power cord not plugged in. System switch in "Off" position. Set switch correctly.
- Page 29 PROBLEM POSSIBLE CAUSE TO CORRECT Overload inoperative. Opens too soon. Check operation of unit. Replace overload if system operation is satisfactory. Compressor attempts to start before Allow a minimum of two (2) minutes for pressures system pressures are equalized. to equalize before attempting to restart. Instruct customer of waiting period.
- Page 30 PROBLEM POSSIBLE CAUSE TO CORRECT Replace thermostat. Thermostat differential too narrow. Check gasket. Reposition or replace. Plenum gasket not sealing, allowing Thermostat short discharge air to short cycle cycles. thermostat. Clean and advise customer of periodic cleaning of Restricted coil or dirty filter. filter.
-
Page 31: Troubleshooting Heating (Heat Pump Models)
Troubleshooting Heating (Heat pumps) PROBLEM POSSIBLE CAUSE TO CORRECT Thermostat setting. Set thermostat to a warmer position. Defective thermostat. Replace — do not attempt to adjust. No heating — fan Compressor not operating. operates. Check compressor wiring. Check for open internal or external overload. - Page 32 PROBLEM TO CORRECT POSSIBLE CAUSE Outdoor thermostat does not cut off Defective thermostat — replace. compressor at the pre-selected temperature and bring on the heating Unit does not heat element. adequately. Fresh air or exhaust door open. Check if operating properly. Instruct customer on proper use of control.
- Page 33 Troubleshooting Heating (Cooling/Electric Models) PROBLEM POSSIBLE CAUSE TO CORRECT Heater relay or contactor coil open. Check continuity of coil. Heater relay or contactor stuck open, Inspect, test continuity with ohmmeter. Fan Operates – pitted or burned. heating element does High limit control open. Check continuity –...
-
Page 34: Troubleshooting Heating (Cooling/Electric Models)
POSSIBLE CAUSE TO CORRECT PROBLEM Defective motor. Check and replace. Fan motor does not Open or shorted capacitor. Replace capacitor and check. operate in "Constant" Condenser fan frozen to base pan. Check if drain pan valve is open. If not, replace. or "MoneySaver"... - Page 35 Troubleshooting Heating (Cooling/Electric Models) TO CORRECT PROBLEM POSSIBLE CAUSE Heater relay or contactor coil open. Check continuity of coil. Heater relay or contactor stuck Inspect, test continuity with ohmmeter. Fan operates –heating open, pitted or burned. element does not High limit control open. Check continuity –...
-
Page 36: Ys09J10-1
WIRING DIAGRAM FOR MODEL YS09J10-1 Page 36... -
Page 37: Ys13J33-1
WIRING DIAGRAM FOR MODELS YS13J33, YM18J34A & YL24J35A Page 37... -
Page 38: Es12J33-1, Es12J33-3
WIRING DIAGRAM FOR MODELS ES12J33, ES15J33A, EM18J34A EL24J35, EL33J35, EK12J33A, EK18J34A-2 & EK18J34A-3 Page 38... - Page 39 "YS" - "YM" - "YL" SERIES CHASSIS PARTS Page 39...
- Page 40 "YS" - "YM" - "YL" SERIES CABINET & MOUNTING PARTS Page 40...
-
Page 41: Ys" - "Ym" - "Yl" Series Parts List
"YS" - "YM" - "YL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION ELECTRICAL PARTS 615-628-07 Compressor, Tecumseh, 115 V, 60 Hz, 1 Ph, Model RK5480E ..615-628-05 Compressor, Tecumseh, 230/208 V, 60 Hz, 1 Ph, Model RK5513E . 617-187-01 Compressor, Bristol, 230/208 V, 60 Hz,1 Ph, Model H23B175ABCC .... - Page 42 "YS" - "YM" - "YL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION REFRIGERATION SYSTEM COMPONENTS (Cont.) 618-500-03 Coil, Evaporator ................618-503-02 Coil, Condenser ................618-503-06 Coil, Condenser ................618-502-05 Coil, Condenser ................618-502-03 Coil, Condenser ................250-182-00 Valve, Reversing ................250-183-00 Valve, Reversing ................
- Page 43 "YS" - "YM" - "YL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS (Cont.) 618-207-00 Strap, Capacitor ................618-233-00 Decorative Panel ................618-076-00 Grommet, Suction Line ..............618-148-00 Connector, Fresh Air & Exhaust ............618-148-01 Connector, Fresh Air & Exhaust ............619-067-00 Cover, Top ..................
- Page 44 "YS" - "YM" - "YL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS (Cont.) 618-178-01 Blower Front ................... 618-149-00 Scroll ....................618-175-00 Scroll ....................618-181-00 Scroll ....................618-215-00 Door, Slide Assembly ..............618-090-01 Base Pan ..................618-090-09 Base Pan ..................618-095-01 Base Pan ..................
- Page 45 "YS" - "YM" - "YL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS (Cont.) 617-173-00 Gasket, (Foam) Chassis Seal ............WIKS Accessory Package (Optional) Window Mount ........ WIKM Accessory Package (Optional) Window Mount ........ WIKL Accessory Package (Optional) Window Mount ........ 608-460-16 Bag Assembly (Hardware) ..............
- Page 46 "ES" - "EM" SERIES CHASSIS PARTS Page 46...
- Page 47 "ES" - "EM" SERIES CABINET & MOUNTING PARTS Page 47...
-
Page 48: Es" - "Em" Series Parts List
"ES" - "EM" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION ELECTRICAL PARTS 617-166-09 Compressor, LGE 230V,60 Hz, 1 Ph, Model Q164KN22A ..615-628-04 Compressor, Tecumseh, 230 V, 60 Hz, 1 Ph, Model RK5512E 615-628-28 Compressor, Tecumseh, 230 V, 60 Hz, 1 Ph, Model RK5515E 618-187-01 Compressor, Bristol, 230 V, 60 Hz, 1 Ph, Model H23B175ABCC 617-166-12... - Page 49 "ES" - "EM" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS 618-129-00 Shield, Bottom ..............618-129-01 Shield, Bottom ..............618-218-00 Shield, Side ................618-218-01 Shield, Side ................618-189-00 Bracket, Heater Mounting ............614-939-05 Knob, Control ................ 618-072-00 Panel, Control Mounting ............618-110-00 Panel, Control Mounting ............
- Page 50 "ES" - "EM" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS 618-169-00 Insulation, Inner Wall ............. 618-169-01 Insulation, Inner Wall ............. 618-173-00 Blower Front ................618-174-00 Blower Front ................618-149-00 Scroll ..................618-175-00 Scroll ..................618-215-00 Door, Slide Assembly ............618-090-05 Base Pan ................
-
Page 51: El" Series Parts List
"EL" SERIES CHASSIS PARTS Page 51... - Page 52 "EL" SERIES CABINET & MOUNTING PARTS Page 52...
- Page 53 "EL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION ELECTRICAL PARTS 617-166-06 Compressor, LGE, 230V, 60 Hz, 1 Ph, Model LGRC-990123-015 .. 611-935-47 Compressor, Tecumseh, 230V, 60 Hz, 1 Ph, Model AWF5524EXN 618-187-02 Compressor, Bristol, 230V, 60 Hz, 1 Ph, Model H25B355QABCC . 610-714-85 Motor, Fan ..................
- Page 54 "EL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS 618-233-00 Decorative Panel ................618-076-01 Grommet, Suction Line ..............618-148-01 Connector, Fresh Air & Exhaust ............ 618-066-00 Cover, Top ..................618-182-01 Insulation, Top Cover ..............618-183-00 Insulation, Left Side Deck ............. 618-180-00 Deck .....................
- Page 55 "EL" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION 618-116-05 Carton, Shipping ................618-140-00 Pad, Shipping (Bottom) ..............618-141-00 Pad, Shipping (Top) ............... 618-118-02 Tube, Shipping (Front & Rear) ............618-196-00 Guide, Shell .................. 600-733-00 Gasket, Window Seal ..............OPTIONAL ACCESSORIES 01900-235 Drain - Condensate Connection Kit, DC-2 ........
-
Page 56: Ek" Series Parts List
"EK" SERIES CHASSIS PARTS Page 56... - Page 57 "EK" SERIES CABINET & MOUNTING PARTS Page 57...
- Page 58 "EK" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION ELECTRICAL PARTS 617-166-09 Compressor, LGE, 230 V, 60 Hz, 1Ph, Model LGAC99056 ....615-628-04 Compressor, Tecumseh 230 V, 60 Hz, 1Ph, Model RKA5512EXD ..617-187-01 Compressor, Bristol, 230 V, 60 Hz, 1Ph, Model H23B175ABCC ..617-166-03 Compressor, LGE 230 V, 60 Hz, 1Ph, Model QJ264KD23B ....
- Page 59 "EK" SERIES PARTS LIST REF. PART NO. DESCRIPTION APPLICATION CHASSIS PARTS 618-218-00 Shield, Side..................618-218-01 Shield, Side ..................618-189-00 Bracket, Heater Mounting ..............614-93-05 Knob, Control ..................618-072-00 Panel, Control Mounting ..............618-111-00 Panel, Control Mounting ..............600-713-12 Bushing, Snap..................600-713-11 Bushing, Snap..................
- Page 60 Start Kit, Capacitor/Relay (Pow-R-Pak) ..........Not Shown FRIEDRICH AIR CONDITIONING CO FRIEDRICH AIR CONDITIONING CO FRIEDRICH AIR CONDITIONING CO..FRIEDRICH AIR CONDITIONING CO FRIEDRICH AIR CONDITIONING CO • Post Office Box 1540 • San Antonio, Texas 78295-1540 •...
