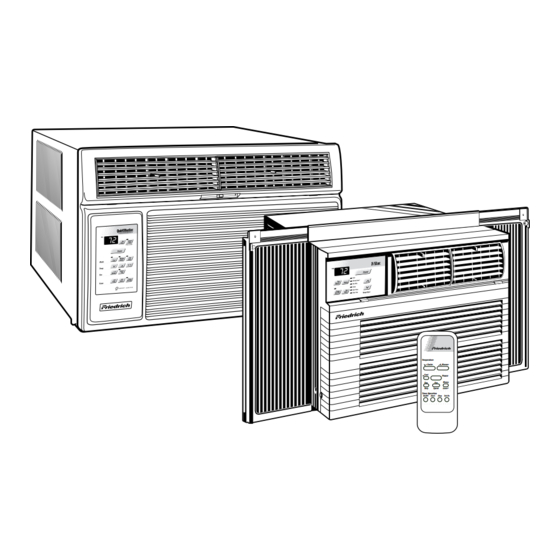

- Page 1 2007 Parts Manual Room Air Conditioners 920-132-02 (3-07) Temperature Cooler Warmer Cool Power Money Only Speed Saver ® Timer Operation On/Off Start Stop Set Hr.
- Page 2 TABLE OF CONTENTS PORTABLE "Q" SERIES UNITS ...4-8 SMALL CHASSIS "S" SERIES UNITS (115 & 230 VOLT) ...9-16 MEDIUM CHASSIS "M" SERIES UNITS (115 & 230 VOLT) ...17-21 LARGE CHASSIS "L" SERIES UNITS ...22-25...
-
Page 3: Cabinet Parts
PORTABLE "Q" SERIES CABINET PARTS... - Page 4 PORTABLE "Q" SERIES CABINET PARTS...
- Page 5 DESCRIPTION ELECTRICAL PARTS THERMOSTAT THERMOSTAT THERMOSTAT, DEFROST ELECTRONIC BOARD REMOTE CONTROL RESISTOR OVERLOAD OVERLOAD OVERLOAD OVERLOAD CAPACITOR CAPACITOR CAPACITOR SUPPLY CORD SWITCH ROTARY 6 POS SWITCH ROTARY 6 POS HEATER FAN MOTOR FAN MOTOR FAN MOTOR SOLENOID, REV. VALVE SOLENOID and REVERSING VALVE REFRIGERATION PARTS COMPRESSOR COMPRESSOR...
-
Page 6: Chassis Parts
EXHAUST DOOR WIRE CLIP, EXHAUST SLIDE EXHAUST DOOR FRONT, DECORATIVE SHELL, OUTER ASSY ANGLE, TOP SUPPORT CHANNEL, SILL SCRIPT, FRIEDRICH GASKET, CHASSIS SEAL GASKET, WINDOW SEAL BAG ASSLY (SCREWS) BAG ASSLY (SCREWS) COUNTER WEIGHT SEAL, FAN MOTOR GROMMET, COMP. MT. - Page 7 SMALL CHASSIS "S" SERIES CHASSIS PARTS (ES, SS & YS)
- Page 8 SMALL CHASSIS "S" SERIES CHASSIS PARTS (ES, SS & YS)
- Page 9 DESCRIPTION ELECTRICAL PARTS THERMOSTAT THERMOSTAT THERMOSTAT, DEFROST ELECTRONIC CTRL. REMOTE CONTROL RESISTOR OVERLOAD OVERLOAD OVERLOAD CAPACITOR CAPACITOR CAPACITOR SUPPLY CORD SWITCH SYS. 6 POS. SWITCH SYS. 8 POS. SWITCH (YES - NO) FAN MOTOR SOLENOID COIL SOLENOID and REVERSING VALVE REFRIGERATION PARTS COMPRESSOR COMPRESSOR...
- Page 10 DESCRIPTION CHASSIS PARTS SHROUD, SML W/SUMP LOOP FAN BLADE, CONDENSER BLOWER WHEEL, EVAPORATOR BLOWER WHEEL, EVAPORATOR BRACE, COND. SHROUD SCROLL BLOWER FRONT INSULATION, INNER WALL INNER WALL COVER, TOP INSULATION, TOP COVER DECK AIR FOIL MOUNT, FAN MOTOR BASE PAN BASE PAN BASE PAN DRAIN PAN...
- Page 11 CHASSIS PARTS LEVER, FRESH & EXHAUST KNOB, FRESH & EXHAUST INTAKE GRILLE LATCH, INTAKE GRILLE OUTER SHELL ASSLY SILL PLATE CHASSIS GUIDE, SHELL FRIEDRICH SCRIPT PUSHNUTS, SCRIPT WINGBOARD BRACKET, SUPPORT ANGLE, WINGBOARD ANGLE, TOP GASKET, VINYL. HARDWARE BAG(SCREWS) GASKET, CHASSIS.
- Page 12 DESCRIPTION ELECTRICAL PARTS THERMOSTAT RESISTOR THERMOSTAT, DEFROST REMOTE CONTROL ELECTRONIC CTR. OVERLOAD OVERLOAD OVERLOAD CAPACITOR CAPACITOR SUPPLY CORD SUPPLY CORD SWITCH, SYS. 8 POS. SWITCH (YES - NO) FAN MOTOR SOLENOID SOLENOID and REVERSING VALVE HEATER FUSE LINK LIMITER, HEATER DESCRIPTION REFRIGERATION PARTS COMPRESSOR...
- Page 13 DESCRIPTION CHASSIS PARTS SHROUD, CONDENSER FAN BLADE BLOWER WHEEL BLOWER WHEEL BRACE, COND. SHROUD SCROLL BLOWER FRONT COVER, TOP DECK MOUNT, FAN MOTOR BRACKET, HEATER MT. BASE PAN BASE PAN BASE PAN DRAIN PAN BELLOWS, DRAIN VALVE GRILLE, REAR DOOR, SLIDE ASSLY. CONNECTOR, SLIDE DOOR PANEL, CTRL.
-
Page 14: Optional Accessory Items
DESCRIPTION CHASSIS PARTS INTAKE GRILLE LATCH, INTAKE GRILLE OUTER SHELL ASSLY SILL PLATE CHASSIS GUIDE, SHELL FRIEDRICH SCRIPT PUSHNUTS, SCRIPT WINGBOARD BRACKET, SUPPORT ANGLE, WINGBOARD ANGLE, TOP GASKET, VINYL HARDWARE BAG(SCREWS) HARDWARE BAG(SCREWS) GASKET, CHASSIS GASKET, WINDOW CARTON, SHIPPING DRAIN KIT, DC-2 START KIT, CAP.\RELAY... - Page 15 MEDIUM CHASSIS "M" SERIES CHASSIS PARTS (EM, KM, SM, & YM)
- Page 16 MEDIUM CHASSIS "M" SERIES CABINET & MOUNTING PARTS (EK, EM, KM, SM, YM)
- Page 17 DESCRIPTION ELECTRICAL PARTS THERMOSTAT THERMOSTAT RESISTOR THERMOSTAT, DEF. ELECTRONIC BOARD REMOTE CONTROL OVERLOAD OVERLOAD OVERLOAD CAPACITOR CAPACITOR CAPACITOR SUPPLY CORD SUPPLY CORD SUPPLY CORD SUPPLY CORD SWITCH SYS. 8 POS. SWITCH SYS. 6 POS. SWITCH (YES - NO) FAN MOTOR SOLENOID COIL SOLENOID and REVERSING VALVE HEATER...
- Page 18 GROMMET, COMP. SCREW, COMP. PLENIUM ASLY. GRILLE, INTAKE LATCH, GRILLE INTAKE OUTER SHELL SILL PLATE CHASSIS GUIDE, SHELL CHASSIS RETAINER FRIEDRICH SCRIPT PUSHNUTS, SCRIPT WINGBOARD BRACKET, SUPPORT ANGLE, WINGBOARDS ANGLE, TOP SUPPORT HARDWARE (SCREWS) HARDWARE (SCREWS) GASKET, CHASSIS GASKET, WINDOW...
- Page 19 LARGE CHASSIS "L" SERIES CHASSIS PARTS (SL, EL, & YL)
- Page 20 LARGE CHASSIS "L" SERIES CABINET & MOUNTING PARTS (SL, EL, & YL)
- Page 21 DESCRIPTION ELECTRICAL PARTS THERMOSTAT THERMOSTAT THERMOSTAT, DEF. CAPACITOR CAPACITOR CAPACITOR SUPPLY CORD SUPPLY CORD RESISTOR SWITCH SYS. 5 POS. SWITCH SYS. 8 POS. SWITCH (YES - NO) FAN MOTOR FAN MOTOR SOLENOID SOLENOID and REVERSING VALVE HEATER COMPRESSOR HARNESS COMPRESSOR HARNESS COMPRESSOR COMPRESSOR COMPRESSOR...
- Page 22 CLAMP, SUPPLY CORD GROMMET, COMP. SCREW, COMP. PLENIUM ASLY. GRILLE, INTAKE LATCH, GRILLE INTAKE. OUTER SHELL SILL PLATE CHASSIS GUIDE, SHELL FRIEDRICH SCRIPT PUSHNUTS, SCRIPT WINGBOARD HARDWARE (SCREWS) HARDWARE (SCREWS) GASKET, CHASSIS GASKET, WINDOW GASKET, VINYL CARTON, SHIPPING ANGLE, TOP SUPPORT ANGLE, WINGBOARDS ACCESSORY PKGE.
- Page 23 Use Factory-Certifi ed Parts. FRIEDRICH AIR CONDITIONING CO. Post Offi ce Box 1540 · San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212 (210) 357-4400 · FAX (210) 357-4480 www.friedrich.com Printed in the U.S.A. 920-132-02 (3-07)
