Page 2: Table Of Contents
Using IR Remote Control..............5 Using Board Monitor Display to Control TV functions......6 Installation....................7 Installation overview................7 Replacing existing TV module with MCA-DVBT-TV-01......7 Software....................8 OSD Operation..................9 Using OEM board monitor for menu navigation and control....10 Using remote control for menu navigation and control......11 Advanced Configuration Menu..............11... -
Page 3: Overview

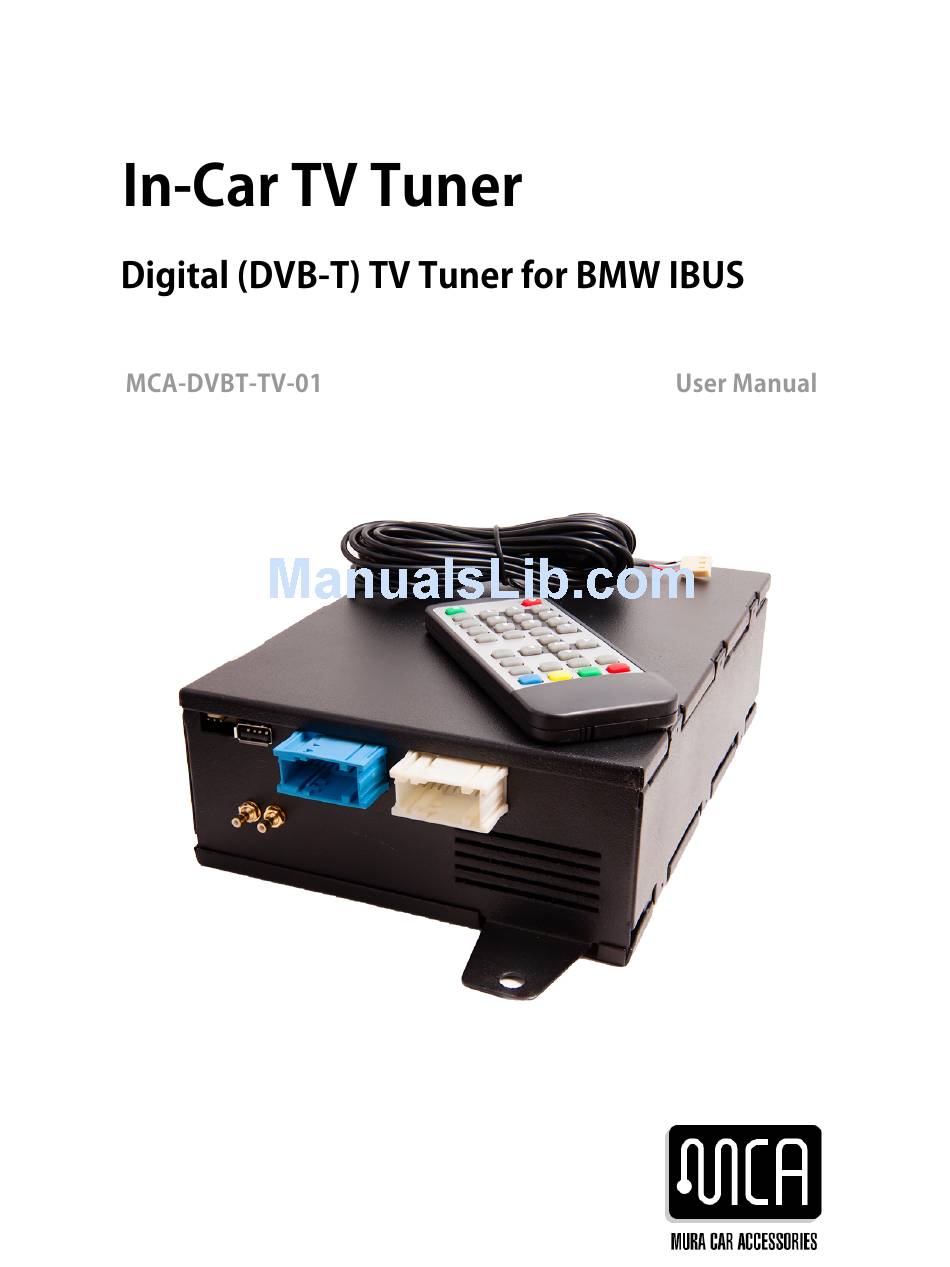

Thank you for purchasing Mura Car Accessories TV Tuner. Our product is designed for vehicles operating on the BMW I-BUS protocol. Providing complete integration with OEM car head unit, MCA-DVBT-TV-01 offers an easy to control bult-in digital (DVB-T) HD TV tuner along with a multimedia interface, allowing you to view and record your favorite TV shows when you are on the road. -
Page 4: Hardware
Hardware Rear Panel View Port Connection Blue connector Connects car's blue connector White connector Connects car's white connector... -
Page 5: Using Ir Remote Control
USB port Connect data stick extender cable for data stick IR port IR cable from present package Antenna connectors Connects to OEM car antenna connections All TV module functions can be accessed using both remote control and OEM BMW bordmonitor controls (similar to your old analogue TV module). -
Page 6: Using Board Monitor Display To Control Tv Functions
Using Board Monitor Display to Control TV functions... -
Page 7: Installation
1-5 min Disconnect the negative terminal of the car battery • Remove the old TV module and put the MCA-DVBT-TV-01 in its • place Connect the white and blue car cable connectors to corresponding •... -
Page 8: Software
You will need to be able to point the remote control towards this receiver. Connect USB cable to the USB port on MCA-DVBT-TV-01 and route • the other end of the cable to a convenient position for when you want to use a USB stick Installation is now over. -
Page 9: Osd Operation
Present version of TV tuner does not make use of 'System' functions. Multimedia Photo Configure Movie Configure PVR Configure → Music Access to Music, Photo and Multimedia Photo Movie folders on your memory Movie stick Access to streams recorded using MCA-DVBT-TV-01... -
Page 10: Using Oem Board Monitor For Menu Navigation And Control
Using OEM board monitor for menu navigation and control The following instructions refer to controls described in section “Using Board Monitor Display to Control TV functions” on page 6. Mind that the names by which we refer to them differ from what appears on your board monitor, so please use the above mentioned picture to guide your through the following steps. -
Page 11: Using Remote Control For Menu Navigation And Control
Navigate to the desired file • Press Pause/Blue • Confirm deletion by pressing the rotary button • Using remote control for menu navigation and control Menu navigating and control of TV tuner by means of remote control is intuitive due to remote control being design for this tuner. If you encounter problems, please use the address at the end of this file for contacting our customer support. - Page 12 . After performing the necessary hardware modifications, the feature must be enabled through the following software configurations. First set AUX Mode to ON (see instructions above). Back to the menu of your navigation, press MODE and then select AUX. Next, enter TV mode, then long press Tape Reverse button on your navigation's controls.
-
Page 13: Specifications
RF Input level: 81dBm ~ -20dBm RF Input connector: SMB terminal x2 Antenna power: 12V Technical Support MCA is committed to offering quality products, as well as quality information. If you need help with your product, please contact our customer support at http://mca.electricmura.ro . - Page 14 The warranty covers parts and labor costs only. MCA does not warrant its products from defects or damage arising from misuse, abuse, alteration or normal wear and tear.
