Summary of Contents for Jet XACTA

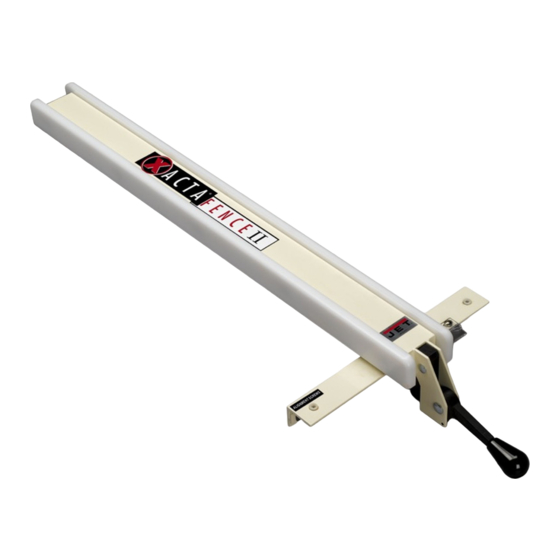

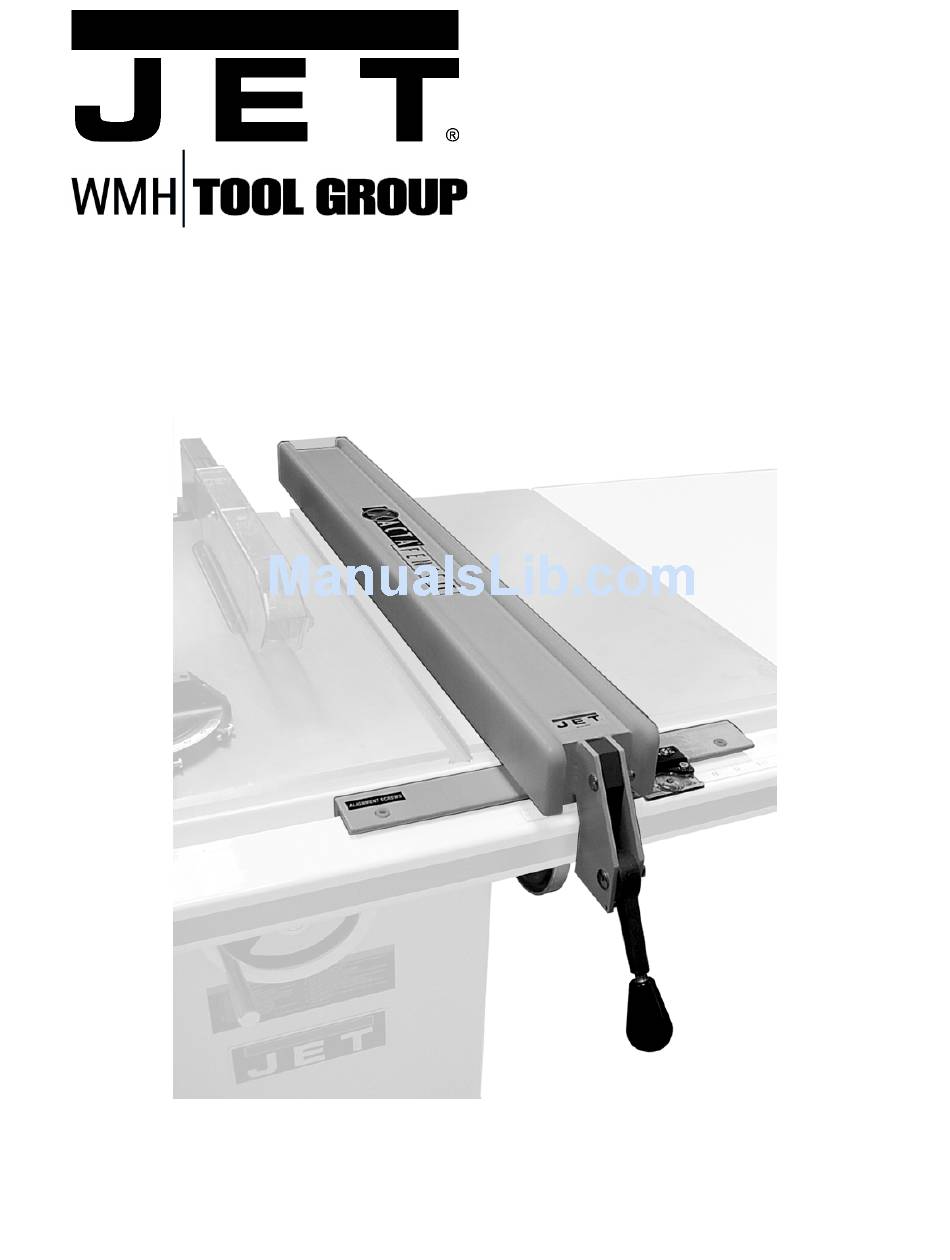

- Page 1 This Manual is Bookmarked Owner's Manual ® XACTA Fence II Commercial 30/50 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-708950Z Ph.: 800-274-6848 Revision H 03/06 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or ®... -
Page 3: Table Of Contents
Clamping Pressure ... 12 90° to the Table... 12 Cursor Adjustment ... 12 Parts for the XACTA Fence II Commercial 30/50 ... 13 Parts for the XACTA Fence II Rail Assembly... 14 Parts for the XACTA Fence II Leg Assembly... 15 Appendix –... -
Page 4: Warnings
Table Saw, do not use until proper training and knowledge have been obtained. 5. Do not use this Table Saw on which the XACTA Fence II is used for other than its intended use. If used for other purposes, WMH Tool Group disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. -
Page 5: Ordering Replacement Parts
The right tool will do the job better and safer. 26. Use recommended accessories; improper accessories may be hazardous. 27. Maintain tools with care. Keep saw blades sharp and clean for the best and safest performance. Follow instructions for lubricating and changing accessories. -
Page 6: Unpacking
Open shipping cartons and check that all parts are intact. Report any damage immediately to your distributor. Read the instruction manual thoroughly assembly, alignment, instructions. Contents of the Shipping Containers XACTA Fence II Front Rail Rear Rail Guide Rail Black Plastic End Caps Hardware Package Owner’s Manual... -
Page 7: Installation
Hammer (or rubber mallet) Straight edge The following instructions are for installing the XACTA Fence II and Rail System on JET Models JTAS-10 and JTAS-12 series table saws. The Rails should bolt up to the JET saw without any drilling. -
Page 8: Back Rail Installation
Figure 4. 3. Secure the back rail to the pre-tapped holes in the saw table (B, C, Fig. 4) with two 5/16 x 3/4 hex cap screws and two 5/16 flat washers, as shown in Figure 5. Tighten screws securely with a 1/2"... -
Page 9: Wooden Extension Table
The extension table and saw table must be aligned properly so the XACTA Fence II will slide smoothly from one to the other. 1. Place the extension table between the rails... -
Page 10: Guide Tube
Figure 12. Secure with the eight screws provided. Note: If you are using a mobile base under your saw, you may need to shift the placement of the legs so they rest properly upon the shelves of the base. -
Page 11: Xacta Fence
XACTA Fence Screw the lock lever knob into the threaded handle on the XACTA Fence II as shown in Figure 14. The lock lever has three functional positions as shown in Figure 15: • The upright position permits mounting and removal of fence from the saw. -
Page 12: Adjusting Fence Parallel To The Miter Slot
Note: You may need to re-adjust the clamping pressure after aligning the fence. Clamping Pressure The XACTA Fence II has been adjusted at the factory to lock securely when the lock handle is pushed down. If adjustment is needed: 1. Unlock the fence. -
Page 13: Parts For The Xacta Fence Ii Commercial 30/50
Parts for the XACTA Fence II Commercial 30/50 Index No. Part No. Description Size 1 ...XF2-101 ...Left Side Plate..1 2 ...XF2-102 ...Fence Body Assembly ..1 3 ...XF2-103 ...Tube Cover ..1 4 ...XF2-104 ...Right Side Plate ..1 5 ...TS-0640071 ...Lock Nut ... -
Page 14: Parts For The Xacta Fence Ii Rail Assembly
Index No. Part No. 1 ...XF2-201 ...Front Rail (50”)..1 ...XF2-201A...Front Rail (30”)..1 2 ...TS-081F081 ...Flat Head Screw ... 1/4”-20 x 1-1/2” ... 7 3 ...TS-0680021 ...Flat Washer... 1/4”... 24 4 ...TS-0720071 ...Lock Washer ... 1/4”... 19 5 ...TS-0561011 ...Hex Nut ... -
Page 15: Parts For The Xacta Fence Ii Leg Assembly
Parts for the XACTA Fence II Leg Assembly Index No. Part No. Description Size 1 ...XF2-301 ...Leg ..2 2 ...TS-0561031 ...Hex Nut ... 3/8”-16... 2 3 ...XF2-303 ...Adjusting foot ..2 4 ...TS-1533052 ...Machine Screw ... M5×16... 8 Appendix –... - Page 16 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 800-274-6848 www.wmhtoolgroup.com...
