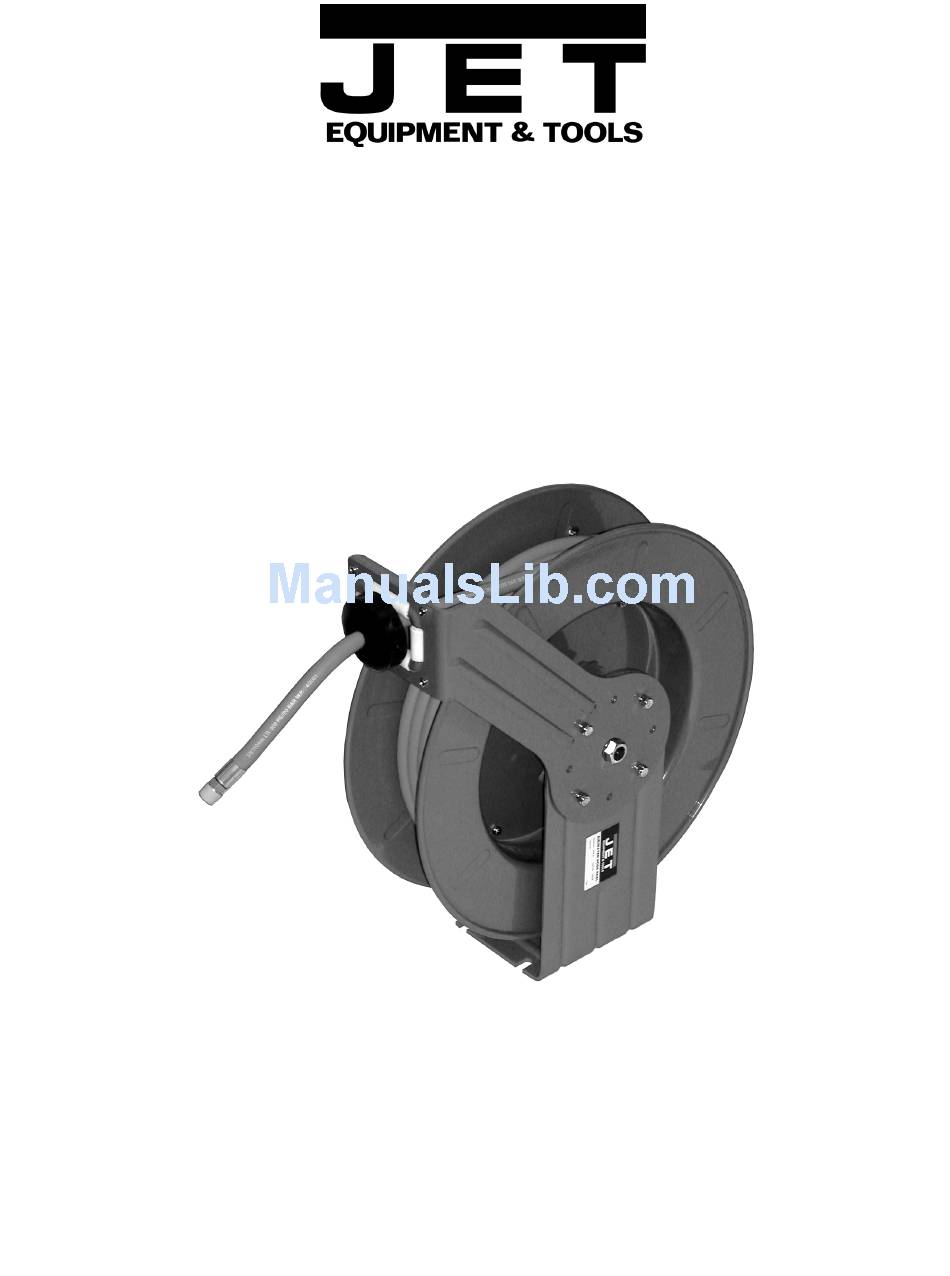

- Page 1 OWNER'S MANUAL AHR-50 Auto Rewind Hose Reel JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-426238 09/01...
-
Page 2: Warranty
This manual has been prepared for the owner and operators of a JET AHR-50 Hose Reel. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the hose reel. -
Page 3: Table Of Contents
Specifications AHR-50 Stock # ............................426238 Hose Type ........................Reinforced Rubber Hose Size (ID x L)........................3/8” x 50’ Working Pressure ...........................300 psi Hose Inlet Size ..........................3/8” NPT Hose Outlet Size..........................1/4" NPT Overall Dimensions (LxWxH) ....................21”x7”x19” Net Weight (lbs)............................. 47... -
Page 4: Hose Reel Safety Precautions
Hose Reel Safety Precautions incoming line can now be connected to desired supply source. WARNING Note: A swivel connector and flexible inlet Exposure of skin directly to pressurized air, hose are required for supply line or warranty is or fluid could result in severe bodily injury. void. -
Page 5: Operation
Operation 4. Replace the seals and reassemble swivel. 5. Use Teflon tape, or thread sealant on swivel 1. Check reel for correct operation by slowly thread fitting, reconnect the swivel thread pulling out the hose. A “clicking” noise will fitting with axle. be heard every half revolution of the drum. -
Page 6: Troubleshooting
Troubleshooting Trouble Cause Remedy 1. Add spring tension. See "Adjustment of Spring Tension.” 1. Outlet nozzle, gun or tool is too heavy. 2. Add spring tension. See Hose will not fully "Adjustment of Spring Tension.” retract 2. Spring is fatigued. Replace spring canister if required. -
Page 7: Parts Breakdown
Parts Breakdown for JET AHR-50... -
Page 8: Parts List
Parts List for the AHR-50 Index Part Description Size Qty. 1 ..AHR50-1 ........Base ..................1 2 ..AHR50-2 ........Support Plate ................1 3 ..AHR50-3 ........Guide Plate ................1 4 ..AHR50-4 ........Roller Axle (long)..............2 5 ..AHR50-5 ........Roller (long) ................2 6 ..AHR50-6 ........Roller Axle (short)........ - Page 9 Index Part Description Size Qty. 53 ..AHR50-53 .........Nyloc Nut ** ......... M5 ......2 54 ..AHR50-54 .........Plastic Cover................1 55 ..AHR50-55 .........Plastic Plug ................1 56 ..AHR50-56 .........Swivel Label * ................. 1 57 ..AHR50-57 .........Spring Drum Label * ............... 1 59 ..AHR50-59 .........Arrow Label * ........
-
Page 10: Test Certificate
JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone: 253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com... -
Page 11: Mounting Template
Mounting Template...
