4 CHANNEL DVR

User Manual

Z6806127401A_SRD-470, 470D-IB_EN1 1
Z6806127401A_SRD-470, 470D-IB_EN1 1
SRD-470/470D
2010-04-30 오후 6:06:23
2010-04-30 오후 6:06:23

Advertisement

Table of Contents
loading

Related Manuals for Samsung SRD-470

Summary of Contents for Samsung SRD-470

  • Page 1: Channel Dvr

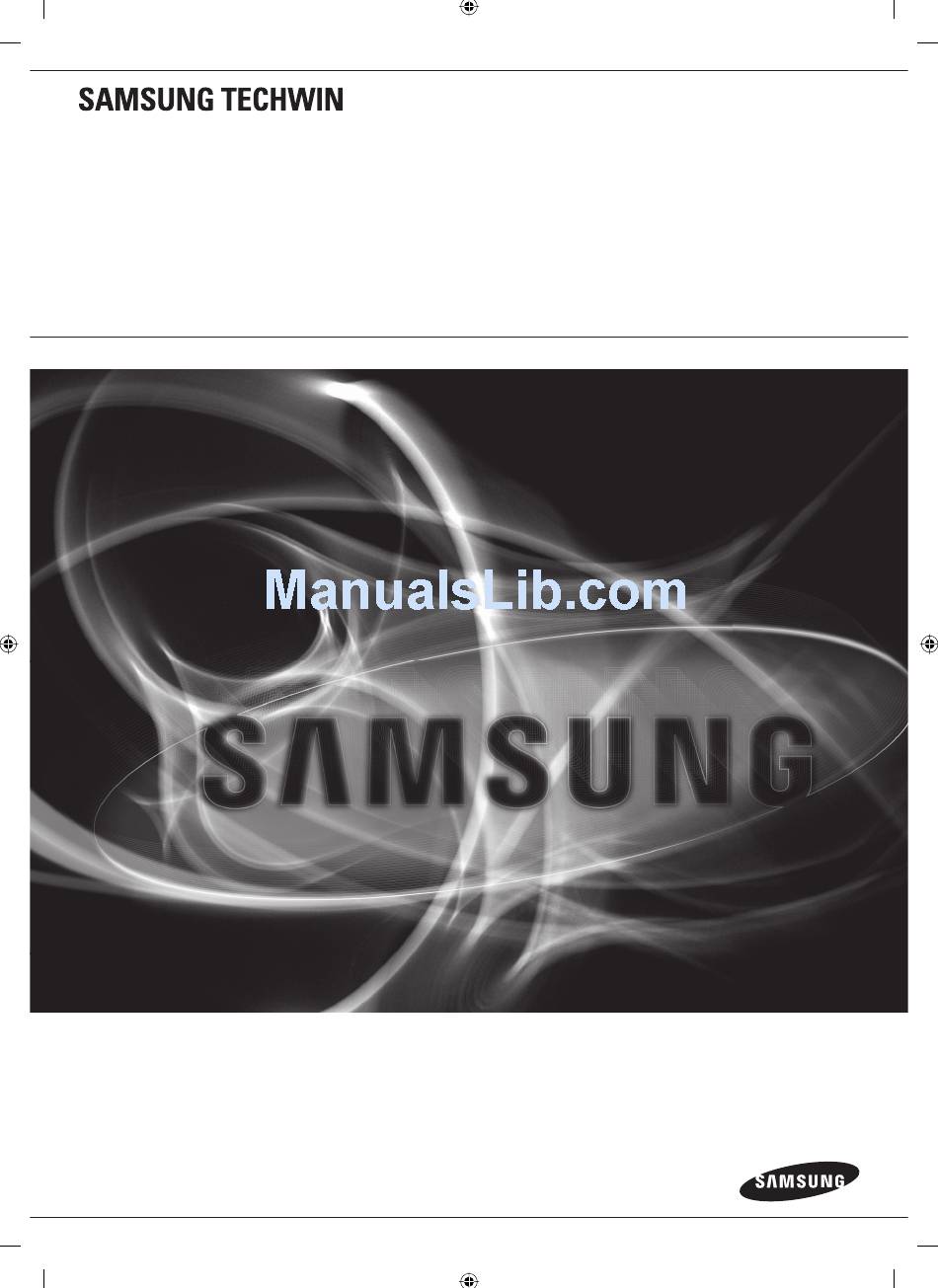

    4 CHANNEL DVR User Manual SRD-470/470D Z6806127401A_SRD-470, 470D-IB_EN1 1 Z6806127401A_SRD-470, 470D-IB_EN1 1 2010-04-30 오후 6:06:23 2010-04-30 오후 6:06:23...

  • Page 2: Z6806127401A_Srd-470, 470D-Ib_En2 2 Z6806127401A_Srd-470, 470D-Ib_En2

    Samsung Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth.

  • Page 4: Before Start

    SAMSUNG retains the copyright on this manual. • This manual cannot be copied without SAMSUNG’s prior written approval. • We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.

  • Page 5: Table Of Contents

    CONTENTS Before Start OVERVIEW Features Part Names and Functions (Rear) Part Names and Functions (Front) Remote Control Checking the installation environment INSTALLATION HDD Addition CONNECTING WITH OTHER DEVICE Connecting the Video, Audio, and Monitor Connecting the USB Connecting POS Device Connecting the Alarm Input/Output Connecting the RS485 Device Connecting the Network...
  • Page 6 overview Search SEARCH & PLAY Playback WEB VIEWER Introducing Web Viewer Connecting Web Viewer Using Live Viewer Using Search Viewer Viewer Setup About BACKUP VIEWER SEC Backup Viewer APPENDIX Product Specification Product Overview 100 Default Setting 103 Troubleshooting 6_ overview Z6806127401A_SRD-470, 470D-IB_EN6 6 Z6806127401A_SRD-470, 470D-IB_EN6 6 2010-04-30 오후...

  • Page 7: Features

    • Massive HDD backup via USB 2.0 • Backup using USB 2.0 memory and/or external CD/DVD writer (DVD writer not supported in SRD-470) • Record and play 4 CH video data simultaneously • Various search modes (time, event, backup, POS, motion detection) •...

  • Page 8: Standards Approvals

    Remote Control Battery (AAA) User Manual CD HDD Fixing Screw SATA Cable (Only applicable for SRD-470 : 4EA) (Only applicable for SRD-470 : 1EA)  For models that are not equipped with the HDD, one SATA cable is provided for HDD installation.

  • Page 9: Part Names And Functions (Rear)

    PART NAMES AND FUNCTIONS (REAR) Part Names Functions Output port for VGA video signal. RS-232C RS-232C communications port. VIDEO OUT BNC type of output port for the composite video signal. Output port (RCA jack) for the audio signal.  AUDIO OUT It is recommended to use an amplifi...

  • Page 10: Part Names And Functions (Front)

    PART NAMES AND FUNCTIONS (FRONT) SRD-470 SRD-470 SRD-470D SRD-470D 10_ overview Z6806127401A_SRD-470, 470D-IB_EN10 10 Z6806127401A_SRD-470, 470D-IB_EN10 10 2010-04-30 오후 6:06:45 2010-04-30 오후 6:06:45...
  • Page 11 Part Names Functions Power LED : Displays the power ON/OFF status. Power Power Button : Used to turn the DVR ON/OFF. In Live mode, pressing it will switch the mode to 4-split, PIP, and Auto Sequence in sequence. MODE In Search mode, pressing it will switch the mode to 9-split and 4-split in sequence. ...

  • Page 12: Remote Control

    overview REMOTE CONTROL SEARCH BACKUP Displays the search menu. Displays the Backup Menu. OPEN/CLOSE Opens or closes the CD tray. MODE Changes the screen mode. Activates the DVR function. POWER Displays the Exit pop up screen. NUMBER [0~ + 10] Used as the numeric input keys, or displays a single channel.

  • Page 13: Installation

    Life (Unit: HOURS) [Figure 1] The followings are the recommendations when Samsung DVR is installed on a rack. Please ensure that the rack inside is not sealed. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

  • Page 14: Hdd Addition

    Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.  Number of HDDs supported : SRD-470 : Default 1 HDD + Up to 1 HDD added SRD-470D : Default 1 HDD ...
  • Page 15 First, loosen the screws on both sides and remove the cover. Loosen the left and right screws on the lower hard disk bracket to remove it. Insert the additional hard disk into the bracket and fi x it using the provided screws. Hard disk bracket Master hard disk English _15...
  • Page 16 installation Insert the bracket where the additional hard disk is inserted into the lower bracket and fi x it using the provided screws. When done, connect the power cable and connect the signal cable (SATA cable) to the connector for the main board.

  • Page 17: Connecting With Other Device

    connecting with other device CONNECTING THE VIDEO, AUDIO, AND MONITOR VIDEO IN AUDIO OUT VIDEO OUT(VGA) VIDEO OUT AUDIO IN MONITOR SPOT OUT CONNECTING THE USB There is one USB port at the front and one at the back of the product. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.

  • Page 18: Connecting The Alarm Input/Output

    connecting with other device CONNECTING THE ALARM INPUT/OUTPUT Connecting the alarm input signal Connection port for the alarm input signal. Connect one strand of the sensor signal line (two strands) to the alarm input port and connect the other to the [G] port. Connecting the alarm output signal Connection port for the alarm output signal.

  • Page 19: Connecting The Network

    CONNECTING THE NETWORK Connecting to Internet through Ethernet (10/100/1000BaseT) RJ-45 Ethernet Cable (Direct Cable) INTERNET Back Bone Hub/Switcher Windows Network Viewer Hub/Switcher Connecting to the Internet using the router INTERNET xDSL or Cable xDSL or Cable Modem Modem Router External Remote DDNS Server (Data Center) English _19...

  • Page 20: Connecting To Internet Through Adsl

    connecting with other device Connecting to Internet through ADSL RJ-45 Ethernet Cable (Direct Cable) INTERNET Phone(ADSL) Line ADSL MODEM Windows Network Viewer Hub/Switcher 20_ connecting with other device Z6806127401A_SRD-470, 470D-IB_EN20 20 Z6806127401A_SRD-470, 470D-IB_EN20 20 2010-04-30 오후 6:07:08 2010-04-30 오후 6:07:08...

  • Page 21: Live

    live GETTING STARTED Starting the system Connect the power cable of the DVR to the wall outlet. Press the Power button on the front panel. You will see the initialization screen. The initialization process will last about 1 minute. If a new HDD is installed, the initialization process may take longer.

  • Page 22: Locking All Buttons

    live Login To access a DVR or restricted menu, you should have logged in to the DVR. In live mode, right-click any area of the screen. You will see the context sensitive menu as in the right Scene Mode Audio Off fi...

  • Page 23: Live Screen Configuration

    LIVE SCREEN CONFIGURATION Icons on the Live Screen You can check the status or operation of the DVR with the icons on the live screen. 2010-01-01 00:00:01 CAM 01 CAM 01 Name Description Current Date, Time Displays the current time and date. Login Information When you are logged in, the “LOG ON”...
  • Page 24 live Error Information • If you turn on the system when the internal HDD is not connected or an error occurs, the “HDD FAIL” icon ) will be displayed on the top left corner. In this case, make sure you contact the service center for assistance as this may cause a failure of recording, playback or backup.
  • Page 25 Menu Description Scene Mode Refer to “Live Mode”. (Page 27) Spot Out Refer to “Spot Out”. (Page 29) Audio On/Off Refer to “Audio ON/OFF”. (Page 30) Freeze Refer to “Freeze”. (Page 30) Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”. (Page 30) Record/Stop Starts/stops the standard recording.

  • Page 26: View The Launcher Menu

    live View the Launcher Menu The Launcher menu appears on the bottom of the live screen. In Live mode, right-click to display the context menu and select <Show Launcher>. Move the cursor to the bottom and click a desired item in the Launcher menu.

  • Page 27: Live Mode

    4-split mode Auto Sequence Switching the screen automatically With SRD-470/470D, you can display 4 live single screens in sequence. Single mode  In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted at the set interval.

  • Page 28: Channel Setting

    live Channel Setting You can display the channel in a desired area of a split screen. Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen. Click a camera name to display a channel list where you can select a different channel. Select a desired channel and click it.

  • Page 29: Spot Out

    SPOT OUT The Spot Out monitoring is independent of the Live mode, which monitors a specifi c channel through the Spot Out port. Selecting a Spot Out mode If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you can select a output screen mode.

  • Page 30: Audio On/Off

    live AUDIO ON/OFF You can turn the sound on/off corresponding to the channel in Live mode. AUDIO ON/OFF in Single mode Click the audio icon ( ) on the screen, or press the [AUDIO] button on the front panel or the remote control to turn it on/off.
  • Page 31  Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the fi rst event occurred in CH 1. Event occurrence 4 seconds 9 seconds Stop alarm ...

  • Page 32: Using The Dvr

    using the DVR You can setup the system properties, devices, and options for recording, event, backup and network. SYSTEM SETUP You can setup Date/Time/Language, Permission, System Properties and Log. Date/Time/Language You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

  • Page 33: Using The Calendar

    - Time Server : Enter an IP or URL address of the time Date/Time/Language server. Date/Time/Language Holiday - Last Sync Time : Displays the most recent Date Time Synchronization Setup 2010 -01-01 YYYY-MM-DD synchronization time from the selected time server. - Activate as Server : Set to <Use>...
  • Page 34 using the DVR Permission Management You can set permissions of each user over the DVR's specifi c function and settings. Setting the Administrator You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions. Using the mouse may help make setup easier.

  • Page 35: Setting The Group

    Setting the Group You can create user groups and setup permissions for those user groups. You can register a user for each group in <User>. Using the mouse may help make setup easier. Use the up/down buttons () in <System> window to Permission Management move to <Permission Management>, and press Group...

  • Page 36: To Change The User Password

    using the DVR To restrict the user permissions If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only. Start the DVR. If all permissions are restricted, only the Login dialog should appear.

  • Page 37: Setting The User

    Setting the User Users can be added only if a group was created in <Group> menu. Using the mouse may help make setup easier. Use the up/down buttons () in <System> window to Permission Management move to <Permission Management>, and press User Admin Group...

  • Page 38: System Management

    using the DVR • Manual Input of ID : Prompts you to enter the user ID manually for the login process. - Checked ( ) : Encloses the registered user IDs with the [ ] symbols. Login Use the virtual keyboard to enter the user ID. ***** Password When the permission setup is done, press <OK>.

  • Page 39: Updating The Software

    • Updating the Software Connect a device storing the software to be updated. System Management (It may take about 10 seconds to recognize the device.) System Information Settings  Upgradeable devices include USB memory, CD/DVD and System Information Software Version V1.00h_100315180929 network device.

  • Page 40: Log Information

    using the DVR Settings You can copy and import the DVR settings by using a storage media. Using the mouse may help make setup easier. Use the up/down buttons () in <System> window to System Management move to <System Management>, and press [ENTER] Settings System Information button.

  • Page 41: Event Log

    Event Log Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp. Using the mouse may help make setup easier. Use the up/down buttons () in <System> window to Log Information move to <Log Information>, and press [ENTER] button.

  • Page 42: Setting The Device

    using the DVR SETTING THE DEVICE You can setup Camera, Storage Device, Remote Device, POS Device and Monitor. Camera Setting the Camera You can set Video, Audio, Channel Name and Dwell Time of a Camera. Using the mouse may help make setup easier. Press the [MENU] button on the remote control or front Logout Exit...

  • Page 43: Setting The Ptz

    • Progressive : You can set the progressive camera to ON/OFF.  If you set it to <ON> for the progressive camera, screen fl ickering will be reduced. • Screen Setup : The video appeared on the screen may vary depending on the channel’s camera, confi...

  • Page 44: Storage Device

    HDD Map : Shows the internal HDD’s locations according HDD Map to assigned numbers.  Refer to this for servicing or additional HDD installation. To move to the previous menu, press <OK>. <SRD-470> HDD Map <SRD-470D> 44_ using the DVR Z6806127401A_SRD-470, 470D-IB_EN44 44 Z6806127401A_SRD-470, 470D-IB_EN44 44 2010-04-30 오후...
  • Page 45 Formatting You can format a storage device. Using the mouse may help make setup easier. Use the up/down buttons () in <Device> window to Storage Device move to <Storage Device>, and press [ENTER] button. Format Device HDD Alarm Select <Format>. Device Select Used/Total...
  • Page 46 using the DVR • Duration : Sets the alarm duration for the alarm signal and beep sound. - If <BEEP> was selected, a beep will sound. - If <All> was selected, both beep sound and alarm signal through rear side ports will output. ...
  • Page 47 • POS Device Setup : Sets the communication setups for the POS Device POS device and DVR. POS USE POS Device Setup  It is independent to the Remote Device setup. Preset Port/Ethernet None No preset None POS Device Setup None No preset None...

  • Page 48: Setting Display Position

    using the DVR Monitor You can confi gure information to be displayed and its format for Spot Out monitor. Setting the Monitor Using the mouse may help make setup easier. Use the up/down buttons () in <Device> window to Monitor move to <Monitor>, and press [ENTER] button.

  • Page 49: Setting The Spot Out

    Setting the Spot Out You can set the DVR to output information / video apart from the monitor out. Using the mouse may help make setup easier. Use the up/down buttons () in <Device> window to Monitor move to <Monitor>, and press [ENTER] button. Spot Out Monitor Mode...

  • Page 50: Setting The Recording

    using the DVR SETTING THE RECORDING You can setup scheduled recording, event recording and other recording related settings. Recording Schedule Make your reservation on a date and time to schedule the recording on specifi ed time. Using the mouse may help make setup easier. Press the [MENU] button on the remote control or front panel.

  • Page 51: Event Record Duration

    Recording Color Tags Color Function Description White No Recording No schedule / event recording Orange Continuous Scheduled recording only Blue Event Event recording only Green Both(Cont&Evnt) Both scheduled / event recordings Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event>- <Both(Cont&Evnt)>.

  • Page 52: Record Option

    using the DVR Setting Event Recording Properties You can set each channel’s resolution, quality and IPS for event recordings. Using the mouse may help make setup easier. Use the up/down buttons () in <Record> window to REC Quality & Resolution move to <REC Quality &...

  • Page 53: Setting The Event

    • Auto Delete : If you check it, Record Period setup is activated. If you setup the auto delete, recorded data only in the confi gured period are searchable. When the recording option setup is done, press <OK>. SETTING THE EVENT You can set recording options for sensor, motion, and video loss event.

  • Page 54: Motion Detection

    using the DVR • Alarm : Sets the alarm output method. Sensor Detection  For further information on alarm output, refer to “HDD Alarm > Sensor Sensor Operation Alarm Duration Alarm”. (Page 45) None 10 sec None 10 sec • Alarm Setup Duration : Sets the duration of alarm signal and alarm None...

  • Page 55: Video Loss Detection

    Video Loss Detection You can set the alarm to be generated on a camera disconnection, which causes a video loss. Using the mouse may help make setup easier. Use the up/down buttons () in <Event> window to Video Loss Detection move to <Video Loss Detection>, and press [ENTER] button.

  • Page 56: Backup

    If the built-in internal CD/DVD or external USB CD/DVD is used for the backup, you can select the format of recording between AVI and SEC.  Since SRD-470 model does not have built-in internal DVD Writer, internal CD/DVD backup is not available. • Type : Sets the backup data format.

  • Page 57: Network Configuration

    When the backup setup is done, press <OK>.  If no available device is recognized for backup, <OK> button is not activated.  The application may slow down during the backup.  You can switch to the menu screen during the backup in operation, but playback of data is not available. ...

  • Page 58: Setting The Protocol

    using the DVR • IP, Gateway, Subnet Mask, and DNS Connection Mode - For <Static IP> : You can directly input IP address, Connection Protocol Gateway, Subnet Mask and DNS. Connection Mode ADSL Bandwidth 600kbps - For <Dynamic IP> : IP address, Gateway, and Subnet 192.168.

  • Page 59: Connecting And Setting The Network

    User Name  Refer to “Using Virtual Keyboard”. (Page 34) User Password ********  If selected <OFF> or <Samsung DDNS>, input fi elds are deactivated. When the DDNS setup is done, press <OK>. Cancel  Refer to <DDNS Setting>. (Page 61)
  • Page 60 using the DVR When a router is used  To avoid IP address confl ict with the DVR's static IP, check followings : • Setting the DVR with a static IP - Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or a router in a Local Area Network (LAN) environment.

  • Page 61: Ddns Setting

    Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following : Ex) Protocol Type : TCP Port (TCP) : 0554,0555,0556,0557 DDNS Site : Samsung DDNS • DDNS Settings of the Router Select the corresponding menu for the network transfer protocol of the router.

  • Page 62: Mailing Service

    using the DVR Mailing Service You can send an e-mail to a DVR-registered user at a specifi c time interval, or if an event occurs.  If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set to <OFF>, only the text notifi...

  • Page 63: Group Setting

    Group Setting You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <Recipient> menu item. The recipient is set separately from the DVR user group. Using the mouse may help make setup easier.

  • Page 64: Controlling A Ptz Device

    using the DVR CONTROLLING A PTZ DEVICE The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference. PTZ Device The PTZ device can be activated only if a channel in connection with the PTZ camera is selected. Getting started with PTZ The PTZ camera is available, only if a channel is selected, in the following way : ...

  • Page 65: Camera Setting

    Pattern : Makes the PTZ camera remember and follow the past route.  The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco.

  • Page 66: Search & Play

    search & play SEARCH You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode. In Live mode, right-click any area of the screen. Scene Mode The Live menu appears.

  • Page 67: Event Search

    • Zoom In : The map enlarges in detail. Time Search It will switch in the sequence of 24 hours - 4 hours - 1 hour 2010-01-01 Go to First Go to Last - 5 minutes. Overlapped Data List1 Zoom In Zoom Out 00:01 •...

  • Page 68: Pos Search

    search & play POS Search You can search for data in the POS device that is connected to the DVR. You can use the mouse to select the related items. Select <POS Search> in the <Search> menu. POS Search Use direction buttons (◄ ►) to set the search criteria Date/Time 2009-12-25 03:41:18 2010-01-01 03:41:18...

  • Page 69: Playback

    PLAYBACK Play You can play data stored in the HDD and backup a desired portion of the data. Using the mouse may help make setup easier. In Live mode, click <Play> in the right-click menu or Scene Mode < > in the launcher menu, or press the Play button on Spot Out the remote control or the front panel.

  • Page 70: Web Viewer

    web viewer INTRODUCING WEB VIEWER What is Web Viewer? Web Viewer allows remote access to your DVRs. You have access to live video, archived video, PTZ control (if confi gured), etc. PRODUCT FEATURES • Remote access from a standard browser •...

  • Page 71: Connecting Web Viewer

    CONNECTING WEB VIEWER Open your web browser and type the IP address or URL of DVR into the URL address box. The basic URL of the DVR is as following in case of MAC address :  00-00-F0-ab-cd-ef : nabcdef.websamsung.net ...
  • Page 72 web viewer You may have “Windows Security Alert” that attempts to block this with the Windows Firewall. In that case, click <Unblock> to start Web Viewer. Installation is complete. Now you can see the main screen of Live Viewer. 72_ web viewer Z6806127401A_SRD-470, 470D-IB_EN72 72 Z6806127401A_SRD-470, 470D-IB_EN72 72 2010-04-30 오후...

  • Page 73: Using Live Viewer

    USING LIVE VIEWER The Live Viewer screen consists of following : This displays the IP address and the model name of the connected DVR. These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>. These buttons are used for the screen split and full screen mode. Shows the IP address and model name of the connected DVR.
  • Page 74 web viewer OSD INFORMATION DISPLAY The channel number, video size, and IP address of the connected DVR are displayed. The current date and time will be displayed according to the selected time information display setting <DVR Time> or <PC Time>. Alarm icon appears when alarm is issued.
  • Page 75 CONNECTED DVR This displays the IP address and the status of the connecting DVR.  Connection failure message No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of users is exceeded. ...
  • Page 76 CAPTURE : Saves the current screen into a BMP or JPEG fi le.  The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\SnapShot\Live”. To change the saving path, click <SAVE PATH ( )> button and then select the path you want.

  • Page 77: Using Ptz Camera

    CHANGING THE LIVE SCREEN CHANNEL • Blue numbers : Indicates that the current channel is connected to a camera. • Gray numbers : Indicates that the current channel is not connected to any camera.  If you select 4-split mode, the channel button for each of cameras 1 ~ 4 will turn blue.
  • Page 78 Upward dragging will zoom out, while downward dragging will zoom in.  Tilt of Power PTZ operates properly within 45°.  Power and Pan Tilt functions are only available for camera supporting the functions. Ex : Samsung SCC-C6475 78_ web viewer Z6806127401A_SRD-470, 470D-IB_EN78 78 Z6806127401A_SRD-470, 470D-IB_EN78 78 2010-04-30 오후 6:10:40...

  • Page 79: Using Search Viewer

    USING SEARCH VIEWER The Search Viewer screen consists of following : This displays the IP address and the model name of the connected DVR. There are 4 tabs available: <LIVE>, <SEARCH>, <SETUP>, <ABOUT>. Switch to a split mode. Shows the IP address and model name of the connected DVR. These buttons are used for capture, print, and save the image.
  • Page 80 web viewer SPLIT-SCREEN You can change the split mode by clicking each number icon. SINGLE MODE QUAD MODE • Click < > button. The screen displays the selected camera connected to the DVR in “SINGLE MODE”. • Click < > button. The screen displays the selected camera connected to the DVR in “QUAD MODE”.
  • Page 81 <SAVE PATH ( )> button and then select the path you want. For Windows Vista or 7, the saving path is “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modifi ed.  The fi le is automatically named as following : “IP address_Port number_YYYYMMDD_HHMMSS_camera number_ index”...

  • Page 82: Searching The Recorded Video In The Calendar

    web viewer SEARCHING THE RECORDED VIDEO IN THE CALENDAR If the video data has been recorded on a date, the date is distinguished in green. If you click the date, the recorded video information is displayed in the time line. When you click <Today>, it is changed to today’s date.

  • Page 83: Controlling Playback

    CONTROLLING PLAYBACK Fast Backward : Reverse-plays faster(2x). Reverse Play : Performs Reverse Play. Play : Performs playback. Fast Forward : Plays faster(2x). Go to First : Moves the beginning time of recorded video in the time line. Step Backward : Performs one step reverseplay by one frame. Stop : Stops playing.
  • Page 84 web viewer • Time Synchronization Setup Set the time synchronization. • Display Date Format : Set the date type. Time : Select a time format to display on the screen. • DST (Daylight Saving Time) DST is displayed an hour ahead of the standard time of the time zone.
  • Page 85 • Group Users are classifi ed into groups and the permission can be set according to the group.  First of all, add a group. • User You can add, change or remove a user or users. • Setup You can set the user permission. System Management For more information, refer to <System Management>...
  • Page 86 web viewer Device You can check a list of devices that are connected to the DVR and confi gure the necessary settings. Click <Device> in the menu screen. For more information, refer to “Setting the Device”. (Page 42) Camera • Camera You can confi...

  • Page 87: Remote Device

    • HDD Alarm You can set the alarm output channel and the alarm duration for an error. Remote Device You can see a list of remote devices including PTZ cameras and system keyboards that are connected to the RS-485 port of the DVR and confi...

  • Page 88: Recording Schedule

    web viewer • Spot Out With the monitor connected via the SPOT port, if there occurs an event such as Sensor, Motion, or Alarm, you can select a video output mode for external monitoring. • Mode You can switch between live mode and play mode. Record For more information, refer to <Setting the Recording>.

  • Page 89: Sensor Detection

    Event Record Duration You can set the start and end times of recording that will be activated if an event occurs. REC Quality & Resolution • Standard/Event You can set the resolution, frame rate and recording quality for each channel. Record Option You can set the Disk End Mode.
  • Page 90 web viewer Motion Detection You can set the motion detection mode and the sensitivity as well as the alarm output type and the duration. • Motion Region Set the target motion detection area Video Loss Detection You can set the alarm output time if a video loss occurs. Alarm Schedule You can schedule the alarm output according to the day of the week and the time.

  • Page 91: Live Transfer

    Network For more information, refer to <Network Confi guration>. (Page 57) Connection A remote user can access the DVR via the network to check the current mode and the IP address. • Connection You can set the network connection route. •...
  • Page 92 web viewer Mailing Service You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users. • SMTP You can set the server that sends mails and specify if you use the authentication process.

  • Page 93: About

    ABOUT Click <ABOUT>. Displays the model name of connected DVR and the version of Web Viewer. English _93 Z6806127401A_SRD-470, 470D-IB_EN93 93 Z6806127401A_SRD-470, 470D-IB_EN93 93 2010-04-30 오후 6:11:40 2010-04-30 오후 6:11:40...

  • Page 94: Backup Viewer

    backup viewer SEC BACKUP VIEWER You can play a fi le that is backed up in the format of SEC. Backup in the format of SEC will involve in generating two fi les: one for the backup data and one for the viewer. If you run the backup fi...
  • Page 95 Name Description A toggle button. Each time you press this button, the audio output will toggle between activated and deactivated. Audio You can adjust the volume level from 0 to 100. Saves the current screen as an image fi le. Supported fi le formats include BMP and JPEG.

  • Page 96: Appendix

    appendix PRODUCT SPECIFICATION Item Details Note Operating System Embedded OS Broadcast Format NTSC/PAL System Input Voltage AC 100~240V Power Consumption Composite 4 Channel - 1.0Vp-p - 75Ω Hi Z Termination Video In BNC Type Loop Through Out 4 Channel - Auto Termination Video Composite 2 Channel - Normal Video Output 1 Channel...
  • Page 97 SRD-470D : SATA HDDx1(MAX) HDD, please MAX HDD size : 500GB x 1= 500GB Storage Internal refer to SRD-470 : SATA HDDx2(MAX) “Adding a MAX HDD size : 500GB x 2 = 1TB HDD”. (Page 14) Calendar Search Event Search...
  • Page 98 Dimension (W x H x D) 215 x 353 x 88mm (8.46 x 13.88 x 3.64 inch) H (leg not included) SRD-470 : ~4Kg(8.82lb) Weight SRD-470D : ~4.85Kg(10.69lb) It needs extra H/W to support ATM/POS function. So please contact your vendor to obtain H/W.

  • Page 99: Product Overview

    PRODUCT OVERVIEW • SRD-470/470D SRD-470D SRD-470 English _99 Z6806127401A_SRD-470, 470D-IB_EN99 99 Z6806127401A_SRD-470, 470D-IB_EN99 99 2010-04-30 오후 6:11:48 2010-04-30 오후 6:11:48...

  • Page 100: Default Setting

    appendix DEFAULT SETTING This returns the factory default settings. The settings are made as follows; • Use System/Load Factory Default in MENU  The default settings are based on SRD-470D. Category Details Factory Default Date YYYY-MM-DD Time Format 24 hours Time Zone Date/Time/Language Date/Time/Language...
  • Page 101 Category Details Factory Default POS Device Event Display Display Monitor 800x600 Device Sharpness Level1 (Low) Monitor Display Position Setup Spot Out Spot Out 1 CH1 ~ CH4 Live Mode Mode Play Mode Recording Schedule Channel 1 Event PRE Event Event Record Duration POST Event 1 min...
  • Page 102 appendix Category Details Factory Default Connection Mode Static IP Bandwidth 2Mbps 192.168.1.200 Connection Gateway 192.168.1.1 Connection Mode Subnet Mask 255.255.255.0 168.126.63.1 Protocol Type Protocol Port (TCP) 554~557 Webviewer Port DDNS DDNS Site Network Resolution CIF(S) Live Transfer Quality Server Port SMTP Use Authentication Secure Transfer...

  • Page 103: Troubleshooting

    TROUBLESHOOTING Symptom Countermeasures The system does not turn on and the indicator on the Check if the power supply system is properly connected. front panel does not work at all. Check the system for the input voltage from the power source. If the problem persists even after you have taken the above actions, check the power supplier and replace it with a new one if neccessary.
  • Page 104 appendix Symptom Countermeasures I've found that the DVR does not recognize as many It takes time for the DVR to recognize multiple external HDDs. Try again disks as installed when I have connected multiple in a moment and if the problem (of failure to recognize as many HDDs external HDDs to the DVR.
  • Page 105 Symptom Countermeasures Recording does not work. If your player does not display a Live image at all, that indicates recording does not work so fi rst check if you see an image on the screen. Recording does not work if the recording settings are not properly confi...
  • Page 106 Z6806127401A_SRD-470, 470D-IB_EN106 106 Z6806127401A_SRD-470, 470D-IB_EN106 106 2010-04-30 오후 6:11:52 2010-04-30 오후 6:11:52...
  • Page 107 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
  • Page 108 TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungtechwin.com...
