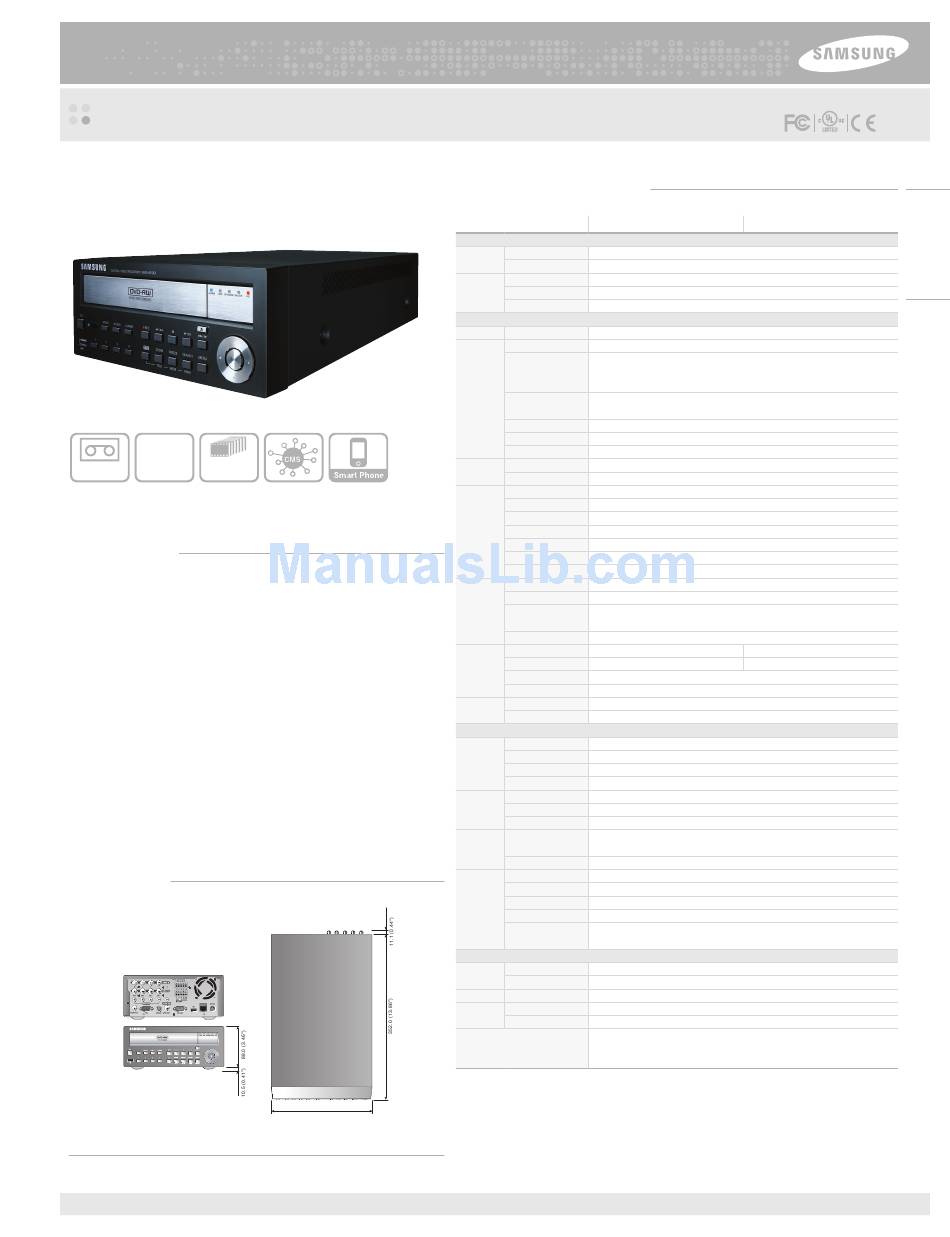

Samsung SRD-470D Technical Specifications

SRD - 470D
4CH 4CIF H.264 Real-time Digital Video Recorder
H.264
120fps(N)
4CH
100fps(P)

Key Features

• 4CH 4CIF real-time DVR
• 4CIF resolution real-time recording capability
• SATA HDD support (Internal Max. HDD x 1)
• DVD-RW
• Support for smart phone
Dimensions
215.0 (8.46")
FIRST EDITION 09-2011

Technical Specifications

DISPLAY
Video
Live
PERFORMANCE
Operating System Embedded
Recording
Search &
Playback
Network
Smart Phone
Storage
Security
INTERFACE
Monitors
Audio
Alarm
Unit : mm (inch)
Connections
GENERAL
Electrical
Environmental Operating Temperature / Humidity +0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Mechanical
Language
215.0 (8.46")
SRD-470D
Inputs 4 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Frame Rate NTSC : 120fps / PAL : 100fps
Resolution
NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / PIP
Linux
Compression H.264
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
Record Rate NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288
NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30fps)
Mode
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25fps)
Overwrite Modes Continuous
Pre-alarm Up to 30sec (5, 10, 20, 30sec)
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search Mode Date/Time, Event, Back up, Pos, Motion (*All search include preview function)
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Transmission Speed CIF 120/100fps
Bandwidth Up to 6Mbps, Unlimited (6M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Selectable
Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring NET-i viewer, SmartViewer, Webviewer
Smart Phone Android, i-Phone
Protocol Support RTSP/RTP (UDP), CGI, HTTP
Wi-Fi : CIF Max. 4fps (Single channel) / CIF Max. 4fps (Quad channel)
Transmission Speed
3G : CIF Max. 4fps (Single channel) / CIF Max. 4fps (Quad channel)
Max. Remote Users Live 1
Internal HDD Up to 1 SATA HDDs
DVD Writer (Back up) Yes
USB (Back up) 3 USB ports
File Format (Back up) AVI, BU (DVR player), EXE (Include player)
Password Protection 1 Admin, 10 Group, 20 User per 1 group, User can be assigned authority for function
Data Authentication Watermark
VGA 1 VGA (800 x 600, 1024 x 768, 1280 x 1024)
Main Composite
1 BNC, 1.0 Vp-p, 75 ohm
Spot Composite Digital spot (1 BNC, 1 Vp-p, 75 ohm), support multi screen and camera title
Loop Outputs 4
Inputs / Output 4CH line in / 1CH line out
Compression
ADPCM
Sampling Rate 16KHz
Terminal 4 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
Inputs / Output
Rating : 30V DC / 2A, 125V AC / 0.5A
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, Samsung system keyboard
USB USB 2.0, 2 ports
Application Support Mouse, Remote controller
Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
Protocol Support
DIAMOND, ERNA, KALATEL, VCL TP, Vicon
Input Voltage / Current 100 ~ 240V AC ±10%, 50/60Hz, 55watt
Power Consumption Max. 36W (With 1x HDD)
Dimensions (WxHxD) 215.0 x 88.0 x 352.0mm (8.46" x 3.46" x 13.86")
Weight (With hard disks) Approx. 3Kg (6.61 lb)
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thailandais,
Rumanian, Serbian, Croatian, Hungarian, Greek (22 Language)
