Samsung SRD-473D Specifications

4ch 4cif real-time h.264 digital video recorder

Hide thumbs Also See for SRD-473D:

Download this manual See also: User Manual

Enhanced

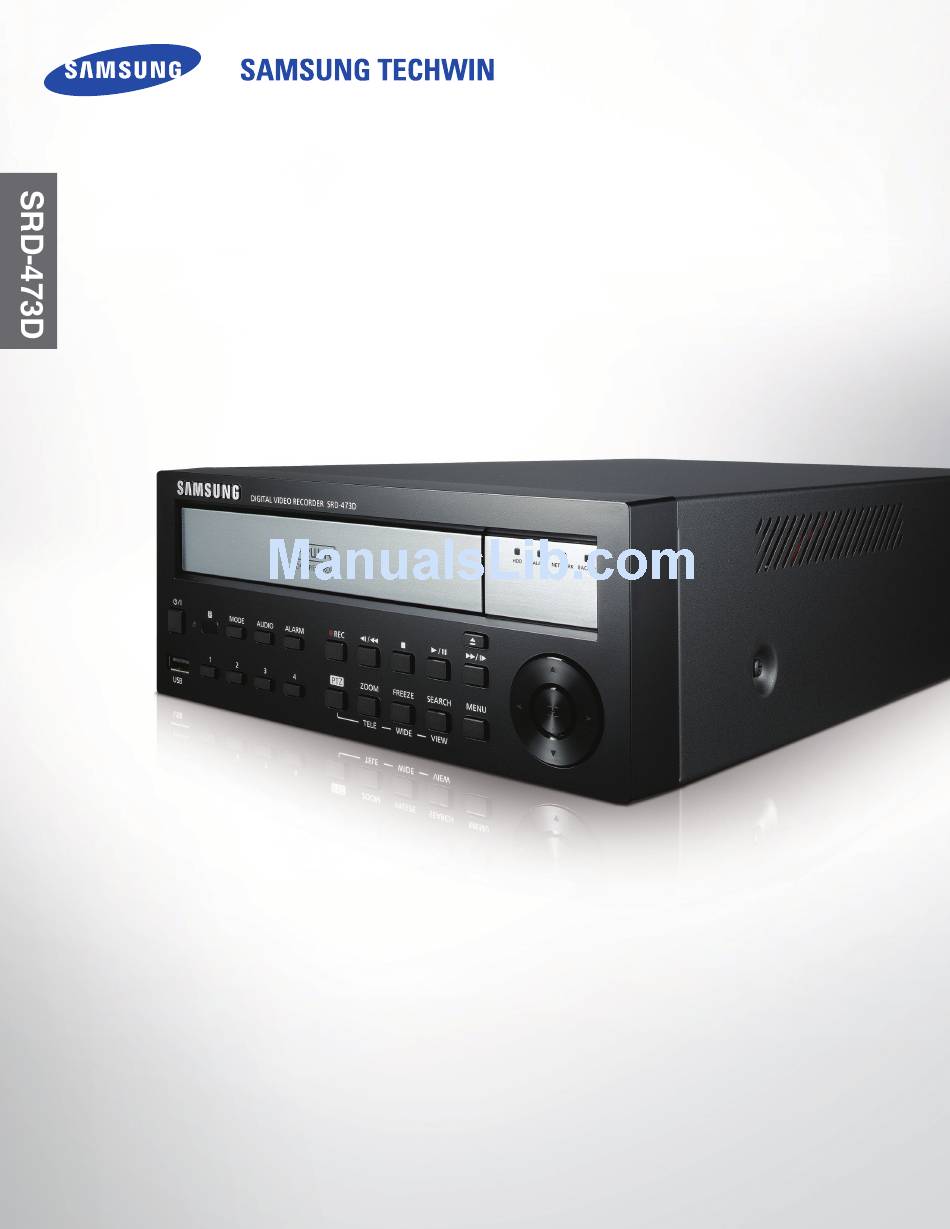

SRD-473D

4CH 4CIF Real-time H.264 Digital Video Recorder

• 4CH, Real-time@4CIF

• Max. resolution of 960 x 480 / 960 x 576

• Coaxitron support

• Smart phone support (Android / iOS)

• Full HD 1080p video out via HDMI

• 4CH audio inputs / 1CH audio output

• Max. 1 internal HDDs

• Smart searching, Tampering detection

• EnhancedNetwork Bandwidth up to 32Mbps

FIRST EDITION 09-2013

features

Full HD

with

video out

The next generation of Samsung's legendary SRD DVR products

add Full HD 1080p HDMI video out, support for 700TV lines analog

cameras, and a sleek touch front panel, while retaining the familiar

and easy to use graphical interface, smartphone support, coaxitron,

tampering detection, and E-mail alerts. This supports real-time, 30/25

frames per second recording and playback at 928 x 480 resolution

over all channels. Network bandwidth has also been increased for

robust remote viewing at high resolutions.

www.samsungserurity.com

Page 1: Video Out
Full HD with video out SRD-473D The next generation of Samsung’s legendary SRD DVR products 4CH 4CIF Real-time H.264 Digital Video Recorder add Full HD 1080p HDMI video out, support for 700TV lines analog • 4CH, Real-time@4CIF cameras, and a sleek touch front panel, while retaining the familiar •...
Page 2: Specifications
215.0 (8.46") USB 2.0, 2 ports Connections Application Support Mouse, Remote controller Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, Protocol Support KALATEL, VCL TP, VICON, ELMO, GE GENERAL Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt...
