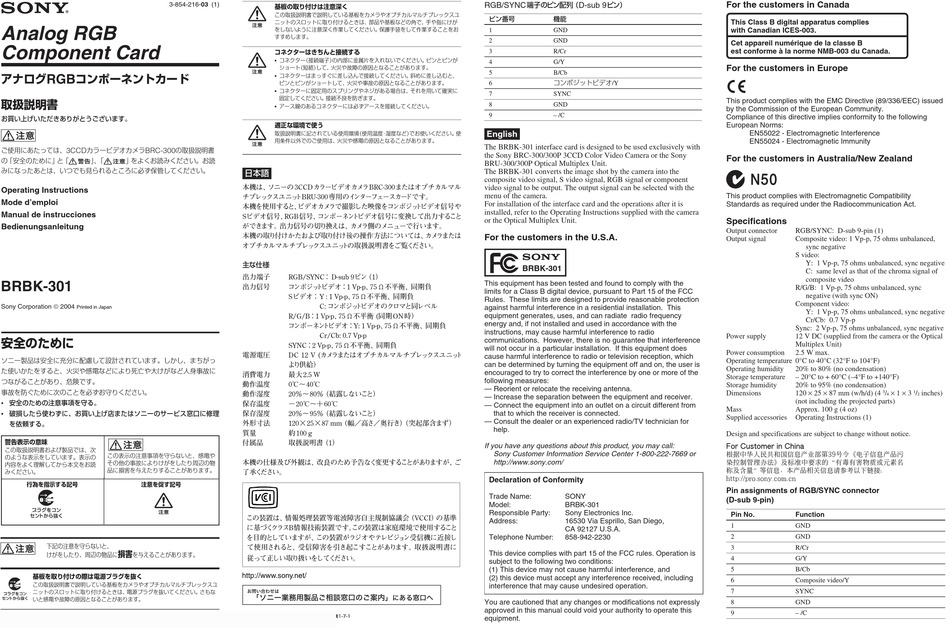

Sony BRBK-301 Operating Instructions

Analog rgb component card.
Hide thumbs


Advertisement

3-854-216-03 (1)
Analog RGB
Component Card
RGB
3CCD
BRC-300
Operating Instructions
Mode d'emploi
Manual de instrucciones
Bedienungsanleitung
BRBK-301
Sony Corporation  2004
Printed in Japan
RGB/SYNC
D-sub 9
1
GND
2
GND
3
R/Cr
4
G/Y
5
B/Cb
6
/Y
7
SYNC
8
GND
9
– /C
English

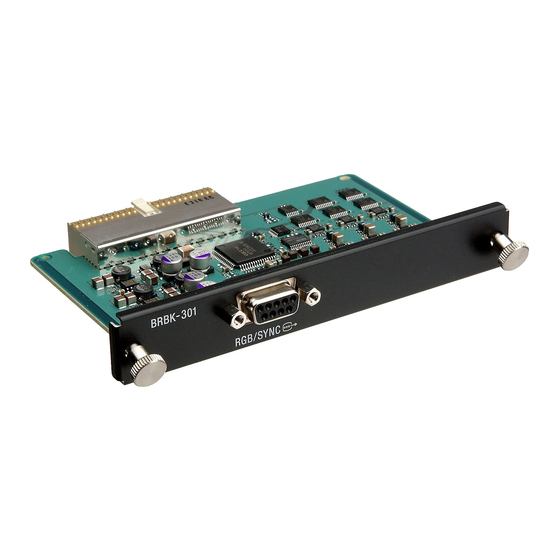

The BRBK-301 interface card is designed to be used exclusively with
the Sony BRC-300/300P 3CCD Color Video Camera or the Sony
BRU-300/300P Optical Multiplex Unit.
The BRBK-301 converts the image shot by the camera into the
composite video signal, S video signal, RGB signal or component
video signal to be output. The output signal can be selected with the
menu of the camera.
For installation of the interface card and the operations after it is
installed, refer to the Operating Instructions supplied with the camera
or the Optical Multiplex Unit.
For the customers in the U.S.A.
BRBK-301
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for
help.
If you have any questions about this product, you may call:
Sony Customer Information Service Center 1-800-222-7669 or
http://www.sony.com/
Declaration of Conformity
Trade Name:
SONY
Model:
BRBK-301
Responsible Party:
Sony Electronics Inc.
Address:
16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone Number:
858-942-2230
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
For the customers in Canada
This Class B digital apparatus complies
with Canadian ICES-003.
Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
For the customers in Europe
This product complies with the EMC Directive (89/336/EEC) issued
by the Commission of the European Community.
Compliance of this directive implies conformity to the following
European Norms:
EN55022 - Electromagnetic Interference
EN55024 - Electromagnetic Immunity
For the customers in Australia/New Zealand
This product complies with Electromagnetic Compatibility
Standards as required under the Radiocommunication Act.
Specifications
Output connector
RGB/SYNC: D-sub 9-pin (1)
Output signal
Composite video: 1 Vp-p, 75 ohms unbalanced,
sync negative
S video:
Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: same level as that of the chroma signal of
composite video
R/G/B: 1 Vp-p, 75 ohms unbalanced, sync
negative (with sync ON)
Component video:
Y: 1 Vp-p, 75 ohms unbalanced, sync negative
Cr/Cb: 0.7 Vp-p
Sync: 2 Vp-p, 75 ohms unbalanced, sync negative
Power supply
12 V DC (supplied from the camera or the Optical
Multiplex Unit)
Power consumption
2.5 W max.
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity
20% to 80% (no condensation)
Storage temperature
– 20°C to + 60°C (–4°F to +140°F)
Storage humidity
20% to 95% (no condensation)
120 × 25 × 87 mm (w/h/d) (4
× 1 × 3
3
Dimensions
/
4
(not including the projected parts)
Mass
Approx. 100 g (4 oz)
Supplied accessories
Operating Instructions (1)
Design and specifications are subject to change without notice.
Pin assignments of RGB/SYNC connector
(D-sub 9-pin)
Pin No.
Function
1
GND
2
GND
3
R/Cr
4
G/Y
5
B/Cb
6
Composite video/Y
7
SYNC
8
GND
9
– /C
1
/
inches)
2
