Assembly

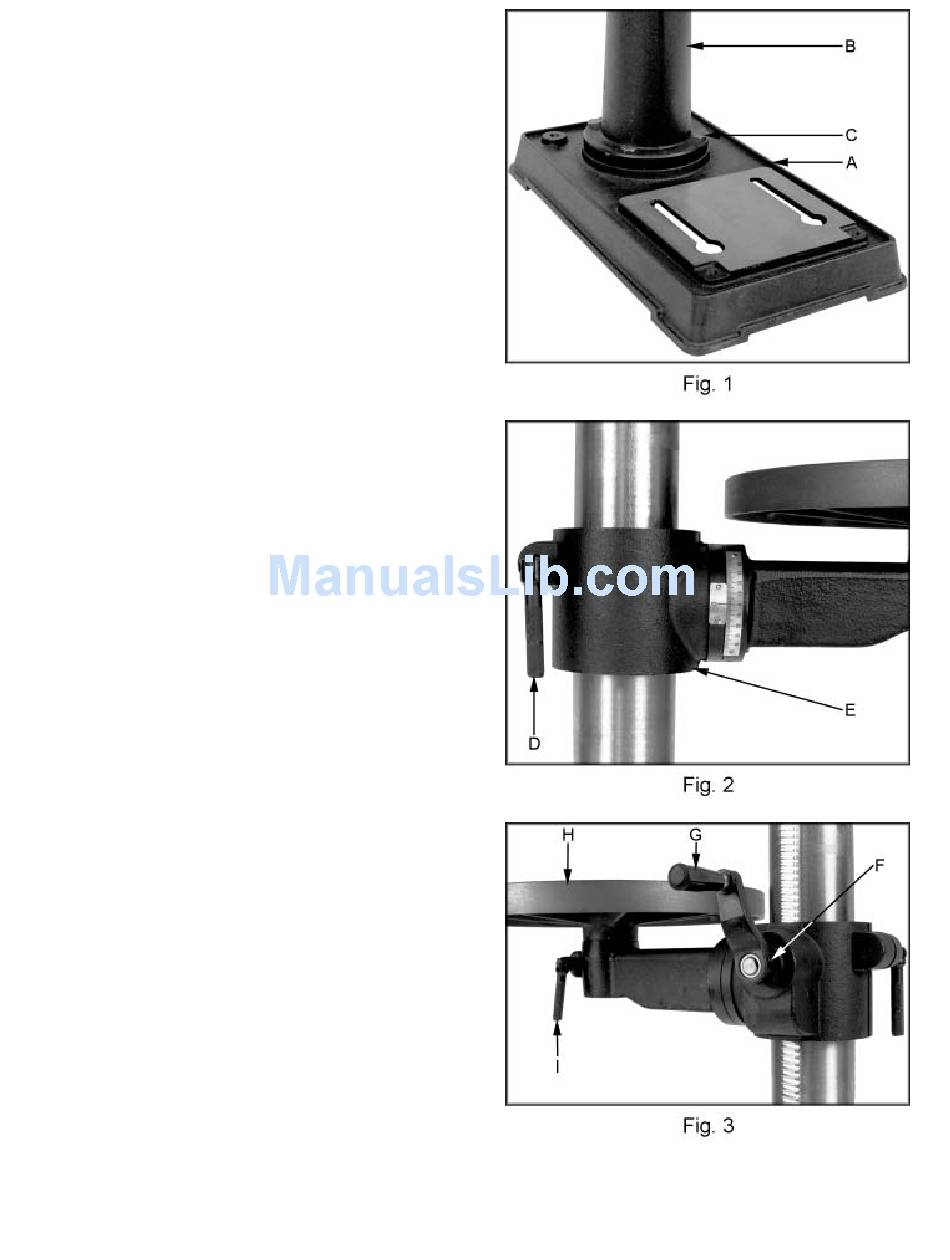

1. Place the base (A, Fig. 1) on a level floor.
2. With a 17mm wrench attach the column
assembly (B, Fig. 1) to the base (A, Fig. 1)
with four M10 x 40 hex cap bolts (C, Fig. 1).
Tighten firmly.
3. Thread lock handle (D, Fig. 2) into the table
bracket (E, Fig. 2).
4. Loosen the set screw (F, Fig. 3) on the
raising handle (G, Fig. 3) with a 3mm hex
wrench.
5. Slide the handle onto the table bracket
shaft.
6. Turn the handle until the set screw is
opposite the flat section on the shaft, and
tighten the set screw to secure the handle.
7. Insert the table (H, Fig. 3) into the table
bracket.
8. Tighten the table lock handle (I, Fig. 3).
