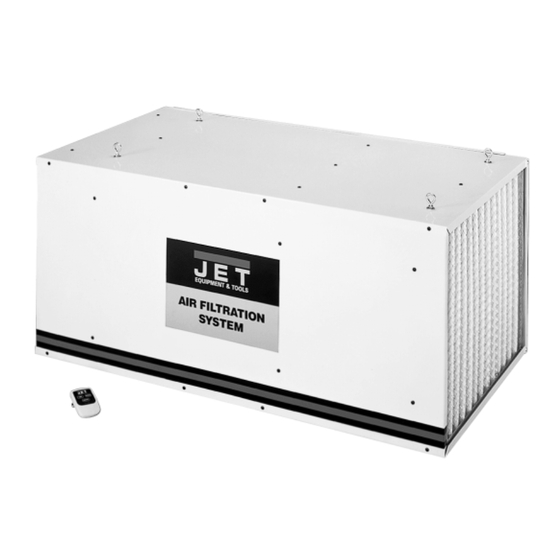

- Page 1 OWNER’S MANUAL AFS-2000 Air Filtration JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com 253-351-6000 Fax 800-274-6840 M-708615 5/00...
-
Page 2: Warranty
Important Information 2-YEAR LIMITED WARRANTY REPLACEMENT PARTS Replacement parts for this tool are available directly form JET Equipment & Tools. To place an order, call 1-800-274-6848. Please have the following information ready: 1. Visa, MasterCard, or Discover Card number 2. Expiration date 3. -
Page 3: Warnings
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s application and limitations as well as the specific hazards peculiar to it. 2. KEEP GUARDS IN PLACE and in working order. 3. ALWAYS WEAR EYE PROTECTION. 4. -
Page 4: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 5: Table Of Contents
7. To avoid a potentially dangerous situation, do not use this equipment to filter volatile fumes or smoke. This air cleaner is designed and intended for the filtration of air borne wood dust only. It is neither designed or intended for any other purpose whatsoever. -
Page 6: Contents Of Shipping Carton
Contents of Shipping Carton 1. Air Filtration Unit 1. Remote Control 2. AAA Batteries 4. Eye Bolts, Washers & Hex Nuts 1. Manual and Warranty Card Tools Required for Assembly 10 mm Wrench The air filtration unit does not require much assembly. -
Page 7: Controls And Features
Controls and Features Remote Control: Time button (A, Fig. 2) controls the three different settings. 2H will light up on the back of the unit with one press of the time button. The air filtration system will operate for 2 hours then shut off. 4H will light up on the back of the unit by pressing the time button twice. - Page 8 Inner Filter: you must remove the two bolts (A, Fig. 4) that hold the cover in place. Remove the cover. Remove the inner filter (A, Fig. 5) from the side of the cabinet. Replace the cover and four bolts. Accessory Filter: an additional charcoal filter, or electrostatic filter can be added to this empty slot (B, Fig.5).
-
Page 9: Breakdown
Parts Breakdown... -
Page 10: Parts List
Parts List for the AFS-2000 Air Filtration Index Part 1...330001... Fan Blade..1 2...330002... Fan Housing ..1 3...330003... Air Guide Plate ..2 4...330004... Flange ..1 5...330005... Spacer..4 6...330006... Sleeve ..4 7...330040... Box Plate..1 ...LM000280 ... JET Label ..2 ...LM000351 ... -
Page 11: Wiring Diagram
