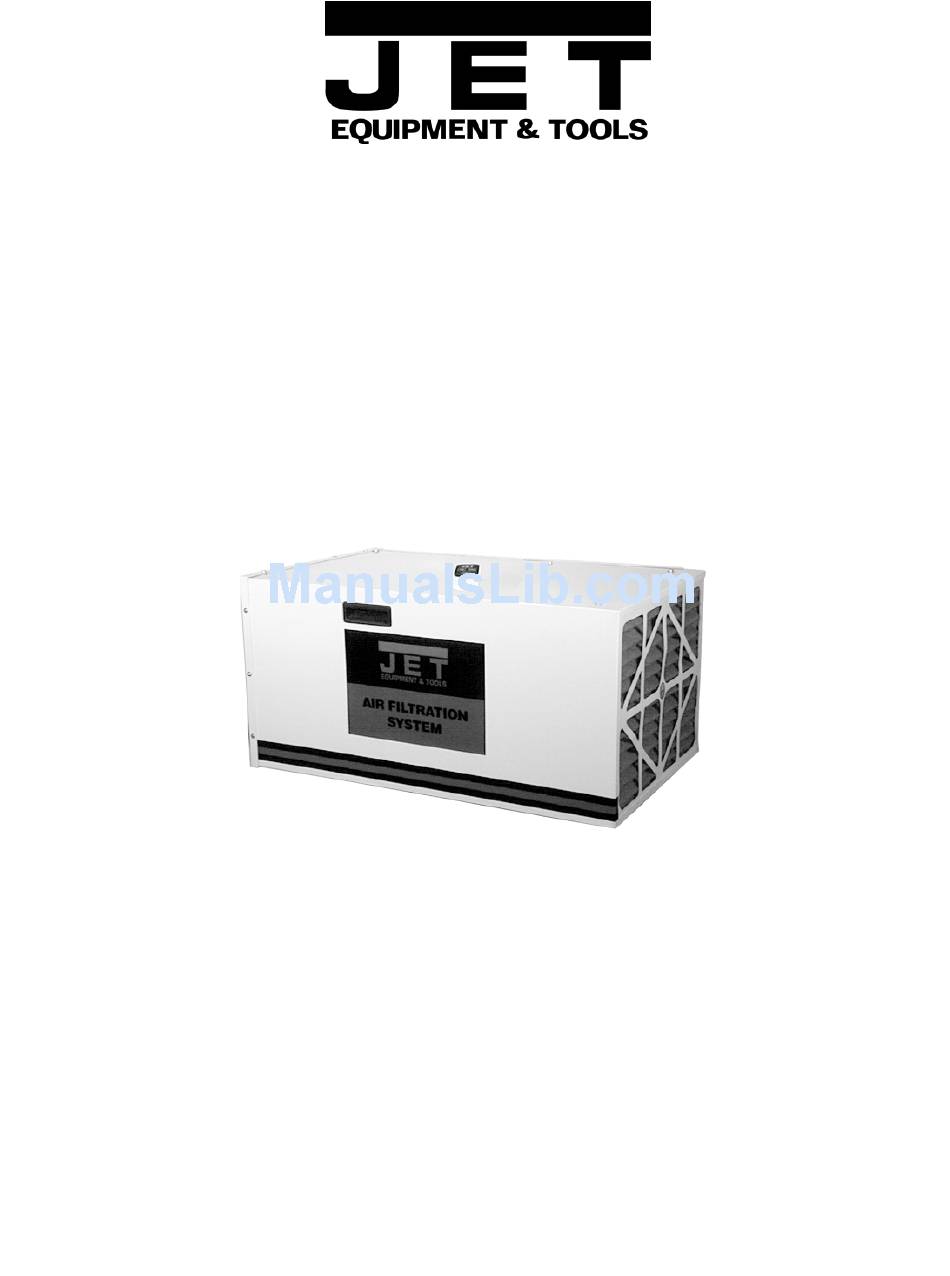

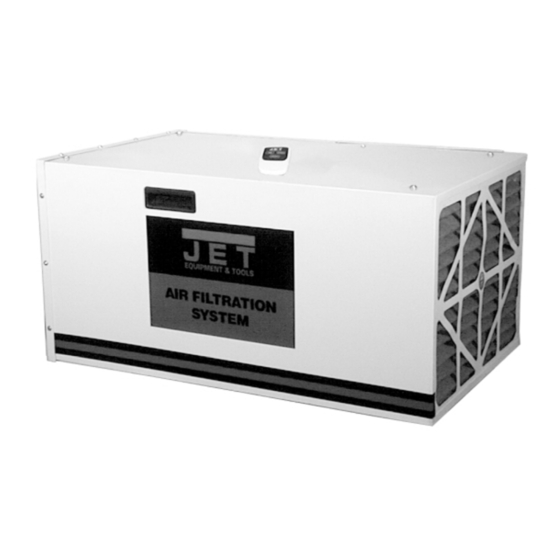

- Page 1 OWNER’S MANUAL AFS-1500 Air Filtration JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com 253-351-6000 Fax 800-274-6840 M-708614 6/2001...
-
Page 2: Warranty
Warranty & Service The JET Group warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Repair Stations located throughout the United States can give you quick service. -
Page 3: Warnings
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s application and limitations as well as the specific hazards peculiar to it. 2. KEEP GUARDS IN PLACE and in working order. 3. ALWAYS WEAR EYE PROTECTION. 4. -
Page 4: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 5: Table Of Contents
8. Failure to comply may result in serious injury and / or property damage. The specifications in this manual are given as general information and are not binding. JET Equipment & Tools reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings, and accessory equipment deemed necessary for any reason whatsoever. -
Page 6: Contents Of Shipping Carton
Contents of Shipping Carton 1. Air Filtration Unit 1. Remote Control 2. AAA Batteries 4. Eye Bolts & Hex Nuts 4. Pads 1. Velcro for Remote 1. Manual and Warranty Card Tools Required for Assembly 10 mm Wrench Cross Point Screwdriver The air filtration unit does not require much assembly. -
Page 7: Controls And Features
Controls and Features Remote Control: Time button (A, Fig. 2) controls the three different settings. 2H will light up on the back of the unit with one press of the time button. The air filtration system will operate for 2 hours then shut off. 4H will light up on the back of the unit by pressing the time button twice. -
Page 8: Breakdown
Parts Breakdown... -
Page 9: Parts List
Parts List for the AFS-1500 Air Filtration Index Part 1...330001... Fan Blade..1 2...330002... Fan Housing ..1 3...330003... Air Guide Plate ..2 4...330004... Flange ..1 5...330005... Spacer..4 6...330006... Sleeve ..4 7...330052... Box Cover ..1 ...LM000280 ... -
Page 10: Wiring Diagram
Optional Replacement Filters: ...708727... Outer Filter (cardboard frame)..708729... Electrostatic Filter (metal frame: washable)..708726... Inner Filter ..708728... Charcoal Filter ..Wiring Diagram...
