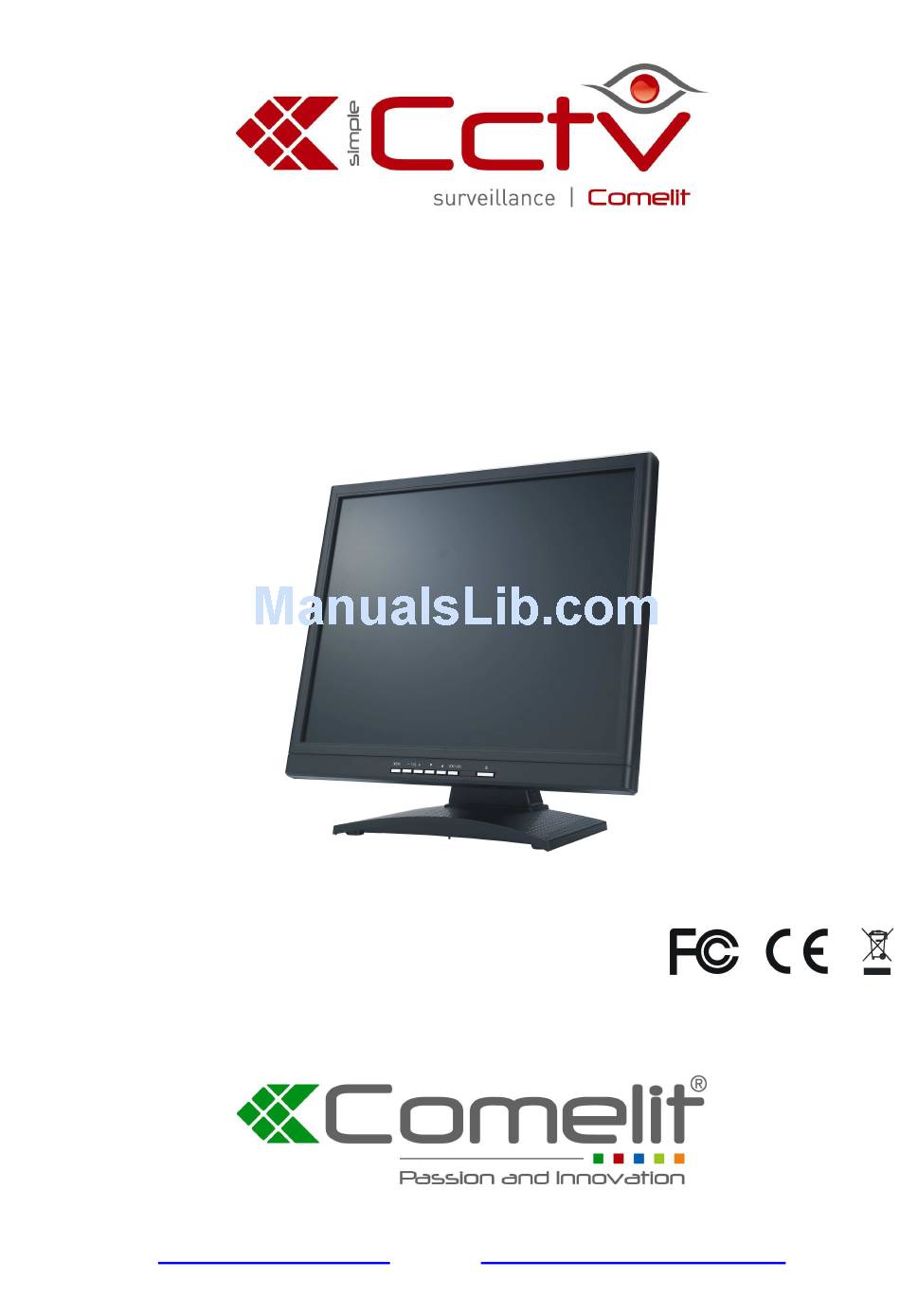

- Page 1 17” – 19” PROFESSIONAL LCD COLOUR MONITOR ART. 41657 - 41659 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.eu e-mail:export.department@comelit.it...
-
Page 2: Warning
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended.to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Safeguards
Important safeguards Risk of electric shock – Do not open To reduce the risk of electric shock, do not remove the back cover. There are no user-serviceable parts inside. Removing the back cover voids the warranty. Have your LCD AV repaired by qualified service personnel only. Warnings and precautions Do not place your hands, face, or objects close to the ventilation openings of you LCD AV. -
Page 4: Safety Precautions
Safety Precautions Chapter 6 Safety, Regulatory and Legal Information US Regulatory compliance statements Your LCD AV has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Table of contents Warning……………………………………………………………………………………………………. 2 Important Safeguards……………………………………………………………………………………. 3 Safety Precautions……………………………………………………………………………………….. 4 Table of Contents………………………………………………………………………………………… 5 Components………………………………………………………….. …………………………………. 5 Feature……………………………………………………………………………………………………. 6 Exploring Your New Monitor…………………………………………………………………………….. 7 Function Keys Instructions for AV..…….…………………………………………………………….…. 8 I/O Connection.…..……………………………………………………………………..………………... 9 Menu Setup-IMAGE..……………………………………………………………………………….…… 10 Menu Setup-PIP…………………………………………………………………………………….…… 11 Menu Setup-SYSTEM……………………………………………………………………………………... -
Page 6: Feature
Feature 1. Professional TFT LCD for surveillance. 2. Compatible with VGA(640X480), SVGA(800X600), XGA(1024X768), SXGA(1280X1024) resolution,(SXGA for 17/19" LCD only). 3. All plastic case. 4. Video input BNC x 1 / VGA x 1 / S-Video x 1. 5. Video output BNC x 1. 6. -
Page 7: Exploring Your New Monitor
Exploring Your New Monitor You can operate your monitor by using the buttons on the front panel. Front Panel 19” 17” Back Side... -
Page 8: Function Keys Instructions For Av
Function Keys Instruction for AV Up: Select menu item Down: Select menu item MENU Menu: Push this button to display the main OSD menu / select item of next level Right : Increase the setting of selected item Left : Decrease the setting of selected item SOU/AOU Source: Change input source / to return to last OSD control level Power: Turn on or off the monitor power... -
Page 9: I/O Connection
I/O Connection: Illustration: ●Video Out is present in “AV video out” ●Video In is present in “AV video in” ●PC Audio In is present in “PC audio in” ●Audio In 1 is present in “AV audio in” ●Audio In 2 is present in “S-Video audio in” ●S-Video In is present in “S-Video video in”... -
Page 10: Menu Setup-Image
Menu Setup - IMAGE Brightness: picture brightness adjustment min. ~ max.:0~100 / Default: 55 Contrast: picture contrast adjustment min. ~ max.:0~100 / Default: 50 Color Temp: selects color temperature of 6500° K or 9300° K. Saturation: picture saturation adjustment min. ~ max.:0~100 / Default: 50 Hue: to adjust the color tint value min. -
Page 11: Menu Setup-Pip
Menu Setup - PIP PIP Mode: this function allows the PIP mode to be selected. PIP Source: the function allows the PIP Sub source to be selected. PIP H.Position: picture in picture window horizontal position. PIP V.Position: picture in picture window vertical position. PIP Swap: enable PIP sources switching. -
Page 12: Menu Setup-System
Menu Setup - SYSTEM OSD Timeout: select 5 ~ 60 to determine the time menu show on screen. Default: 30 OSD H.Position: OSD horizontal position. OSD V.Position: OSD vertical position. Mute: to disable the audio function. Default: OFF Channel Display: select ON/OFF. -
Page 13: Menu Setup-Vga
Menu Setup - VGA H-position : allows adjustment for horizontal position. V-position: allows adjustment for vertical position. Phase: is used to adjust best picture quality. It adjusts the sampling phase across one pixel time. When the phase is not adjusted properly, the picture will be unclear. -
Page 14: Specifications
Specifications Model 41657 41659 Button Control Menu, VOL-, VOL+, Up, Down, Source, Power Display Resolution 1280 x 1024 @ 60/75 Hz 1280 x 1024 @ 60/75 Hz Active Area 432.7mm diagonal 481.9mm diagonal LCD Panel Type TN mode, normally white Dot Pitch 0.264 (H) x 0.264 (V) mm... - Page 15 Scanning system NTSC: 525 lines, 60 fields / sec; PAL: 625 lines, 50 fields / sec VGA Input 15 pin D-SUB connector Video Input/ Output BNC x 1 / BNC x 1 Looping Output Auto Termination Audio Input Audio In x 2, PC-Audio In x 1 S-Video 4-pin DIN connector Speakers...
-
Page 16: Wall Mountable
Wall mountable Wall Mountable M4 x 16L User please use the correct screw type when installation. The desktop bracket and mount type bracket can use the same screw... -
Page 17: Dimensions
Dimensions 17” 19” Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.eu e-mail:export.department@comelit.it...
