Summary of Contents for CCTV EX-17LBE
-

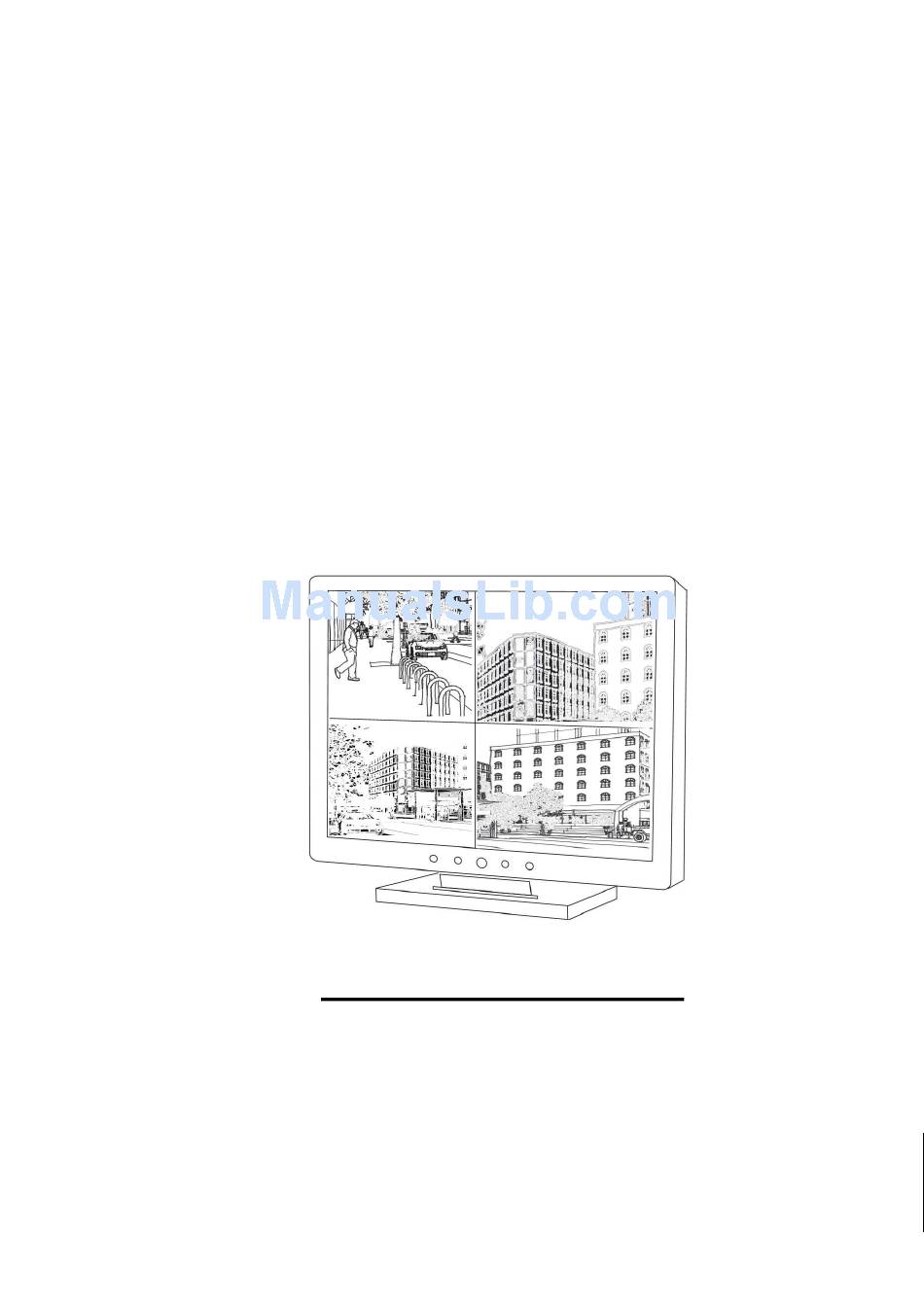

Page 1: User Manual
CCTV LCD Monitor User Manual For models: EX-17LBE EX-19LBE _____________________... -
Page 2: Table Of Contents
Contents 1. Introduction………............................1 2. Work Safety Information..........................2 2.1. Product Safety Precautions information.......................2 2.2. Safety Guidelines............................3 2.3. Important Notice Concerning Power Cord Selection...................3 2.3.1 For the United States and Canada..................... 3 2.3.2 For European Countries........................3 2.3.3 For the United Kingdom........................4 3. -
Page 3: Introduction
Introduction Thank you for purchasing the professional CCTV LCD Monitor and welcome to a fantastic new technology that will completely change the way you look at monitors. The following sections describe just a few of the major advantages of this LCD monitor. You’ll discover more of its wonderful features as you use it. -
Page 4: Work Safety Information
No internal parts can be serviced by users. Refer servicing to qualified personnel. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS CCTV LCD MONITOR TO RAIN OR MOISTURE. “HIGH VOLTAGE EXISTS ON THE BACK LIGHT POWER LEAD OF THIS WARNING CCTV LCD MONITOR. -
Page 5: Safety Guidelines
Safety Guidelines WARNING This device must be operated with the original power supply. The socket outlet should be installed near the equipment and should be CAUTION easily accessible. Use a power cord that is properly grounded. Always use the appropriate AC power cord that is certified for the individual country. -
Page 6: For The United Kingdom
2.3.3 For the United Kingdom For your safety please read the following text carefully. If the fitted molded plug is unsuitable for the socket outlet, then the plug should be cut off and disposed of safely. Do not plug the cut-off plug into a socket outlet! There is a danger of severe DANGER electrical shock! If a new plug is to be fitted, please observe the wiring code as shown below. -
Page 7: Standards And Guidelines
Standards and Guidelines FCC Requirements This device complies with Part 15 of the FCC Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must tolerate any interference encountered, including interference that may cause improper operation. -
Page 8: Rohs Compliance Statement
RoHS Compliance Statement This display defined in this user manual is 100% RoHS complaint and meets all the requirements set forth in European Union Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment. Information on Disposal for Your Old Product Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. -
Page 9: Hardware Installation
Hardware This chapter will guide you through the correct installation procedures for the LCD monitor. 4.1. Checking the Accessories Supplied LCD monitor body + Desk Stand x 1 pc AC power cord x 1 pc Adaptor x 1 pc D-Sub 15-pin cable (1.8 Meter) x 1 pc Ø... -
Page 10: Buttons And Connections
5. Buttons and Connections 5.1 Buttons 目 ○ ○ ○ ○ “A” : To confirm the setting. ○ “V V V V ” Down/Decrease: To move the cursor downwards or to switch over the setting items or to decrease the figure of the setting selected. -
Page 11: Connections
5.2 Connections EX-17LBE Item Connector Function ○ PC Audio Input (Ø 3.5mm) Connect to the audio output of your computer ○ DC 12 Input Please use DC 12V, 5A Power Adaptor ○ D-Sub (VGA) Input Connect to the VGA output of your computer or DVR ○... -
Page 12: Osd Setup
6. OSD Setup Color (Video Mode) 1. Press the “Λ” or “V” key on the buttons to call out the OSD Menu . Press “Λ” or “V” to select “Color” mode and press “A” key again to select the “Color ” option. 2. -
Page 13: Signal Source
Language (Video Mode) The default language is English, you may press the “A” key and press “Λ” or “V” key to select language you want. There are 6 languages to select (1) English (2) French (3) Italian (4) German (5) Spanish (6) Chinese (7) Japanese. - Page 14 Color(VGA Mode) In VGA mode, there are two different functions in item „color“, and they are “Color Adjust” and “Color Temp“. Press the “Λ” or “V” key on the buttons to call out the OSD Menu . Press “Λ” or “V” key to select “Image Setting”...
- Page 15 Position(VGA Mode) Press the “Λ” or “V” key on the buttons to call out the OSD Menu . Press “Λ” or “V” key to select “Position” mode and press “A” key again to select the “Position” option. H-Position Use to change horizontal position of the picture. You may press“Λ” or “V” key to select “H-Position” and press “Λ”...
-
Page 16: Troubleshooting Guide
7. Troubleshooting Guide When you experience issues with the CCTV LCD Monitor , before contacting your retailer where you made your purchase, please check the following items. The most common issue is with the connection of AV equipment or graphic card. We recommend that at the same time of troubleshooting, also refer to the AV equipment or graphic card user manual. -
Page 17: Applicable Video Timing For Pc- Analog Video
Applicable Video Timing for PC- analog Video The following table list are the better display quality modes for analogy signal (PC) supported by this LCD monitor. The LCD monitor will stop working or has poor picture quality when other modes out of below list input. -
Page 18: Technical Data
9. Technical Data Model EX-17LBE EX-19LBE System Panel Size 17” LCD 19” LCD Resolution 1280 x 1024 1280 x 1024 Pixel Pitch (H x V) 0.264 x 0.264 mm 0.294 x 0.294 mm Contrast Ratio 1000:1 1000:1 Luminance 250 cd/m... -
Page 19: Dimension
10. Dimension EX-17LBE EX-19LBE...
