Hybertone GoIP Series User Manual

Sim card for gsm voice gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

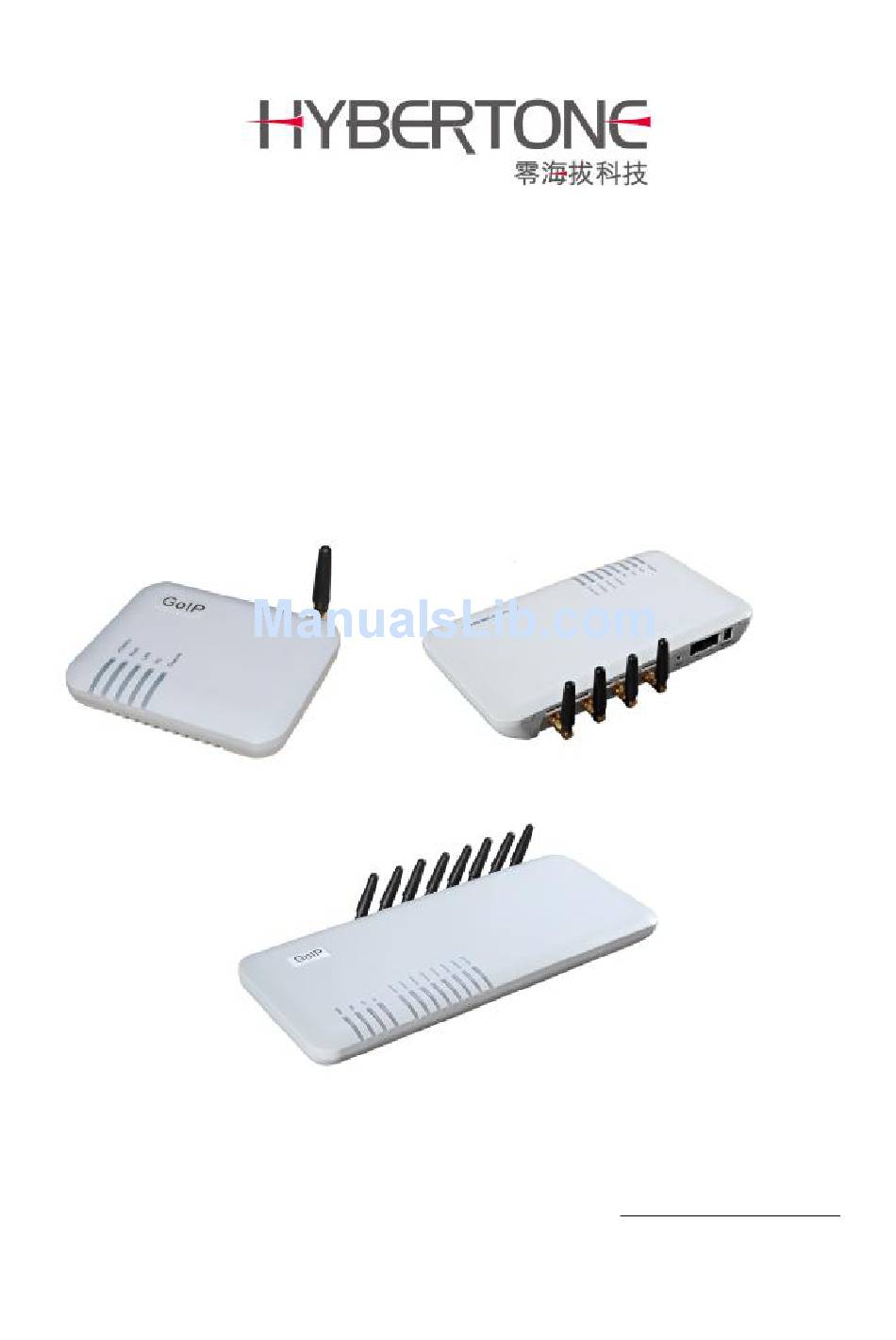

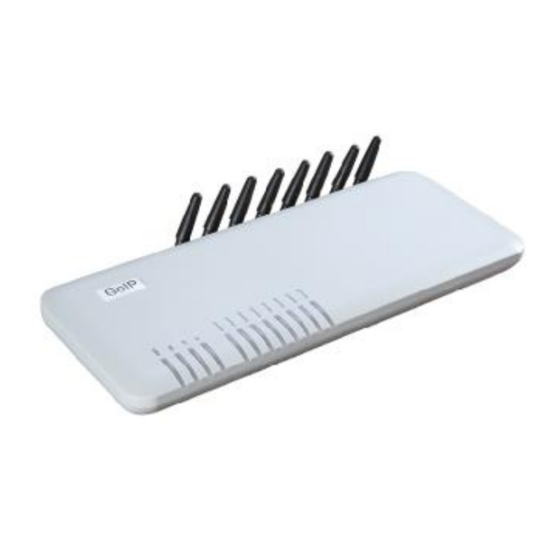

GoIP Series
SIM Card for GSM Voice Gateway

User Manual

V3.0
Shenzhen HYBERTONE Technology Co., Ltd
Http://www.hybertone.com
Marketing@ hybertone.com
Support@ hybertone.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoIP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hybertone GoIP Series

Summary of Contents for Hybertone GoIP Series

  • Page 1: User Manual

    GoIP Series SIM Card for GSM Voice Gateway User Manual V3.0 Shenzhen HYBERTONE Technology Co., Ltd Http://www.hybertone.com Marketing@ hybertone.com Support@ hybertone.com...

  • Page 2: Table Of Contents

    GSM Series Voice Gateway Content Content ................1 1 Overview ..............3 1.1 Introduction.........................3 1.2 Protocols ..........................4 1.3 Hardware Feature........................4 1.4 Software Feature .........................4 1.5 Product Package List......................5 1.6 Product Appearance ......................5 2 Installation ..............7 2.1 Installation Procedure ......................7 2.2 Connection Figure.......................7...

  • Page 3: Parameters Of Equipment

    GSM Series Voice Gateway 3.4.4 Secondary DNS......................27 3.5 Call Setting ........................28 3.5.1 H.323 Terminal Setting ..................28 3.5.1.1 Direct Connection ..................28 3.5.1.2 Gatekeeper ....................29 3.5.1.3 Advance Setting of the H.323 ..............31 3.5.2 SIP Phone .......................33 3.5.2.1 Setting Mode ....................33 3.5.2.2 Single Server Mode..................34 3.5.2.3 Setting by Line (Valid for the GoIP_4 and GoIP_8)........36...

  • Page 4: Overview

    In particular, the GoIP gateway supports multi device groups, with flexible setting of large GSM gateway groups with different channel numbers. With its low price, excellent voice quality, and powerful features, the GoIP series gateway is the first choice for system integrators, traffic operators, and softswitch manufacturers.

  • Page 5: Protocols

    GSM Series Voice Gateway 1.2 Protocols ü TCP/IP V4 (IP V6 automatic adaptive) ü ITU-T H.323 V4 standard ü H.2250 V4 standard ü H.245 V7 standard ü H.235 standard (MD5, HMAC-SHA1) ü ITU-T G.711 Alaw/ULaw, G.729A, G.729AB, G.723.1 and GSM voice coding ü...

  • Page 6: Product Package List

    GSM Series Voice Gateway PPPoE dialing NAT broadband routing function DHCP client DHCP server Software online upgrade Automatic calling Supporting multiple languages Supporting outgoing SMS calls 1.5 Product Package List 1). A GoIP gateway 2). 12V/2A DC(For GoIP_4) or 12V/3A DC (For GoIP_8) transformer 3).
  • Page 7 GSM Series Voice Gateway 1) LAN The network input port that is connected to the router, Modem, and switch; 2) PC The network output port that is connected to network sharing equipment (less than 100 terminals) 3) 12V/2A DC (For GoIP_4) or 12V/3A DC (For GoIP_8) transformer...

  • Page 8: Installation

    GSM Series Voice Gateway The reset switch for quick restart of the GoIP. 2 Installation 2.1 Installation Procedure The GoIP has 1/8 SIM card slots, an LAN port, and a PC port. The installation procedure is as follows: 1. Open the bottom cover of the GoIP and insert an SIM card of the local GSM network;...
  • Page 9 GSM Series Voice Gateway...

  • Page 10: Led Indicators

    GSM Series Voice Gateway 2.3 LED Indicators...
  • Page 11 GSM Series Voice Gateway The description of LED indicators is as follows. Description Power indicator This indicator is constantly ON after connected with power. This indicator is ON after connected with the network equipment and LAN indicator blinks during data transmission.

  • Page 12: Sms Instructions

    GSM Series Voice Gateway 2.4 SMS Instructions Users can send instructions to the GoIP gateway through the SMS. Function Instructions (Short Remark message content) Obtain INFO or info Case insensitive information from the LAN port Reset the GoIP RESET Password The keyword RESET is case insensitive.
  • Page 13 GSM Series Voice Gateway B: The default IP address and mask of the PC port are 192.168.8.1 and 255.255.255.0 respectively. Enable the DHCP service of the PC port. Connect the computer with the PC port of the gateway through the IP address of the PC port, and set the IP of the computer to dynamic IP or fixed IP as 192.168.8.xxx and the default gateway as...
  • Page 14 GSM Series Voice Gateway GoIP Status Interface GoIP_4 Status Interface...

  • Page 15: Status

    GSM Series Voice Gateway GoIP_8 Status Interface The GoIP gateway adopts the tree structure. The menu is on the left and the setting parameters are on the right, as shown in the above figure. You can also access the setting page of the GoIP through the IP address 192.168.2.216 or 192.168.2.172 of the LAN port of the gateway.

  • Page 16: Network Information

    GSM Series Voice Gateway C. Hardware Version It displays the current hardware version of the gateway. D. Line Register Status It displays the login status of the line. When the line has logged into the SIP server or H.323 Gatekeeper, LOGIN is displayed, otherwise, LOGOUT is displayed.

  • Page 17: Language

    GSM Series Voice Gateway User Options of the GoIP User Options of the GoIP_4 GoIP_8 3.3.1 Language To select a language, refresh the page to enter the language page required. For example, the current language is simplified Chinese. If you wish to display the page in English, click “English” in the menu.

  • Page 18: Time Zone And Time Server

    GSM Series Voice Gateway Click “English” on the upper right corner of the setting page. Then, the setting page will display all info in English. But the shortcut will not change the language of the setting page when logged in next time.

  • Page 19: Setting Of The Remote Control

    Click the gateway SN to set the remote gateway. Note: It is a special server, which needs the support of the specific system. For details, please contact the technical support of HYBERTONE Technology. 3.3.6 GSM Group Mode Users can establish a GSM group containing multiple GoIP gateways.
  • Page 20 GSM Series Voice Gateway Each GoIP can operate in any of the following modes: Prohibit: This mode is used when the GoIP operates independently. Serve as the server: When GoIP operates in this mode, the administrator only needs to provide the user with a GSM number of the GoIP as a unique access number to the GoIP group.

  • Page 21: Anonymity Of The Gsm Caller Number

    GSM Series Voice Gateway Serve as the client: When GoIP operates in this mode, it will send its real-time status to the server of the GoIP group, so that the GoIP server can deploy the call forwarding. Server address: It is the IP address of the GoIP gateway of the GoIP group server.
  • Page 22 SMS server address: This is for filling the IP of the SMS server. Please make sure that server is installed with the GoIP SMS management server software independently developed by HYBERTONE Technology (The software can be downloaded from the HYBERTONE website or obtained from our technical personnel).

  • Page 23: Gsm Band

    GSM Series Voice Gateway 3.3.7 GSM Band The GoIP gateway support the GSM/GPRS 900/1800 and 850/1900 bands. 3.3.8 Timing Restart The GoIP gateway restarts at least once at the specified time every day to clear the buffer of the GoIP, so that the GoIP can operate normally.

  • Page 24: Prompt Tone System

    GSM Series Voice Gateway 3.3.11 Prompt Tone System The prompt tones are the combination of the intervals and frequencies of the dialing tones and ring-back tones when users hook off the telephone. You can select the following prompt tones for the GoIP according to the countries and regions where the GoIP is used, so as to remain conventional tones.

  • Page 25: Network Setting

    GSM Series Voice Gateway c1on: the duration when the frequency 1 is on (ms) c1off: the duration when the frequency 1 is off (ms) c2on: the duration when the frequency 2 is on (ms) c2off: the duration when the frequency 2 is off (ms)

  • Page 26: Lan Port Setting

    GSM Series Voice Gateway 3.4.1 LAN Port Setting The LAN port of the GoIP can be set to the dynamic IP through DHCP, fixed IP, and PPPoE dialing. There are three setting modes: A. Dynamic IP (DHCP) This setting is default. If the network for the user provides the DHCP service, the GoIP will require the network information such as IP address from the DHCP server automatically.

  • Page 27: Pc Port Setting

    GSM Series Voice Gateway C. PPPOE PPPoE (Point-to-point protocol over Ethernet) is a network protocol that compresses the PPP in the Ethernet. Select PPPoE dialing, and enter the account and password provided by the network provider. D. 802.1q VLAN When the network serving the user provides the VLAN service, enter the parameter as required.

  • Page 28: Main Dns

    GSM Series Voice Gateway subnet mask (the network section of the IP address should be different from that of the LAN port to prevent conflict). C. Enable the DHCP Service This service can be enabled only when the PC port of the GoIP is set as the fixed IP. To enable the DHCP service, you need to enter the start address and end address.

  • Page 29: Call Setting

    GSM Series Voice Gateway 3.5 Call Setting This section describes the basic setting of the network connection relating to the GoIP gateway, which supports two protocols: H323 and SIP. The setting page is as follows: You can select a protocol in the “Terminal Type”.

  • Page 30: Gatekeeper

    GSM Series Voice Gateway H232 ID is used to verify the account. Users can set this parameter according to the requirements of the service provider. D. Default Voice Gateway This parameter is used to find the proper Gatekeeper or IP address of the equipment of the callee.
  • Page 31 GSM Series Voice Gateway number in the telephony network. For example, 191 is a valid telephone number. Enter the telephone number in this parameter. B. Gateway Prefix When you register through the gateway prefix, enter the prefix number. When the prefix number is called, a dialing tone is heard and then the secondary dialing is required.

  • Page 32: Advance Setting Of The H.323

    GSM Series Voice Gateway G. Enable Authentication (Auth) Click “Enable Authentication” and enter the following parameters when you need to set the H.235 authentication code and password. 3.5.1.3 Advance Setting of the H.323 The advance option of the GoIP involves the signaling and media, corresponding to “Advance Setting”...
  • Page 33 GSM Series Voice Gateway H.245 is the media control protocol of the H.323. It is used to specify the port that receives the H.245 connection (TCP) and used with the router port for mapping. D. Fast Start You can enable or disable the fast start described in the H255.0 protocol. This parameter is used to detect and solve the compatibility problem.

  • Page 34: Sip Phone

    GSM Series Voice Gateway validity of the transmission. G. Signaling QoS Quality of Service (QoS) is a network’s capacity to provide priority services, including the special bandwidth, jitter control and delay (used for real-time and interactive traffic), and improvement of the packet loss ratio.

  • Page 35: Single Server Mode

    GSM Series Voice Gateway 3.5.2.2 Single Server Mode The setting parameters relating to the SIP are as follows: A) Telephone Number This parameter is used to set the telephone number of the line. The telephone number is a unique ID when the gateway serves as the callee.
  • Page 36 GSM Series Voice Gateway The outbound proxy is mainly used in the scenarios where the firewall or NAT exists, so that the signaling and media stream can penetrate the firewall. E) Homing Domain This parameter is used for the domain management host of the SIP (a host that provides the SIP service).

  • Page 37: Setting By Line (Valid For The Goip_4 And Goip_8)

    GSM Series Voice Gateway 3.5.2.3 Setting by Line ( Valid for the GoIP_4 and GoIP_8) GoIP_4 config by line...
  • Page 38 GSM Series Voice Gateway GoIP_8 config by line You need to set parameters for each line and the setting method is the same. The setting parameters are as follows: A) Telephone Number This parameter is used to set the telephone number of the line. The telephone number is an unique ID when the gateway serves as the callee.
  • Page 39 GSM Series Voice Gateway special port (other than the SIP default port 5060), you can add the detailed port number at the end of the IP address or domain name of the proxy server. For example, 192.168.2.26:3000 or hy.con.com:3000.

  • Page 40: Trunk Gateway Mode

    GSM Series Voice Gateway This parameter is used for registration backup. When a backup registration server exists in the user’s system, the user can enable this parameter. When the backup server is enabled, the gateway will automatically log into the backup server in case of the failure of the main server.

  • Page 41: Sip Advance Setting

    GSM Series Voice Gateway When the registration timeout is 0, you cannot register the gateway and the gateway will be connected to the server directly. You can reference the setting parameters of the single server mode to register the gateway.
  • Page 42 GSM Series Voice Gateway C. Timeout Setting E. Signaling QoS Quality of Service (QoS) is a network’s capacity to provide priority services, including the special bandwidth, jitter control and delay (used for real-time and interactive traffic), and improvement of the packet loss ratio.

  • Page 43: Media Advance Setting

    GSM Series Voice Gateway The outband DTMF transmits dialing tones over protocols, such as RFC2833 and SIP INFO, which can ensure the validity of the transmission. G. Registration Mode When the registration information is sent to the platform under Mode 1, “experise” info is included.

  • Page 44: Voice Coding And Sequence

    GSM Series Voice Gateway D. Media QoS Quality of Service (QoS) is a network’s capacity to provide priority services, including the special bandwidth, jitter control and delay (used for real-time and interactive traffic), and improvement of the packet loss ratio. This parameter is used to mark the specified QoS label for the voice packet to increase the network service quality.
  • Page 45 The trunk agent protocol is a firewall traversal technology developed by HYBERTONE Technology. It enables the products of HYBERTONE Technology to be applicable for most LANs. It involves the address of the trunk proxy server, port, user name and password.

  • Page 46: Traversal Of Sip Signaling Over Nat

    C. Trunk Agent The trunk agent protocol is a firewall traversal technology developed by HYBERTONE Technology. It enables the products of HYBERTONE Technology to be applicable for most LANs. It involves the address, port, user name and password. The trunk agent protocol supports encryption on communications over the gateway. This feature...

  • Page 47: Media Nat Traversal

    The trunk agent protocol is a firewall traversal technology developed by HYBERTONE Technology. It enables the products of HYBERTONE Technology to be applicable for most LANs. It involves the address, port, user name and password. The trunk agent protocol supports encryption on communications over the gateway.

  • Page 48: Dialing Rule

    GSM Series Voice Gateway 3.5.7 Dialing Rule The GoIP supports number dialing by rules. You can specify dialing rules in the dialing rule parameter of the “Call Forwarding”. 3.5.7.1 Format of Dialing Rules 1. You can specify multiple rules, which are separated by the delimiter ‘|’. For example, “00:-00|0:-0+86|:+86755”.

  • Page 49: Dialing Rule With Specified Length Of Numbers

    GSM Series Voice Gateway b. The input number is “02083185711” and the output number is “00862083185711”. c. The input number is “83185700” and the output number is “008675583185700”. 4. Rule: “0:|1[3-9]:+0|[2-8]:+0755|:+0755” a. The input number is “076322343318” and the output number is “076322343318”.

  • Page 50: Volume Adjustment

    GSM Series Voice Gateway [1-8]xxxxxxx represent mobile phone numbers 130xxxxxxxx to 139xxxxxxxx, and telephone number 1xxxxxxx to 8xxxxxxx, respectively. Note: When the length of the number is specified, the exceeded numbers will be discarded if the length of the number exceeds the specified length. For example: The rule is “0:|13[0-9]xxxxxxxx:+0|[1-8]xxxxxxx:+0755”.

  • Page 51: Call Forwarding (Setting On The Call Route And Authentication Mode)

    GSM Series Voice Gateway 3.7 Call Forwarding (Setting on the Call Route and Authentication Mode) The gateway provides the call routing function for users, which can be set in the Call Forwarding Setting. The call routing is to forward calls to specified numbers, so that the dialing time can be decreased.

  • Page 52: Password Authentication

    GSM Series Voice Gateway Downlink (VoIP to PSTN) authentication mode Uplink (PSTN to VoIP) authentication mode 3.7.2.1 Password Authentication The setting is as follows: Select “Forward to PSTN Authentication Mode” > “Password Authentication”. Enter the password in “Call PSTN Authentication Password”.

  • Page 53: Password Or Trust List Authentication

    GSM Series Voice Gateway For a uplink call (from the PSTN to the VoIP), the PSTN trust number shall be entered in the trust number sequence. The setting is the same as that of the password authentication. In this mode, the “Call PSTN Dialing Rule/Call VoIP Dialing Rule” parameters are still valid. For details about the setting, see section “Dialing Rule”.
  • Page 54 GSM Series Voice Gateway The parameters are defined as follows: SIM card limit time: This parameter sets the total call duration of SIM cards. When the call duration is longer than the specified time (by minutes), the call can not be connected. When this parameter is null, the default call duration is infinite.

  • Page 55: Sms Mode

    GSM Series Voice Gateway message to 13713652130 (the SIM card ID is 2130 in the reporting message.) to report the remaining call duration. When one-time call duration is longer than 8 minutes, the call will be disconnected. When the call duration is over, it becomes 0. Users can dial the SIM card number by the mobile phone and when the second dialing tone is heard, press *10 to restore the value.
  • Page 56 GSM Series Voice Gateway In this mode, the GoIP sets the SIP number of the GoIP as the calling number of the call and the called number as the short message content and the number of the short message sender, whose format is short message content*the number of the short message sender.
  • Page 57 To: <sip:8675588228822@192.168.2.1> Call-ID: 117025903@192.168.2.237 CSeq: 2 INVITE Contact: <sip: 8613800000000@192.168.2.237:5060> Max-Forwards: 30 User-Agent: HYBERTONE Allow: INVITE, ACK, BYE, CANCEL, OPTIONS, NOTIFY, REFER, REGISTER, MESSAGE, INFO, SUBSCRIBE Content-Type: application/sdp Content-Length: 226 When the user enters an SMS dial prefix, such as 999, the above call request signaling is changed Sending Message to 192.168.2.1:5060:...
  • Page 58 GSM Series Voice Gateway Max-Forwards: 30 User-Agent: HYBERTONE Allow: INVITE, ACK, BYE, CANCEL, OPTIONS, NOTIFY, REFER, REGISTER, MESSAGE, INFO, SUBSCRIBE Content-Type: application/sdp Content-Length: 226 Mode 2: When a short message of “8675588228822” is sent from the mobile phone number (+86)13800000000 to the GoIP, the GoIP will send the following call requests.
  • Page 59 GSM Series Voice Gateway Max-Forwards: 30 User-Agent: HYBERTONE Allow: INVITE, ACK, BYE, CANCEL, OPTIONS, NOTIFY, REFER, REGISTER, MESSAGE, INFO, SUBSCRIBE Content-Type: application/sdp Content-Length: 226 Mode 3: a short message of “8675588228822” is sent from the mobile phone number When (+86)13800000000 to the GoIP, the GoIP will send the following call requests.

  • Page 60: Sms Dialing Under The H.323 Protocol

    GSM Series Voice Gateway Max-Forwards: 30 User-Agent:HYBERTONE Allow: INVITE, ACK, BYE, CANCEL, OPTIONS, NOTIFY, REFER, REGISTER, MESSAGE, INFO, SUBSCRIBE Content-Type: application/sdp Content-Length: 226 3.9.2 SMS Dialing under the H.323 Protocol The GoIP permits users to dial back through the SMS under the H.323 protocol. After users send the called number to the GoIP through the SMS, the GoIP gateway will send a call request to the H.323 GK automatically.
  • Page 61 GSM Series Voice Gateway When the GoIP initiates the SMS call, the GoIP will change the prefix number to the called number prefix. Examples of SMS Dialing: In the following SMS dialing examples, the H.323 number of the GoIP is set as follows: Mode 2: When a short message of “8675588228822”...
  • Page 62 GSM Series Voice Gateway endpointIdentifier = "3705_endp" destinationInfo = 1 elements { [0] = dialedDigits "8675588228822" srcInfo = 2 elements { [0] = dialedDigits "20001" [1] = h323-ID "20001" srcCallSignalAddress = ipAddress { ip = 4 octets { c0 a8 02 ed ..
  • Page 63 GSM Series Voice Gateway cb 40 a4 af 8e 9b 60 96 6b 5f a0 03 f2 ed 55 5b .@..`.k_..U[ gatekeeperIdentifier = "GnuGk" willSupplyUUIEs = FALSE When the user enters an SMS dial prefix, such as 999, the above call request signaling is changed...

  • Page 64: Sms Forwarding

    GSM Series Voice Gateway c0 a8 02 ed ..port = 2049 bandWidth = 2048 callReferenceValue = 7502 conferenceID = 16 octets { 7f f3 78 77 49 3f 4c c1 9a dc 6a 84 12 d8 30 8f ..xwI?L...j...0.
  • Page 65 From: <sip:20001@192.168.2.1>;tag=667435795 To: <sip:3999@192.168.2.1> Call-ID: 2094144847@192.168.2.162 CSeq: 4 MESSAGE Contact: <sip:20001@192.168.2.162:5060> Max-Forwards: 30 User-Agent: HYBERTONE Content-Type: text/plain Content-Length: 8613682626865 075583185700 2. The SMS sent to the GoIP from the SIP is forwarded to the specified PSTN number. The following example is about the Hello world sent from SIP 3999 to 13682626800.

  • Page 66: Transparent Transmission Of Pstn Caller Numbers

    GSM Series Voice Gateway From: <sip:3999@192.168.2.89>;tag=5031 To: <sip:20001@192.168.2.1> Call-ID: 808807EB-A8B3-DD11-BBA6-005056C00008@192.168.2.89 CSeq: 3 MESSAGE Contact: <sip:3999@192.168.2.89> max-forwards: 16 date: Tue, 18 Nov 2008 06:36:37 GMT user-agent: SIPPER for 3CX Phone p-hint: usrloc applied Content-Type: text/plain Content-Length: 13682626800 Hello world Note: The SMS forwarding mode of the GoIP is only functional under the SIP protocol.

  • Page 67: Save The Change

    GSM Series Voice Gateway l Disable: It’s not allowed to transfer the PSTN caller number to the VoIP system; l Enable: The CID is set as the SIP caller number. l Use Remote Party ID: The GoIP will add the PSTN caller number to the call request signaling of the VoIP system.

  • Page 68: Abandon The Change

    GSM Series Voice Gateway Note: Some of parameters of the gateway will not be valid until the gateway is restarted. Therefore, you are advised to restart the gateway after the parameters are modified, so that the modification can take effect.

  • Page 69: Modification Of Password

    GSM Series Voice Gateway Note: During the upgrading, do not cut off the power. Otherwise, the GoIP will be damaged. 3.13.2 Modification of Password You can modify the password of the user and administrator. Select Tool > Modify Password. The password modification page is displayed, as shown in the following figure.

  • Page 70: Reset

    GSM Series Voice Gateway 3.13.4 Reset Select Tool > Reset to restart the GoIP. 4 Parameters of Equipment Hardware Feature Parameter Parameter Remark Model GOIP GOIP_4 Customizable Processor ARM9E 133MHz ARM9E 133MHz VPDSP101 95MHz VPDSP101 95MHz 2 pieces FLASH...
  • Page 71 GSM Series Voice Gateway Operating 0-40℃ 0-40℃ temperature Operating humidity 40%-90% Not Congealed 40%-90% Not Congealed Color Blue Gray VoIP channel GSM channel...
  • Page 72 GSM Series Voice Gateway Hardware Feature Parameter Remark Model GoIP_8 Customizable Processor ARM9E 133MHz VPDSP101 95MHz 2 pieces FLASH Power DC12V/3A +-10% Input 100V to 240V GSM band Default 900M/1800M Default Optional Customized 850M/1900M Power consumption Max. 20 W...

  • Page 73: Factory Default Parameter Table

    GSM Series Voice Gateway 5 Factory Default Parameter Table Parameter Default Value Dynamic IP (DHCP) Network Fixed IP: 192.168.8.1 admin admin Password user 1234 Default time zone GMT+8...
